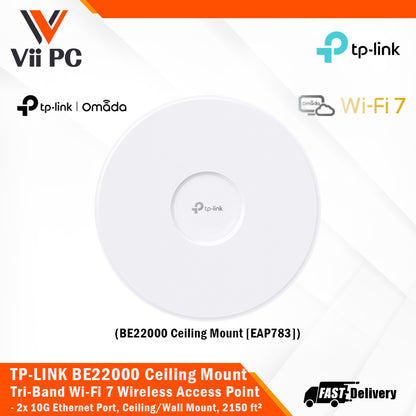

TP-LINK EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point 2x 10G Port

TP-LINK EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point 2x 10G Port

Regular price $1,109.00 SGD
Regular price Sale price $1,109.00 SGD
Sale Sold out

TP-LINK BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point 2x 10G ( EAP783 )

Bluetooth, 2× 10G Ethernet Port, Ceiling / Wall Mounting, OMADA APP



  • BE22000 Tri-Band Wi-Fi 7: 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz). Buffering will no longer be a problem.
  • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
  • 2× 10G Port: Unlock the full potential of Wi-Fi 7.
  • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
  • Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
  • Advanced Functions: Supports centralized management, mesh, and seamless roaming.


SPECIFICATIONS

GENERAL

WEIGHT: Net Weight: 1384.6g

HARDWARE FEATURES

INTERFACE: 2× 10G Ethernet Port

BUTTON: Reset

POWER SUPPLY: 802.3bt PoE++ or 12V DC

POWER CONSUMPTION: 39W

DIMENSIONS ( W x D x H ): 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm)

ANTENNA TYPE

Internal Omni

• 2.4 GHz: 4× 4 dBi

• 5 GHz: 4× 5.5 dBi

• 6 GHz: 4× 5 dBi

BLUETOOTH: Yes

MOUNTING: Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

COVERAGE: 200㎡ (2150 ft²) §

CONCURRENT CLIENTS: 640**

WIRELESS STANDARDS: IEEE 802.11 a/b/g/n/ac/ax/be

FREQUENCY: 6 GHz, 5 GHz, and 2.4 GHz

SIGNAL RATE

• 6 GHz: Up to 11520 Mbps

• 5 GHz: Up to 8640 Mbps

• 2.4 GHz: Up to 1376 Mbps

WIRELESS FUNCTIONS

• MLO

• 4K-QAM

• MU-MIMO

• HE320

• Mesh

• Automatic Channel Selection and Power Adjustment

• BBS Coloring

• OFDMA

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS

• Wireless Schedule

• Reboot Schedule

WIRELESS SECURITY

• PPSK

• Captive Portal Authentication

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER

• FCC:

<28 dBm (2.4 GHz)

<28 dBm (5 GHz)

<24 dBm (5 GHz)

<28 dBm (6 GHz)

MANAGEMENT

OMADA APP: Yes

RESTORE & BACKUP: Yes

FIRMWARE UPDATE via WEB: Yes

NTP: Yes

CENTRALIZED MANAGEMENT

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SSH: Yes

WEB-BASED MANAGEMENT: Yes

OTHERS

CERTIFICATION: CE, FCC, RoHS, IC

PACKAGE CONTENTS

• EAP783

• Installation Guide

• Ceiling/Wall Mounting Kits

ENVIRONMENT

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing

IN THE BOX :
