TP-LINK EAP772 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point 1× 2.5G Port

TP-LINK EAP772 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point 1× 2.5G Port

$499.00 SGD
$499.00 SGD
Sale Sold out

TP-LINK BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Wireless Access Point 1× 2.5G Port (EAP772)

1 × 4.0 dBi, Bluetooth 5.2, 1× 2.5G Ethernet Port, Ceiling / Wall Mounting (Kits Included)



  • BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
  • 1× 2.5G Port: Unlock the full potential of Wi-Fi 7.
  • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
  • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
  • Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.‡
  • Advanced Functions: Supports centralized management, mesh, and AI roaming.


SPECIFICATIONS

HARDWARE FEATURES

INTERFACE: 1× 2.5G Ethernet Port

BUTTON: Reset

POWER SUPPLY: 802.3bt PoE or 12V/2.5A DC

POWER CONSUMPTION

• 25.44 W (For PoE);

• 22.57 W (For DC)

DIMENSIONS ( W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

ANTENNA TYPE

• 2.4 GHz: 2× 3.0 dBi

• 5 GHz: 2× 3.0 dBi

• 6 GHz: 2× 3.0 dBi

BLUETOOTH: 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required.

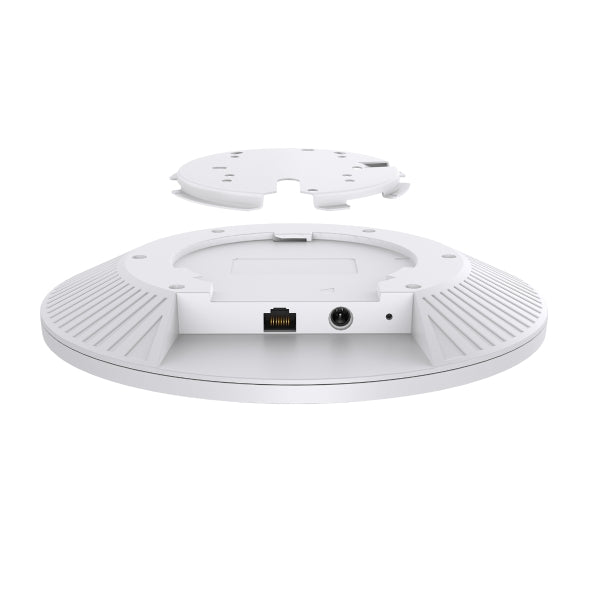

MOUNTING: Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

WIRELESS CLIENT CAPACITY

• 2 GHz: 128

• 5 GHz: 128

• 6 GHz: 128

WIRELESS STANDARDS: IEEE 802.11 a/b/g/n/ac/ax/be

FREQUENCY: 6 GHz, 5 GHz, and 2.4 GHz

SIGNAL RATE: 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)

WIRELESS FUNCTIONS

• MLO‡

• 4K-QAM‡

• MU-MIMO‡

• HE320‡

• Mesh△

• BBS Coloring‡

• OFDMA‡

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDS:24(8 on each band)

• Wireless Schedule

• Reboot Schedule

• QoS(WMM)

• Rate Limit

• Static IP/Dynamic IP

• RADIUS Accounting

• MAC Authentication

WIRELESS SECURITY

• Captive Portal Authentication△

• Access Control

• Maximum number of MAC Filter: 4,000

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER

< 25 dBm (2.4 GHz)

< 25 dBm (5 GHz)

< 23 dBm (6 GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Yes

WEB-BASED MANAGEMENT: Yes

OTHERS

CERTIFICATION: CE, FCC, RoHS, IC

PACKAGE CONTENTS

• EAP772

• Installation Guide

• Ceiling/Wall Mounting Kits

Note: Power Adapter is NOT included.

ENVIRONMENT

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing;
