TP-LINK EAP683 LR AX6000 Ceiling Mount Dual-Band Wi-Fi 6 Wireless Access Point 1× 2.5G PoE + Port

TP-LINK AX6000 Ceiling Mount Dual-Band WiFi 6 Wireless Access Point (EAP683 LR)



• Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5GHz†
• Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.‡
• Integrates with the Omada SDN platform for centralized management.
• Advanced Features: Omada Mesh, Seamless Roaming, and more.§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).

SPECIFICATIONS

HARDWARE FEATURES

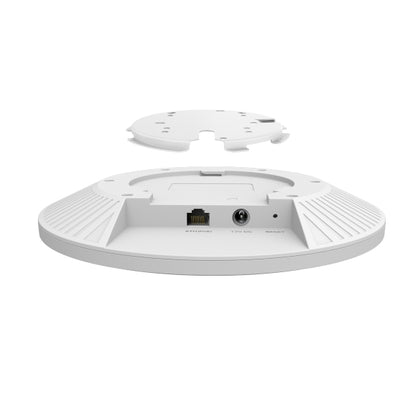

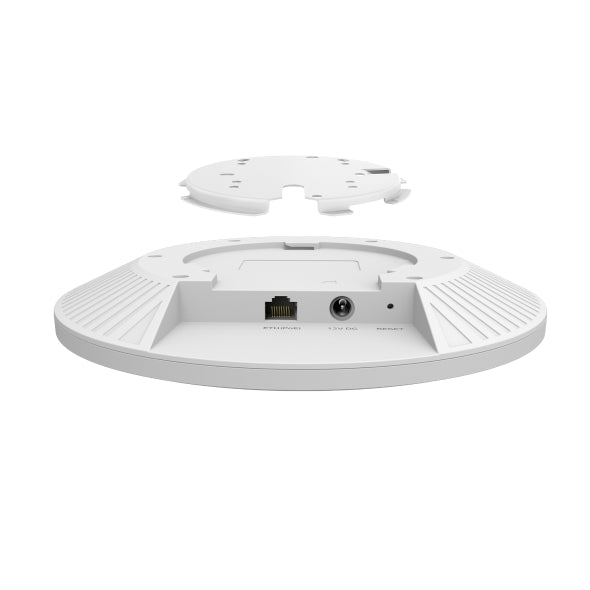

INTERFACE: 1× 2.5 Gigabit PoE+ Port

BUTTON: Reset

POWER SUPPLY

• 802.3at PoE

• 12V / 2A DC

Note: Power adapter is not included

POWER CONSUMPTION: 20.43 W

DIMENSIONS(W x D x H): 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

ANTENNA TYPE

Internal Omni:

• 2.4 GHz: 4× 4dBi

• 5 GHz: 4× 5dBi

BLUETOOTH: V5.2

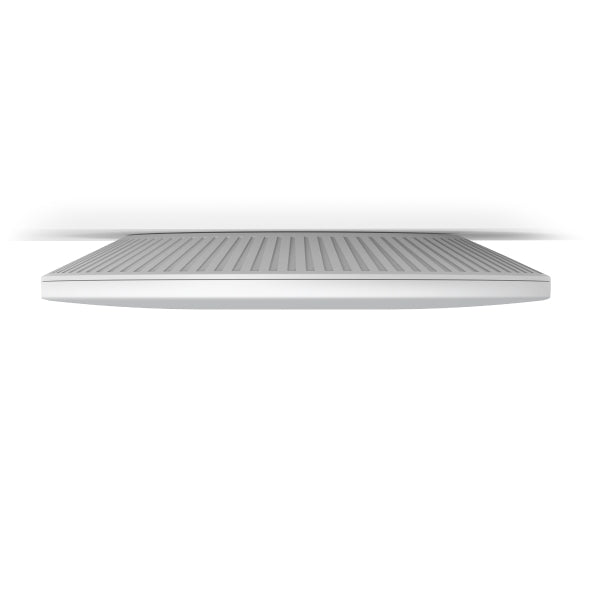

MOUNTING: Ceiling/Wall Mounting (Kits included)

WIRELESS FEATURES

COVERAGE: 185㎡(2000ft²)***

CONCURRENT CLIENTS: 512**

WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 4804 Mbps

• 2.4 GHz: Up to 1148 Mbps

WIRELESS FUNCTIONS

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• HE160 (160 MHz Bandwidth)‡

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY:

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, band1 & band2, EIRP)

<28 dBm(5 GHz, band3, EIRP)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT:

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

CLOUD ACCESS: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Require the use of Omada Cloud-Based Controller.

OTHERS

CERTIFICATION: CE, RoHS

PACKAGE CONTENTS:

• EAP683 LR

• Ceiling/Wall Mounting Kits

• Installation Guide

SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

§Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Go to /us/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to /us/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.

**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

△Use of Omada Cloud-Based Controller may incur device license fees.
