TP-LINK EAP650-Wall AX3000 Wall Plate Wi-Fi 6 Wireless Access Point Cloud Access, Omada App, PoE Access Point, 2G Port

TP-LINK EAP650-Wall AX3000 Wall Plate Wi-Fi 6 Wireless Access Point Cloud Access, Omada App, PoE Access Point, 2G Port

$172.00 SGD
$172.00 SGD
Sale Sold out

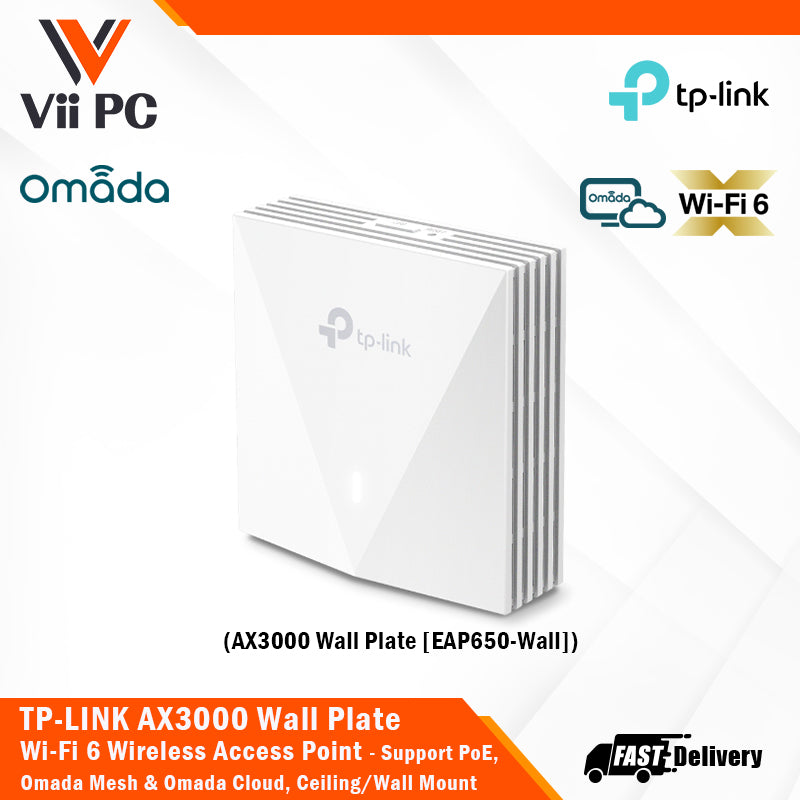

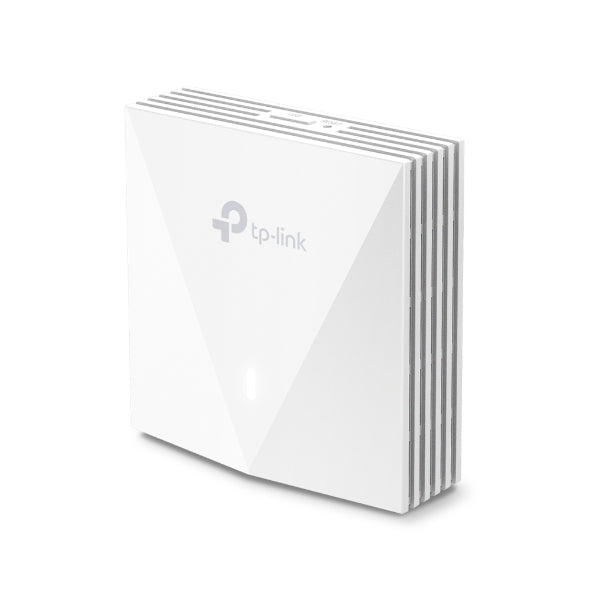

TP-LINK EAP650-Wall AX3000 Wall Plate Wi-Fi 6 Wireless Access Point

Cloud Access, Omada App, PoE Access Point, 2G Port



  • Blazing-Fast AX3000 WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
  • Higher Network Efficiency: Deliver data to more devices at the same time with less lag.‡
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
  • Gigabit Port: Connect wired devices with one downlink gigabit port.

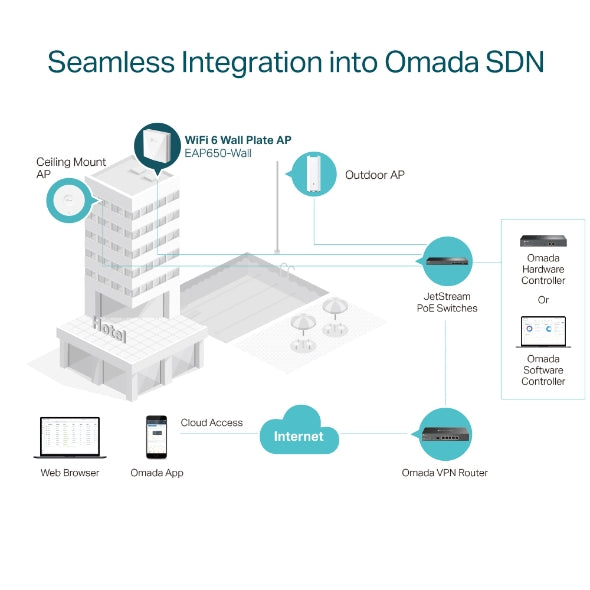

  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies.§

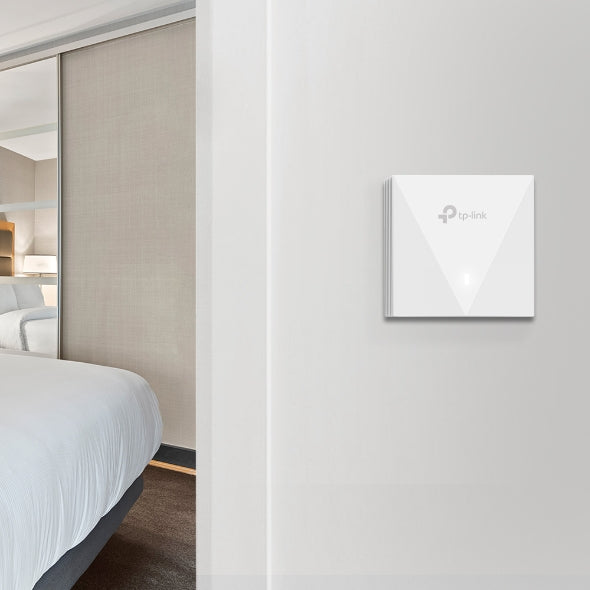

  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU standard junction box, and 802.3af/at PoE support.



SPECIFICATIONS

HARDWARE FEATURES

INTERFACE

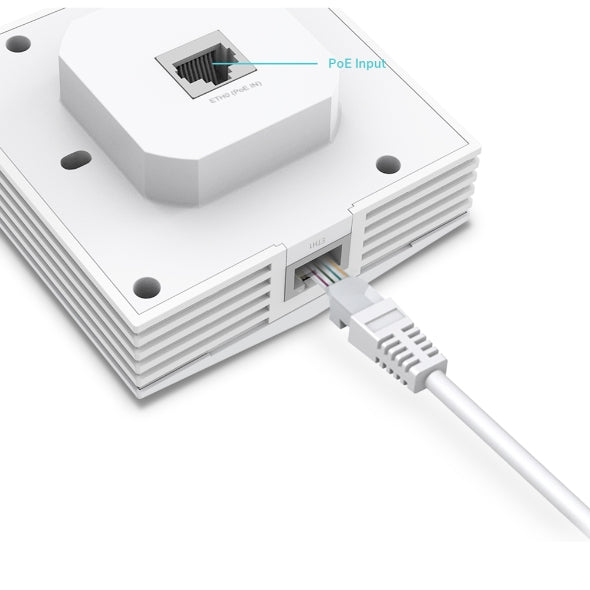

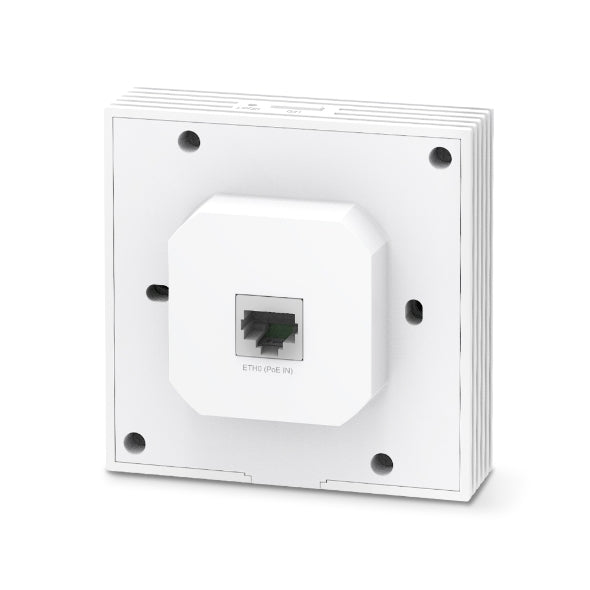

• Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 1× 10/100/1000 Mbps Ethernet Port

PHYSICAL SECURITY LOCK: No

BUTTON: Reset, LED

POWER SUPPLY: 802.3af/at PoE

POWER CONSUMPTIONS: EU: 11.5 W

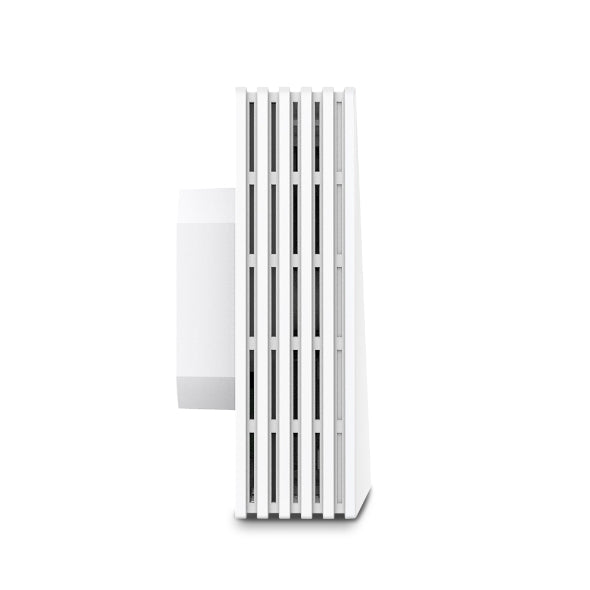

DIMENSIONS: 86 × 86 × 42.6 mm (3.4 × 3.4 × 1.7 in)

ANTENNA

2 Dual-Band Antennas

• 2.4 GHz: 2× 3 dBi

• 5 GHz: 2× 5 dBi

MOUNTING: Wall Plate Mounting (Kits included)

WIRELESS FEATURES

WIRELESS CLIENT CAPACITY: 100+**

CONCURRENT CLIENTS: 100+

WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 2402 Mbps

• 2.4 GHz: Up to 574 Mbps



TRANSMIT POWER

• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

WIRELESS FUNCTIONS

• 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming§

• Beamforming

• Rate Limit

• Load Balance

• Airtime Fairness

• Band Steering

• Reboot Schedule

• Wireless Schedule

• RADIUS Accounting

• MAC Authentication

• Wireless Statistics

• Static IP/Dynamic IP

WIRELESS SECURITY

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• VLAN

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER

• CE:

<20 dBm (2.4GHz, EIRP)

<22 dBm (5GHz band1 & 2, EIRP)

<22 dBm (5GHz band3, EIRP)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

CLOUD ACCESS: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

CERTIFICATION: CE, RoHS

PACKAGE CONTENTS

• AX3000 Wall Plate WiFi 6 Access Point EAP650-Wall

• Installation Guide

• Mounting Kits

SYSTEM REQUIERMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of WiFi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.

§Omada Mesh, Seamless Roaming, and Captive Portal require Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.

*Zero-Touch Provisioning and Auto Channel Selection and Power Adjustment require the use of Omada Cloud-Based Controller. Go to https://www.tp-link.com/en/omada-cloud-based-controller/product-list/ to confirm which models are compatible with Omada Cloud-Based Controller.
