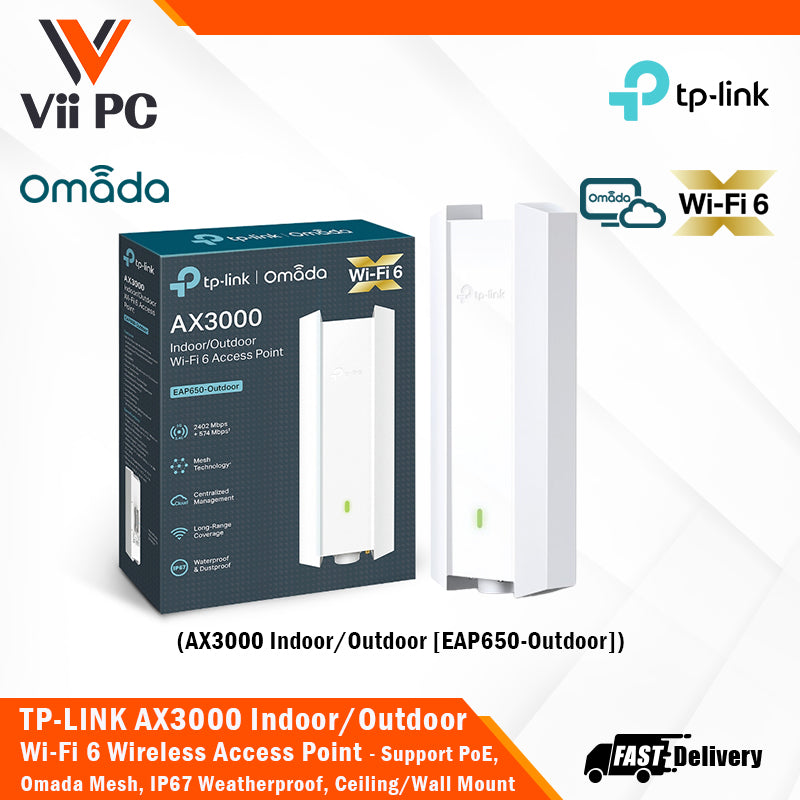

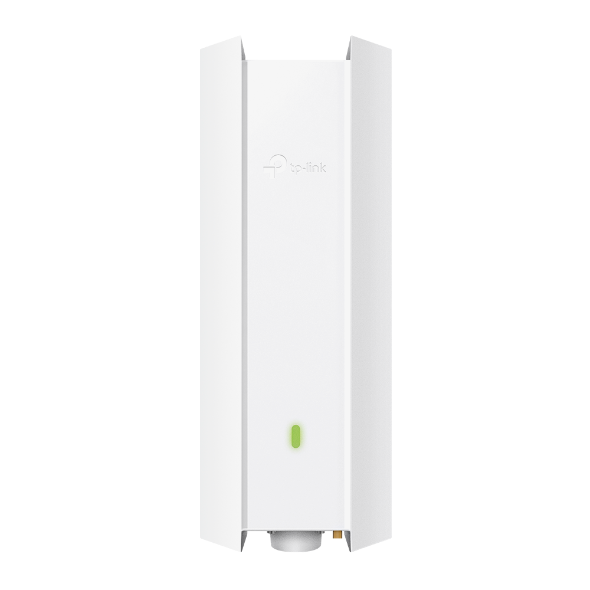

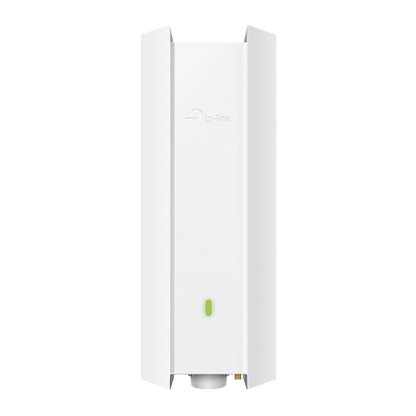

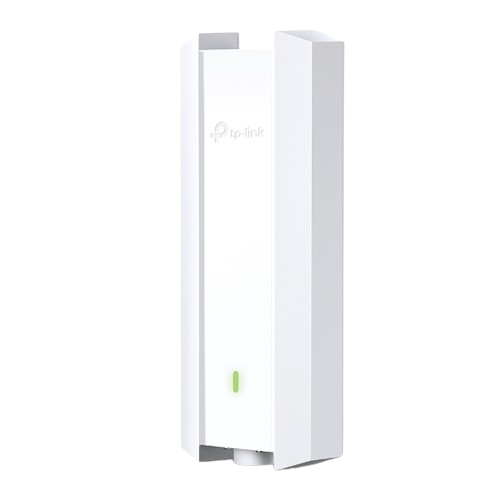

TP-LINK EAP650-Outdoor AX3000 Indoor/Outdoor Wi-Fi 6 Wireless Access Point Omada Mesh, Dedicated High-Power Amplifier and Professional Antennas with IP67 Weatherproof Enclosure

TP-LINK EAP650-Outdoor AX3000 Indoor/Outdoor Wi-Fi 6 Wireless Access Point Omada Mesh, Dedicated High-Power Amplifier and Professional Antennas with IP67 Weatherproof Enclosure

Regular price $255.00 SGD
Regular price Sale price $255.00 SGD
Sale Sold out

TP-LINK EAP650-Outdoor AX3000 Indoor/Outdoor Wi-Fi 6 Wireless Access Point

Omada Mesh, Dedicated High-Power Amplifier and Professional Antennas with IP67 Weatherproof Enclosure



  • Superior WiFi 6 Speeds: Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.1
  • Higher Network Efficiency: Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
  • 160 MHz Bandwidth Channel: Double the data at peak transmission times on a single stream with HE160.2

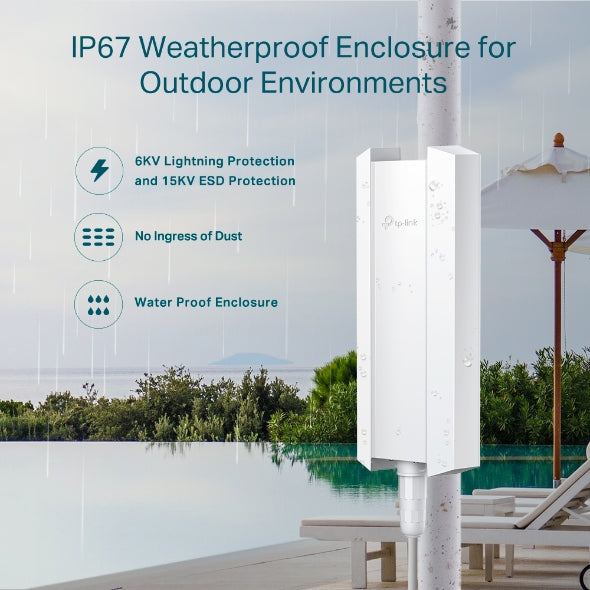

  • Long-Range Coverage: Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
  • Omada Mesh Technology: Enables wireless connectivity between access points for extended range and flexible deployment.3
  • Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.3
  • PoE Powered: Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.

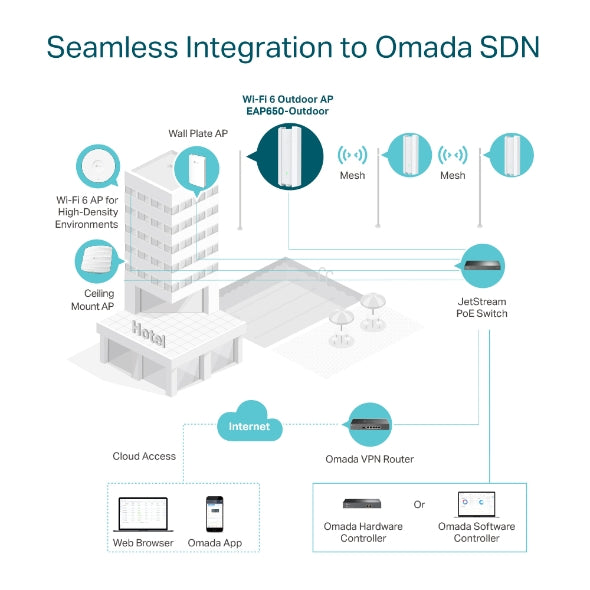

  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.3



SPECIFICATIONS

HARDWARE FEATURES

INTERFACE: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)

BUTTON: Reset

POWER SUPPLY

• 802.3at PoE

• 48V Passive PoE (PoE Adapter Included)

POWER CONSUMPTION

• EU: 12.5W (802.3at PoE or Passive PoE)

• US: 14.7W (802.3at PoE or Passive PoE)

DIMENSIONS ( W x D x H ): 280.4×106.5×56.8 mm (without antenna & mounting kit)

ANTENNA TYPE

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

WEATHERPROOF ENCLOSURE: IP67

MOUNTING: Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

WIRELESS CLIENT CAPACITY: 250+6

CONCURRENT CLIENTS: 250+6

WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a

FREQUENCY: 2.4 GHz, 5 GHz

SIGNAL RATE

• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)

• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to

2 VHT20/40/80)

• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

• 802.11b: 1, 2, 5.5, 11 Mbps

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

TRANSMIT POWER

• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

WIRELESS FUNCTIONS

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS (WMM)

• MU-MIMO

• Omada Mesh3

• Seamless Roaming3

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

 Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY

• Captive Portal Authentication3

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes, through

• Omada Cloud-Based Controller

• OC300

• OC200

• Omada Software Controller

EMAIL ALERTS: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Yes

SSH: Yes

WEB-BASED MANAGEMENT: Yes

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

CERTIFICATION: CE, FCC, RoHS

PACKAGE CONTENTS

• Access Point EAP650-Outdoor

• Passive PoE Adapter

• Power Cord

• Mounting Kits

• Installation Guide

SYSTEM REQUIERMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

ENVIRONMENT

• Operating Temperature: -30–70 ℃ (-22–158 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

1. Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection quality, and client condition.

2. Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

3. Omada Mesh, Seamless Roaming, Cloud Access, and Captive Portal require the use of Omada SDN controllers. Go to Omada Mesh Product List to find all the models supported by Omada mesh technology and refer to the User Guides of Omada SDN controllers for configuration methods.

4. Based on field tests. The number listed here is the maximum distance one EAP650-Outdoor can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.

5. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Note that EAP650-Outdoor v1.0 doesn't support the Omada Cloud-Based Controller. Please go to www.tp-link.com/omada-cloud-based-controller/product-list to confirm which models are compatible with the Omada Cloud-Based Controller.

6. The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
