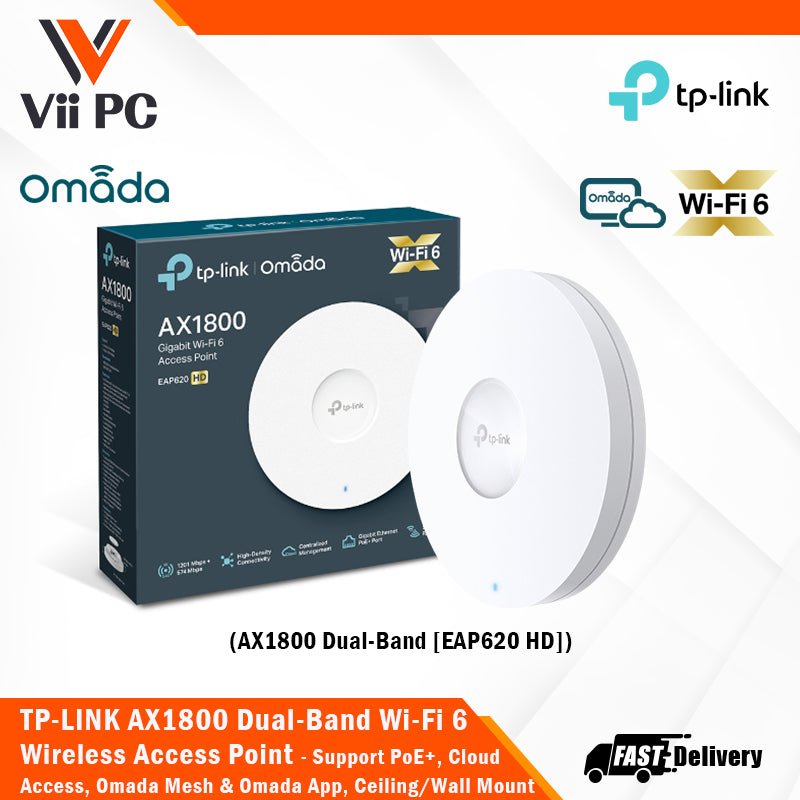

TP-LINK EAP620 HD AX1800 Wi-Fi 6 Wireless Dual Band Ceiling Mount Access Point Omada Mesh, High-Density Deployment, OFDMA, Seamless Roaming, MU-MIMO, SDN Integrated, Cloud Access & Omada App

TP-LINK EAP620 HD AX1800 Wi-Fi 6 Wireless Dual Band Ceiling Mount Access Point Omada Mesh, High-Density Deployment, OFDMA, Seamless Roaming, MU-MIMO, SDN Integrated, Cloud Access & Omada App

$275.00 SGD
$275.00 SGD
Sale Sold out

TP-LINK EAP620 HD AX1800 Wi-Fi 6 Wireless Dual Band Ceiling Mount Access Point

Omada Mesh, High-Density Deployment, OFDMA, Seamless Roaming, MU-MIMO, SDN Integrated, Cloud Access & Omada App



  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.‡
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.△
  • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.



SPECIFICATIONS

HARDWARE FEATURES

INTERFACE: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

BUTTON: Reset

POWER SUPPLY

• 802.3at PoE

• 12 V DC

POWER CONSUMPTION

• EU: 12 W

• US: 13.5 W

DIMENSIONS ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

ANTENNA TYPE

Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

MOUNTING: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

WIRELESS FUNCTIONS

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY

• Captive Portal Authentication

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER

• CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, EIRP)

• FCC:

<25 dBm(2.4 GHz)

<25 dBm(5 GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

OTHERS

CERTIFICATION: CE, FCC, RoHS

PACKAGE CONTENTS

• EAP620 HD

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

SYSTEM REQUIERMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡4× Increased Capacity refers to increase in median throughput under dense environment compared to standard 4×4 11ac access point.

§Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.

△Seamless Roaming requires that clients need to support 802.11k/v and may require additional set up. Performance may vary depending on the client device.

*Use of OFDMA requires clients to also support OFDMA.

**UL MU-MIMO features can be enabled by software updates.
