TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Wireless Dual-Band Access Point 4G Ports(1× uplink + 3× downlink),Cloud Access, Omada App, Seamless Roaming

TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Wireless Dual-Band Access Point 4G Ports(1× uplink + 3× downlink),Cloud Access, Omada App, Seamless Roaming

$161.00 SGD
$161.00 SGD
Sale Sold out

TP-LINK EAP615-Wall AX1800 Wall Plate Wi-Fi 6 Wireless Dual-Band Access Point

4G Ports(1× uplink + 3× downlink),Cloud Access, Omada App, Seamless Roaming



  • Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**
  • High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

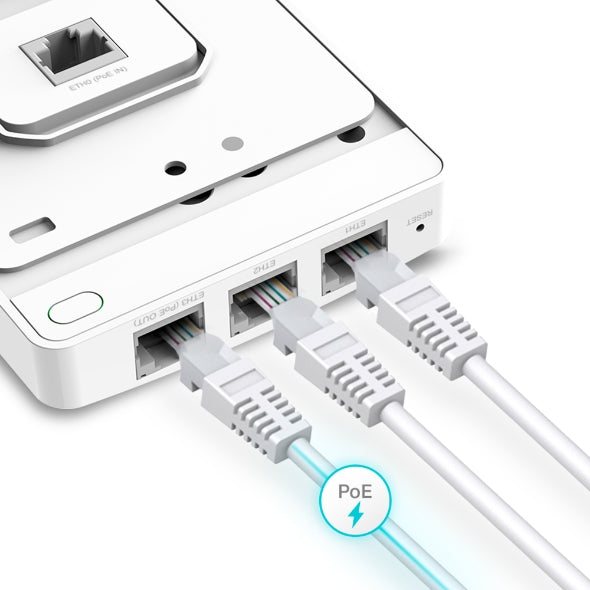

  • Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.‡
  • Centralized Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.†
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.



SPECIFICATIONS

HARDWARE FEATURES

INTERFACE:

• Uplink: 1× 10/100/1000 Mbps Ethernet Port

• Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 13W (EU version) or 12W (US version), based on laboratory testing.)

PHYSICAL SECURITY LOCK: Yes

BUTTON: Reset

POWER SUPPLY: 802.3af/at PoE

POWER CONSUMPTION

• EU: 10W (802.3at PoE, PoE Out off)

• US: 11.5W (802.3at PoE, PoE Out off)

DIMENSIONS ( W x D x H ): 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

ANTENNA TYPE

2 Dual-Band Antennas

• 2.4 GHz: 2× 3 dBi

• 5 GHz: 2× 4 dBi

MOUNTING: Wall Plate Mounting

WIRELESS FEATURES

COVERAGE: 50㎡(600 ft²)△

WIRELESS CLIENT CAPACITY: 100+△

CONCURRENT CLIENTS: 120+△

WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

WIRELESS FUNCTION

• 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• Seamless Roaming†

• Beamforming

• MU-MIMO

• Rate Limit

• Load Balance

• Airtime Fairness

• Band Steering

• Reboot Schedule

• Wireless Schedule

• RADIUS Accounting

• MAC Authentication

• Wireless Statistics

• Static IP/Dynamic IP

WIRELESS SECURITY

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER

• CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, EIRP)

• FCC:

<25 dBm (2.4 GHz)

<25 dBm (5 GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes (Through OC300, OC200, or Omada Software Controller)

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)

OTHERS

CERTIFICATION: CE, FCC, RoHS

PACKAGE CONTENTS

• EAP610

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

*Use of WiFi 6 (802.11ax) and features including OFDMA and MU-MIMO requires client devices to support the corresponding features.

**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary due to factors including network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

†Seamless roaming may require upgrading the firmware. The use of Omada Mesh and Seamless Roaming, and Captive Portal require Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.

‡PoE pass-through is only available when 802.3at powers the device. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing. Actual power delivered to the device may vary.
