HARDWARE FEATURES
INTERFACE:

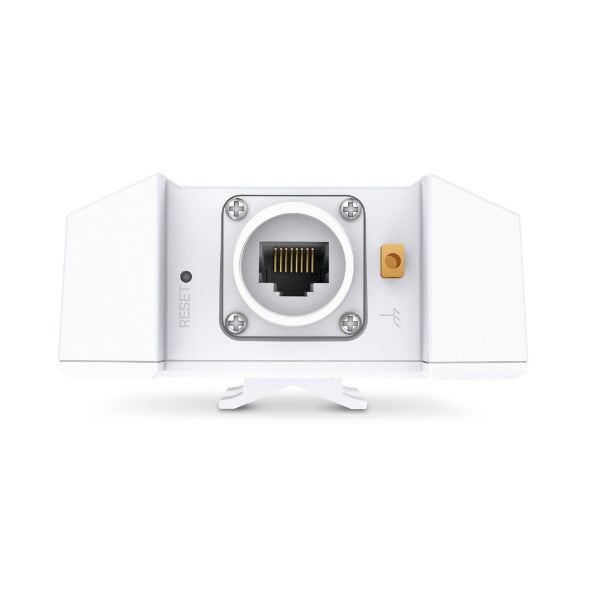

1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
BUTTON: Reset
POWER SUPPLY
• 802.3at PoE
• 48V/0.5A Passive PoE (PoE Adapter Included)
POWER CONSUMPTION
• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE)
DIMENSIONS ( W x D x H ): 280.4×106.5×56.8 mm (without antenna & mounting kit)
ANTENNA
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi

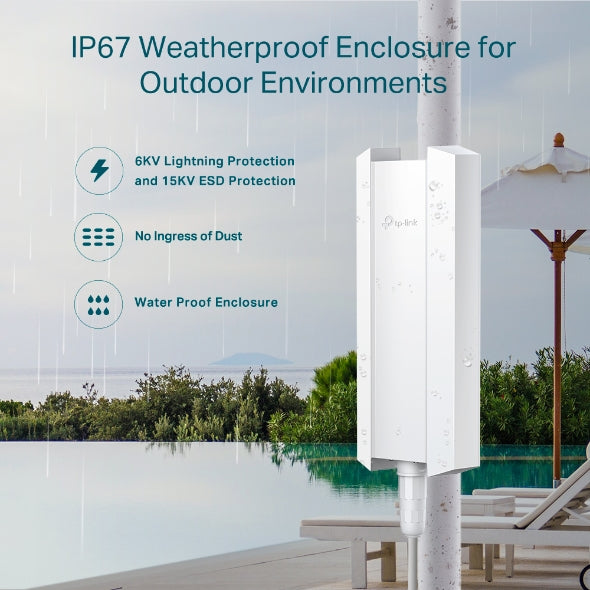

WEATHERPROOF ENCLOSURE: IP67

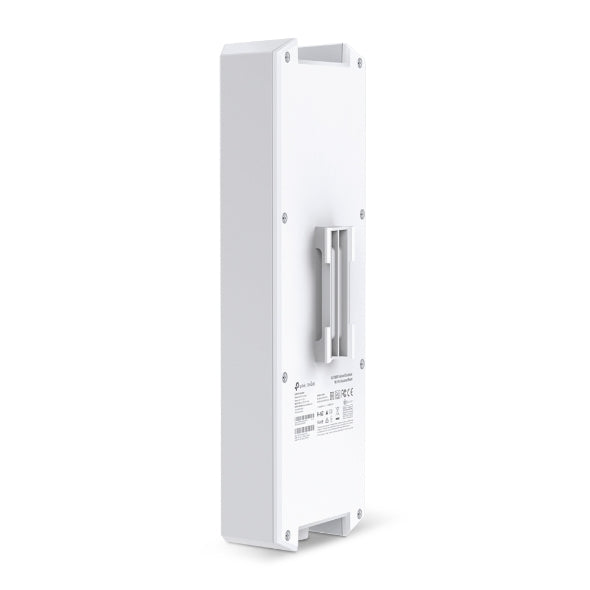

MOUNTING: Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
WIRELESS CLIENT CAPACITY: 250+△
WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a
FREQUENCY: 2.4 GHz, 5 GHz
SIGNAL RATE
• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
TRANSMIT POWER
• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
WIRELESS FUNCTIONS
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO

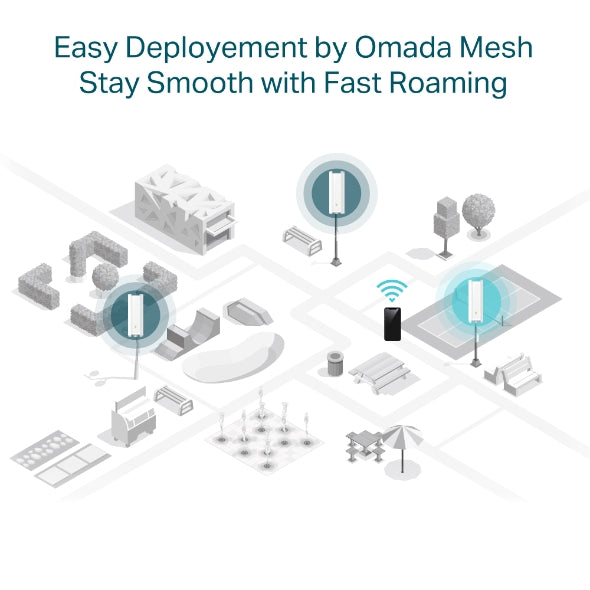

• Omada Mesh**
• Seamless Roaming**
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
WIRELESS SECURITY
• Captive Portal Authentication**
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
MANAGEMENT
OMADA APP: Yes

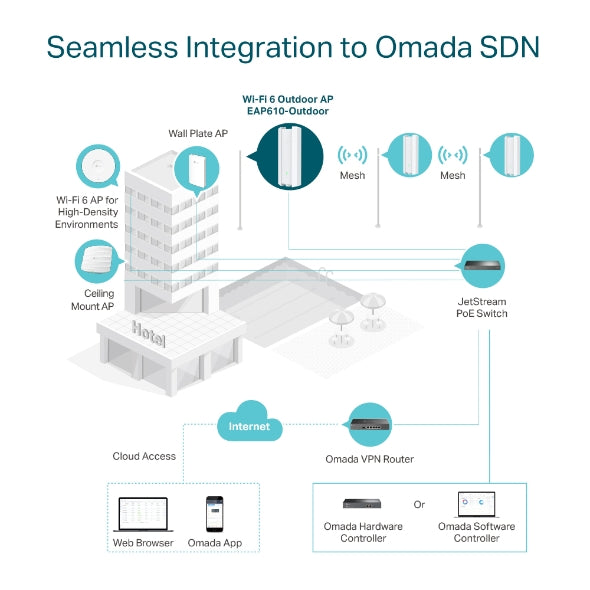

CENTRALIZED MANAGEMENT
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
CLOUD ACCESS: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
EMAIL ALERTS: Yes
MANAGEMENT MAC ACCESS CONTROL: Yes
SNMP: v1, v2c
SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Yes
SSH: Yes
WEB-BASED MANAGEMENT: Yes
L3 MANAGEMENT: Yes
MULTI-SITE MANAGEMENT: Yes
MANAGEMENT VLAN: Yes
OTHERS
CERTIFICATION: CE, FCC, RoHS
PACKAGE CONTENTS

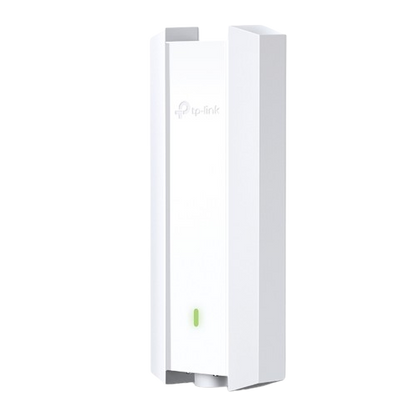

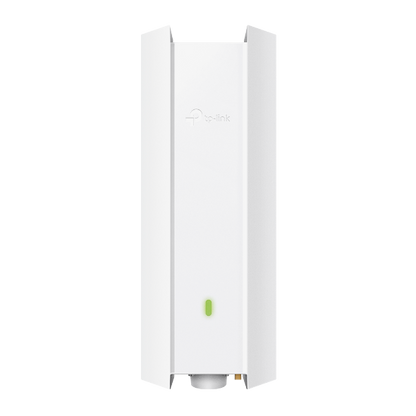

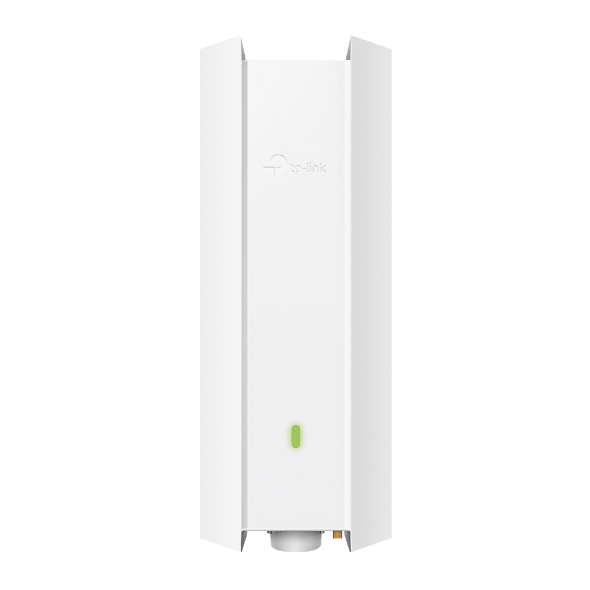

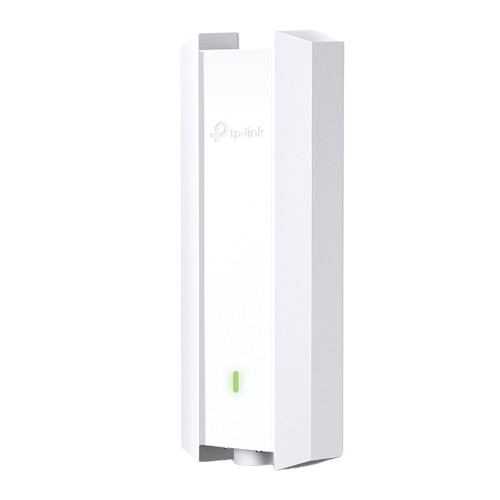

• Access Point EAP610-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Waterproof Kits
• Waterproof Antenna
• Installation Guide
SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
ENVIRONMENT
• Operating Temperature: -30–70 ℃ (-22–158 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
*Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/omada-cloud-based-controller/product-list to confirm which models are compatible with Omada Cloud-Based Controller.
**Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please refer to the User Guides of Omada SDN controllers for configuration methods.
