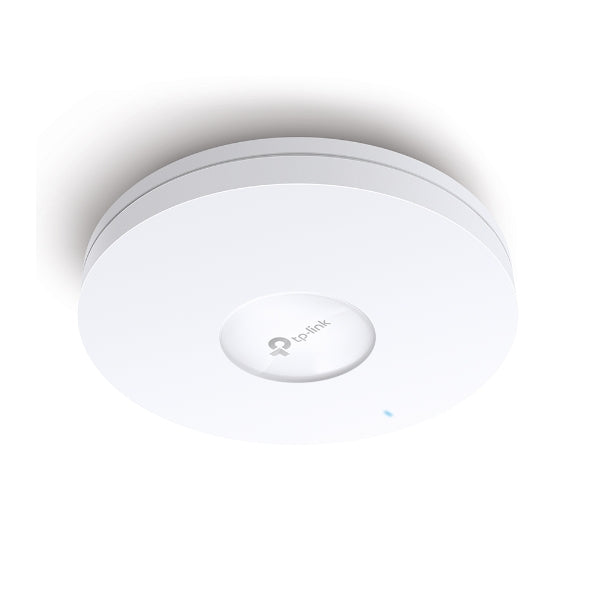

TP-LINK EAP610 AX1800 Wi-Fi 6 Wireless Dual Band Ceiling Mount Access Point Omada Mesh, PoE+ Powered, Cloud Access, Omada App, Seamless Roaming

TP-LINK EAP610 AX1800 Wi-Fi 6 Wireless Dual Band Ceiling Mount Access Point Omada Mesh, PoE+ Powered, Cloud Access, Omada App, Seamless Roaming

$161.00 SGD
$161.00 SGD
Sale Sold out

TP-LINK EAP610 AX1800 Wi-Fi 6 Wireless Dual Band Ceiling Mount Access Point

Omada Mesh, PoE+ Powered, Cloud Access, Omada App, Seamless Roaming



  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§


SPECIFICATION

HARDWARE FEATURES

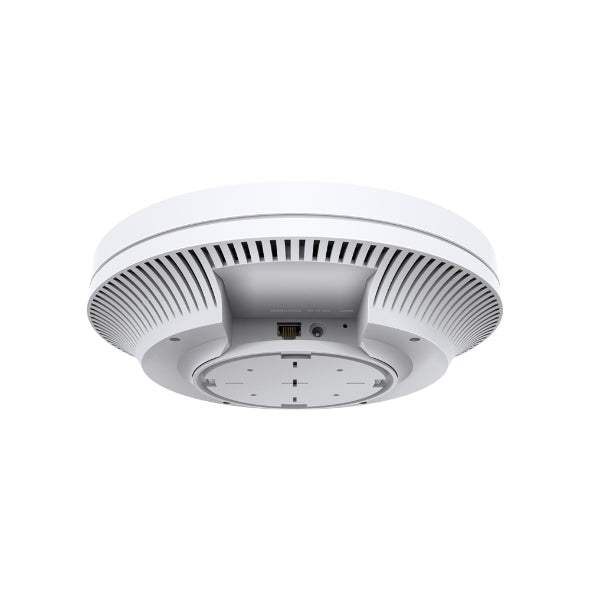

INTERFACE: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

BUTTON: Reset

POWER SUPPLY

• 802.3at PoE

• 12 V / 1 A DC

POWER CONSUMPTION

• EU: 12.8 W (For PoE); 10.8 W (for DC)

• US: 13.9W (For PoE); 11.8 W (for DC)

DIMENSIONS ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

ANTENNA TYPE

Internal Omni

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 5 dBi

MOUNTING: Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES

WIRELESS STANDARDS: IEEE 802.11ax/ac/n/g/b/a

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

WIRELESS FUNCTION

• 1024-QAM

• 4× Longer OFDM Symbol

• OFDMA

• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

• Enable/Disable Wireless Radio

• Automatic Channel Assignment

• Transmit Power Control (Adjust Transmit Power on dBm)

• QoS(WMM)

• MU-MIMO

• Seamless Roaming §

• Omada Mesh§

• Band Steering

• Load Balance

• Airtime Fairness

• Beamforming

• Rate Limit

• Reboot Schedule

• Wireless Schedule

• Wireless Statistics based on SSID/AP/Client

WIRELESS SECURITY

• Captive Portal Authentication§

• Access Control

• Wireless Mac Address Filtering

• Wireless Isolation Between Clients

• SSID to VLAN Mapping

• Rogue AP Detection

• 802.1X Support

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

TRANSMISSION POWER

• CE:

<20 dBm(2.4 GHz, EIRP)

<23 dBm(5 GHz, EIRP)

• FCC:

<25 dBm (2.4 GHz)

<25 dBm (5 GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes (Through OC300, OC200, or Omada Software Controller)

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c, v3

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/Remote Syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610 V1, V2, V2.2 and above, while is not supported by EAP610 V3)

OTHERS

CERTIFICATION: CE, FCC, RoHS

PACKAGE CONTENTS

• EAP610

• Power Adapter

• Ceiling/Wall Mounting Kits

• Installation Guide

SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

ENVIRONMENT

• Operating Temperature: 0–40 ℃ (32–104 ℉)

• Storage Temperature: -40–70 ℃ (-40–158 ℉)

• Operating Humidity: 10–90% RH non-condensing

• Storage Humidity: 5–90% RH non-condensing

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA and MU-MIMO require clients to also support the corresponding features.

§Omada Mesh, Seamless Roaming, and Captive Portal require the use of Omada SDN controllers. Please go to Omada Mesh Product List to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.
