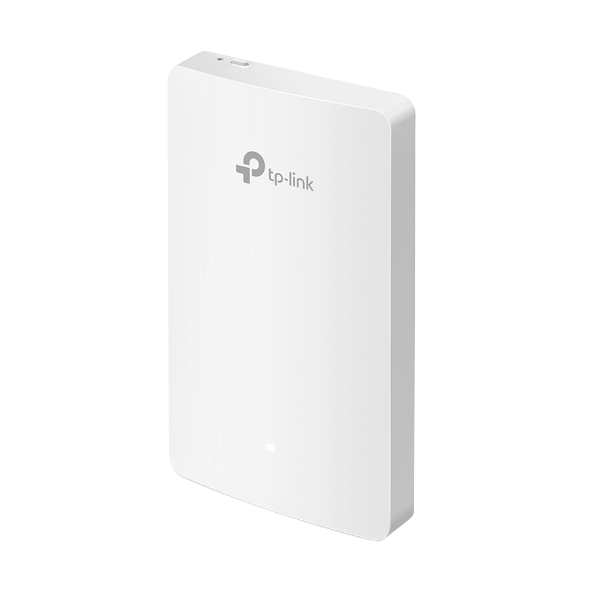

TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Wi-Fi 6 Dual Band Wall Plate Access Point 4Gx Ports, Cloud Access, Omada App, PoE Supported

TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Wi-Fi 6 Dual Band Wall Plate Access Point 4Gx Ports, Cloud Access, Omada App, PoE Supported

$122.00 SGD
$122.00 SGD
Sale Sold out

TP-LINK EAP235-Wall Omada AC1200 Wireless Wi-Fi 6 Dual Band Wall Plate Access Point

4Gx Ports, Cloud Access, Omada App, PoE Supported, MU-MIMO



  • Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.†

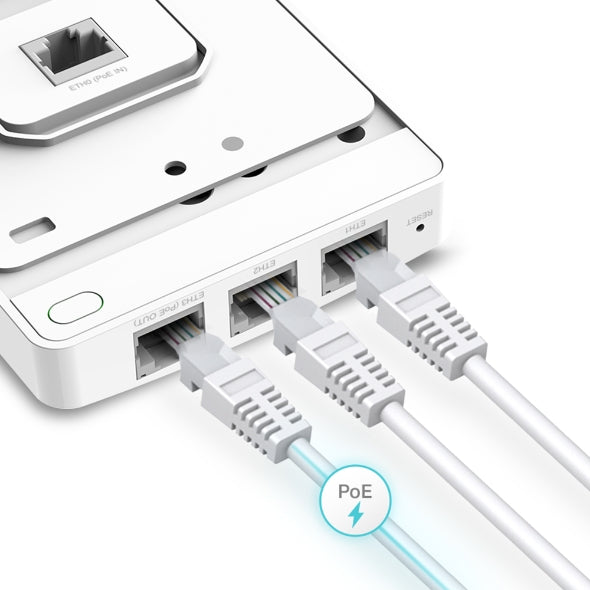

  • Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
  • Centralized Management: Cloud access and Omada app for mobility and easy management.
  • Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.
  • Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.
  • Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.



SPECIFICATIONS

HARDWARE FEATURES

INTERFACE

• Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE

• Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port

PHYSICAL SECURITY LOCK: Yes

BUTTON: Reset

POWER SUPPLY: 802.3af/802.3at PoE

POWER CONSUMPTION

• 9.8 watts

• 24.4 watts with 13w PoE output

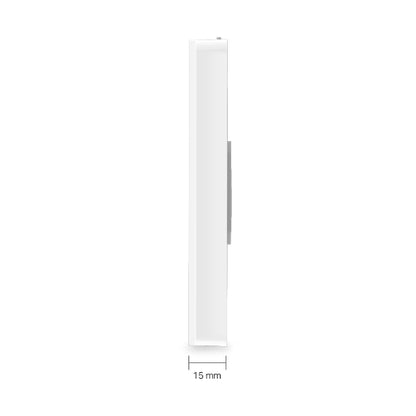

DIMENSIONS ( W x D x H ): 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

ANTENNA

• 2.4 GHz: 2× 4 dBi

• 5 GHz: 2× 4 dBi

MOUNTING: Wall Plate Mounting

WIRELESS FEATURES

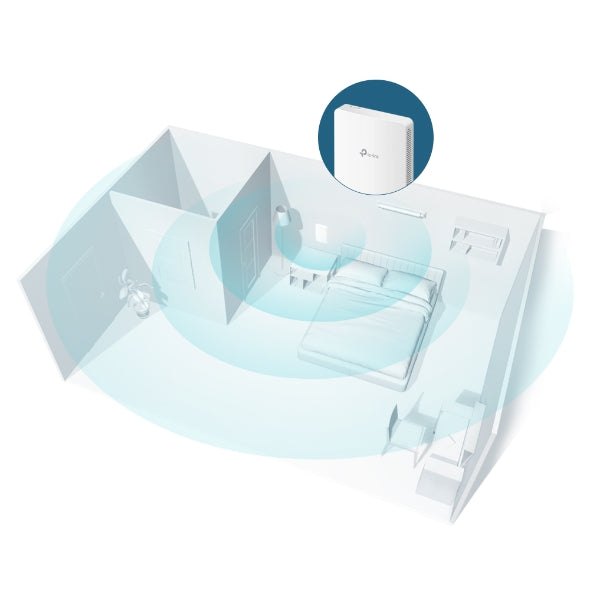

COVERAGE: 25㎡(300 ft²)***

WIRELESS CLIENT CAPACITY: 200+**

CONCURRENT CLIENTS: 200+**

WIRELESS STANDARDS: IEEE 802.11a/b/g/n/ac

FREQUENCY: 2.4 GHz and 5 GHz

SIGNAL RATE

• 5 GHz: Up to 867 Mbps

• 2.4 GHz: Up to 300 Mbps

WIRELESS FUNCTIONS

• 16 SSIDs (Up to 8 SSIDs on each band)

• Enable/disable SSID broadcast

• Automatic channel assignment

• Transmit power control (adjustable in 1 dBm step)

• QoS (WMM)

• Band steering

• Beamforming

• Load balance

• Rate limit

• Scheduled reboot

• Wireless scheduled on/off

• Wireless Statistics based on SSID, access point, or client

WIRELESS SECURITY

• Captive portal authentication

• Access control list

• Wireless MAC address filtering

• Wireless isolation between clients

• SSID to VLAN Mapping

• LAN port-based VLAN

• Rogue AP detection

• 802.1X EAP support

• 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

TRANSMISSION POWER

• ≤21 dBm (2.4 GHz)

• ≤21 dBm (5 GHz)

MANAGEMENT

OMADA APP: Yes

CENTRALIZED MANAGEMENT

• Omada Cloud-Based Controller

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

CLOUD ACCESS: Yes

EMAIL ALERTS: Yes

LED ON/OFF CONTROL: Yes

MANAGEMENT MAC ACCESS CONTROL: Yes

SNMP: v1, v2c

SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Local/ remote syslog

SSH: Yes

WEB-BASED MANAGEMENT: HTTP/ HTTPS

L3 MANAGEMENT: Yes

MULTI-SITE MANAGEMENT: Yes

MANAGEMENT VLAN: Yes

ZERO-TOUCH PROVISIONING: Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

CERTIFICATION: FCC, RoHS

PACKAGE CONTENTS

• Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall

• Installation guide

• Mounting screw

ENVIRONMENT

• Operating temperature: 0–40 ℃ (32–104 ℉)

• Storage temperature: -40–70 ℃ (-40–158 ℉)

• Operating humidity: 10–90% RH non-condensing

• Storage humidity: 5–90% RH non-condensing



†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
