SPECIFICATIONS
HARDWARE FEATURES

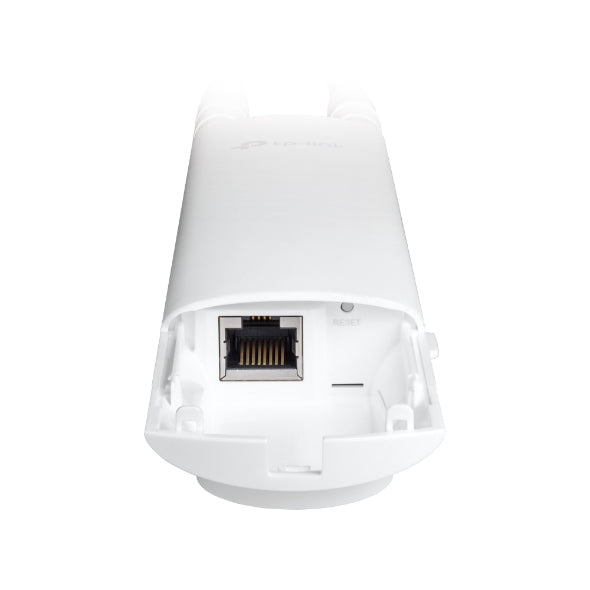

INTERFACE: 1x Gigabit Ethernet RJ-45 port
BUTTON: Reset
POWER SUPPLY: 802.3af PoE and 24 Passive PoE(PoE injector included)
POWER CONSUMPTION: 10.5W
DIMENSIONS ( W x D x H ): 8.5×1.8×1.1in. (215×46×27mm)

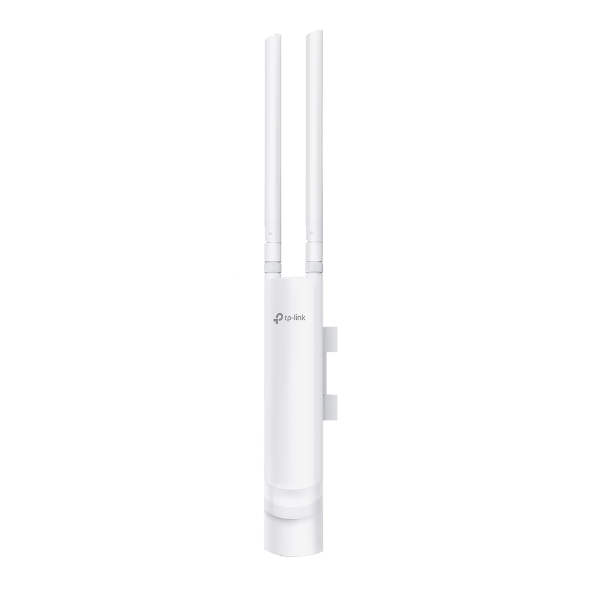

ANTENNA
• 2.4GHz: 2 × 3dBi
• 5GHz: 2 × 4dBi
WEATHERPROOF ENCLOSURE: IP65
MOUNTING: Pole/Wall mount (mounting kit included)
WIRELESS FEATURES
WIRELESS CLIENT CAPACITY: 220+**
CONCURRENT CLIENTS: 220+**
WIRELESS STANDARDS: IEEE 802.11a/b/g/n/ac
FREQUENCY: 2.4GHz, 5GHz
SIGNAL RATE
• 802.11ac:
- 5G: 6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
- 2.4G: 78Mbps to 300Mbps(MCS8-MCS9 VHT20/40, NSS=1 to 3)
• 802.11n: 6.5 Mbps to 300 Mbps(MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
WIRELESS FUNCTIONS
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Airtime Fairness
• Beamforming
• Band Steering
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
WIRELESS SECURITY
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
TRANSMISSION POWER
• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT
OMADA APP: Yes

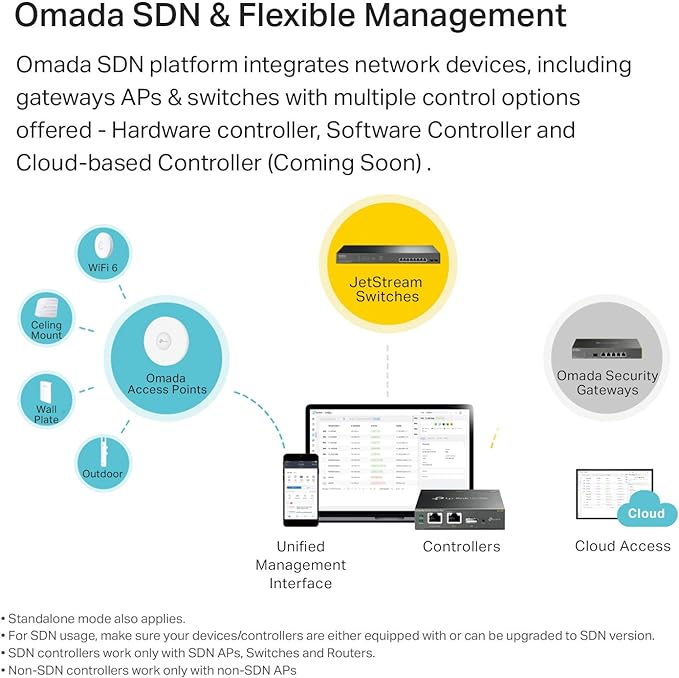

CENTRALIZED MANAGEMENT
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
OMADA CONTROLLER SOFTWARE:
CLOUD ACCESS: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
EMAIL ALERTS: Yes
MANAGEMENT MAC ACCESS CONTROL: Yes
SNMP: v1, v2c
SYSTEM LOGGING LOCAL/REMOTE SYSLOG: Yes
SSH: Yes
WEB-BASED MANAGEMENT: Yes
L3 MANAGEMENT: Yes
MULTI-SITE MANAGEMENT: Yes
MANAGEMENT VLAN: Yes
ZERO-TOUCH PROVISIONING: Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
CERTIFICATION: FCC, RoHS

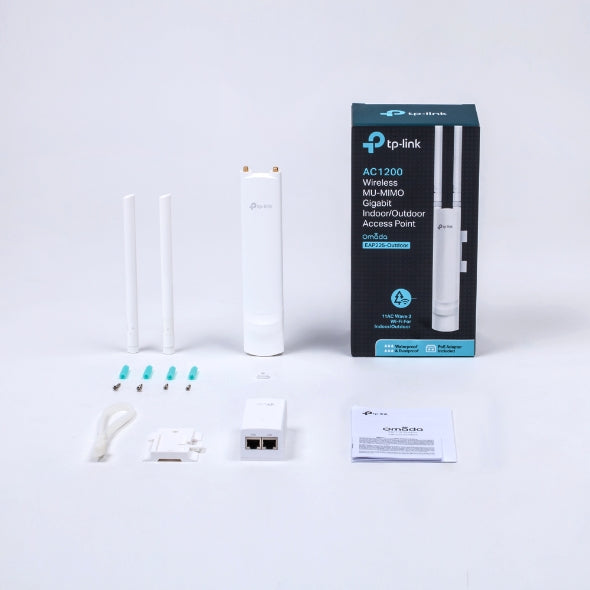

PACKAGE CONTENTS
• AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
• Passive PoE Injector
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Rubber Insert
• Waterproof Antenna
SYSTEM REQUIREMENTS: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
ENVIRONMENT
• Operating Temperature: -30℃~70℃ (-22℉~158℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
1 Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications along with the number of connected devices were defined according to test results under normal usage conditions. Actual wireless transmission rate, wireless coverage, and number of connected devices are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.
2 MU-MIMO capability requires client devices that also support MU-MIMO.
3 Seamless roaming requires both the access point and client devices to support 802.11k and 802.11v protocols.
4 Protection against lightning and electro-static discharge may be achieved through proper product setup, grounding and cable shielding. Refer to the instruction manual and consult an IT professional to assist with setting up this product.
