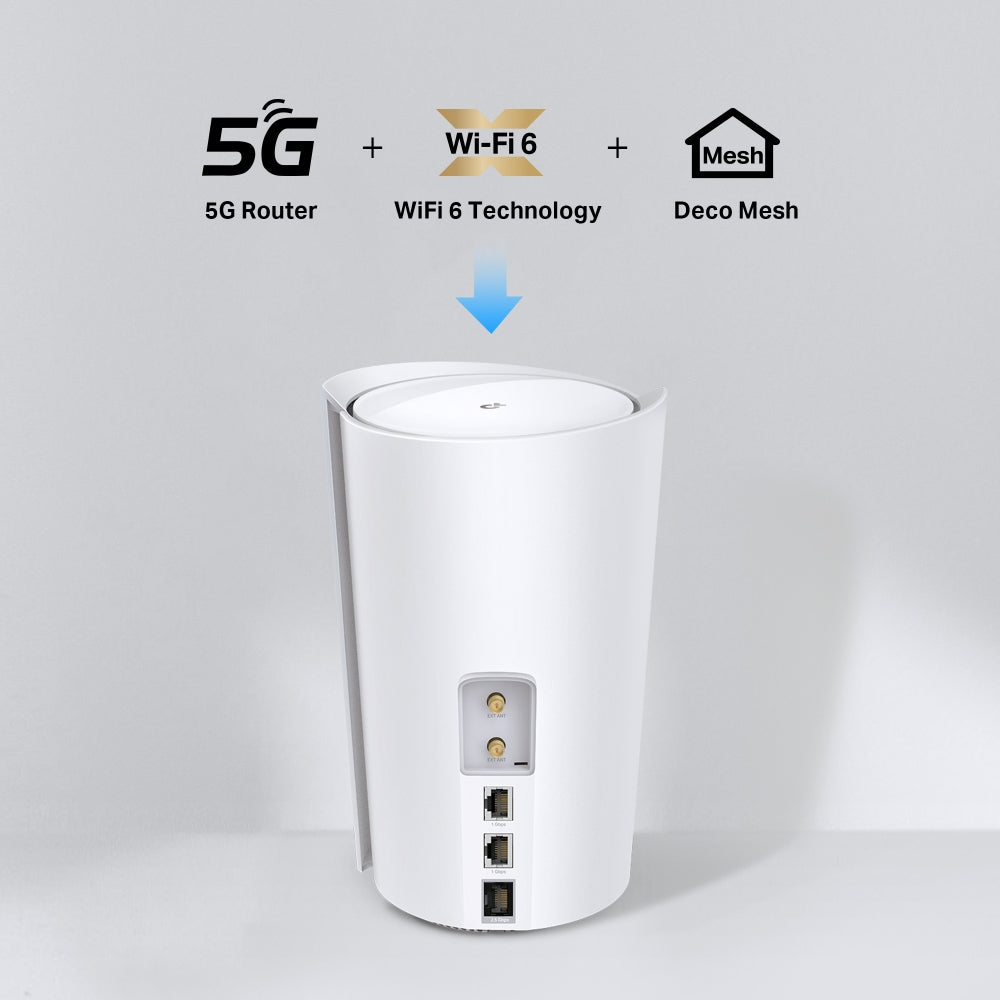

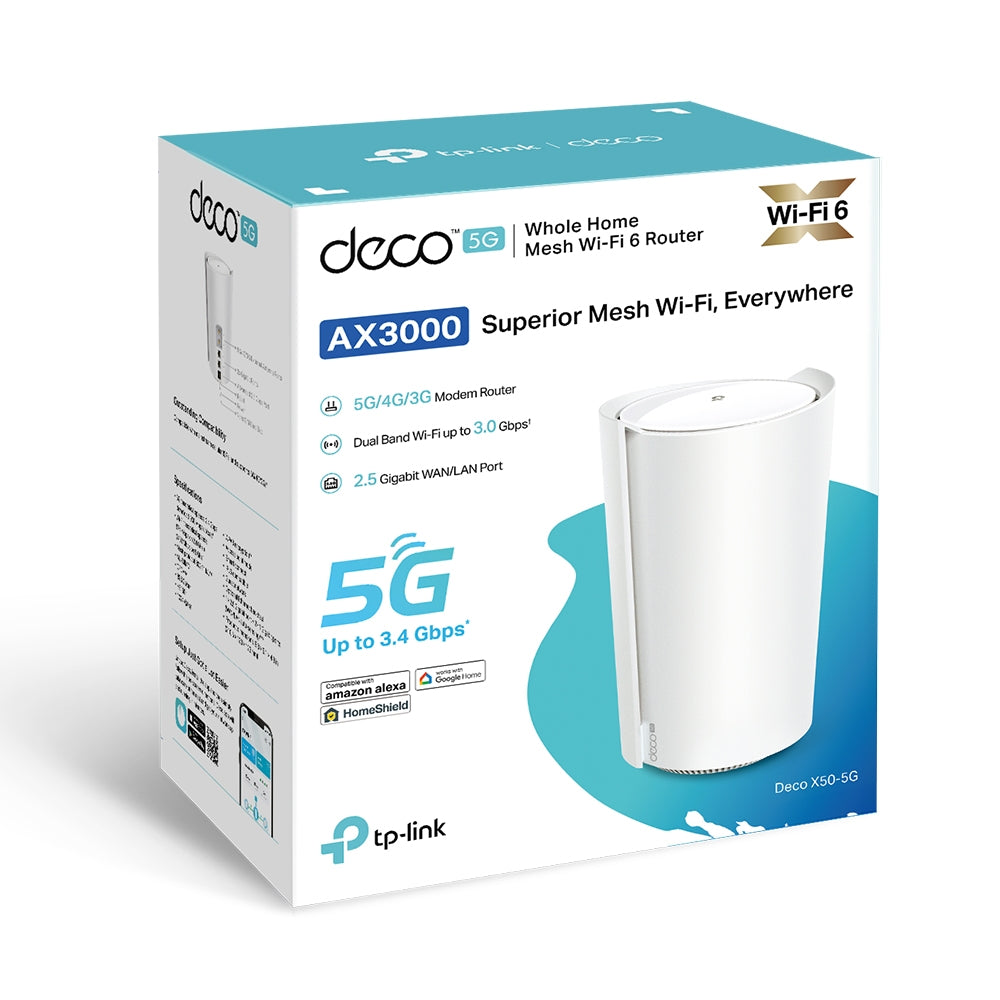

TP-LINK DECO X50-5G AX3000 Whole Home Mesh WiFi 6 Gateway
-
Ultra-Fast Broadband Connection : Supports Sub-6 GHz 5G technology boosts download speeds up to 5.0 Gbps**
-
Ultra-Low Latency : 5G brings responsive network connections with only 1 ms latency**
-
AX3000 Dual-Band Wi-Fi 6 Speed : 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†
-
2.5 Gigabit Wired Connections : 1× 2.5 Gbps port + 1× Gigabit port§
-

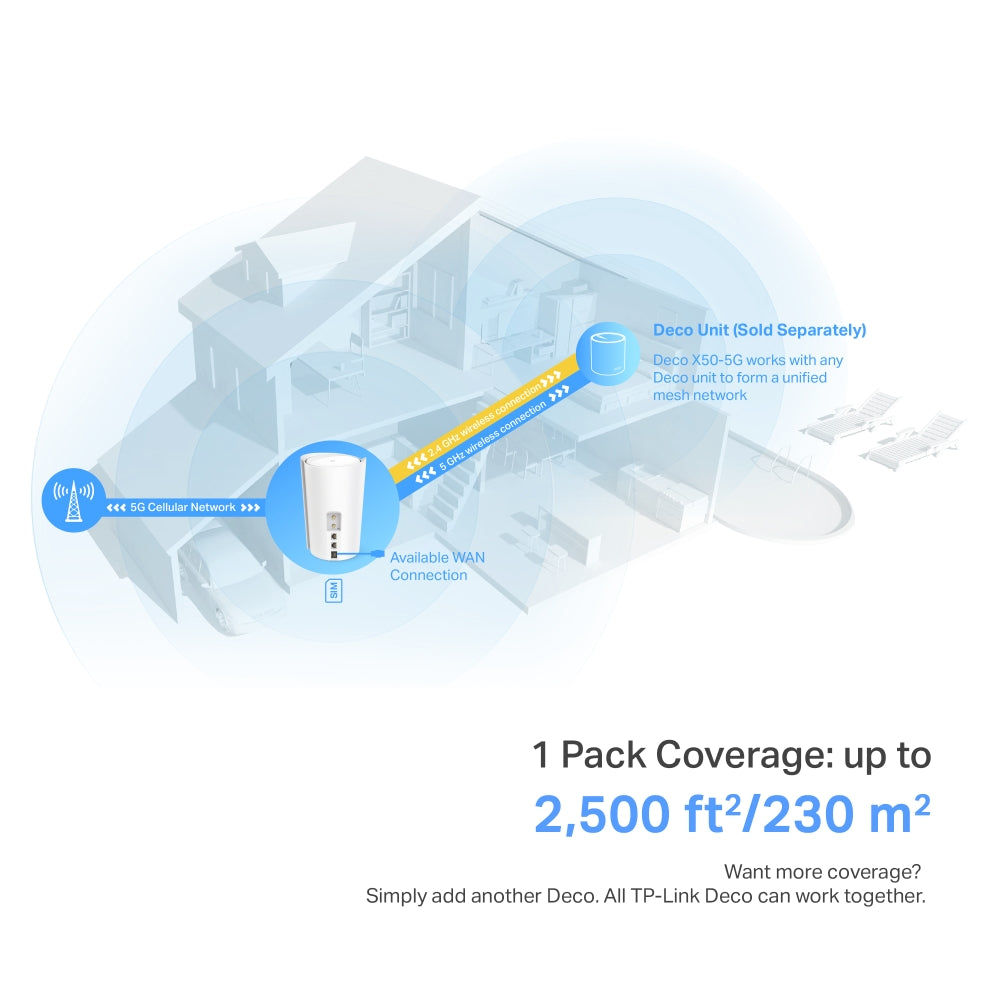

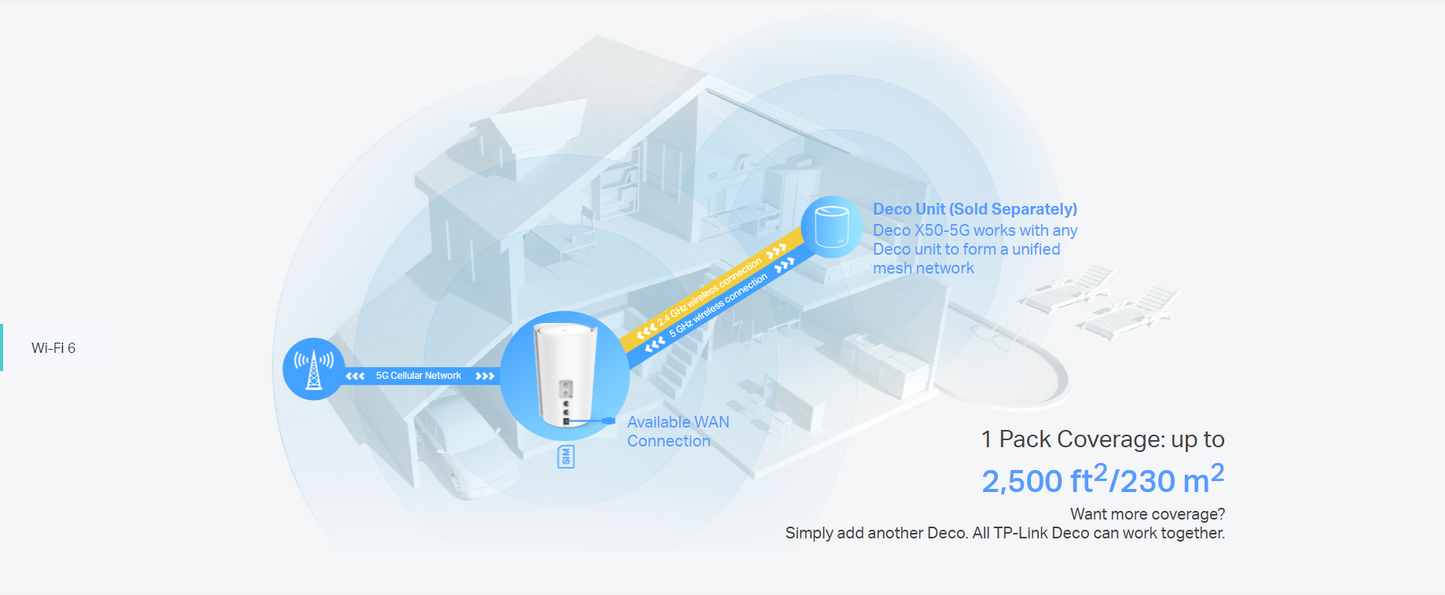

Mesh Network : Deco mesh technology ensures strong Wi-Fi signals everywhere‡
-
Flexible Network Access : 4G, 5G, Fixed-Line Internet Access
-
Plug & Play : Enjoy Deco 5G right after inserting a SIM card
-
Simplified Setup : Easily set up and manage your network with the TP-Link Deco app
-
TP-Link HomeShield : Provides comprehensive network protection, robust parental controls, and real-time loT security*
SPECIFICATIONS
WIRELESS :
- Standards :
-
Wi-Fi 6
◦ IEEE 802.11ax/ac/n/a 5 GHz
◦ IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds :
-
AX3000
◦ 5 GHz: 2402 Mbps (802.11ax)
◦ 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range :
-
1-3 Bedroom Houses (1-pack)
-
TP-Link Mesh Technology : Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
-
4× LTE/5G internal antennas + 2× Wi-Fi internal antennas + 2× external RP-SMA-F antenna interface : Multiple antennas form a signal-boosting array to cover more directions and large areas
-
SIM Card Format : Nano-SIM
- WiFi Capacity :
-
High
◦ Dual-Band : Distribute devices to different bands for optimal performance
◦ MU-MIMO : Simultaneously communicates with multiple MU-MIMO clients
◦ OFDMA : Simultaneously communicates with multiple WiFi 6 clients
◦ 4 Streams : More than enough bandwidth for connected devices
- Working Modes : 5G/4G Router, Router, Access Point
SECURITY :
- Network Security :
-
SPI Firewall
-
Access Control
-
HomeShield Security :
◦ Real-Time IoT Protection
◦ Malicious Site Blocker
◦ Intrusion Prevention System
◦ DDoS Attack Prevention
◦ Home Network Scanner
- Guest Network :
-
1× 5 GHz Guest Network
-
1× 2.4 GHz Guest Network
- WiFi Encryption :
-
WPA-Personal
-
WPA2-Personal
-
WPA3-Personal
HARDWARE :

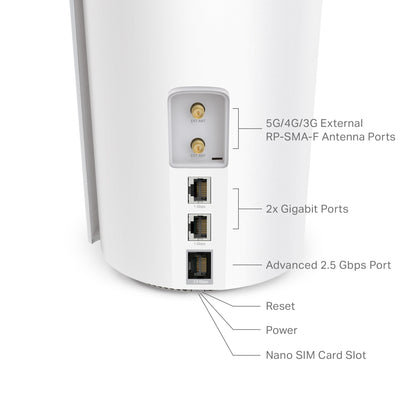

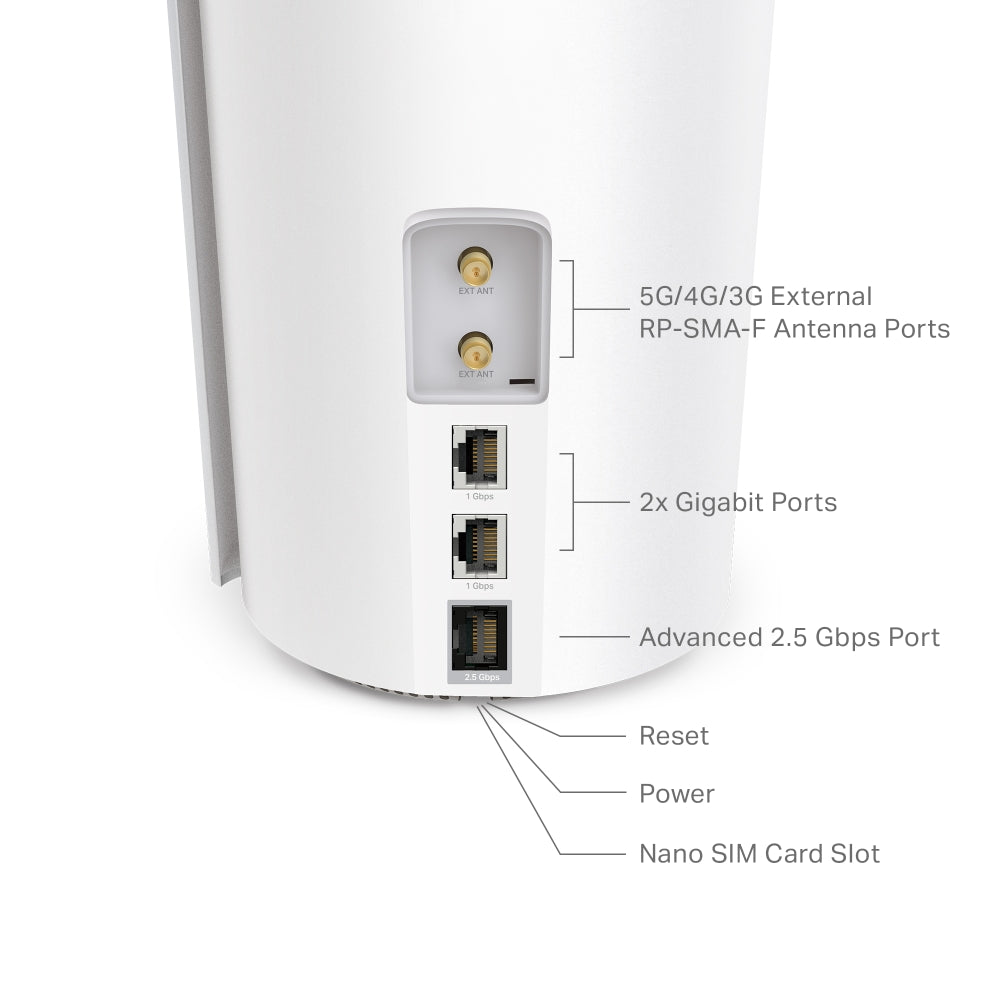

- Ports and Connections :
-
1× 2.5 Gigabit port + 2× 1 Gigabit ports (WAN/LAN auto-sensing)
-
Compatibility
◦ 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
◦ 4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28
◦ 4G TDD-LTE: B38/B40/B41/B42/B43
◦ 3G: B1/B5/B8
TEST DATA :
- WiFi Transmission Power :
-
CE:
◦ ≤20 dBm (2.4 GHz),
◦ ≤23 dBm (5 GHz)
PHYSICAL :
- Dimensions (W×D×H) : 8.3 × 5.1 × 4.8 in (210.5 × 130 × 123mm)
- Package Contents :
-
1-pack
-
1 Deco X50-5G unit
-
1 RJ45 Ethernet Cable
-
1 Power Adapter
-
Quick Installation Guide
