WIRELESS
STANDARDS
Wi-Fi 7:
• IEEE 802.11be/ax 6 GHz
• IEEE 802.11be/ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
WIFI SPEEDS

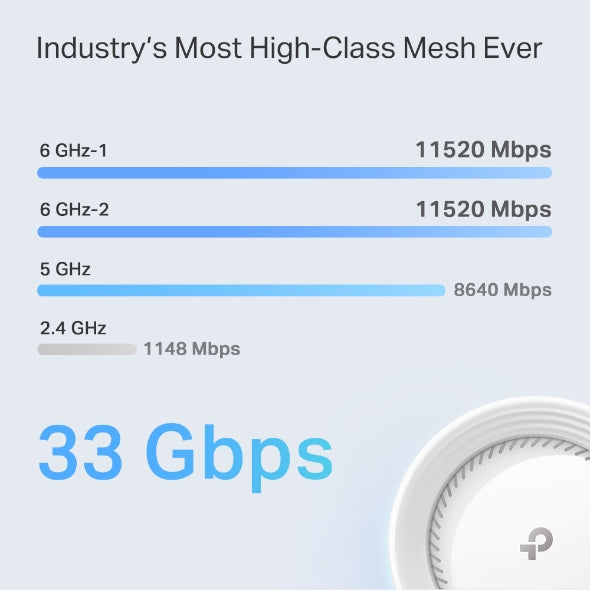

BE33000:
• 6 GHz-1: 11520 Mbps (802.11be)
• 6 GHz-2: 11520 Mbps (802.11be)
• 5 GHz: 8640 Mbps (802.11be)
• 2.4 GHz: 1148 Mbps (802.11ax)
WIFI RANGE
Broader Whole Home Coverage:

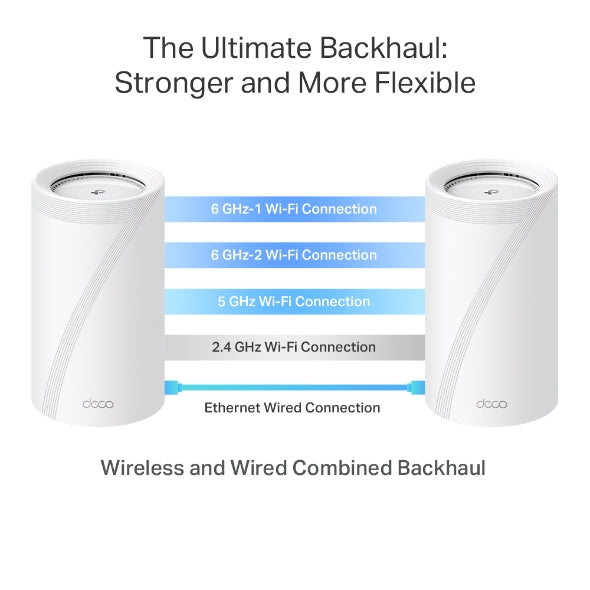

• TP-Link Mesh Technology - Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
• AI-Driven Mesh - Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

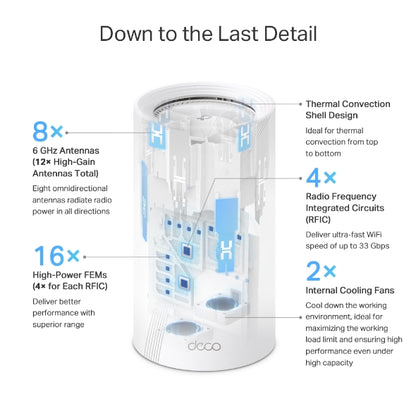

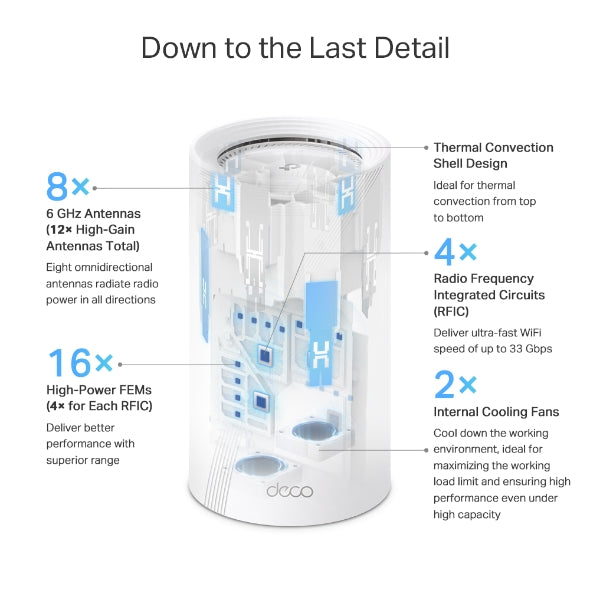

• 12× High-Gain Antennas (Internal) - Multiple antennas form a signal-boosting array to cover more directions and large areas
• Quad-Band - The greenfield 6 GHz band brings more bandwidth and faster speeds
WIFI CAPACITY
Very High
• Quad-Band - Distribute devices to different bands for optimal performance
• 4×4 MU-MIMO - Simultaneously communicates with multiple MU-MIMO clients
• OFDMA - Simultaneously communicates with multiple WiFi 7 clients
• 16 Streams, 4 Streams on Each Band - More than enough bandwidth for connected devices
WORKING MODES
• Router Mode
• Access Point Mode
ADVANCED FUNCTIONS
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant
SECURITY
NETWORK SECURITY
- SPI Firewall
- Access Control
- HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
GUEST NETWORK
1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
• Effective Time
• Bandwidth Control
VPN SERVER
• OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server
VPN CLIENT
• OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client
WIFI ENCRYPTION
• WPA-Personal
• WPA2-Personal
• WPA3-Personal
HARDWARE
ETHERNET PORTS
• 1× 10 Gbps
• 1× 10 Gbps SFP+/RJ45 Combo
• 2× 2.5 Gbps
*Per Deco Unit, Supports WAN/LAN auto-sensing
USB SUPPORT
- 1× USB 3.0 Port
• FTP Server
• Media Server
• Apple Time Machine
• Samba Server
BUTTONS
• 1× Reset Button
• 1× WPS
SOFTWARE
ADVANCED FEATURES
• Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference
PROTOCOLS
• IPv4
• IPv6
SERVICE KITS: HomeShield
PARENTAL CONTROL
HomeShield Parental Controls:
• Youtube Restriction
• SafeSearch
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
WAN TYPES
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
QUALITY OF SERVICE: HomeShield QoS: QoS by Device
CLOUD SERVICE
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
NAT FORWARDING
• Port Forwarding
• UPnP
IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
DHCP
• Address Reservation
• DHCP Client List
• Server
DDNS: TP-Link
MANAGEMENT: Deco App
PHYSICAL
DIMENSIONS ( W × D × H ): 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm)
PACKAGE CONTENTS
Deco BE95 (3-pack)
• 3 Deco BE95 unit
• 1 RJ45 Ethernet cable
• 3 Power adapter
• Quick Installation Guide
OTHERS
CERTIFICATIONS: CE, FCC, RoHS
ENVIRONMENT
• Operating Temperature: 0°C~40°C (32 °F~104 °F)
• Storage Temperature: -40°C~60°C (-40 °F~140 °F)
• Operating Humidity: 10%~90% RH
• Storage Humidity: 5%~90% RH
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.
△Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.
§10 Gbps and 2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.
*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates.
**Use of WAP3 requires clients to also support the corresponding feature.

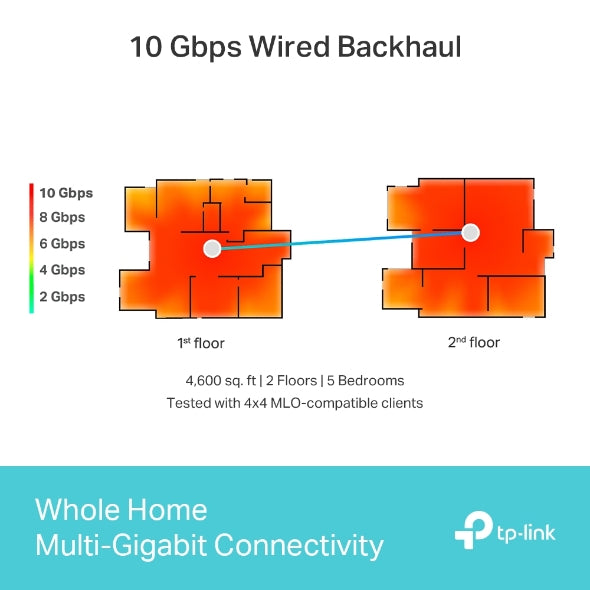

***The test was conducted in a 4,600 sq. ft. two-story villa with 5 bedrooms with an interior made up of drywall. The Deco BE95 was tested with 4x4 MLO-compatible clients. Home networking performance may vary, depending on the network's speeds, fiber or Ethernet access, WiFi interference, obstacles, walls, areas, and clients.
☆WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.
