Super Flower Leadex Platinum SE 1000W 80 Plus® Platinum - ECO Fanless & Silent Mode, Full Flat Ribbon Modular Power Supply, Dual Ball Bearing Fan (10 Year Warranty)

Super Flower Leadex Platinum SE 1000W 80+ Platinum

LEADEX Platinum SE series PSU are 80PLUS certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.
LEADEX Platinum SE series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

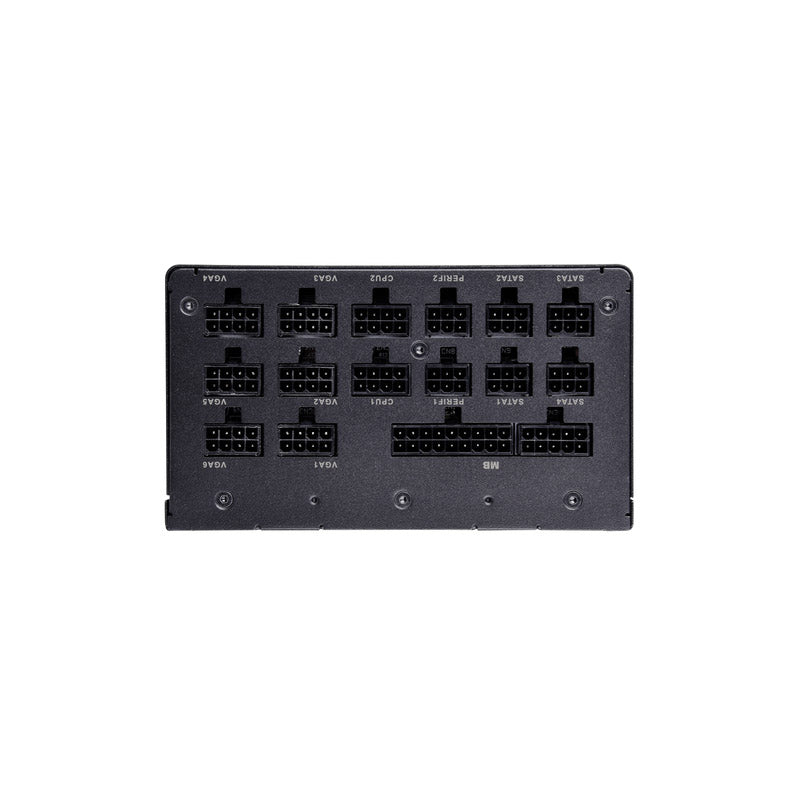

• 100% Full Modular Cabling Design For Easy Cable Management.
• 80 PLUS ® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load
• Full Range Auto Voltage Detection Design 100V~240V (Active PFC)

• Comply With ATX 12V v2.2, EPS 12V v2.91 & SSI EPS 12V v2.92 Specification
• Comply With Energy Star Standard & EuP (Energy Using Products) Regulation
• Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection /Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.

• Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards
• Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card
• 100% Japanese 105°C Capacitors

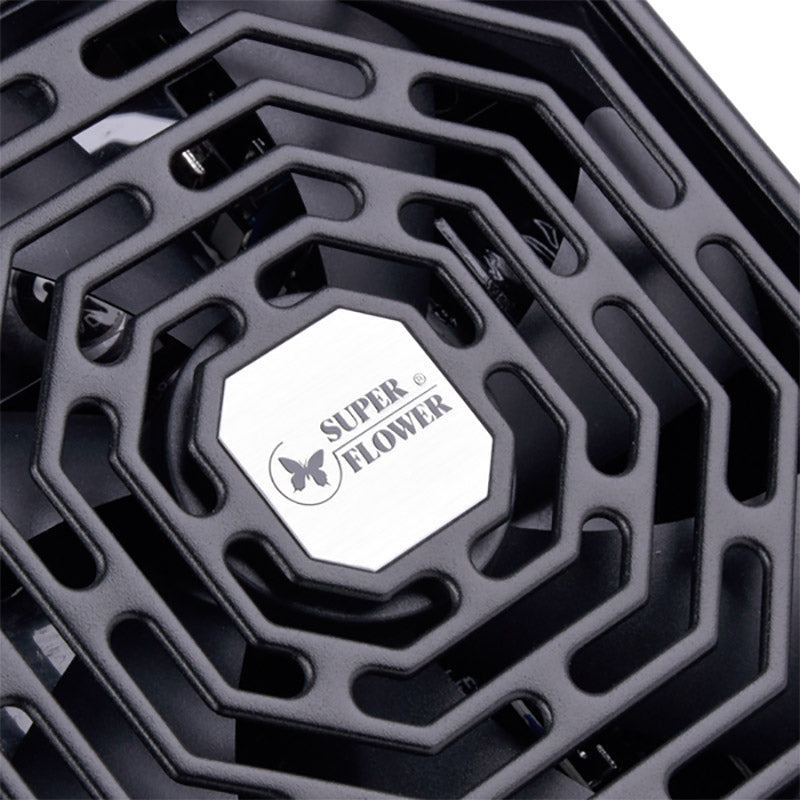

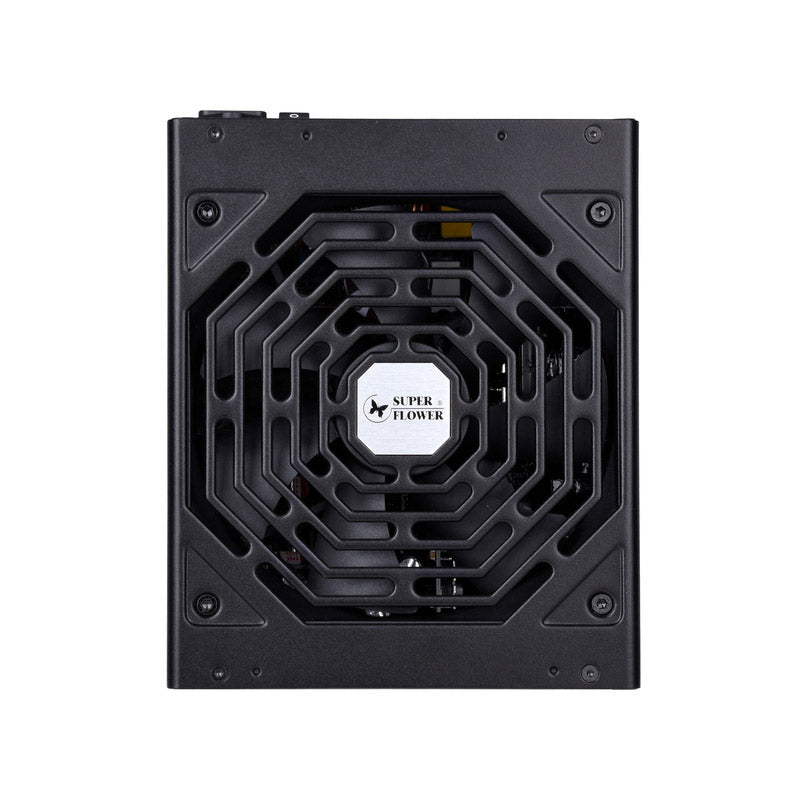

• Ultra Silent 140mm Dual Ball Bearing Fan
• More than 2,000 times On/Off test
• Unleaded Green Materials with RoHS/WEEE Compliance
• Perfect For Professional & High Performance Gaming System
• Exclusive Patents

1. ECO Intelligent Thermal Control System.
2. High Power Vertical Double Layer Main Transformer (China Patent No.:ZL2009 2 0273193.2 ; Taiwan Patent No.:M381155 )

SPECIFICATIONS

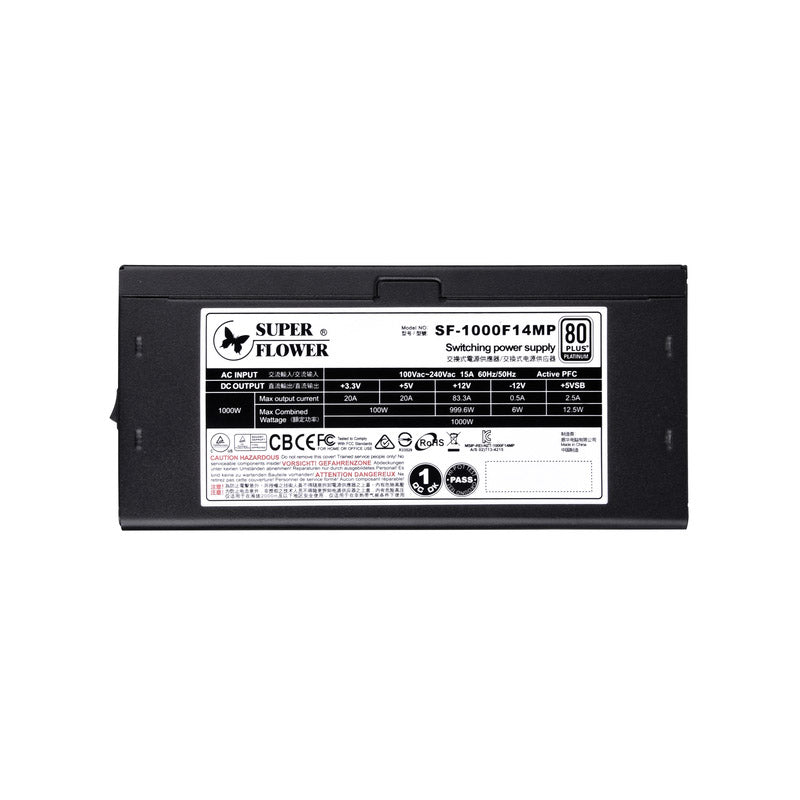

• Model No.: SF-1000F14MP
• Wattage: 1000W
• 80+Efficiency: 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum)
• Intel Power Design Guide: V2.92
• AC Input | Frequency: 100-240Vac | 60 / 50Hz
• Fan Size: 140mm Dual Ball Bearing Silent Fan
• Dimension: 180mm(L) x 150mm(W) x 86mm(H)
• Protection: OVP/ OCP/ OPP/ SCP/ UVP/ OTP/ NLO/ SIP Safety: cTÜVus / TÜV / CB / CE / FCC / RCM / BSMI / RoHS / KCC / EAC
• Temprature: Passed 50℃ Hot Testing

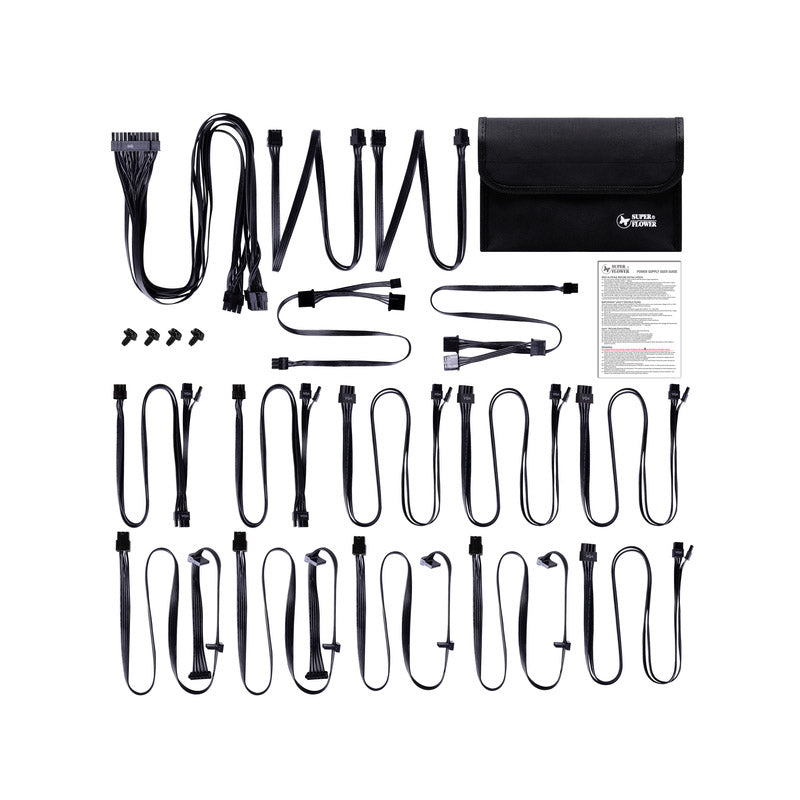

Cable Spec - Detachable Cables

• 20+4Pin: One cable (600mm)
• (4+4Pin) CPU: Two cables (750mm)
• PCI-E 6+2Pin: Four cables (550+150mm)
• SLI (2 x PCI 6+2Pin): Two cables (550+150mm)
• 2SATA: Two cables (550+100mm)
• 3SATA: Two cables (550+100mm)
• 3Molex: One cable (550+100mm)
• 2Molex + 1FDD: One cable (550+100mm)
