Up to 88% Efficiency / 230V / PCI-E 8pin and PCI-E 6pin Connectors Support / Active PFC
FEATURES :

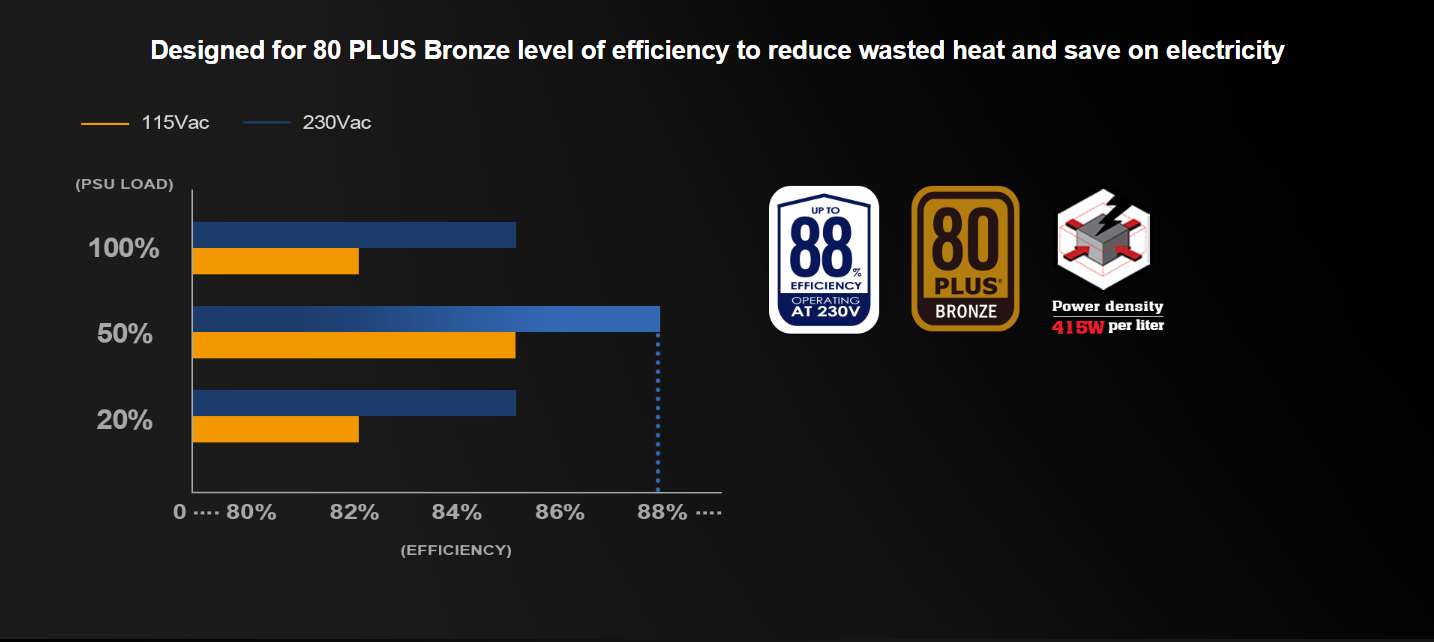

• High efficiency with 80 PLUS Bronze certification • 24/7 continuous power output with 40℃ operating temperature • Class-leading single +12V rail • Silent running 120mm fan with 18 dBA minimum • PCIe 8 pin and PCIe 6 pin connectors support • All black flat cables • Multiple protection circuitry • Active PFC
PRODUCT SPECIFICATIONS

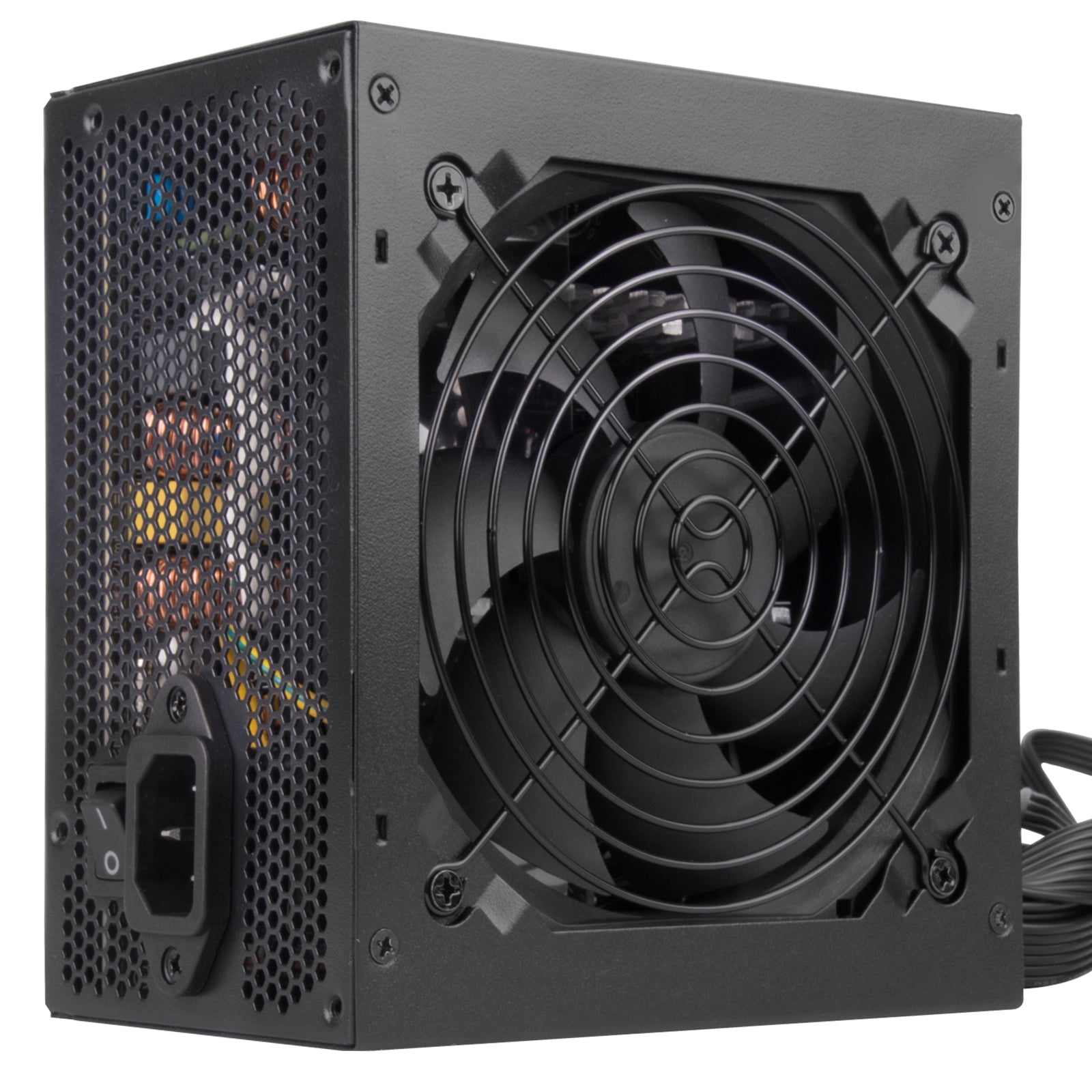

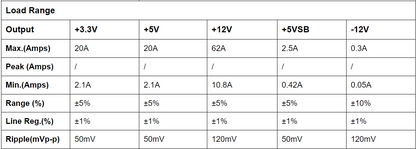

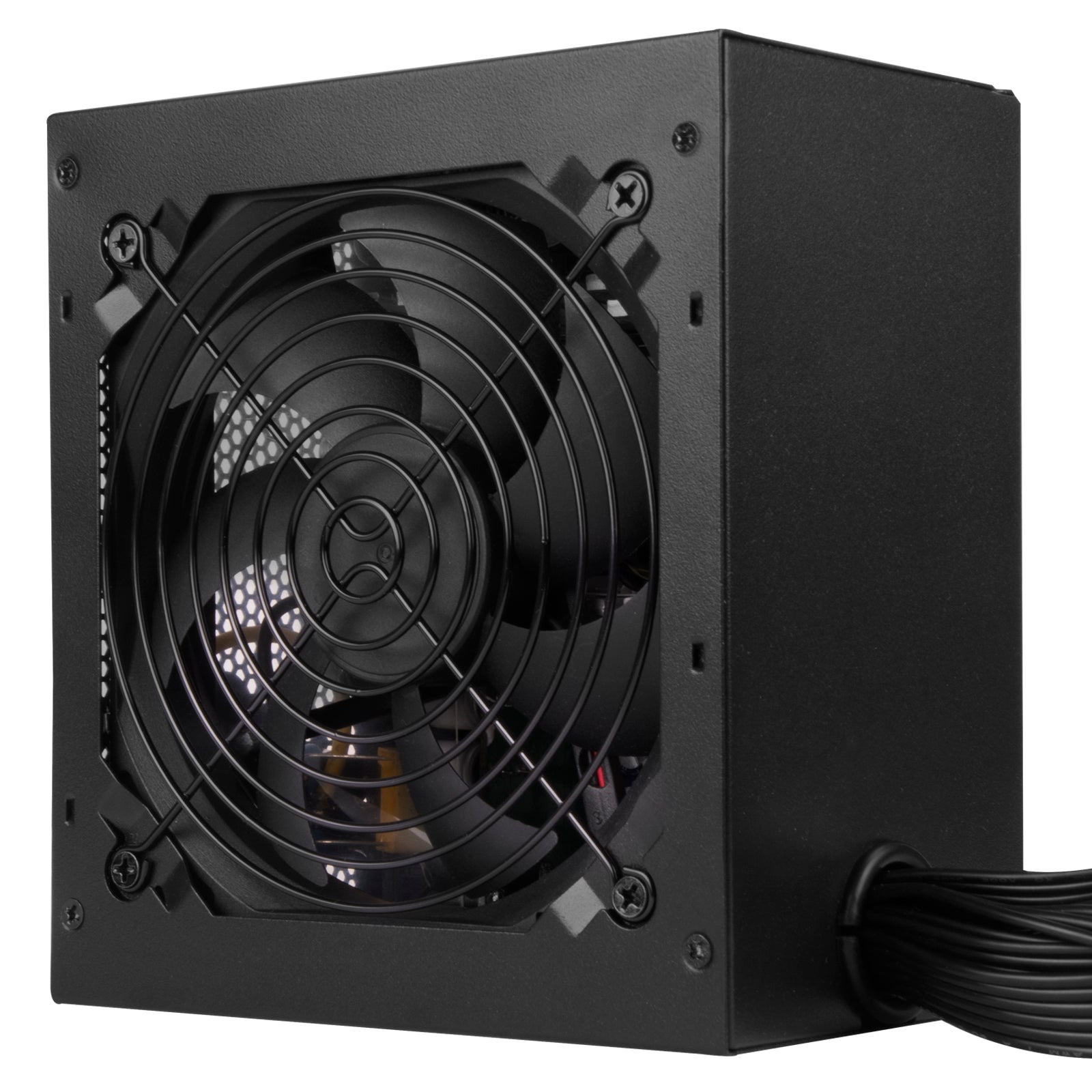

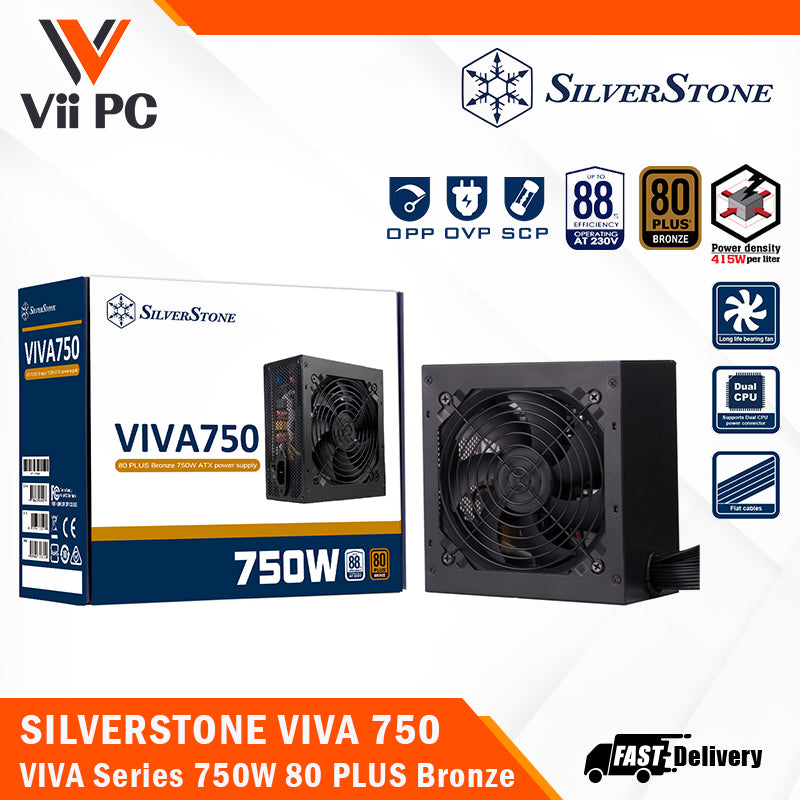

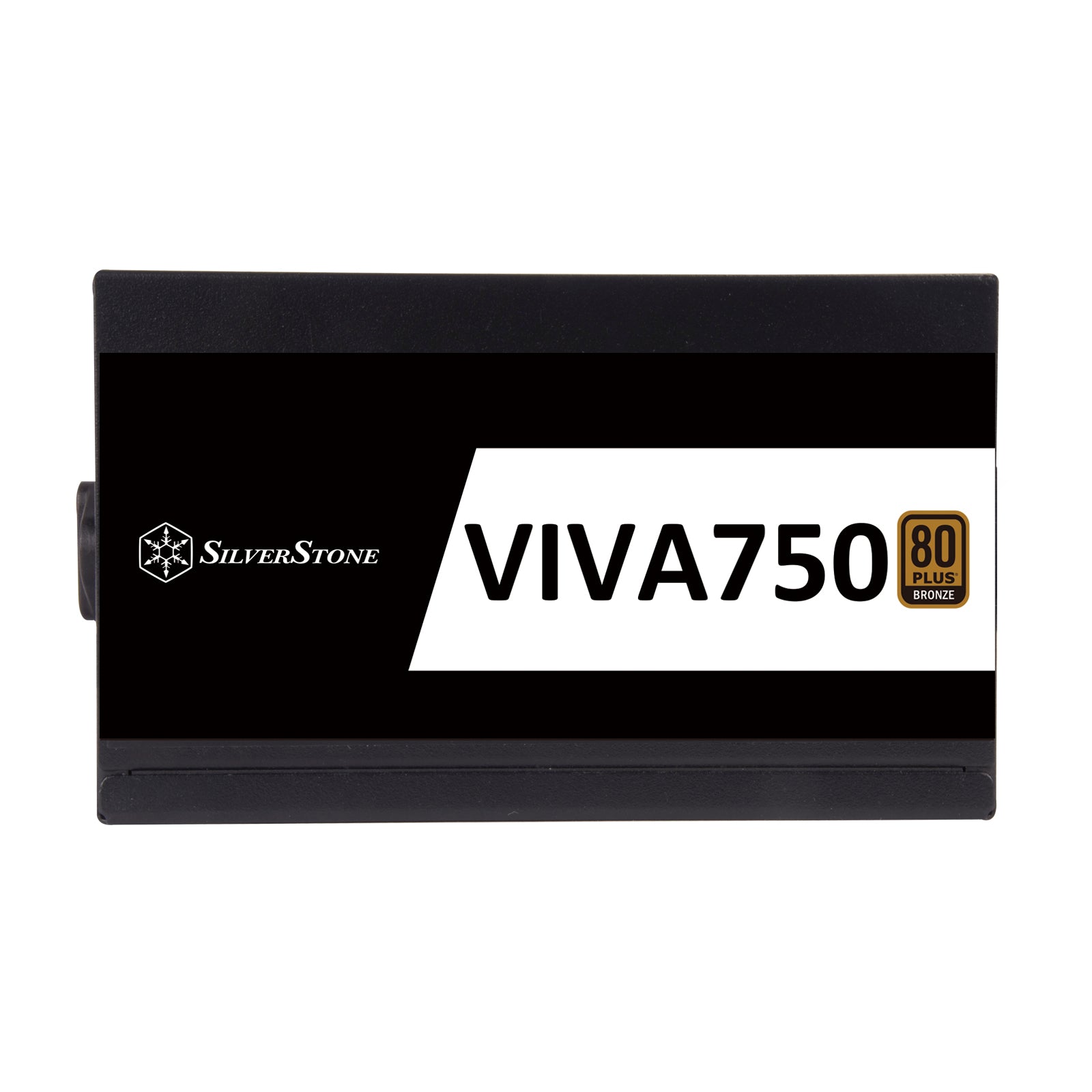

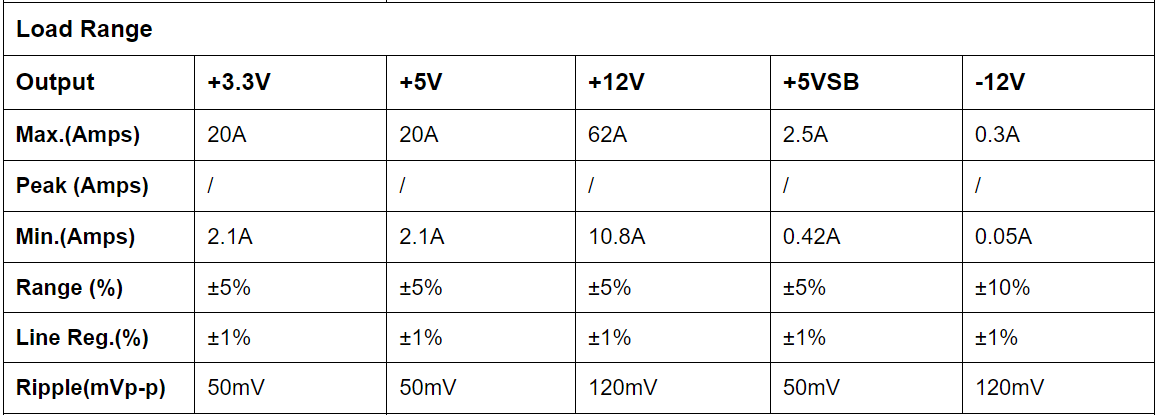

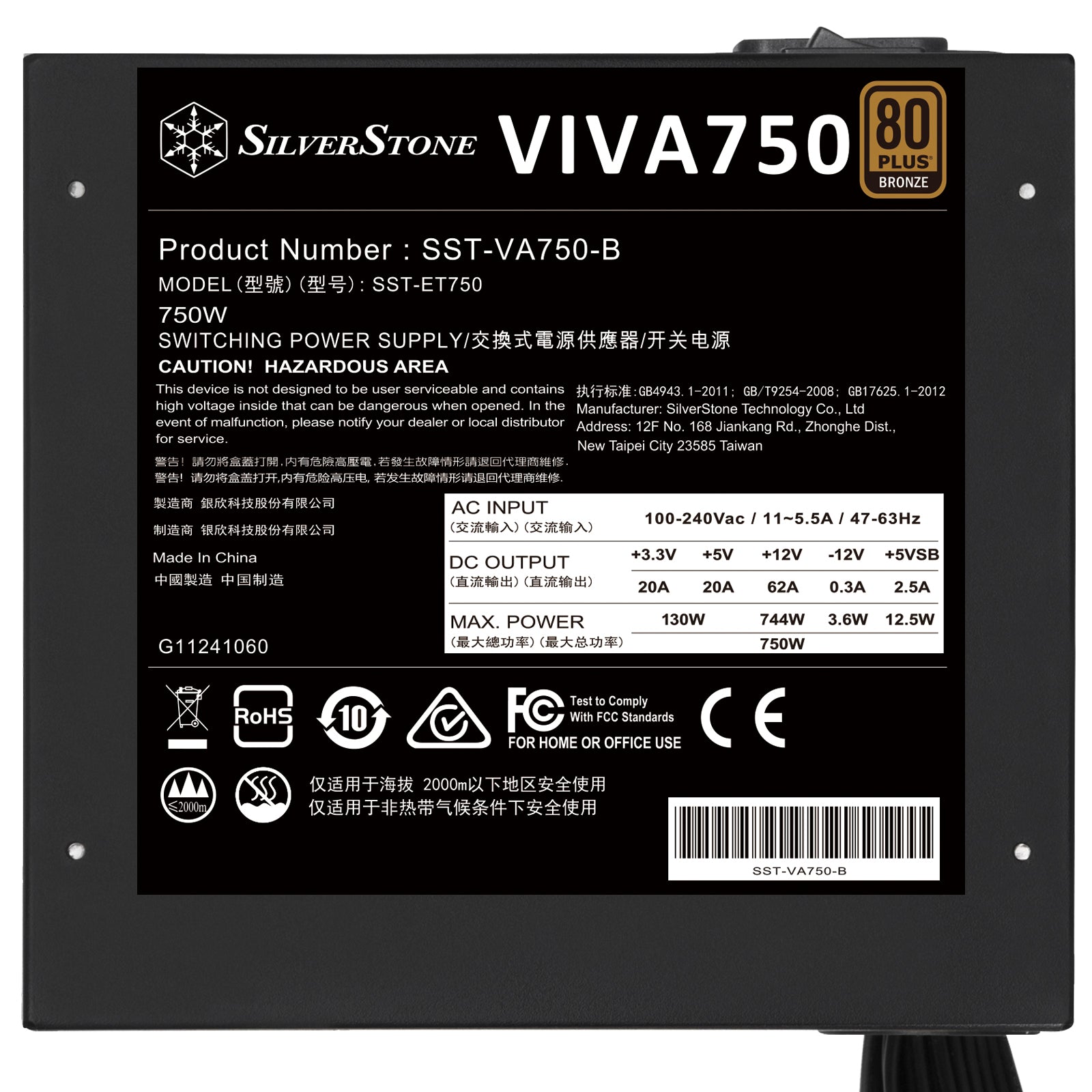

Model (safety certification) : SST-VA750-B Color : Black (Lead-Free Paint) Max. DC Output : 750W Power density : 415W per liter Combined +3.3V & +5V : 130W Combined +12V : 744W Input Voltage : 100 ~ 264 Vrms Input Frequency Range : 47Hz ~ 54Hz PFC : Active PFC (PF>0.9 at full load) Efficiency : 82% ~ 85% (at 20% ~ 100% loading) MTBF : 100,000 hours Operating temperature : 0°C ~ 40°C
Protection : • Over power protection • Over voltage protection • Short circuit protection

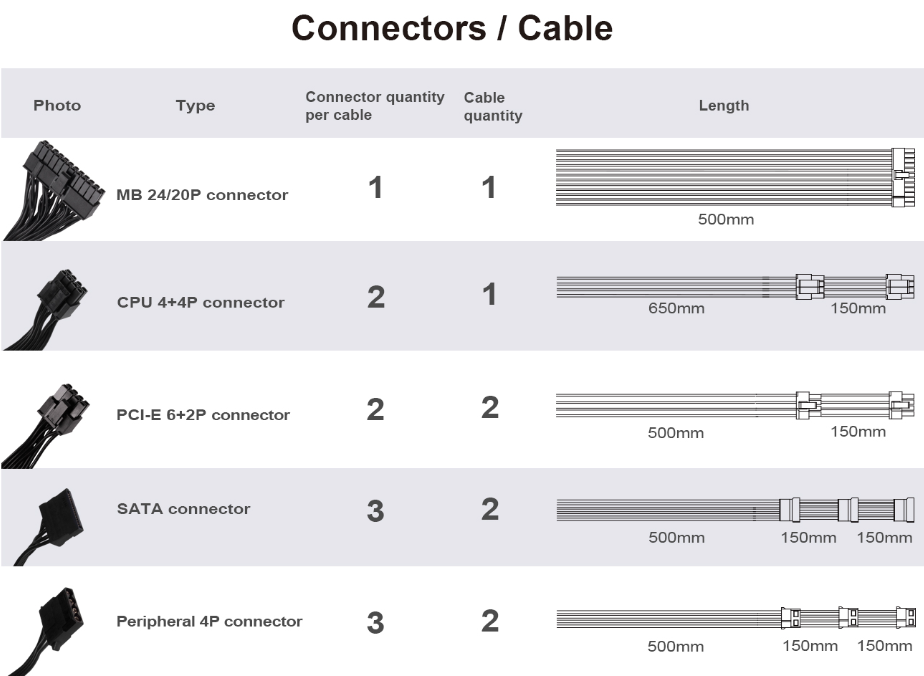

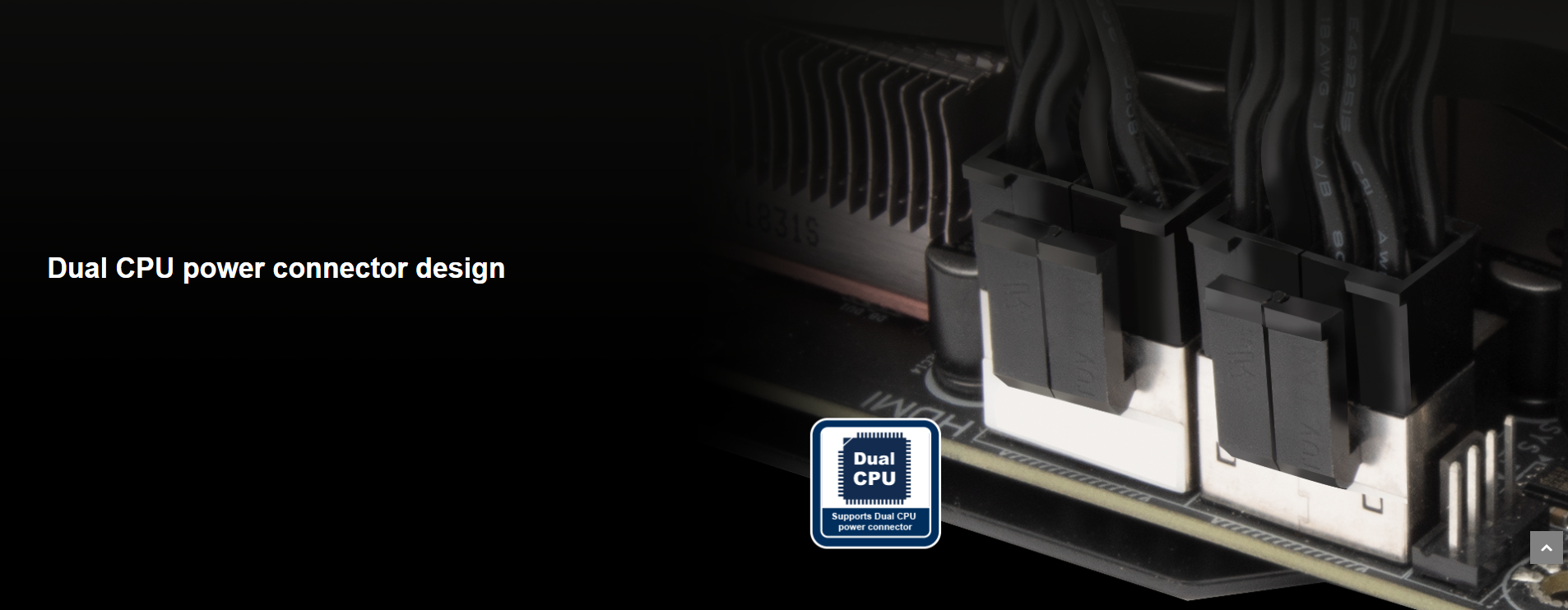

Connectors : • 1 x 24 / 20-Pin motherboard connector (500mm) • 2 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm) • 4 x 8 / 6-Pin PCIe connector ("500mm / 100mm" x 2) • 6 x SATA connector ("500mm / 150mm / 150mm" x 2) • 6 x 4-Pin Peripheral connector ("500mm / 150mm / 150mm" x 2)

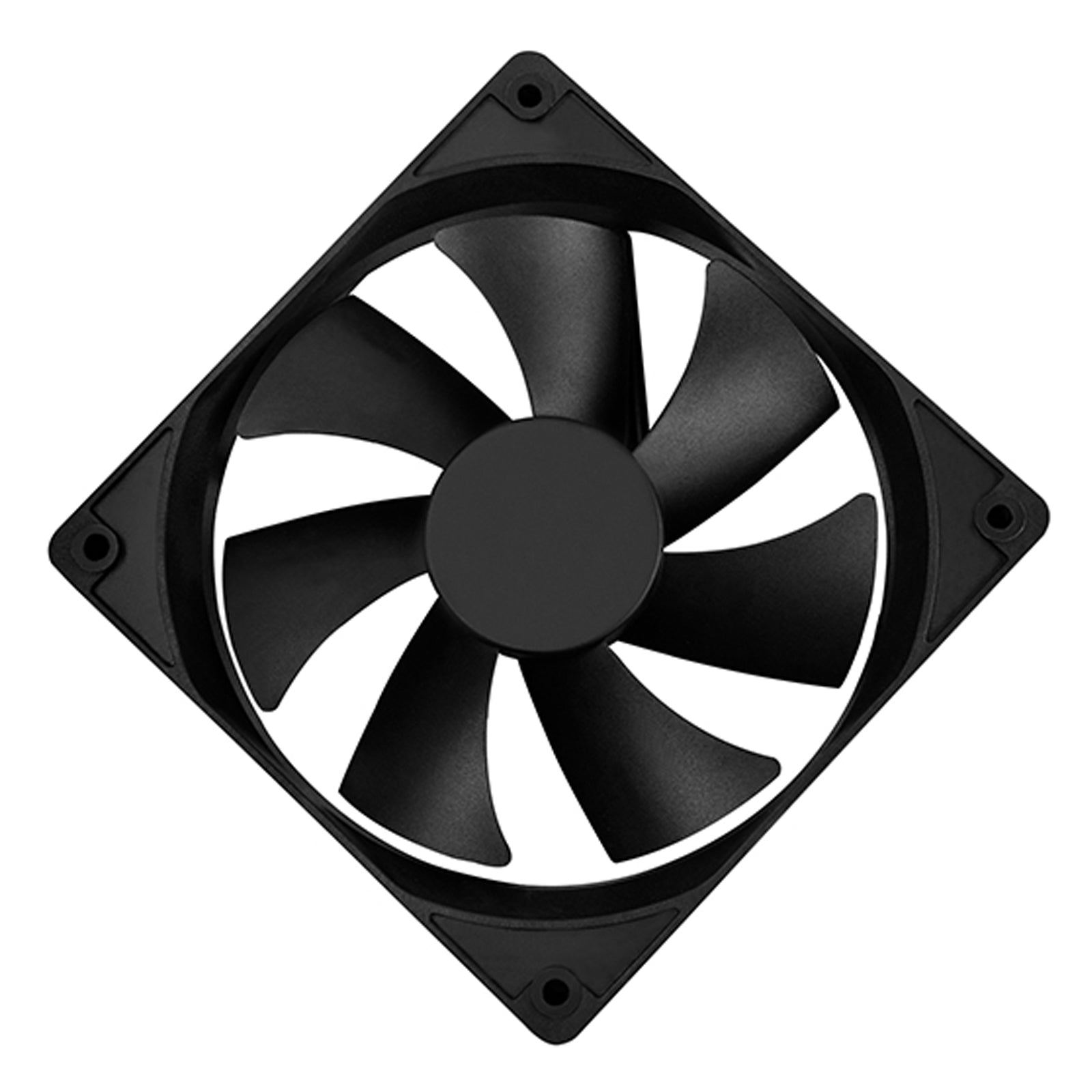

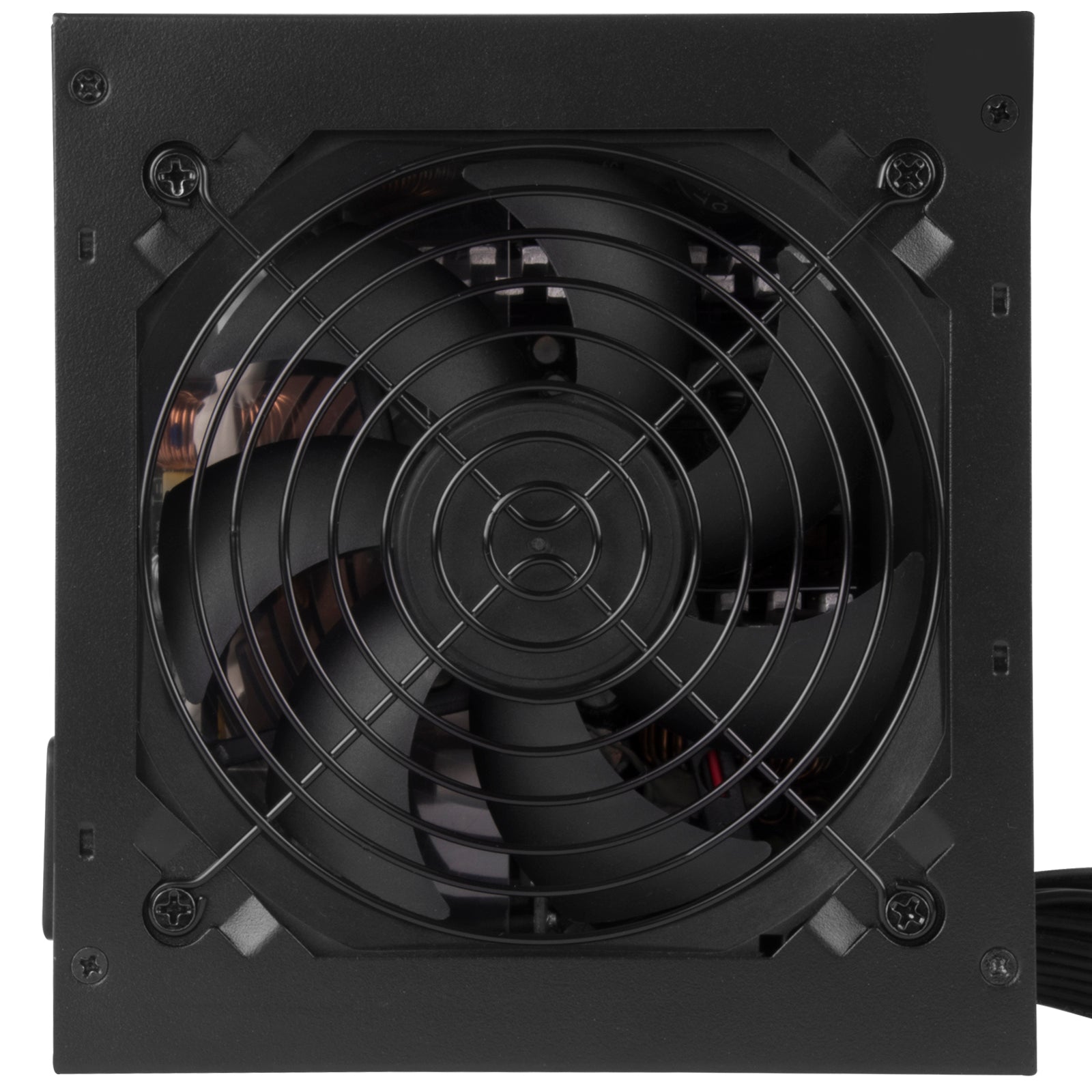

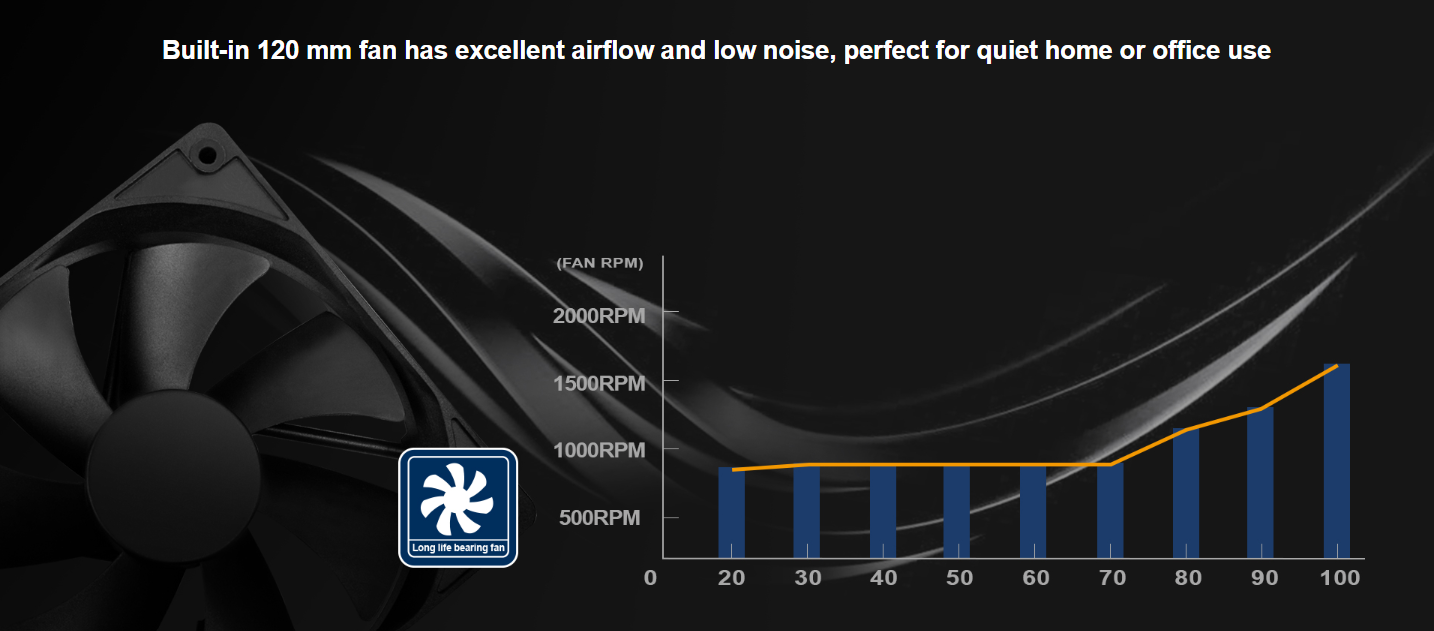

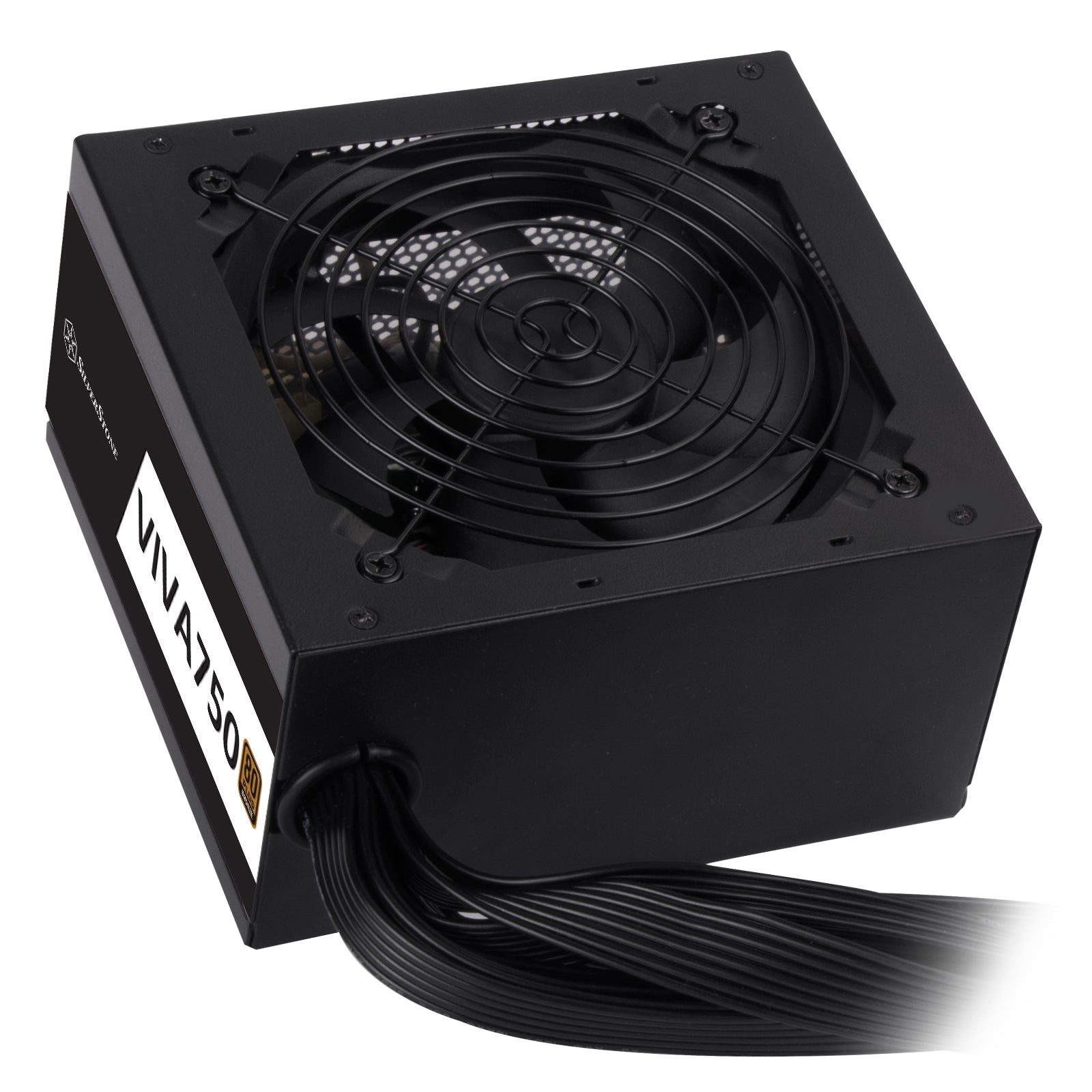

Cooling System : Silent 120mm fan Noise Level : 18dBA minimum Certification : 80 PLUS Bronze Form factor : ATX (PS2)
Dimension : 150 mm (W) x 86 mm (H) x 140 mm (D) Weight : 1.56 kg
Other : • GPU Support list • Compatible with ATX12V v2.4
