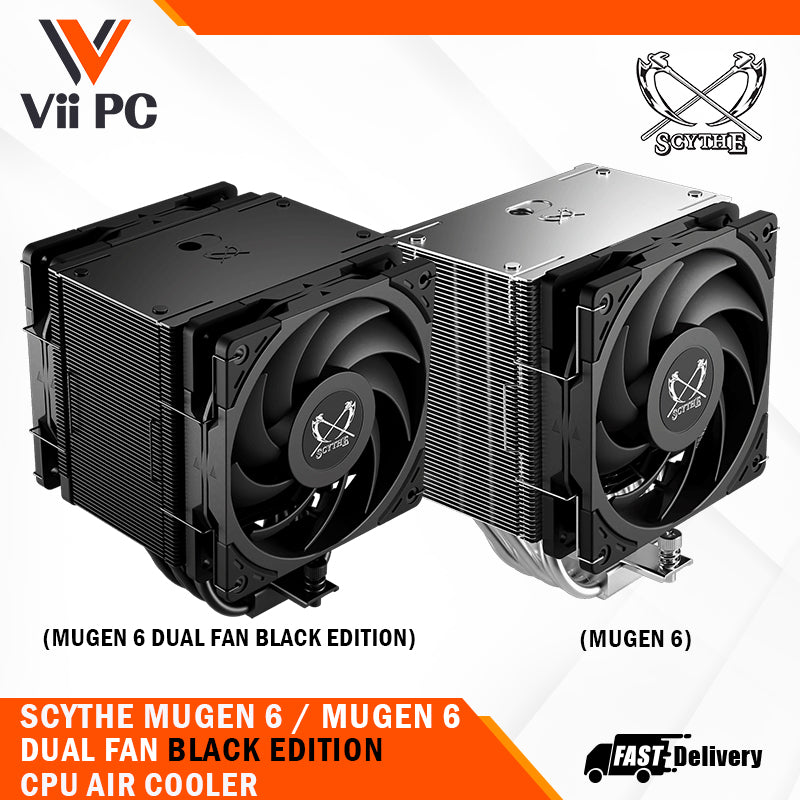

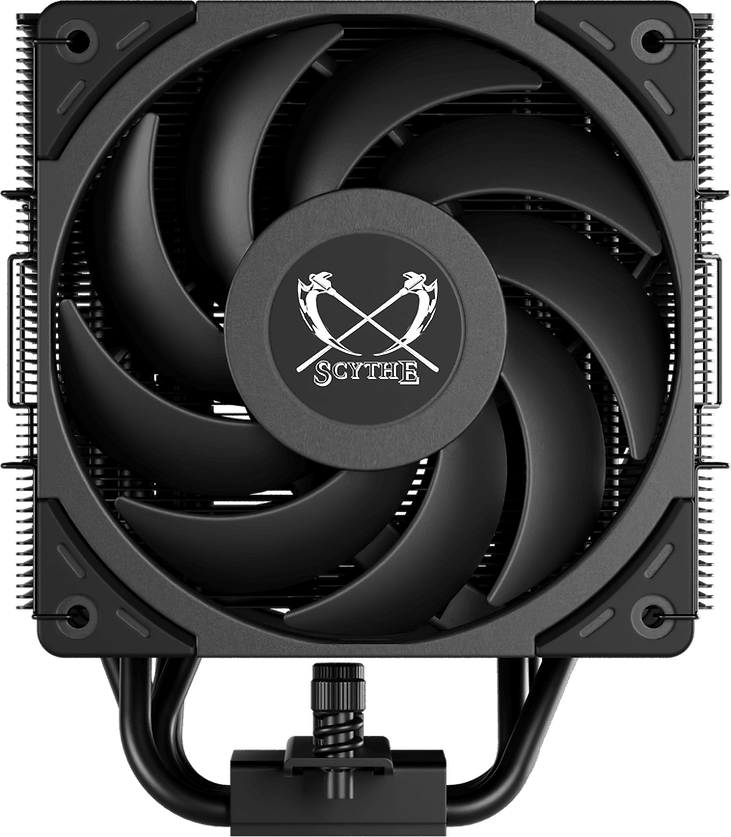

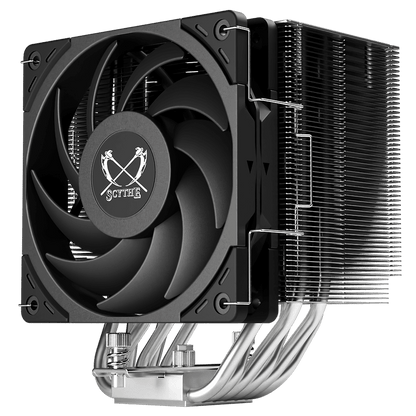

SCYTHE MUGEN 6 / MUGEN 6 Dual Fan Black Edition CPU Cooler, Intel: LGA1700/LGA1151, AMD: AM5/AM4 Support, Single Tower, Aluminum Top Cover

SCYTHE MUGEN 6 / MUGEN 6 Dual Fan Black Edition CPU Cooler, Intel: LGA1700/LGA1151, AMD: AM5/AM4 Support, Single Tower, Aluminum Top Cover

Regular price $65.00 SGD
Regular price Sale price $65.00 SGD
Sale Sold out
MODEL

SCYTHE MUGEN 6 / MUGEN 6 DUAL FAN BLACK EDITION CPU Air Cooler, Single Tower, Aluminium Top Cover

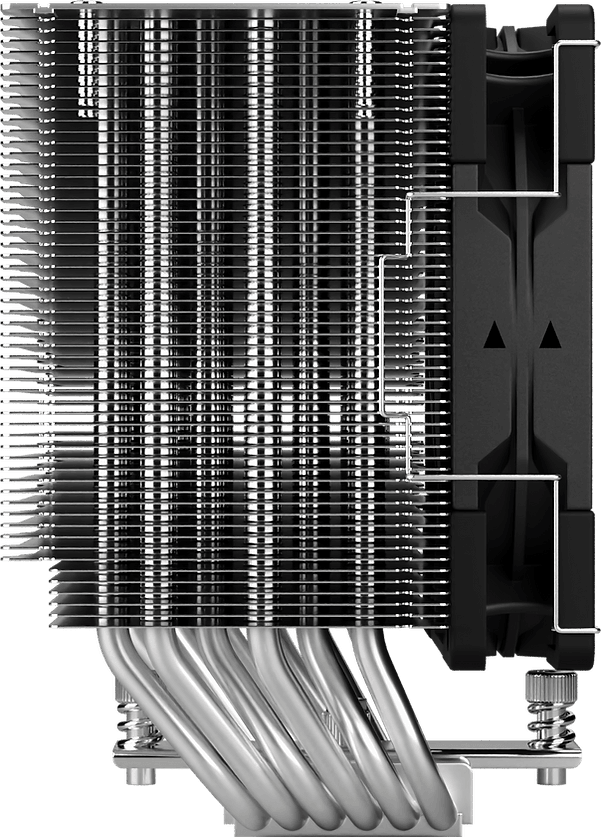

  • More efficiency, the Mugen 6 series features a 45% increase in fin count at 154mm height, with 6 nickel-plated copper heat pipes integrated into an aluminum heatsink. This design enhances thermal conductivity with a denser fin array and improved soldering for superior heat dissipation. it's ideal choice for high TDP processor from Intel (e.g. 14900K, 14700K, 14600K) and AMD (e.g. 7950X3D, 7900X3D, 7800X3D, 7700)
  • Multi-platform support, the H.P.M.S. V is SCYTHE 5th Gen spring-loaded mounting system that provides a secure fit and optimal contact pressure on the CPU. Easy to install, H.P.M.S. V offers full support to Intel LGA1700, LGA1200, LGA115x, LGA 2066 and AMD AM5 & AM4 Platform.

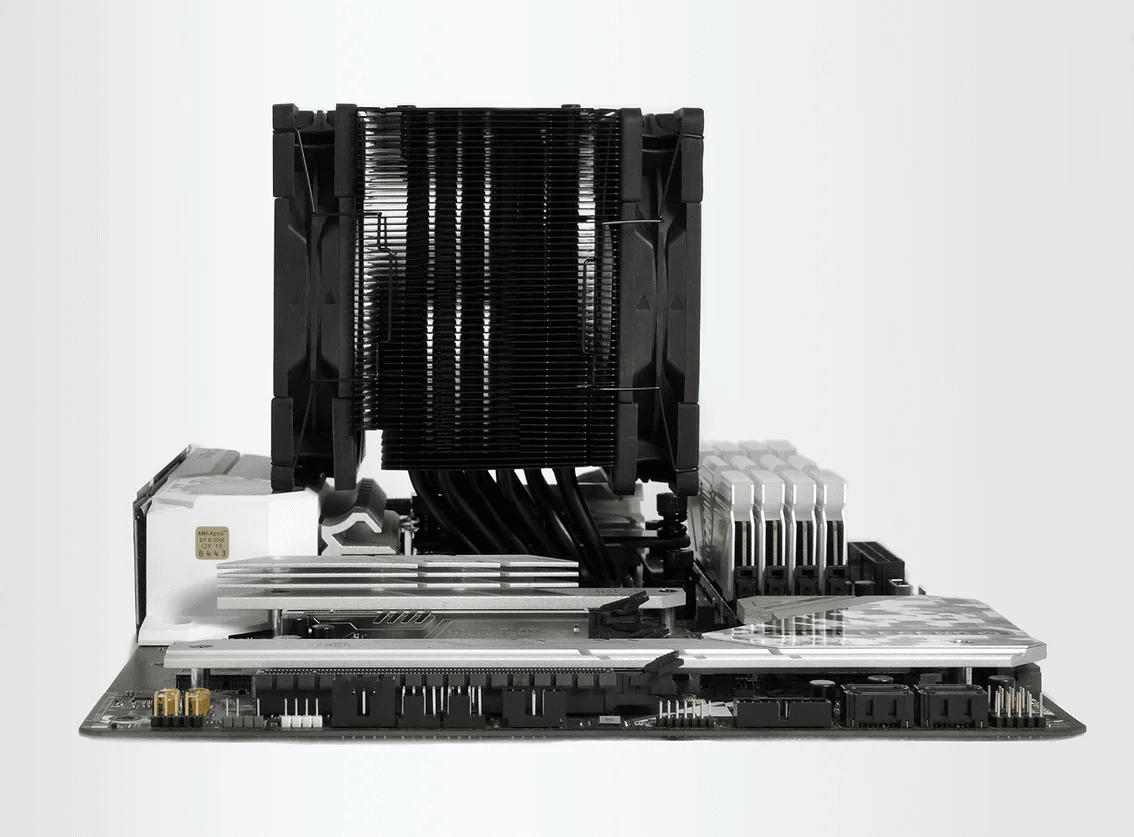

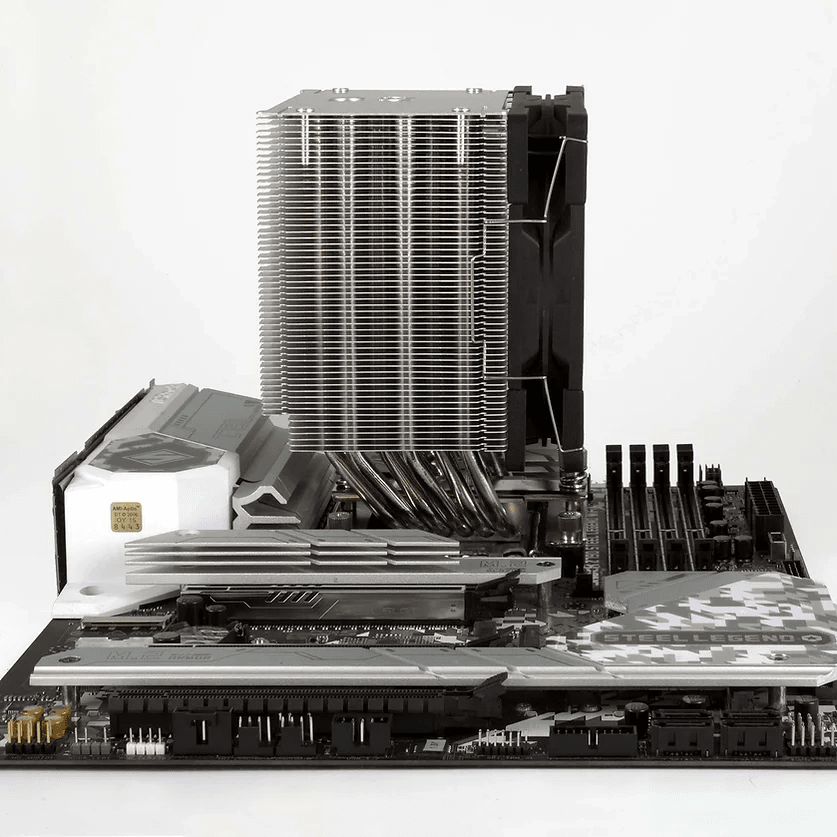

  • Excellent compatibility, features a heatsink offset design that ensures compatibility with various cases and avoiding interference with front-row RAM slots and VRM heatsinks on the motherboard.
  • Silent Operating, equipped Scythe Wonder Tornado 120mm Fan, boasting a 9-blade vortex-type design and a re-adjusted fan hub-to-blade ratio, ensuring excellent silent performance while reaching a maximum speed of 2000RPM.


SPECIFICATIONS

MODEL NAME: MUGEN 6/MUGEN 6 DUAL FAN BLACK EDITION

MODEL NUMBER: SCMG-6000 / SCMG-6000DBE

SOCKET

• Intel: LGA1700 / 115X /1200 / 2011 / 2066

• AMD: AM4 / AM5

DIMENSION(w/FAN)

• W132 x D106 x H154 mm / W5.19 x D4.17 x H6.06 inch (MUGEN 6)

• W132 x D132 x H154 mm / W5.19 x D5.19 x H6.06 inch (MUGEN 6 Dual)

HEATPIPE: 6mm x 6

WEIGHT(w/FAN)

• 1013g /  35.7 oz (MUGEN 6)

• 1197g (MUGEN 6 Dual)

FAN SPEC. MODEL NAME: Wonder Tornado 120PWM - 2000 RPM

FAN SIZE: 120 x 120 x 26 mm

FAN SPEED

• 350 ± 200 ~ 2000 ± 10% RPM (MUGEN 6)

• 300 ± 200 ~ 2000 ± 10% RPM (MUGEN 6 Dual)

AIR FLOW: 7.68 ~ 60.29 CFM

STATICS

• 0.05 ~ 2.54 mmH2O, 0.49 ~ 24.03 Pa (MUGEN 6)

• 0.05 ~ 2.45 mmH2O, 0.49 ~ 24.03 Pa (MUGEN 6 Dual)

NOISE: 3.00 ~ 26.88 dBA

VOLTAGE: 12V

RATED CURRENT: 0.15A

CONNECTOR: 4 Pin PWM

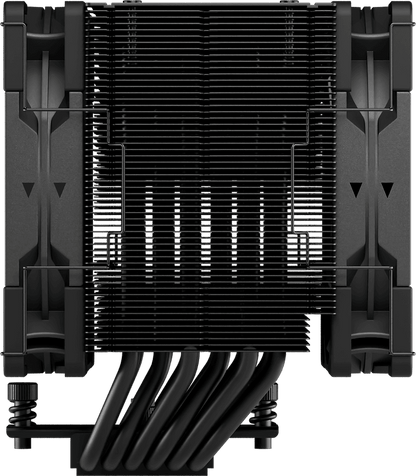

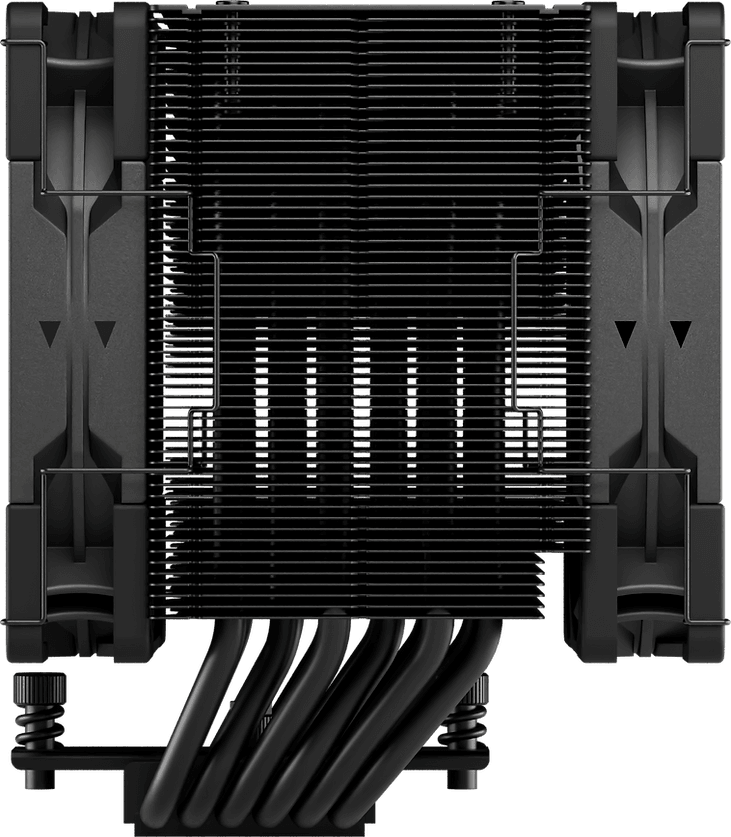

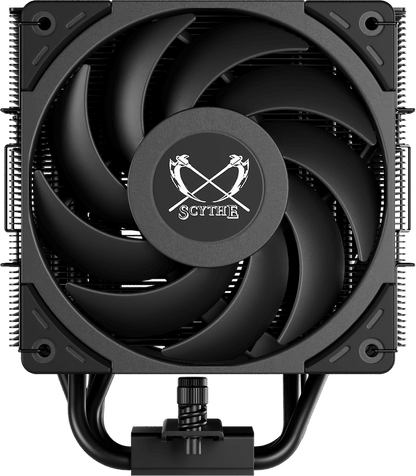

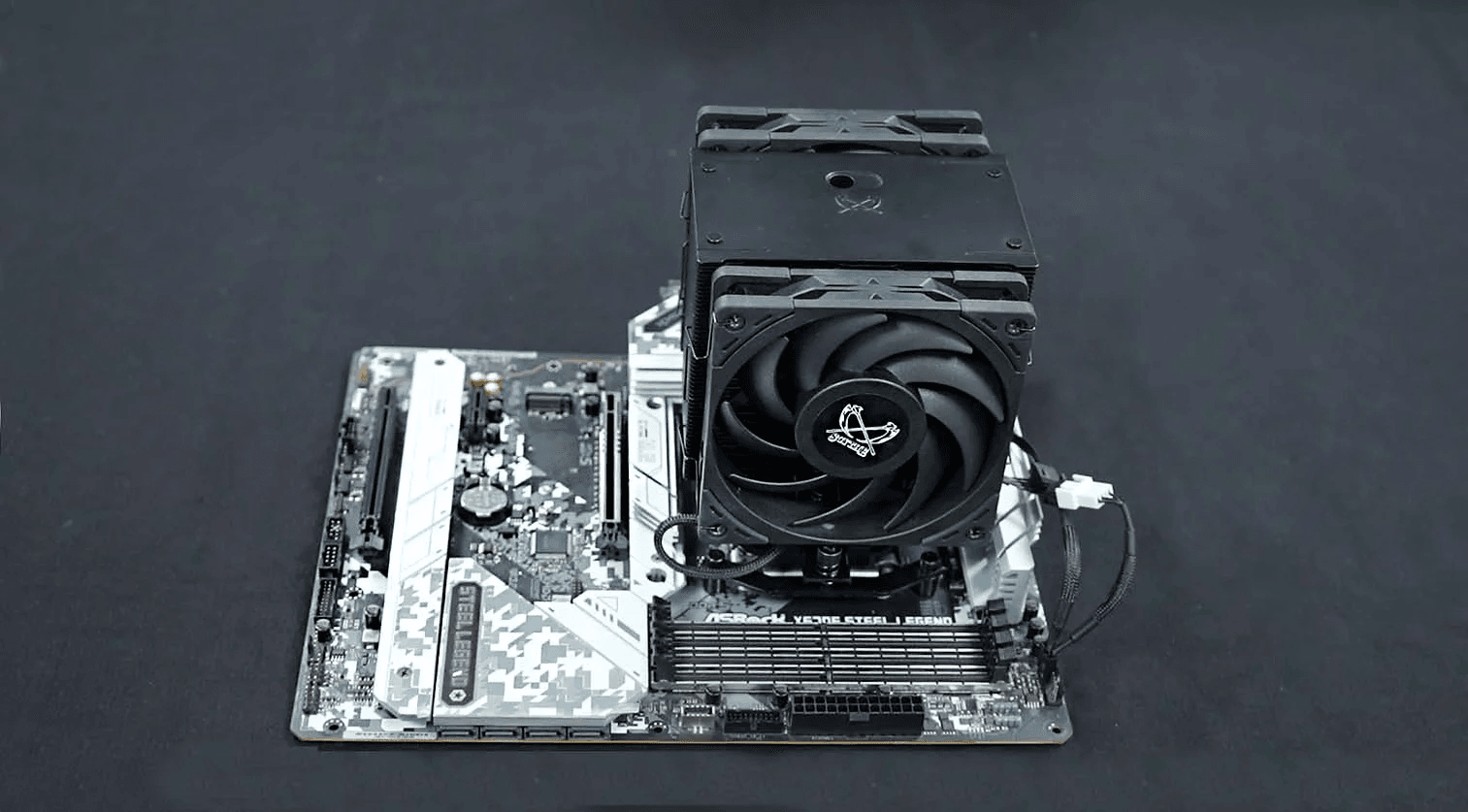

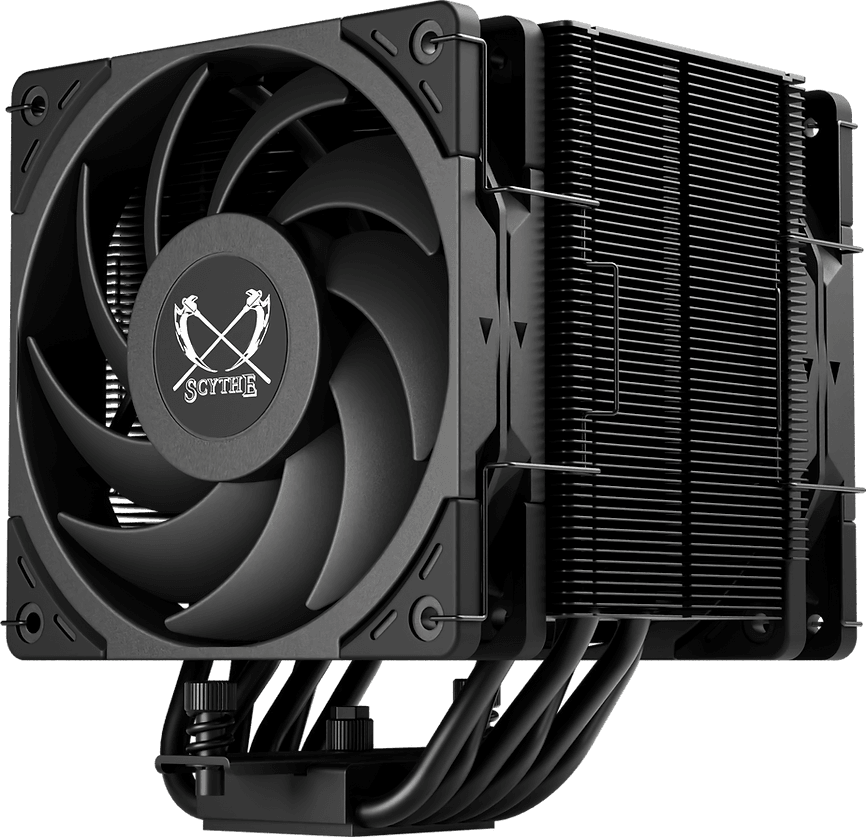

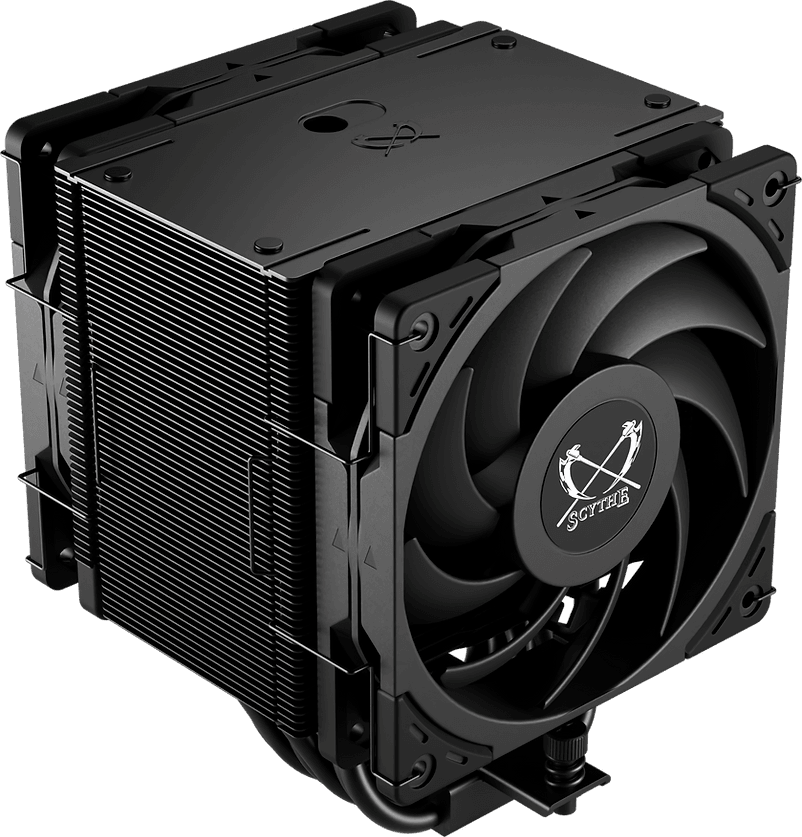

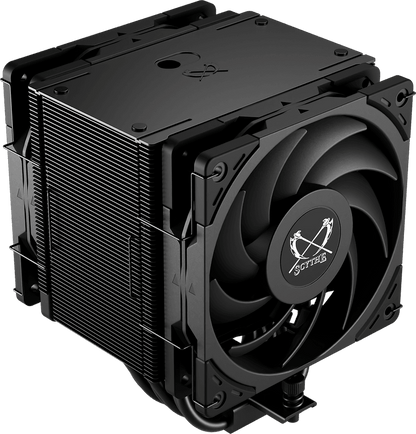

SCYTHE MUGEN 6 DUAL FAN BLACK EDITION (SCMG-6000DBE)

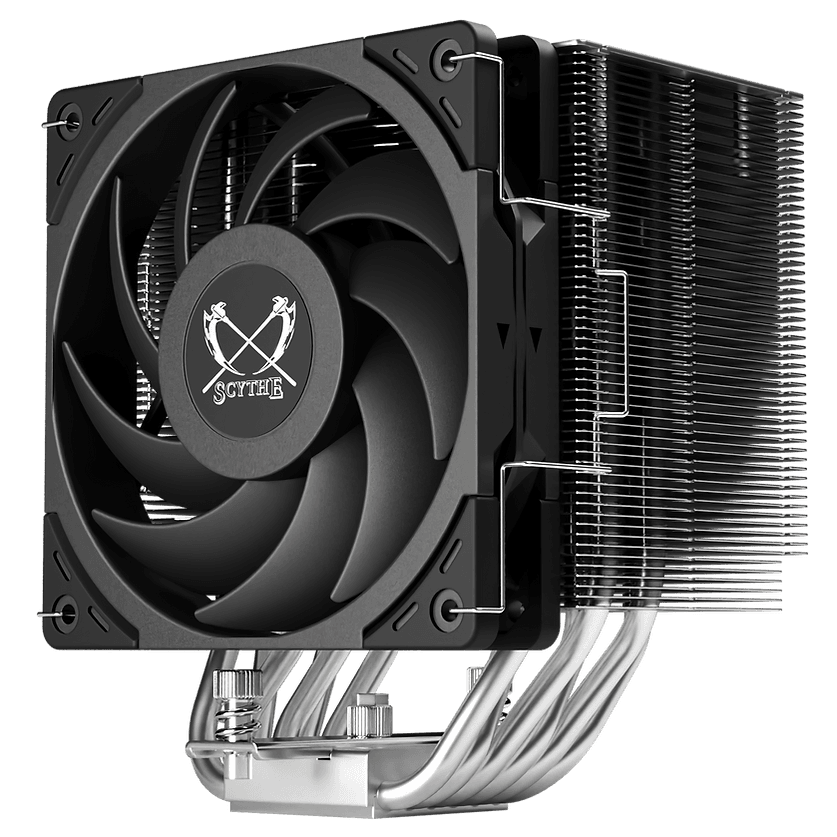

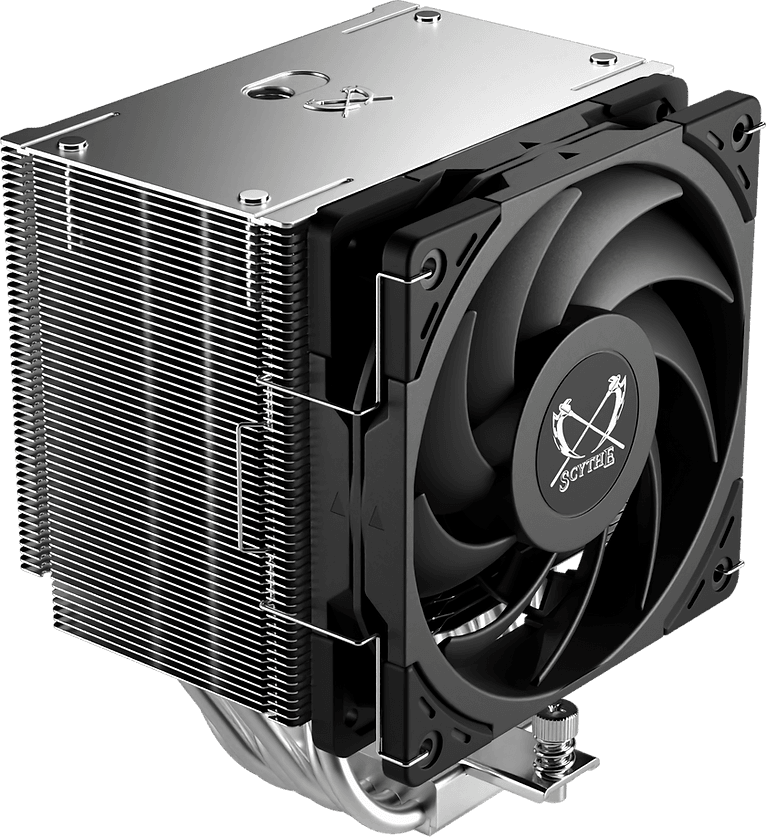

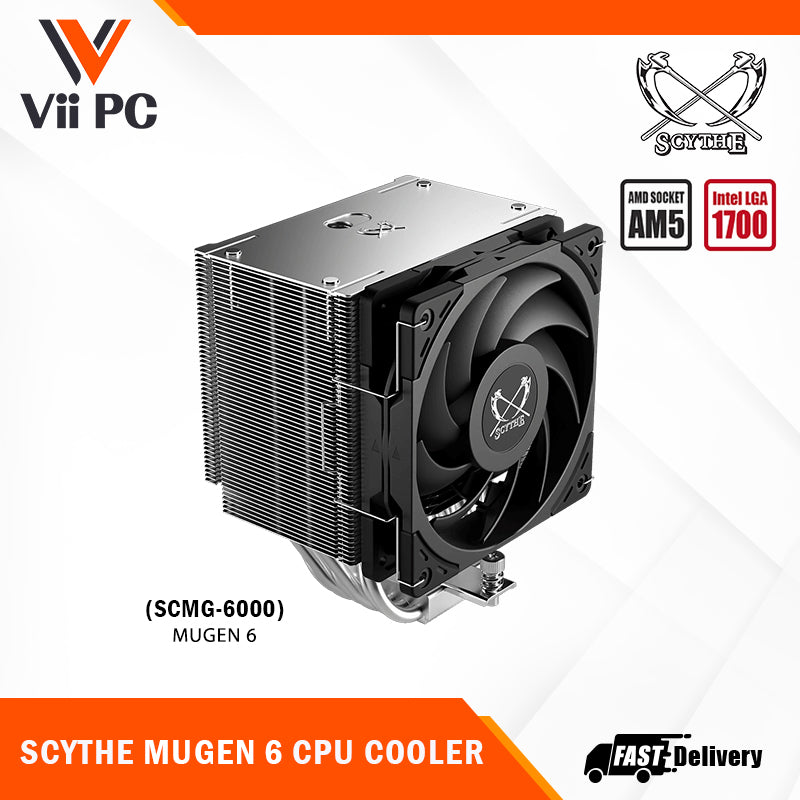

SCYTHE MUGEN 6 (SCMG-6000)
