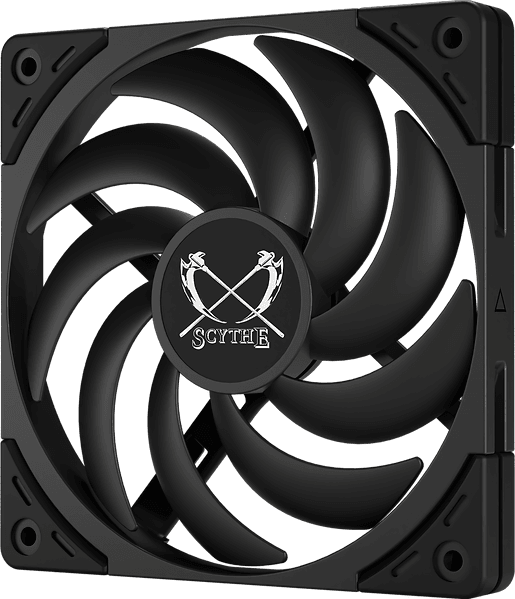

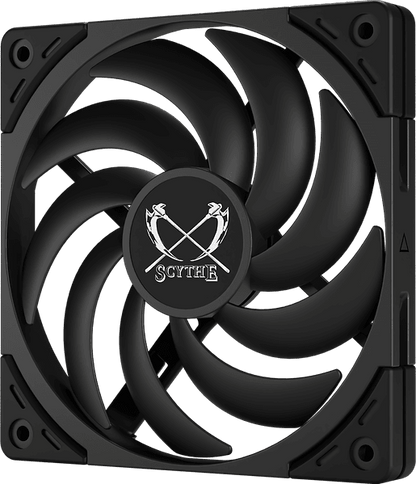

Scythe's top-tier LCP fan boasts a second-gen SPFDB2 bearing system, newly developed 9 swirl-shaped 120mm fan blades, titanium black finish, reinforced frame with vibration damping rubber, and delivers high air pressure, ample airflow, and minimal noise for superb stability. The Wonder Tornado 120 is a ground-up redesign. Drawing from years of experience, Scythe crafted our next-gen performance fan. Featuring a newly developed 9 swirl-shaped blades, enhanced blade-to-hub ratio, a reinforced frame, and maximized intake area, it delivers powerful performance and excellent stability.
GRAND TORNADO 120
-

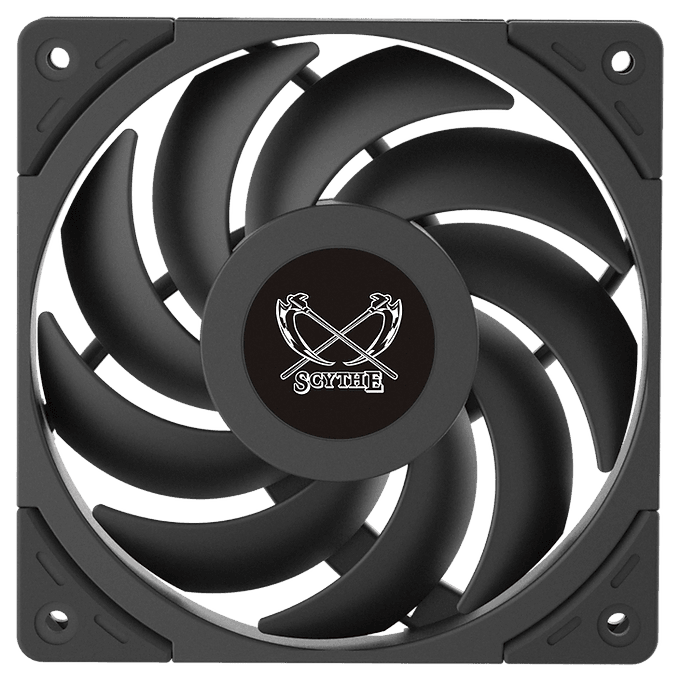

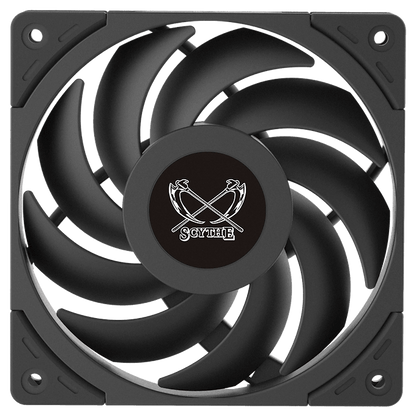

The Scythe Grand Tornado is a high performance 120x120x26mm PWM fan with a cutting-edge aerodynamic swirled blade design. It's designed for silent operation and offers excellent static pressure for maximum airflow, ensuring top-tier PC cooling.
-

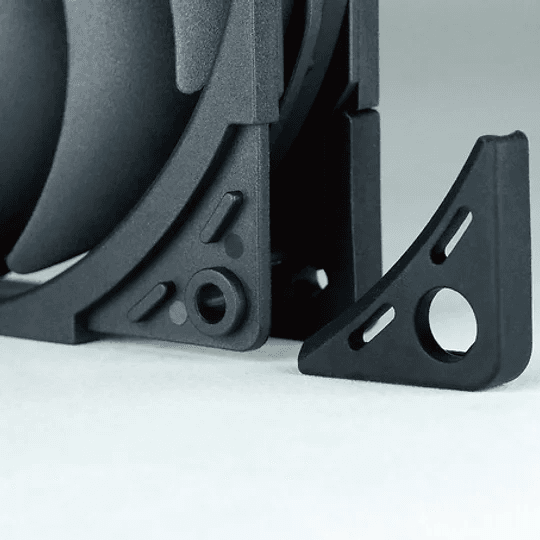

The Scythe Grand Tornado fan frame is built with high-quality, durable Industrial Grade Liquid-Crystal Polymer Compound, ensuring a long lifespan and excellent stability.
-
The Scythe Grand Tornado fan uses a high-precision metal-reinforced motor hub for cooling performance and stability. It employs SPFDB2 (Sealed Precision Fluid Dynamic Bearing 2) with an NdFeB magnet for excellent stability at high speeds and a longevity of up to 370,000 hours.
-
The Down-Speed Cable is designed for silent airflow, reducing fan speed by 40%. Users can customize it for quieter desktop cooling.
WONDER TORNADO 120
-

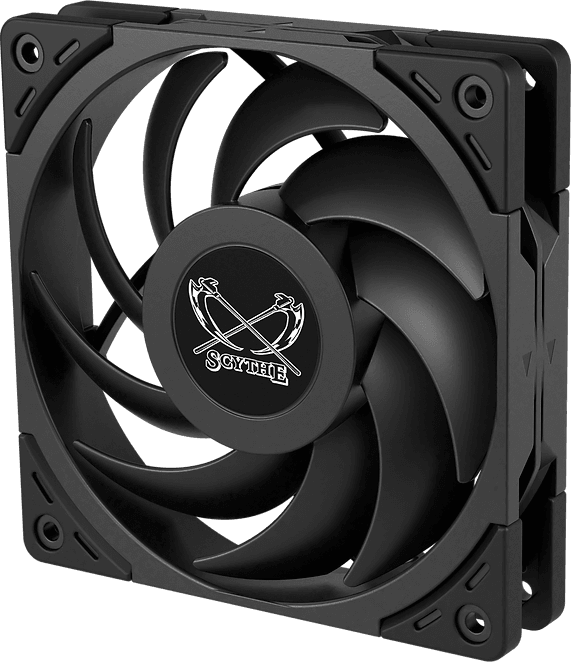

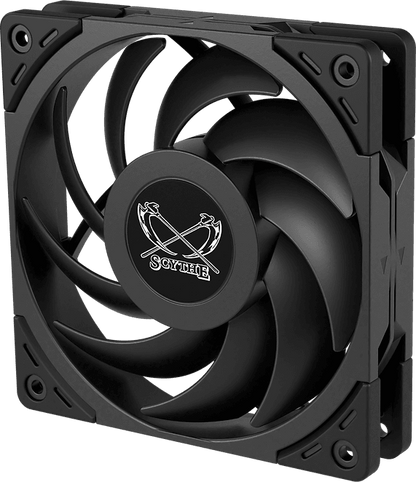

SCYTHE newly designed Wonder Tornado 120x120x26 mm High static pressure silent PWM fan, Sleek and swirled blade design, low-noise focused design, long term durability with top-tier craftsmanship.
-
SCYTHE Wonder Tornado 120mm PWM case fan is carefully structured with 9 highly optimized fan blades which are designed to generate the maximal CFM volume airflow and provide a nearly audible environment during heavy-duty operation.
-
The housing of the Wonder Tornado is structured with a sturdy fan frame that focuses on delivering higher airflow and higher static pressure and lower noise operation, which is optimal for PC enthusiasts who are in search of a great silent focused intake/exhaust case fan.
-
With proprietary Fluid Dynamic Bearing, Wonder Tornado 120 fan provides quiet cooling as well as long lifespan up to 120,000 hours. The bearing and pressure shaft are made of high-quality compressed metal, it is to guarantee minimum tolerance and excellent stability.
SPECIFICATIONS
DIMENSIONS
• 120 x 120 x 26mm
• 120 x 120 x 15mm (WT120 Slim)
BEARING
• SPFDB2
• Sealed Precision FDB (WT120)
MTTF
• 370,000 hrs
• 120,000 hrs (WT120)
VOLTAGE: 12V
WEIGHT
• 200g ± 10%
• 177g ± 10% (WT120)
ACCESSORY
GT120 :
• 4x Screws
• 4x Rubber Pull Screws
• 1x 200mm extension cable
• 1x Down Speed Cable
WT120 & WT120 Slim :
• 4x Screws
• 4x Rubber Pull Screws
• 1x 200mm extension cable
|
MODEL NAME |
FAN SPEED (RPM) |
AIR FLOW (CFM) |
STATIC PRESSURE (mmH2O / Pa) |
NOISE (dBA) |
CURRENT (A) |
|
GT1225FD30-P Down Speed Cable |
400±200~3000±10% 400±200~1800±10% |
12.23~97.82 12.236.38 |
0.62~5.13 / 6.08~50.31 0.62~2.32 / 6.08~22.75 |
9.3~36.63 9.3~20.76 |
0.31 0.11 |
|
WT1225FD25-P |
350±200~2500±10% |
7.68~75.17 |
0.05~3.39 / 0.49~33.24 |
3.0~35.57 |
0.20 |
