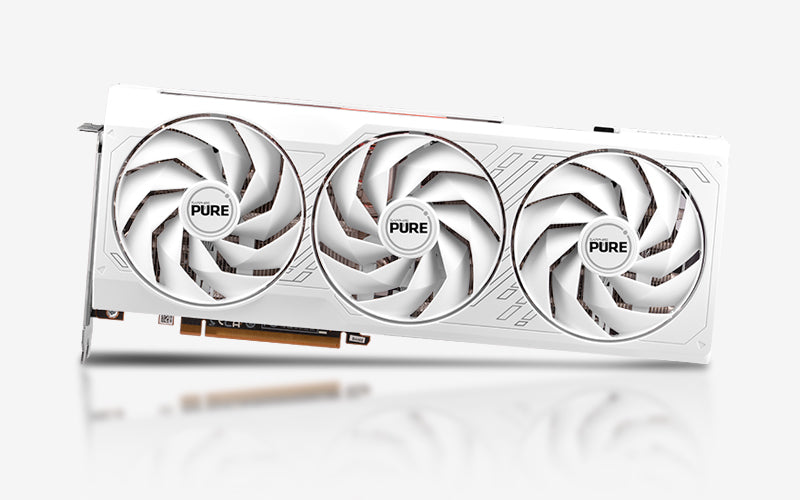

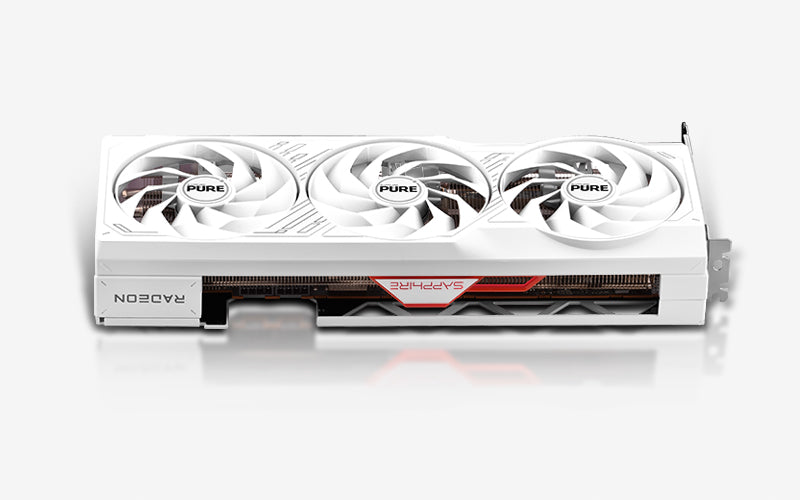

SAPPHIRE PURE AMD Radeon RX 7900 GRE/RX7900 GRE 16GB GDDR6/PCI-E 4.0 x16/2.5 slot/ATX Graphics Cards

SAPPHIRE PURE AMD Radeon RX 7900 GRE 16GB

FEATURES :

• GPU : Boost Clock: Up to 2333 MHz

• GPU : Game Clock: Up to 1972 MHz

• Memory : 16GB/256 bit DDR6. 18 Gbps Effective

• Stream Processors : 5120

• RDNA 3 Architecture

• Ray Accelerator: 80

SPECIFICATIONS

GPU:

• AMD Radeon RX 7900 GRE Graphics Card

• 5nm GPU

• AMD RDNA 3 Architecture

Engine Clock:

• Boost Clock: Up to 2333 MHz

• Game Clock: Up to 1972MHz

• Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

• Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors: 5120

Compute Units: 80 CU (with RT+AI Accelerators)

Infinity Cache: 64MB

Ray Accelerators: 80

Memory Size/Bus: 16GB/256 bit GDDR6

Memory Clock: 18 Gbps Effective

Displays: Maximum 4 Displays

Resolution:

• HDMI: 7680×4320

• DisplayPort 2.1: 7680×4320

Interface: PCI-Express 4.0 x16

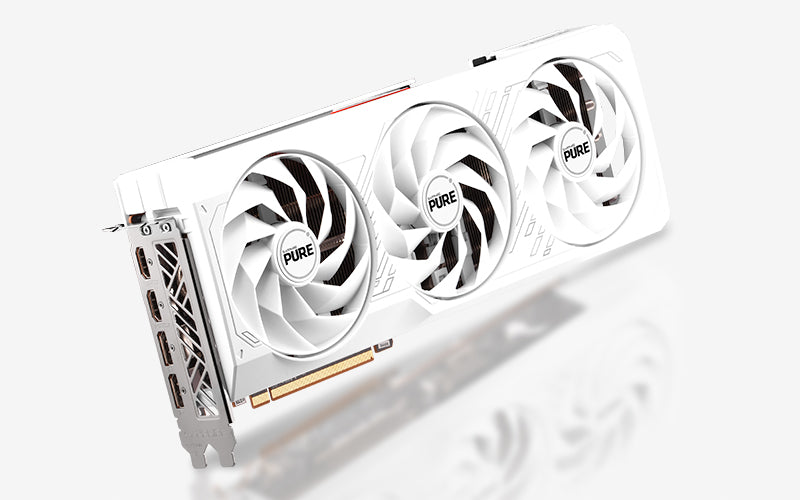

Output:

• 2x HDMI

• 2x DisplayPort

BIOS Support: UEFI

Game Index: 4K

Sapphire Features:

• Premium Digital Power Design

• Ultra High Performance Conductive Polymer Aluminum Capacitors

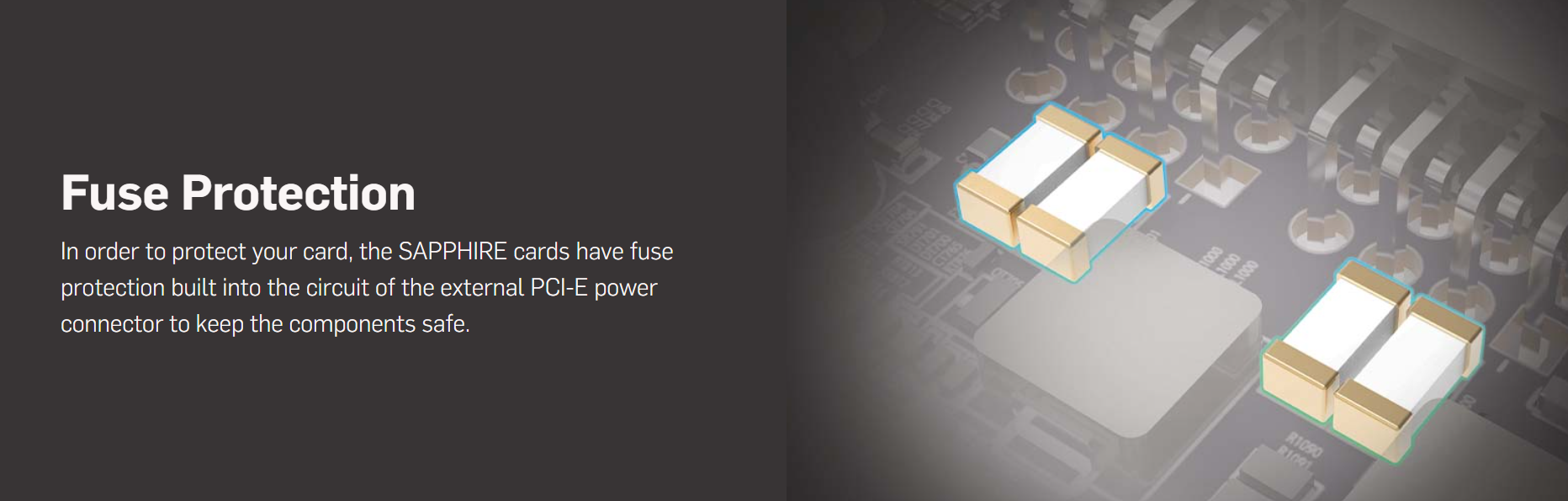

• Fuse Protection

• Tri-X Cooling Technology

• High TG Copper PCB

• Optimized Composite Heatpipe

• Intelligent Fan Control

• Precision Fan Control

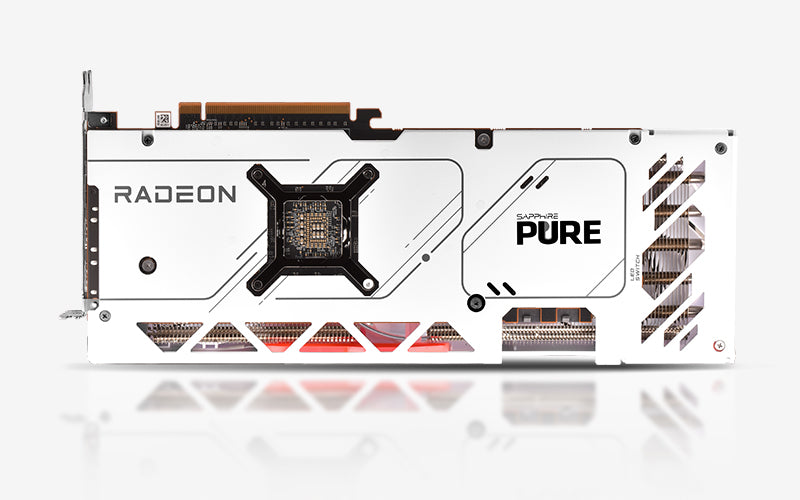

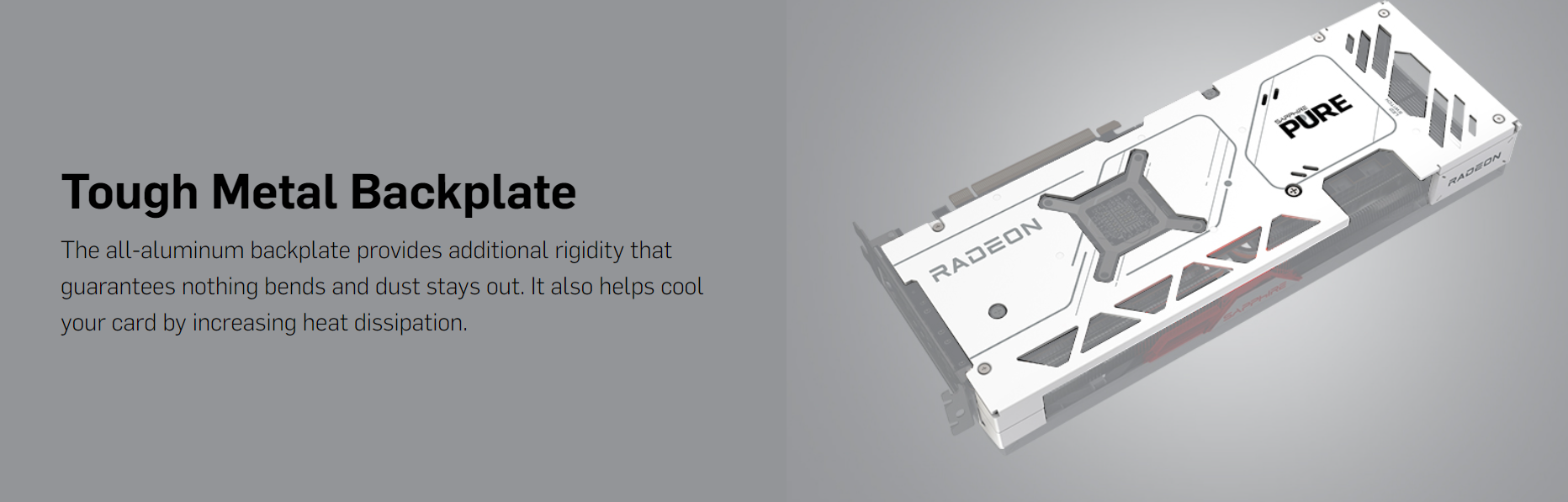

• Metal Backplate

• Red LED SAPPHIRE Logo

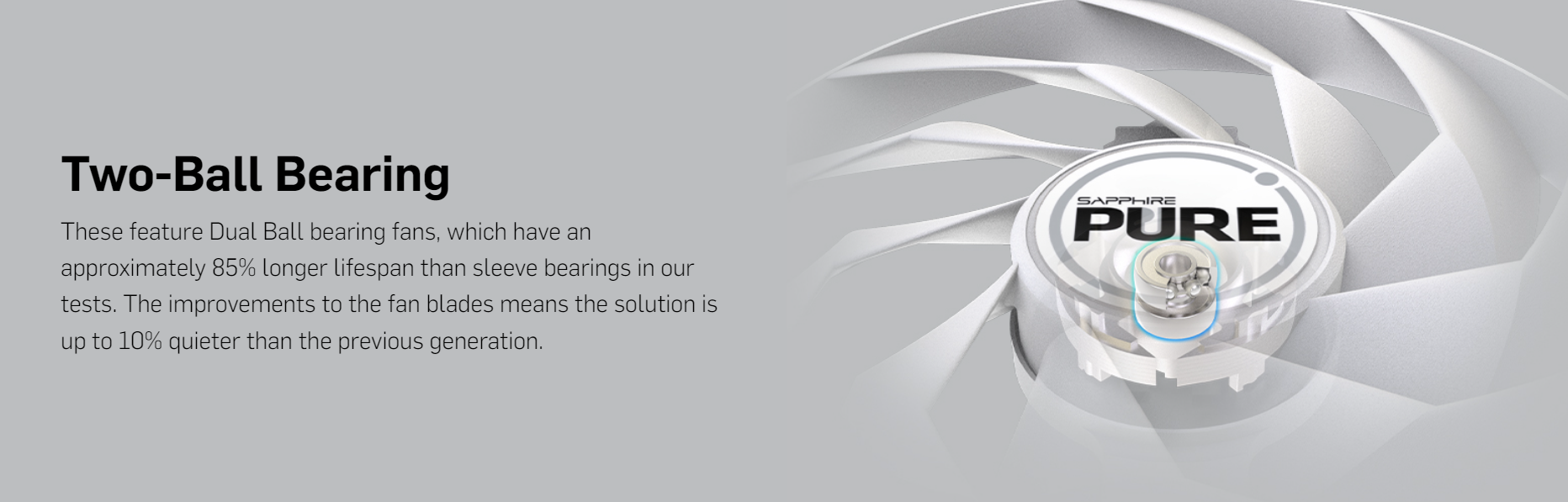

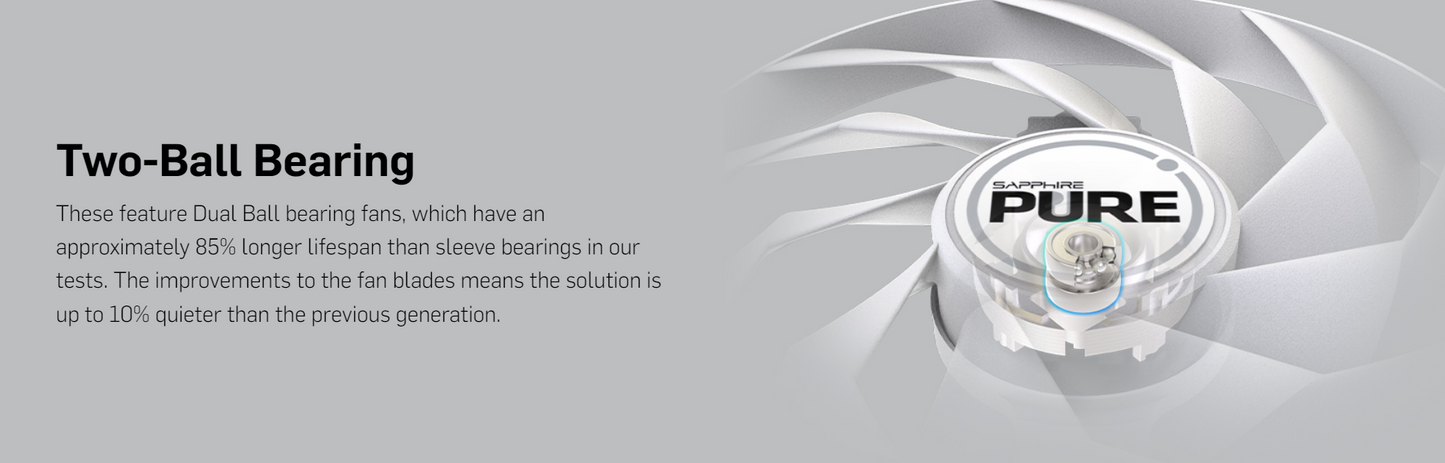

• Two-Ball Bearing Fans

• Angular Velocity Fan Blade

• TriXX Supported

• TriXX Boost

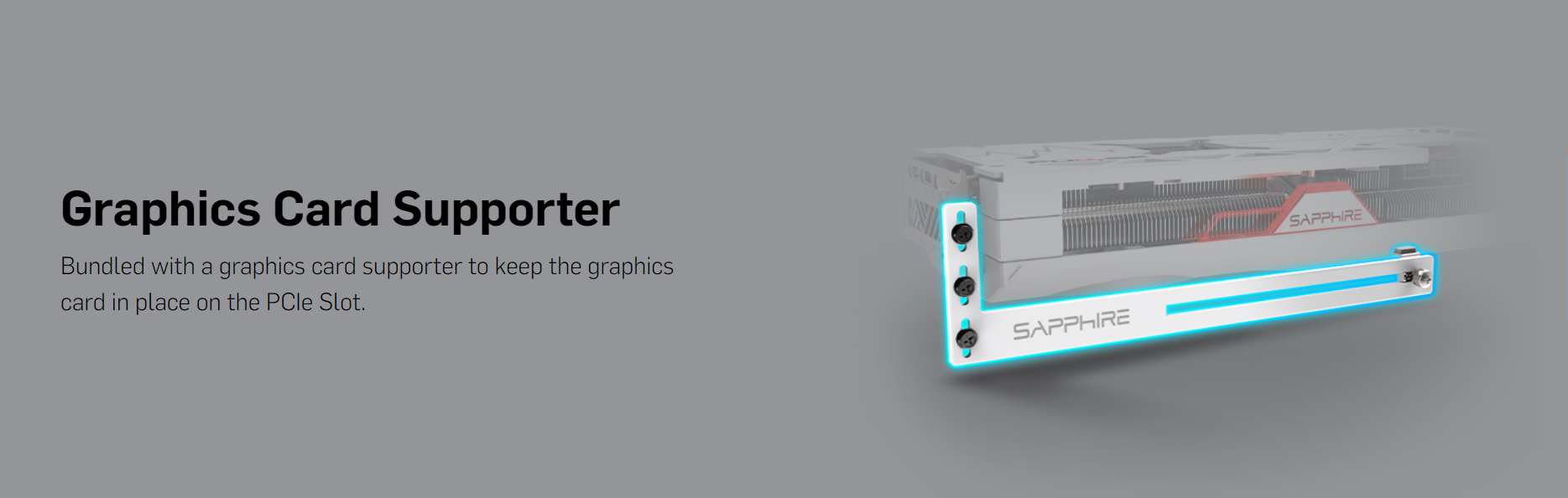

Accessories: Graphics Card Supporter

AMD Features:

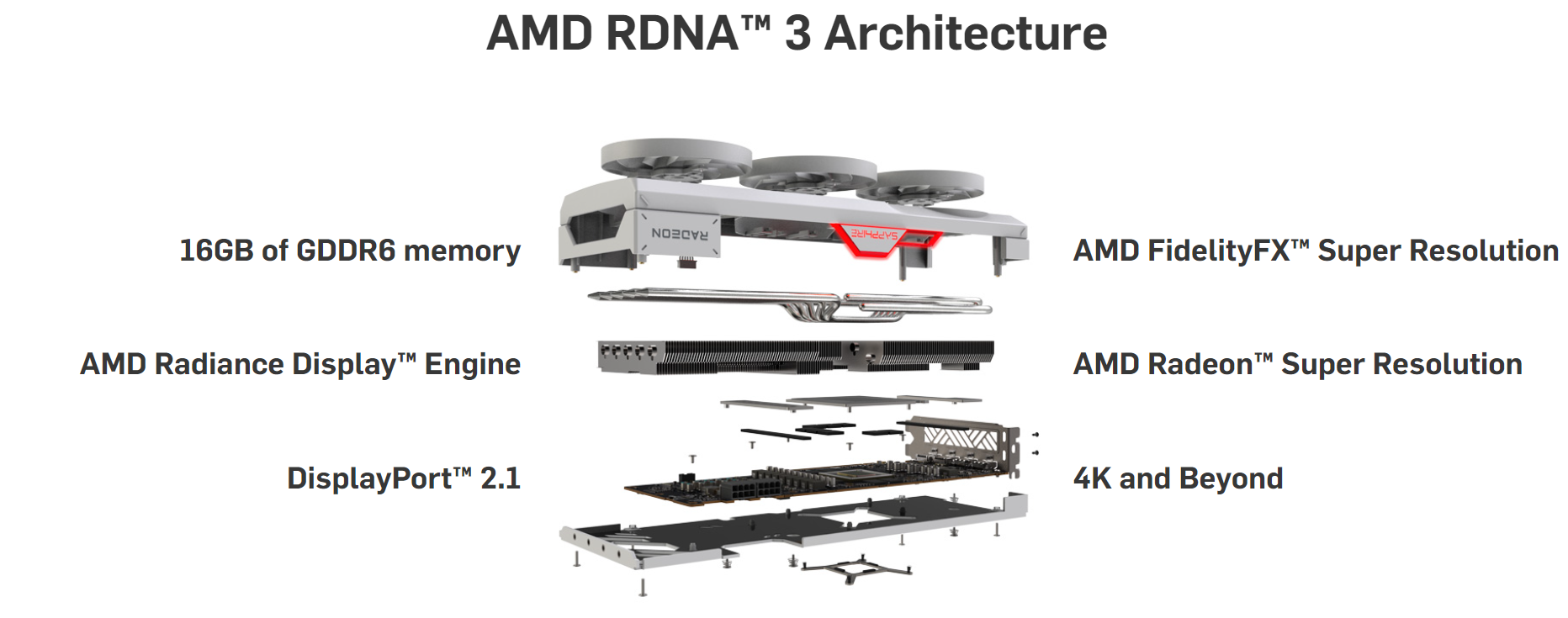

• AMD RDNA 3 Architecture

• 80 AMD RDNA 3 Compute Units

• 64MB AMD Infinity Cache Technology

• DirectX 12 Ultimate Support

• DisplayPort 2.1 Support

• AMD Radiance Display Engine

• 16GB GDDR6 on 256-Bit Memory Bus

• PCI Express 4.0 ready

• AMD FidelityFX Super Resolution technology

• Microsoft DirectX 12 Ultimate Support

• Microsoft DirectStorage Support

• Vulkan Optimized

• AMD Smart Technologies

• AMD Software: Adrenalin Edition

• AMD Noise Suppression

• AMD Privacy View

• AMD Radeon Super Resolution technology

• AMD FreeSync Technology

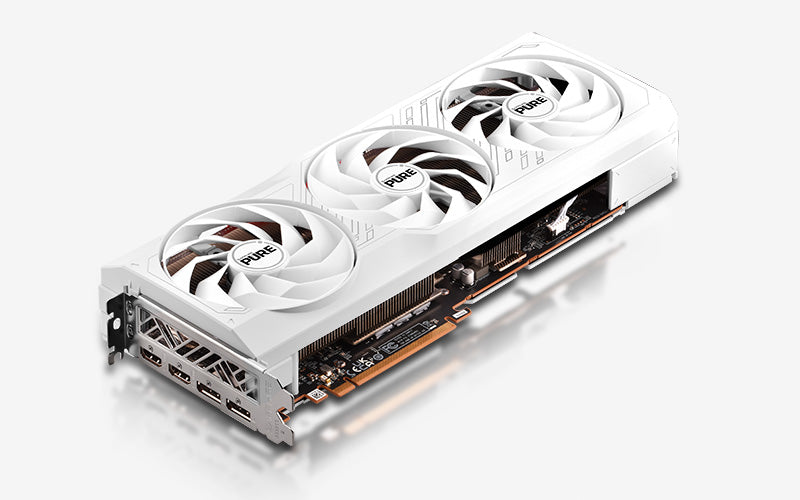

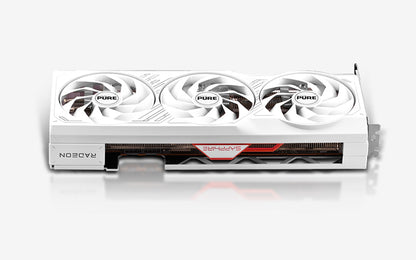

Cooler Type: 3 Fans

Form Factor:

• 2.5 slot, ATX

• Dimension: 320(L)X 128.75(W)X 52.57 (H)mm

Power Consumption: 275W Total Board Power

OS: Linux, Windows 10, and Windows 11. 64-bit  operating system required

System Requirement:

• Minimum 700 Watt Power Supply

• 2 x 8-pin Power Connector.

• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.

• Minimum 8GB of system memory. 16GB recommended.
