SAPPHIRE NITRO+ AMD Radeon RX 7900 GRE 16GB
Backplate : Provides rigidity and helps cool your card by increasing heat dissipation.
ARGB : Personalize the look of your NITRO + card with its built-in ARGB.
Outputs : Choose from HDMI and DP slots for a maximum of 4 outputs
Cooling : Innovative cooling technologies to ensure optimal performance and airflow.
FEATURES :
• GPU: Boost Clock: Up to 2391 MHz
• GPU: Game Clock: Up to 2052 MHz
• Memory: 16GB/256 bit DDR6. 18 Gbps Effective
• Stream Processors: 5120
• RDNA™ 3 Architecture
• Ray Accelerator: 80
• Dual Ball Bearing Fan
• Quick Connect Fan
• Hybridized Fan Blades
• Optimized Composite Heatpipe
• Metal Backplate
• Dual BIOS
• ARGB Lighting
• Tri-X / Dual-X Cooling Technology
• External ARGB Control Sync
• TriXX Fan Check
SPECIFICATIONS
- GPU:
• AMD Radeon RX 7900 GRE Graphics Card
• 5nm GPU
• AMD RDNA™ 3 Architecture
- Engine Clock:
• Boost Clock: Up to 2391 MHz
• Game Clock: Up to 2052 MHz
• Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
• Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
- Stream Processors: 5120
- Compute Units: 80 CU (with RT+AI Accelerators)
- Infinity Cache: 64MB
- Ray Accelerators: 80
- Memory Size/Bus: 16GB/256 bit GDDR6
- Memory Clock: 18 Gbps Effective
- Displays: Maximum 4 Displays
- Resolution:
• HDMI: 7680×4320
• DisplayPort 2.1: 7680×4320
- Interface: PCI-Express 4.0 x16
- Output:
• 2x HDMI
• 2x DisplayPort
- BIOS Support: Dual UEFI
- Game Index: 4K
- Sapphire Features:
• Dual BIOS
• TriXX Software Switch
• Premium Digital Power Design
• Ultra High Performance Conductive Polymer Aluminum Capacitors
• Fuse Protection
• Tri-X Cooling Technology
• High TG Copper PCB
• Optimized Composite Heatpipe
• Intelligent Fan Control
• Precision Fan Control
• Metal Backplate with ARGB
• ARGB Light Bar
• Two-Ball Bearing Fans
• Angular Velocity Fan Blade

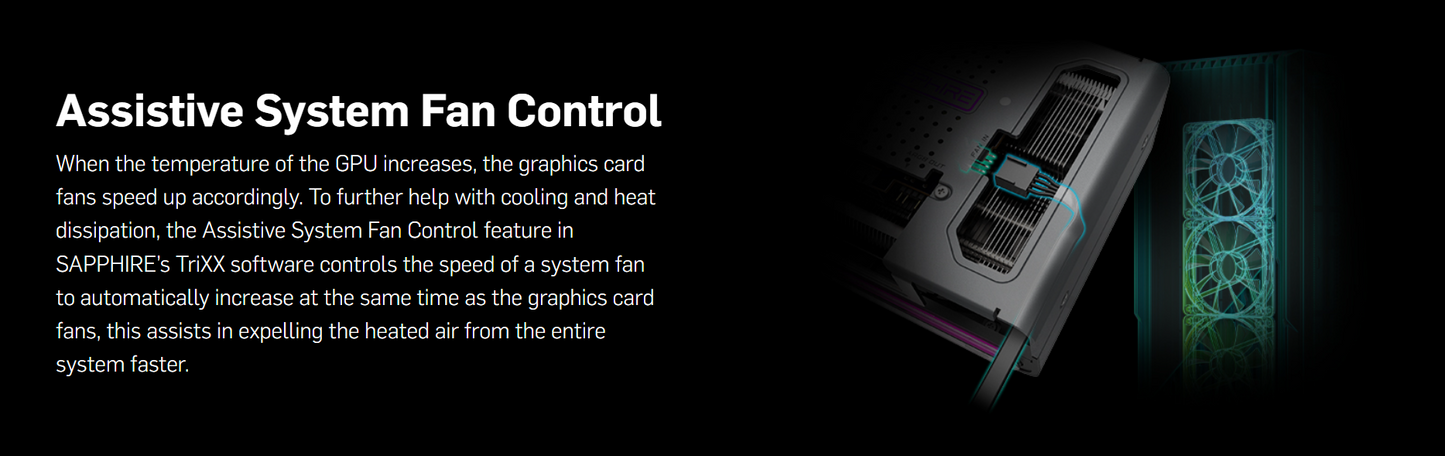

• Assistive System Fan Control
• Cold Rolled Steel Frame
• Dedicated VRM Cooling
• Wave Fin Design
• V Shape Fin Design for GPU Cooling
• TriXX Supported
• Fan Check
• Fan Quick Connect
• TriXX Boost
• NITRO Glow
• External RGB LED MB Synchronization
- Accessories Bundled:
• Graphics Card Supporter
• ARGB Extension Cable
- AMD Features:
• AMD RDNA 3 Architecture
• 80 AMD RDNA 3 Compute Units
• 64MB AMD Infinity Cache Technology
• DirectX 12 Ultimate Support
• DisplayPort 2.1 Support
• AMD Radiance Display Engine
• 16GB GDDR6 on 256-Bit Memory Bus
• PCI Express 4.0 ready
• AMD FidelityFX Super Resolution technology
• Microsoft DirectX 12 Ultimate Support
• Microsoft DirectStorage Support
• Vulkan Optimized
• AMD Smart Technologies
• AMD Software: Adrenalin Edition
• AMD Noise Suppression
• AMD Privacy View
• AMD Radeon Super Resolution technology
• AMD FreeSync Technology
- Cooler Type: 3 Fans
- Form Factor:
• 3 slot, ATX
• Dimension: 320(L)X 134.85(W)X 61.57(H)mm
- Power Consumption: 295W Total Board Power
- OS: Linux, Windows 10, and Windows 11. 64-bit operating system required
- System Requirement:
• Minimum 700 Watt Power Supply
• 2 x 8-pin Power Connector.
• PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
