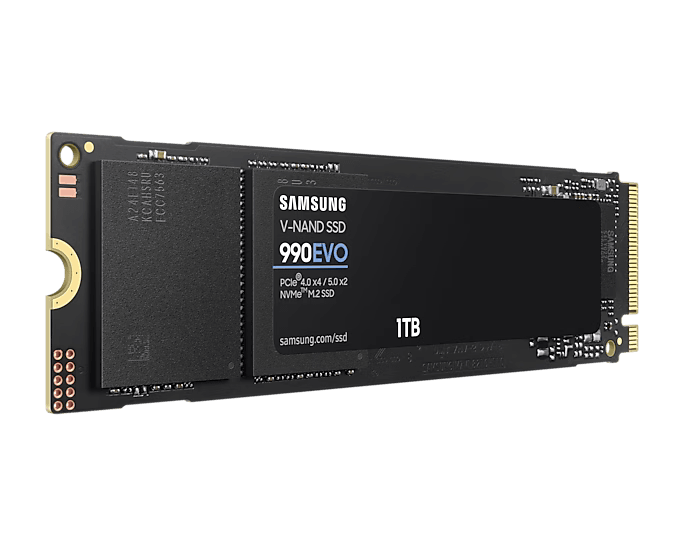

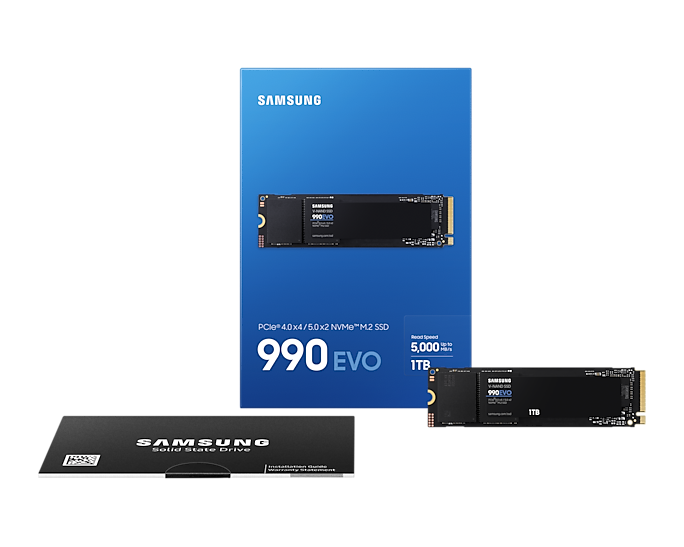

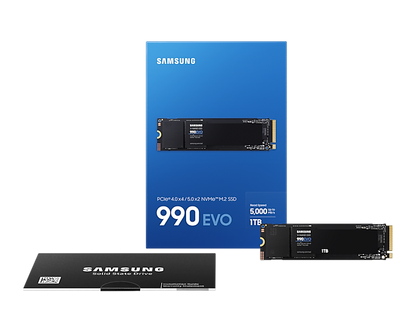

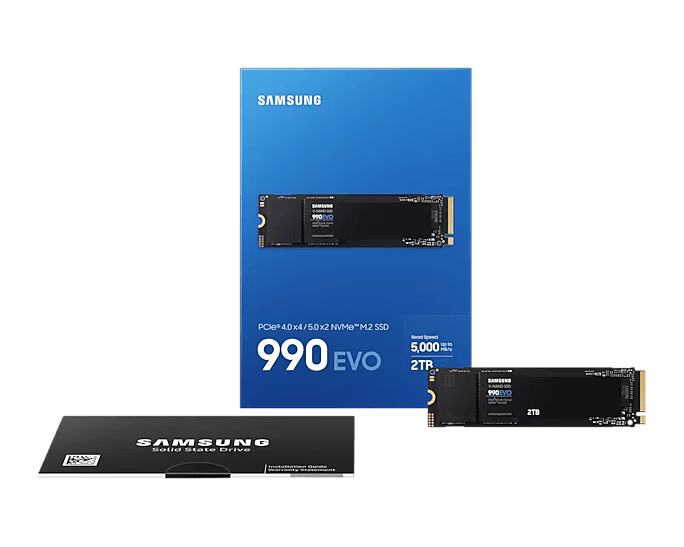

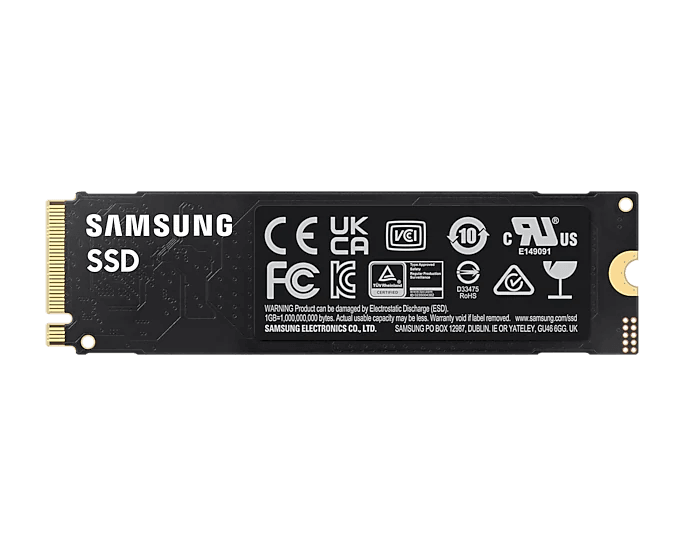

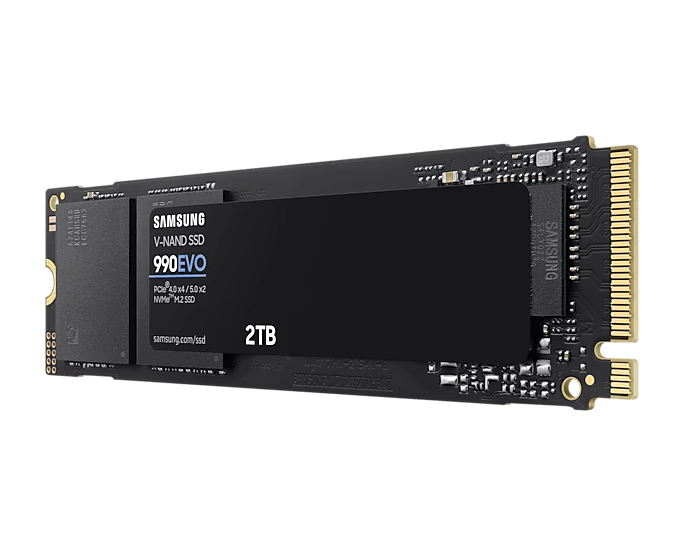

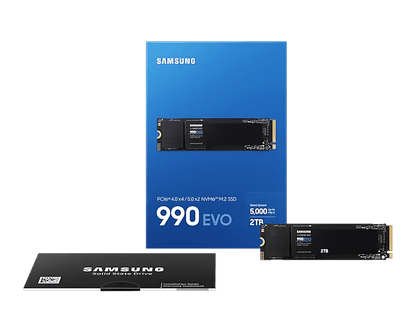

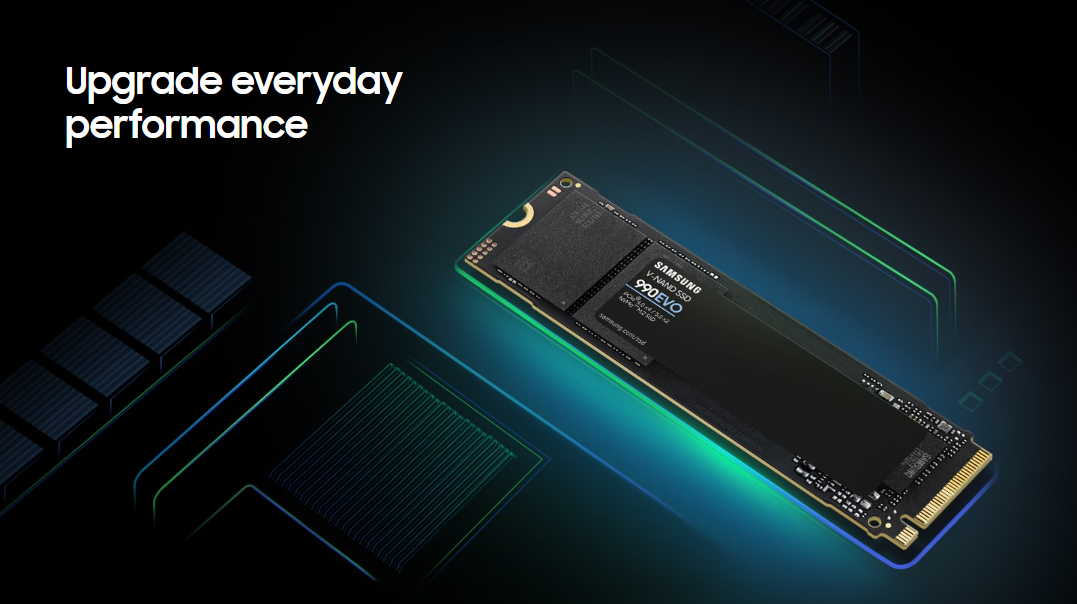

SAMSUNG 990 EVO NVMe 2.0 M.2 2280 SSD (1TB/2TB)
- PCIe 4.0x4/PCIe 5.0x2/Up to 5,000 MB/s Read/ Up to 4,200 MB/s Write/5 Yrs Limited Warranty/ 1200 TBW Limited Warranty
• APPLICATION - Client PCs
• FORM FACTORS - M.2 (2280)
• INTERFACE - PCIe 4.0 x4 / 5.0 x2 NVMe 2.0
• PERFORMANCE - Up to 5,000MB/s *
• SEQUENTIAL WRITE - Up to 4,200MB/s *
• WARRANTY - 5-Year Limited Warranty or 1200 TBW Limited Warranty
FEATURES :
• Up to 5,000/4,200 MB/s of sequential read/write speeds
• Enhanced power efficiency supporting Modern Standby
• Meet the demands of gaming, business, and creative work
• PERFORMANCE - Upgrade to faster read speed up to 5,000 MB/s reaching 43% faster than the previous model.
• POWER EFFICIENCY - 70% enhanced power efficiency compared to the previous model, supporting Modern Standby and longer battery life
• VERSATILITY - Elevate everyday performance in gaming, business and creative work with PCIe 4.0x4 and PCIe 5.0x2 compatibility
SPECIFICATIONS
► GENERAL FEATURE
- Application : Client PCs
- Capacity : 2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
- Form Factor : M.2 (2280)
- Interface : PCIe 4.0 x4 / 5.0 x2 NVMe 2.0
- Dimension (Pack: WxHxD) : 80 x 22 x 2.38 mm
- Weight : max 9.0g Weight
- Storage Memory : SAMSUNG V-NAND TLC
- Controller : Samsung in-house Controller
- Cache Memory : HMB(Host Memory Buffer)
► SPECIAL FEATURE
- TRIM Support : Supported
- S.M.A.R.T Support : Supported
- GC (Garbage Collection) : Auto Garbage Collection Algorithm
- Encryption Support : AES 256-bit Encryption (Class 0)/TCG/Opal IEEE1667 (Encrypted Drive)
- WWN Support : Not Supported
- Device Sleep Mode Support : Yes
► PERFORMANCE
- Sequential Read : Up to 5,000 MB/s *
- Sequential Write : Up to 4,200 MB/s *
- Random Read (4KB, QD32) : Up to 700,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD32) : Up to 800,000 IOPS * Performance may vary based on system hardware & configuration
- Random Read (4KB, QD1) : Up to 20,000 IOPS * Performance may vary based on system hardware & configuration
- Random Write (4KB, QD1) : Up to 90,000 IOPS * Performance may vary based on system hardware & configuration
► ENVIRONMENT
- Average Power Consumption (system level) : *Average: Read 5.5 W / Write 4.7 W* Actual power consumption may vary depending on system hardware & configuration
- Power consumption (Idle) : Typical 60 mW * Actual power consumption may vary depending on system hardware & configuration
- Power Consumption (Device Sleep) : Typical 5 mW * Actual power consumption may vary depending on system hardware & configuration
- Allowable Voltage : 3.3 V ± 5 % Allowable voltage
- Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
- Operating Temperature : 0 - 70 ℃ Operating Temperature
- Shock : 1,500 G & 0.5 ms (Half sine)
► ACCESSORIES
- Installation Kit : Not Available
► SOFTWARE
- Management SW : Magician Software for SSD management
► WARRANTY : 5-year Limited Warranty or 1200 TBW Limited Warranty
