NZXT H6 FLOW/H6 FLOW RGB

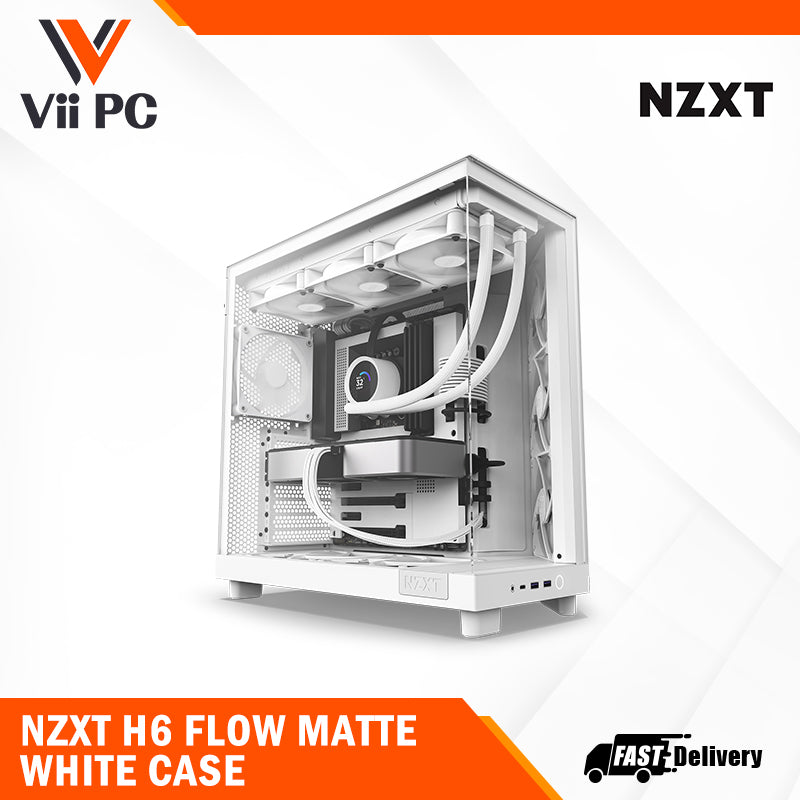

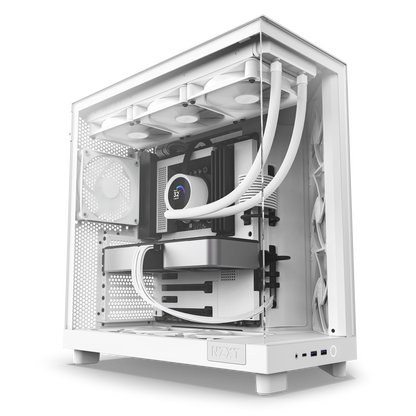

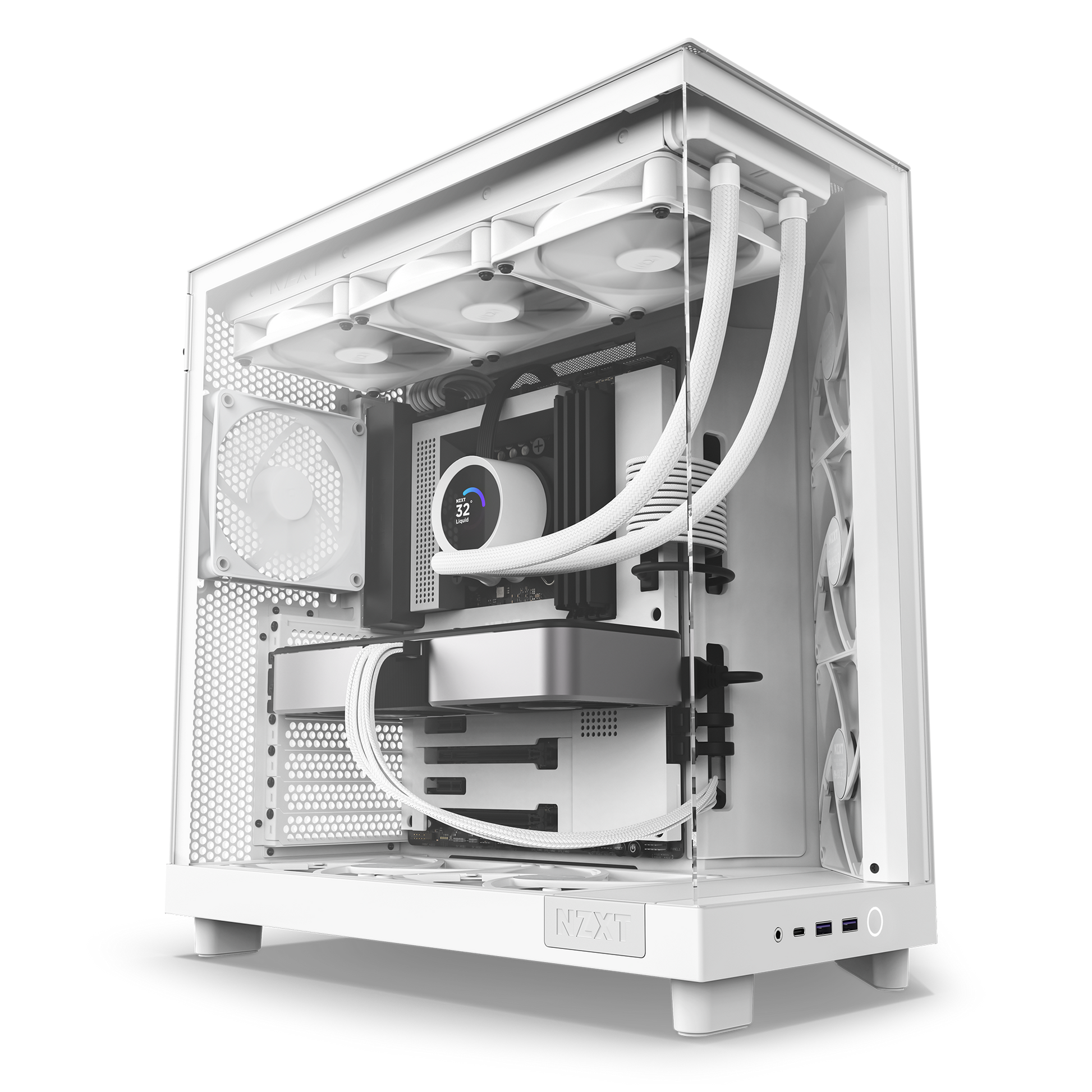

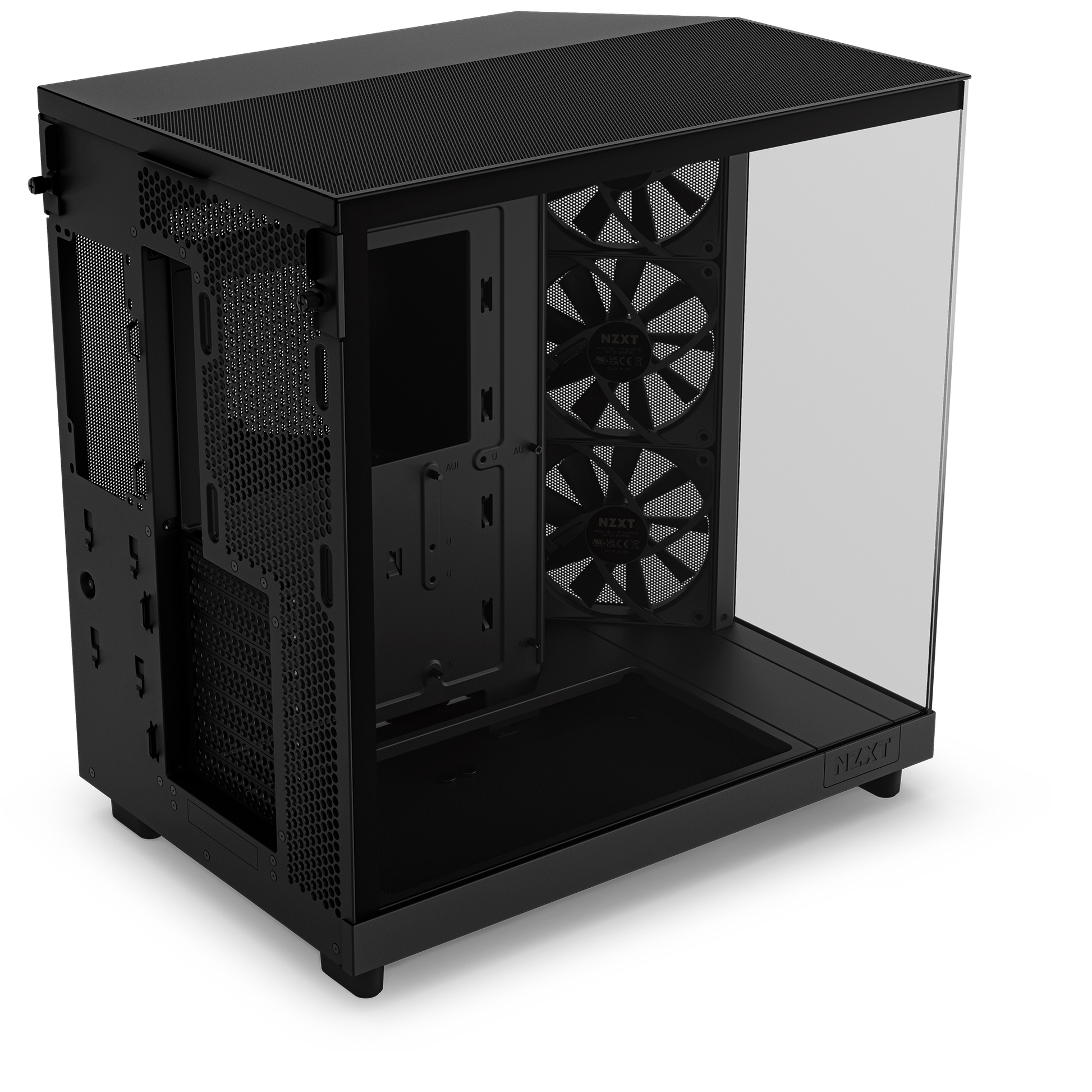

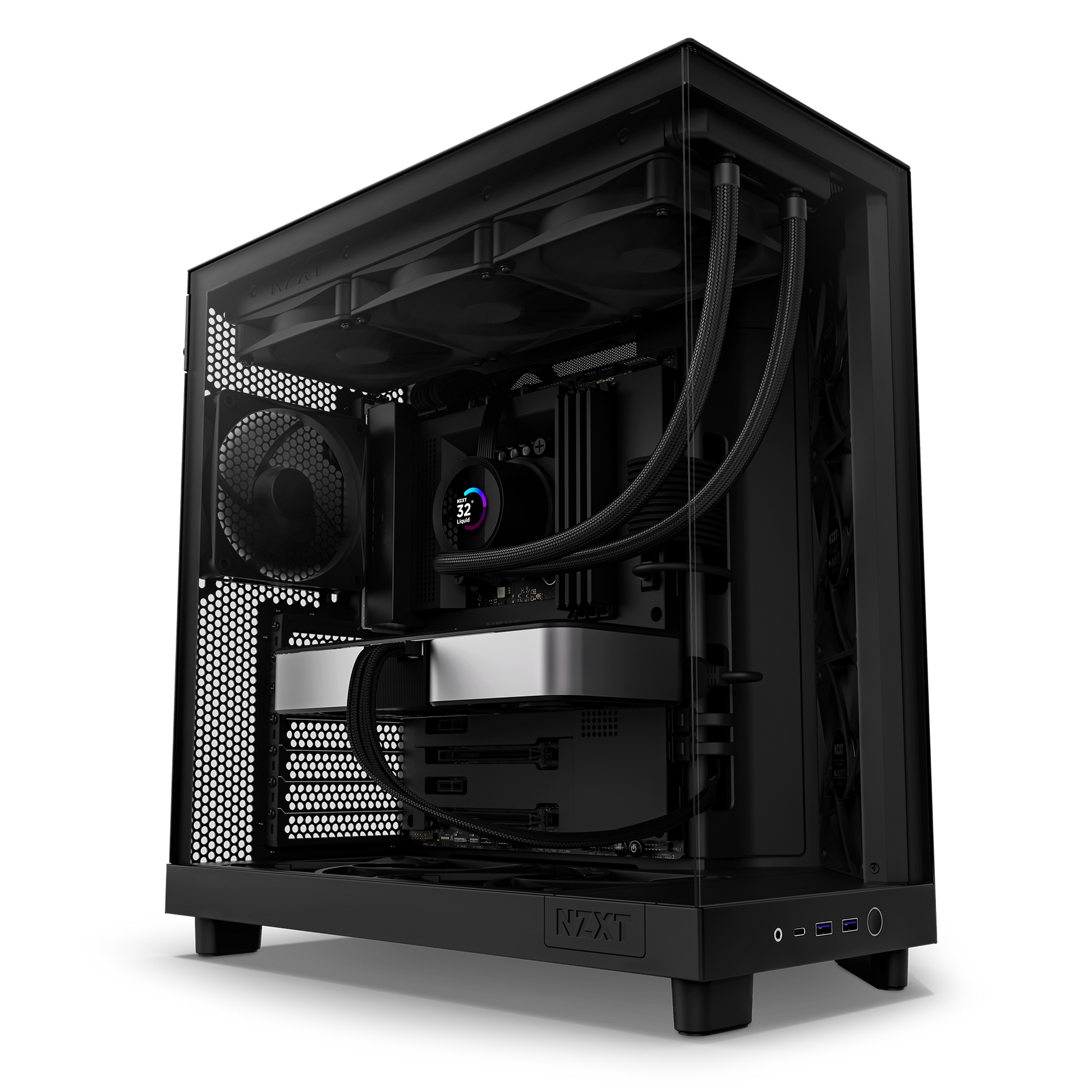

H6 FLOW
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
-

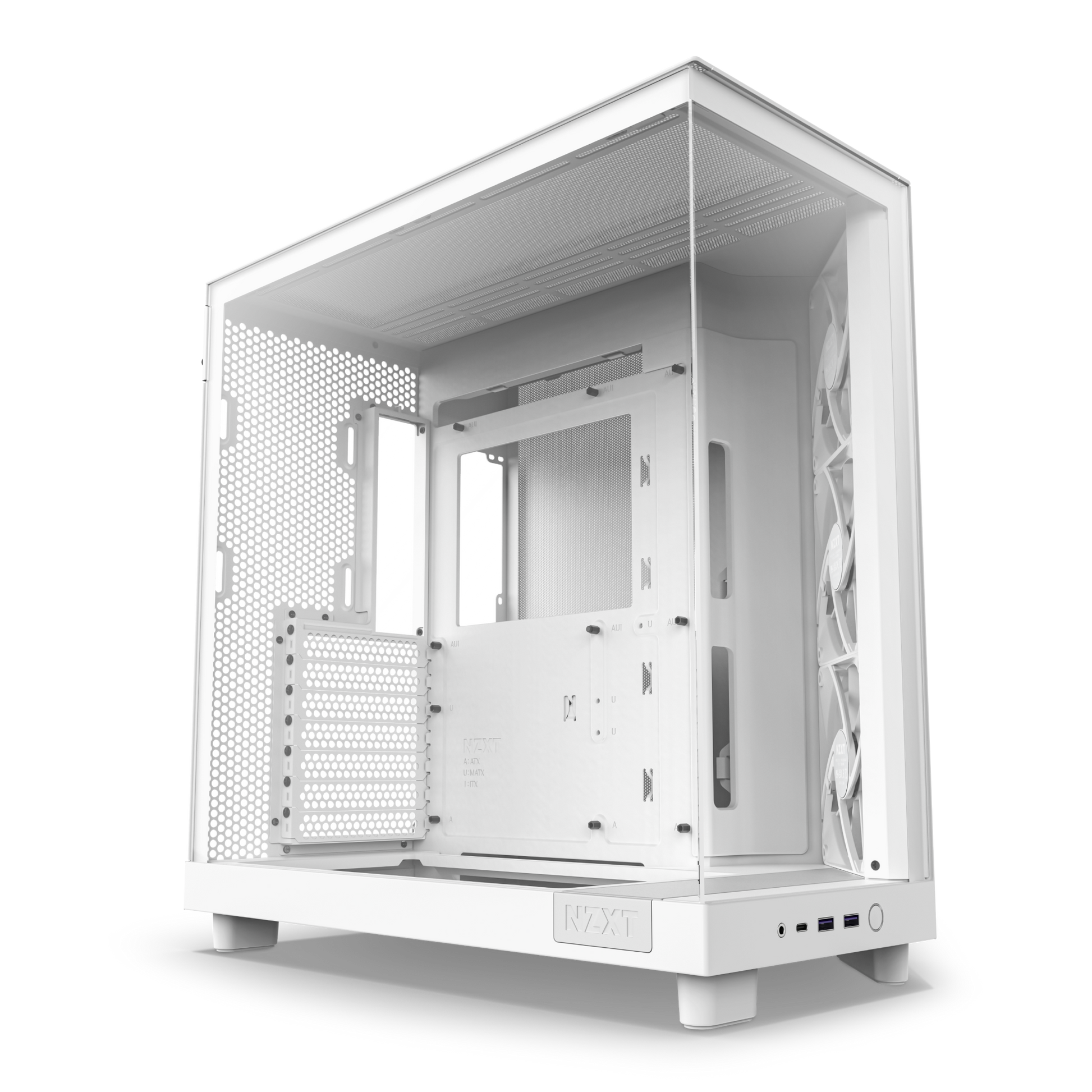

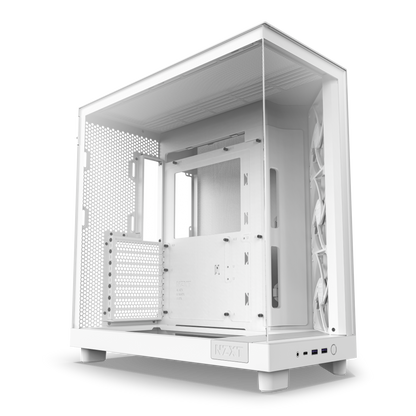

Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
-
Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
-

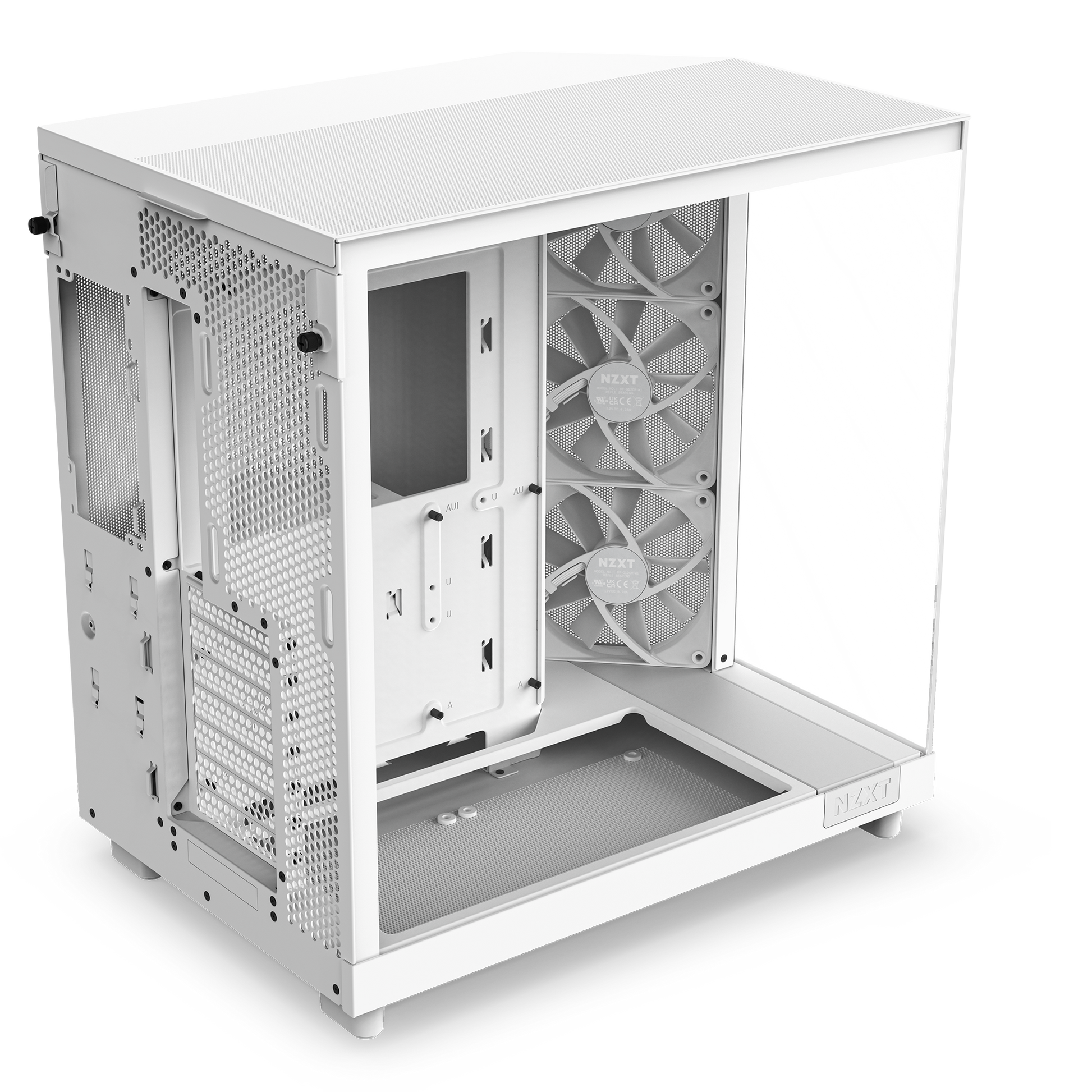

Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
-

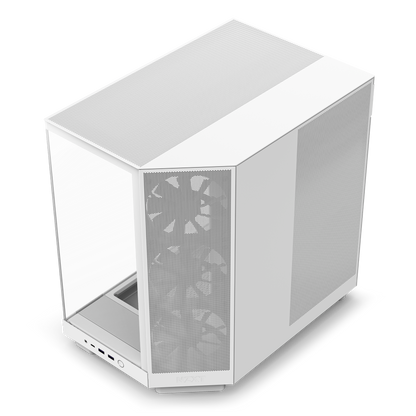

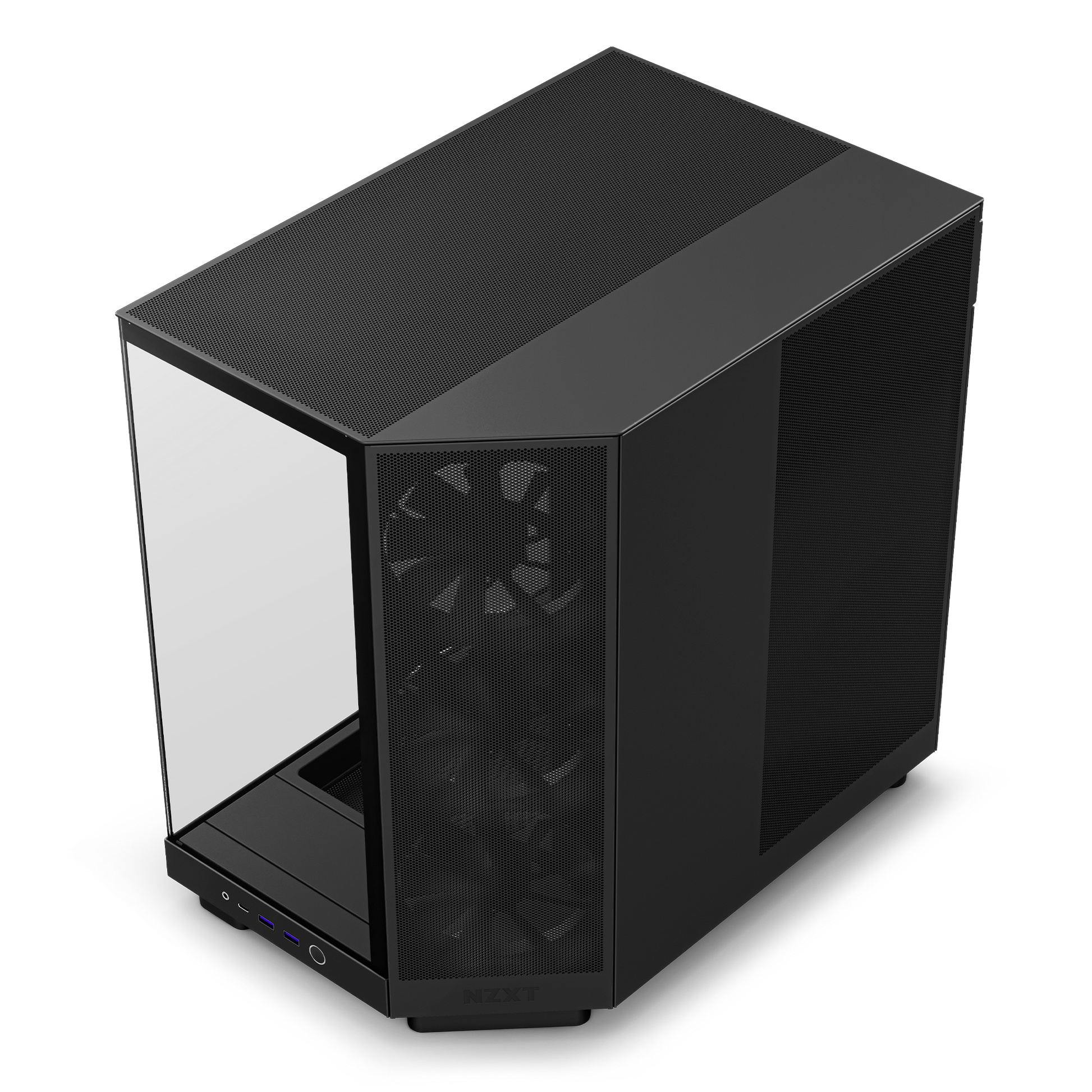

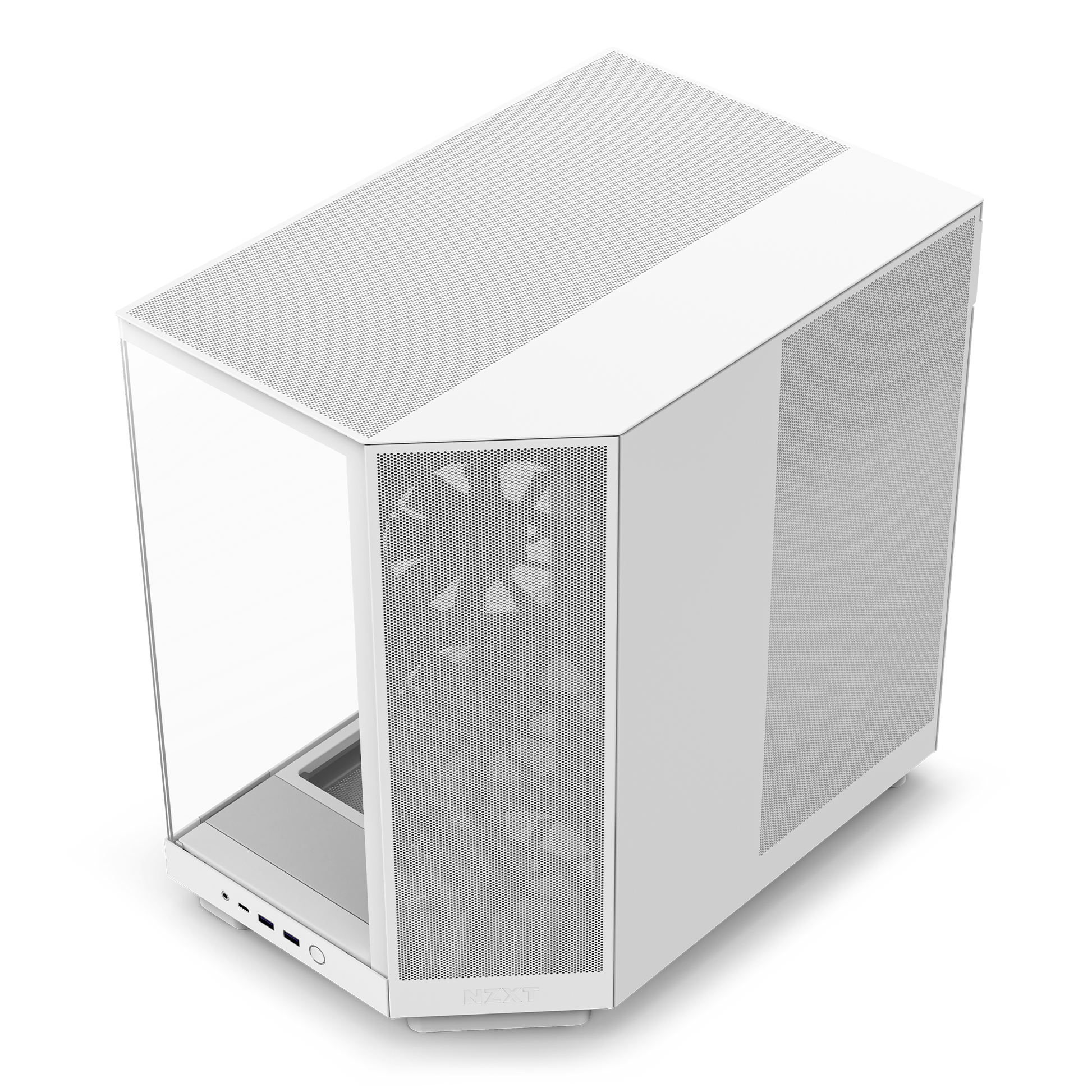

The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
-

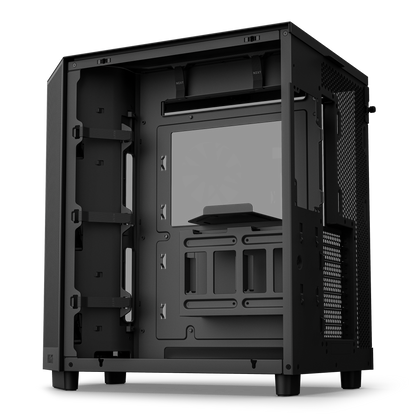

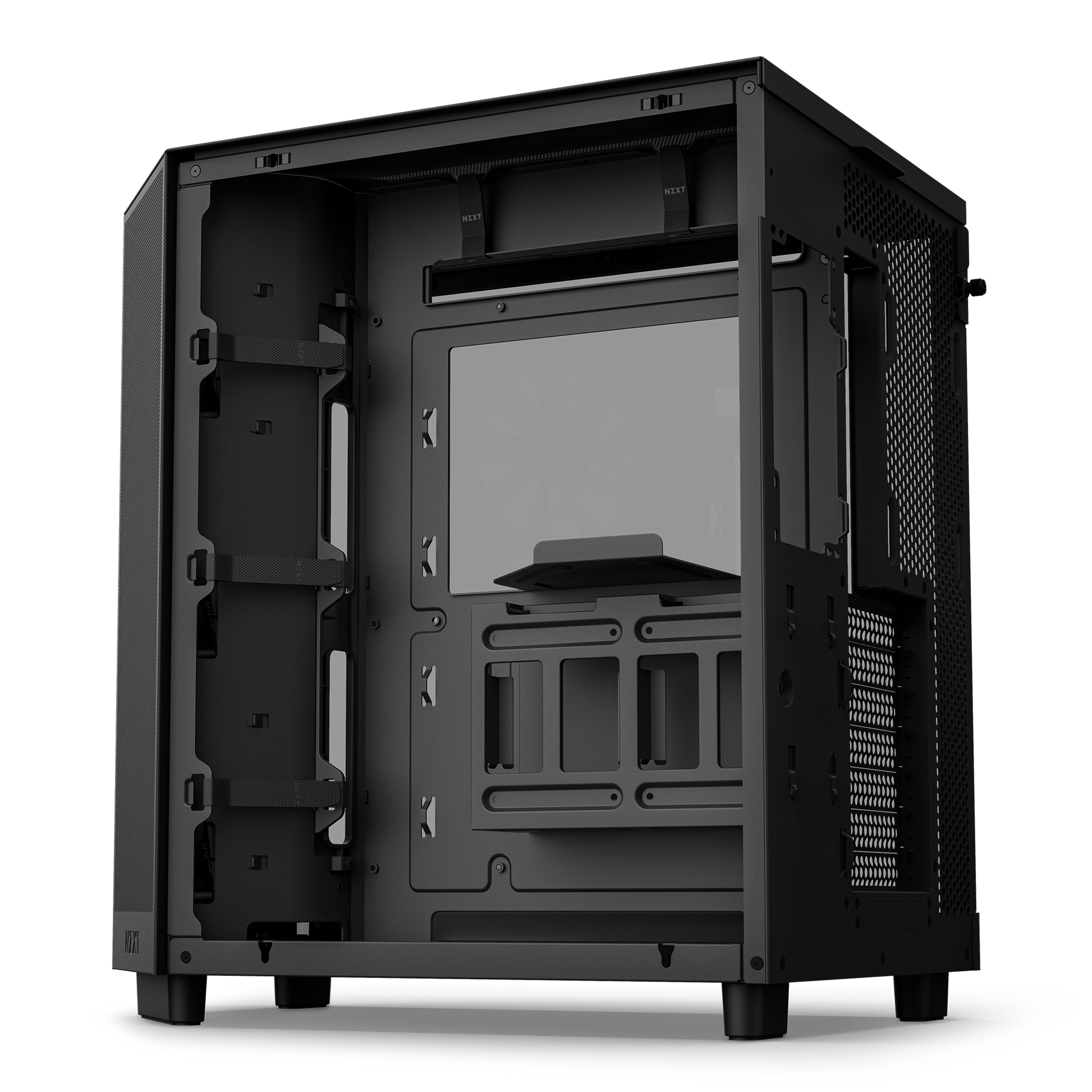

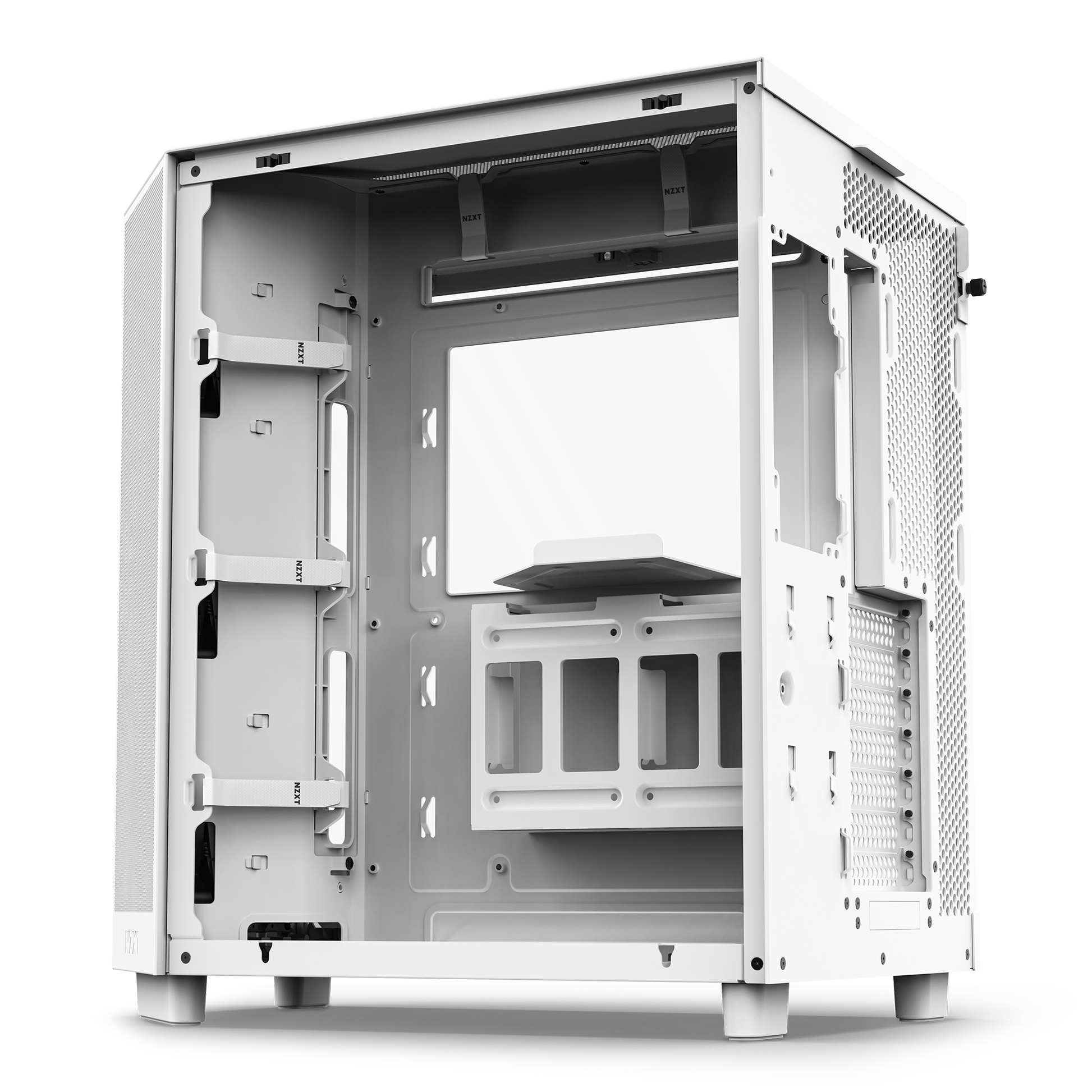

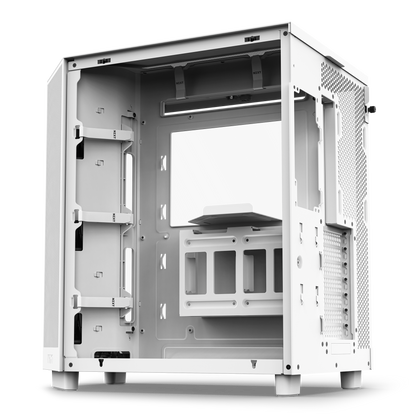

An intuitive cable management system simplifies the build process by using wide channels and straps.
-

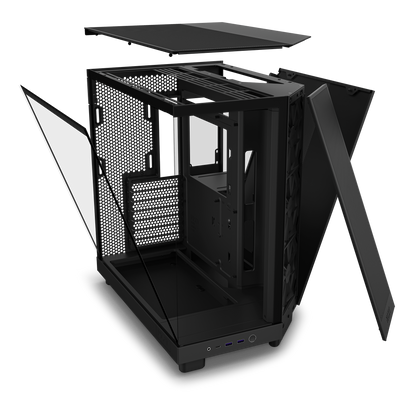

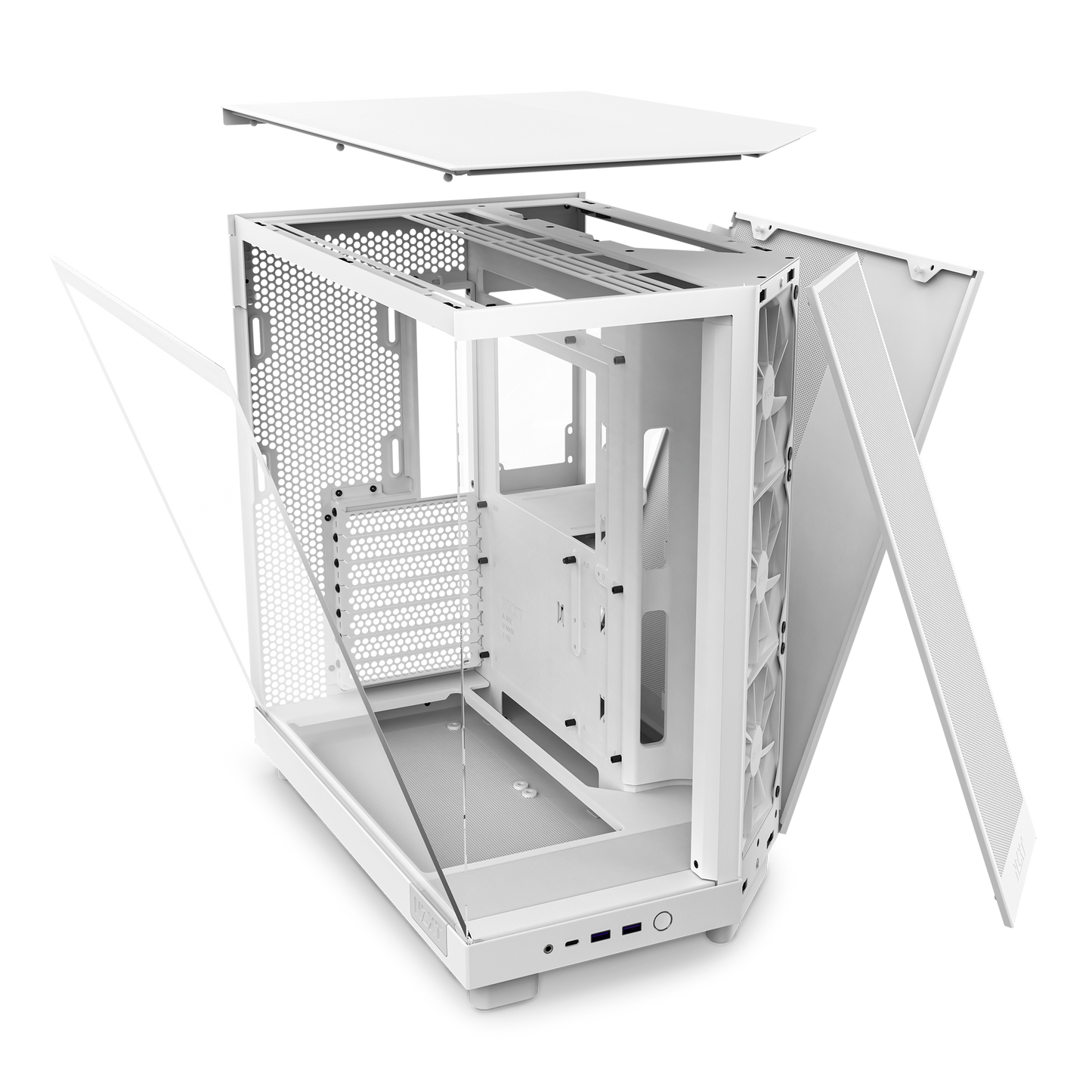

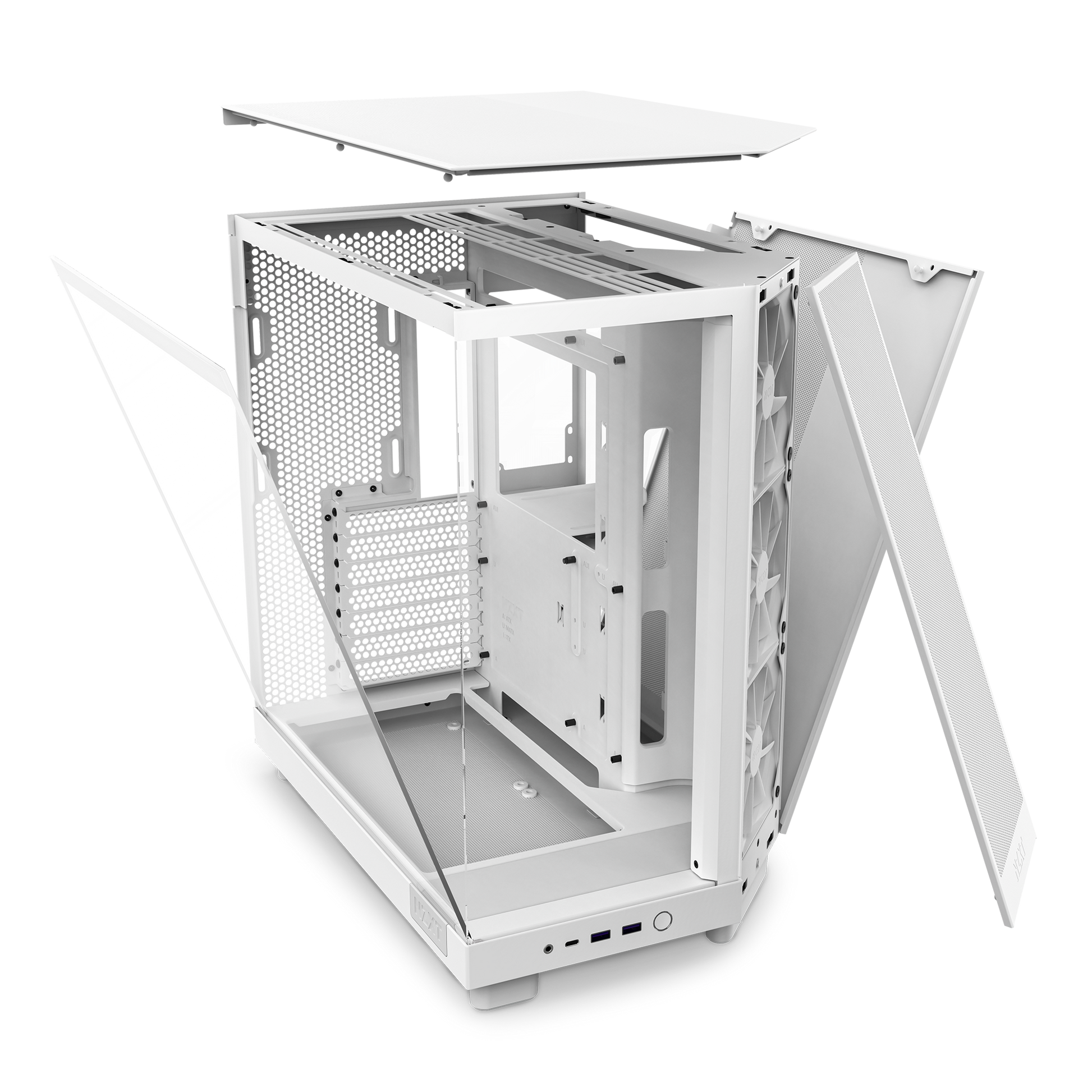

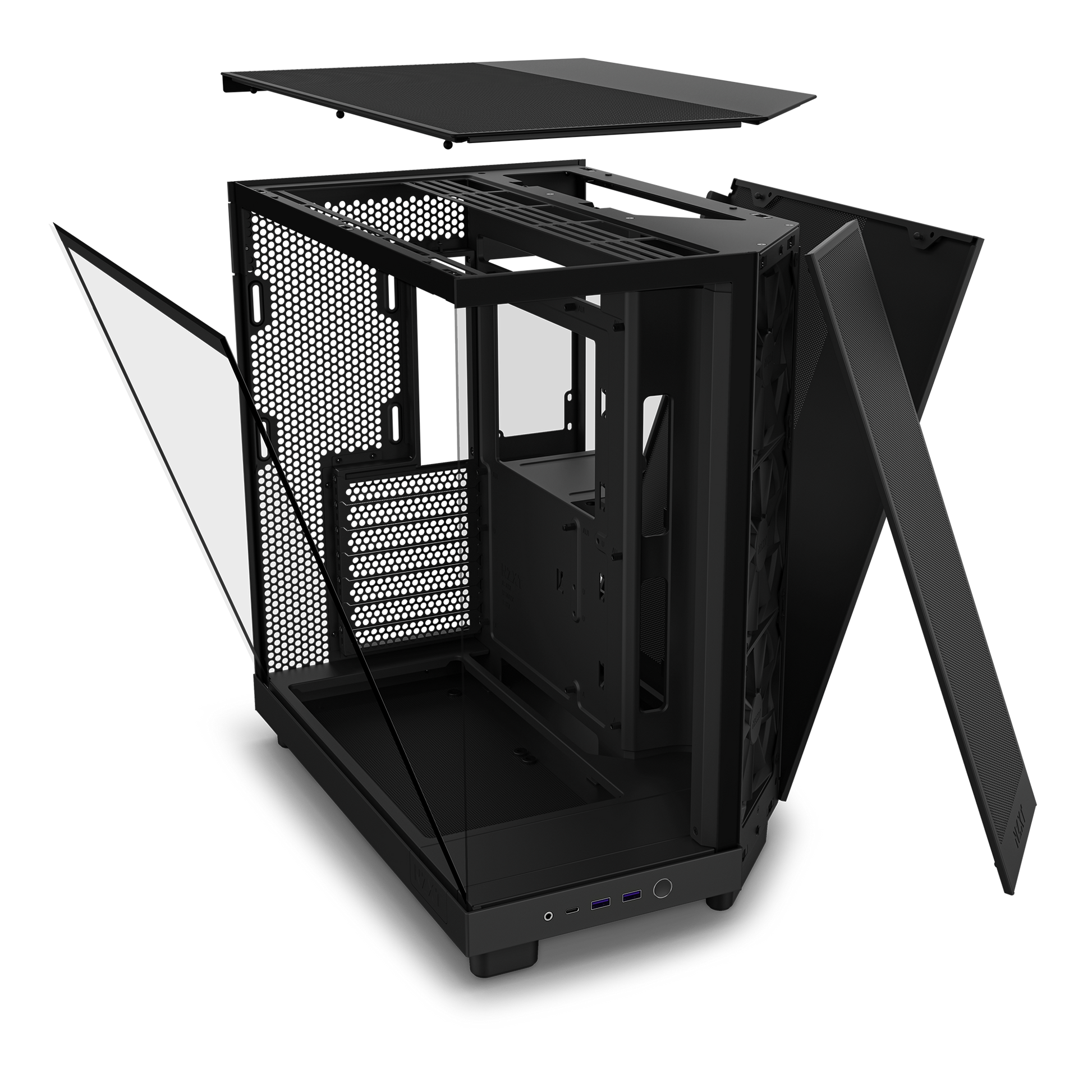

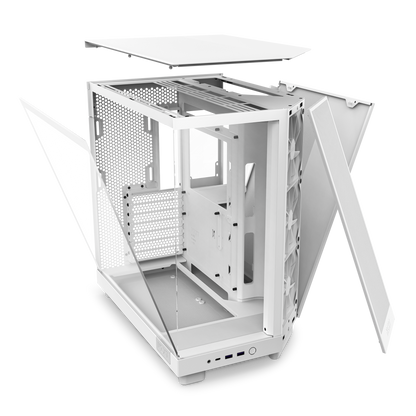

Tool-free access to the top and side panels makes upgrading quick and convenient.
-
Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance

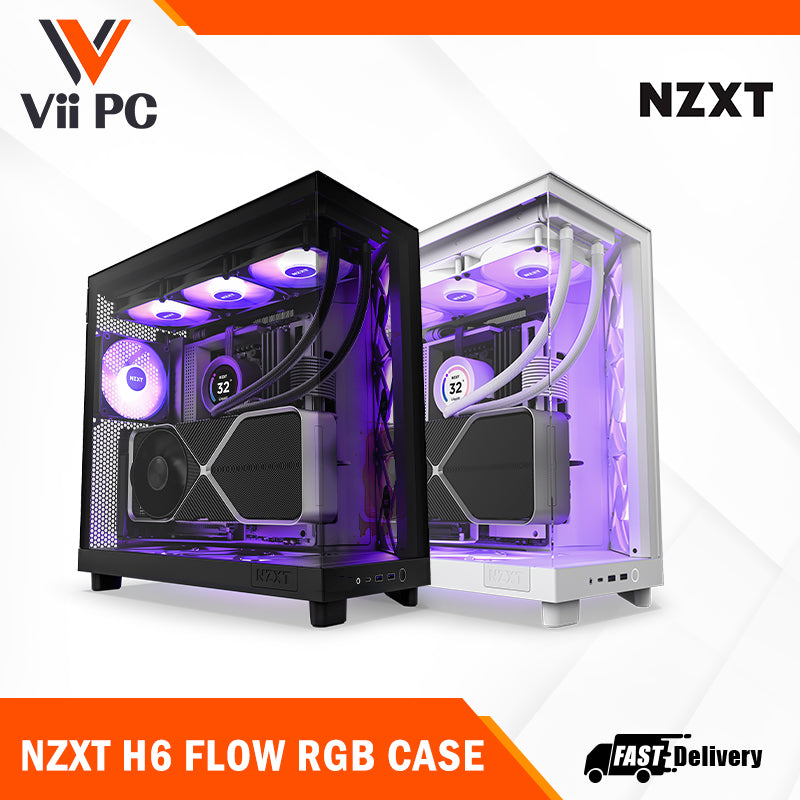

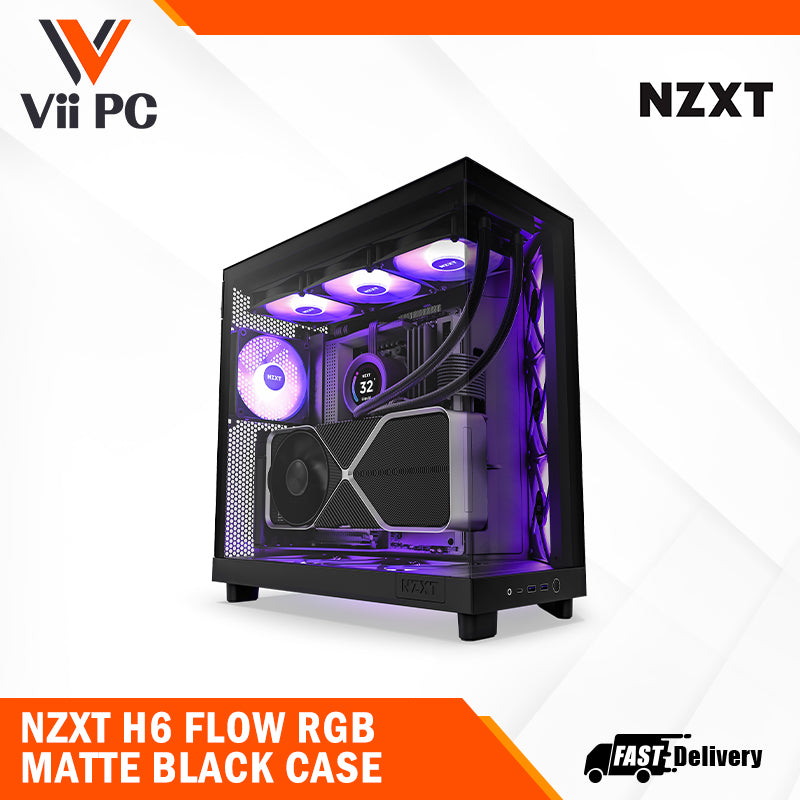

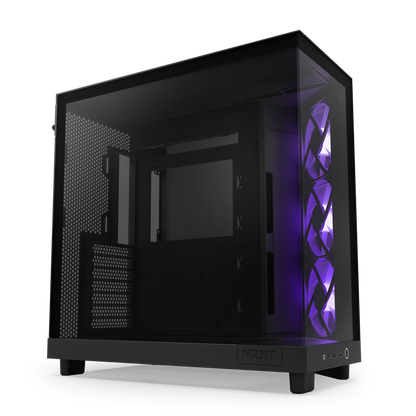

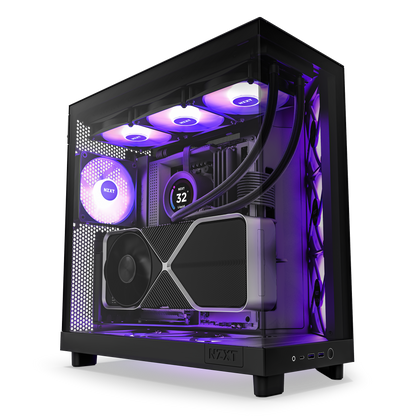

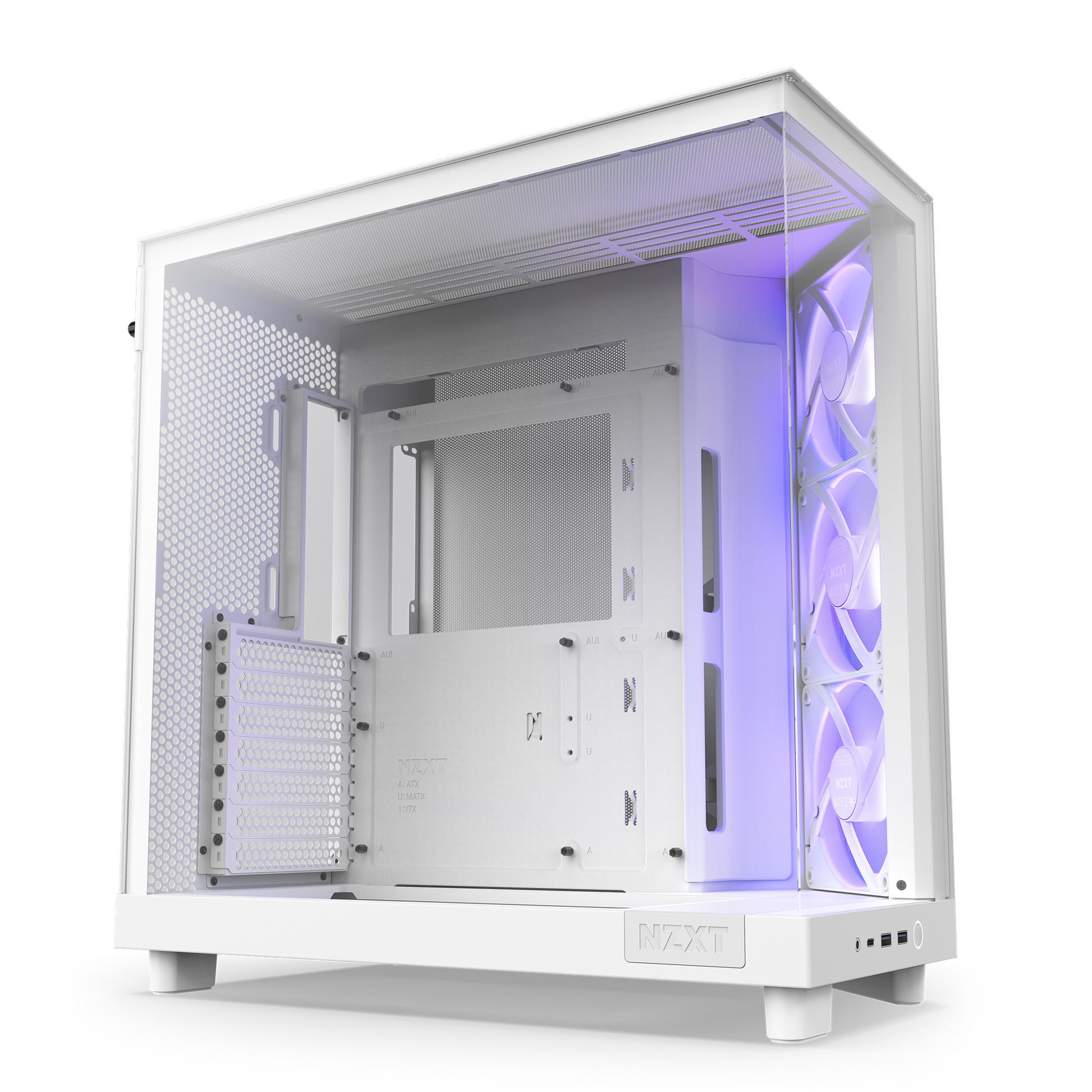

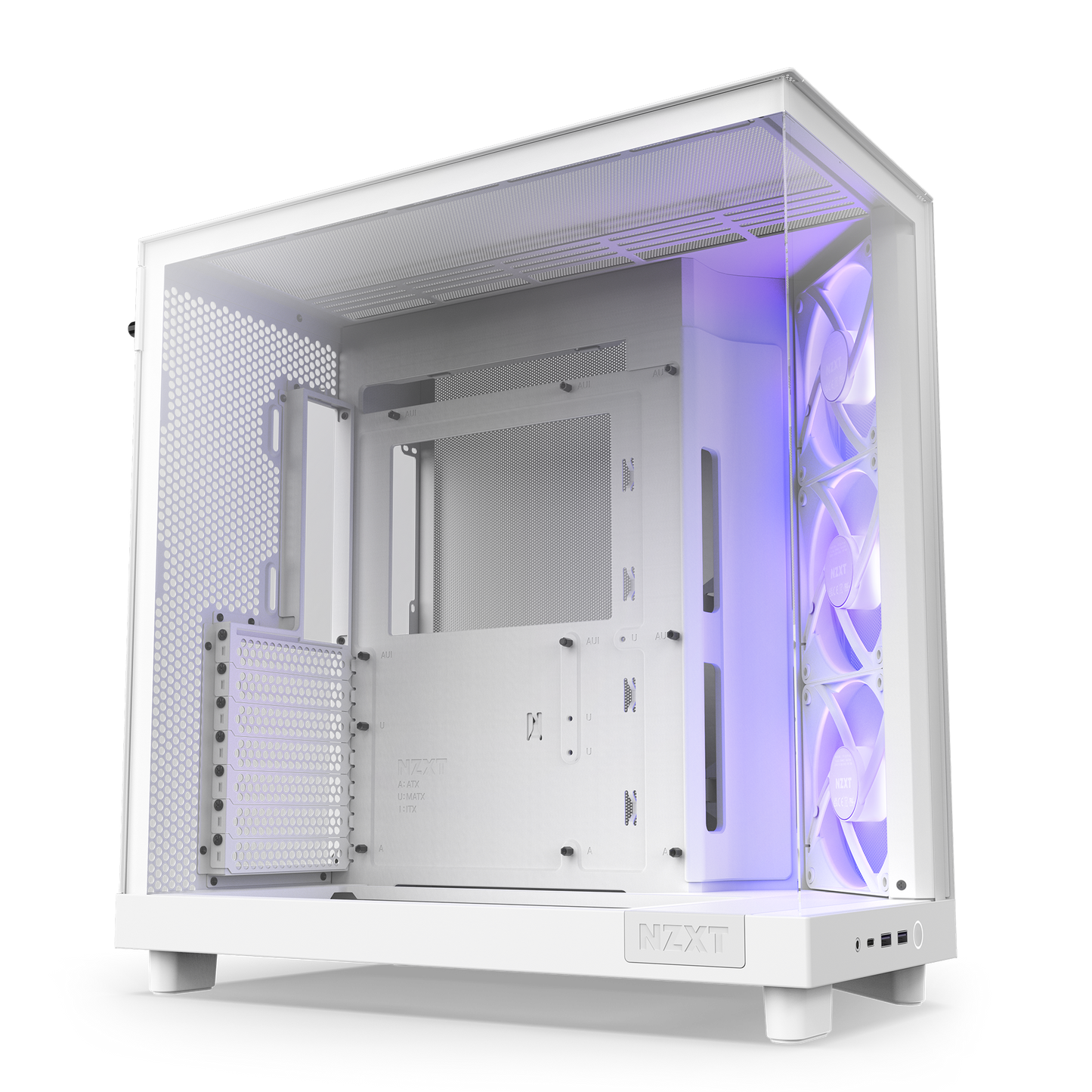

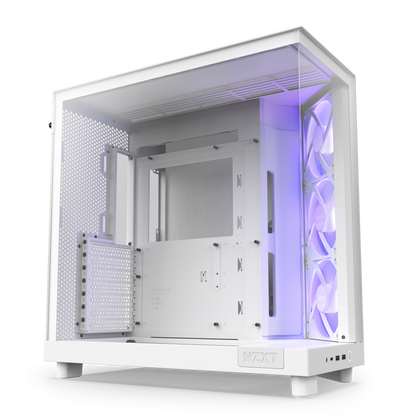

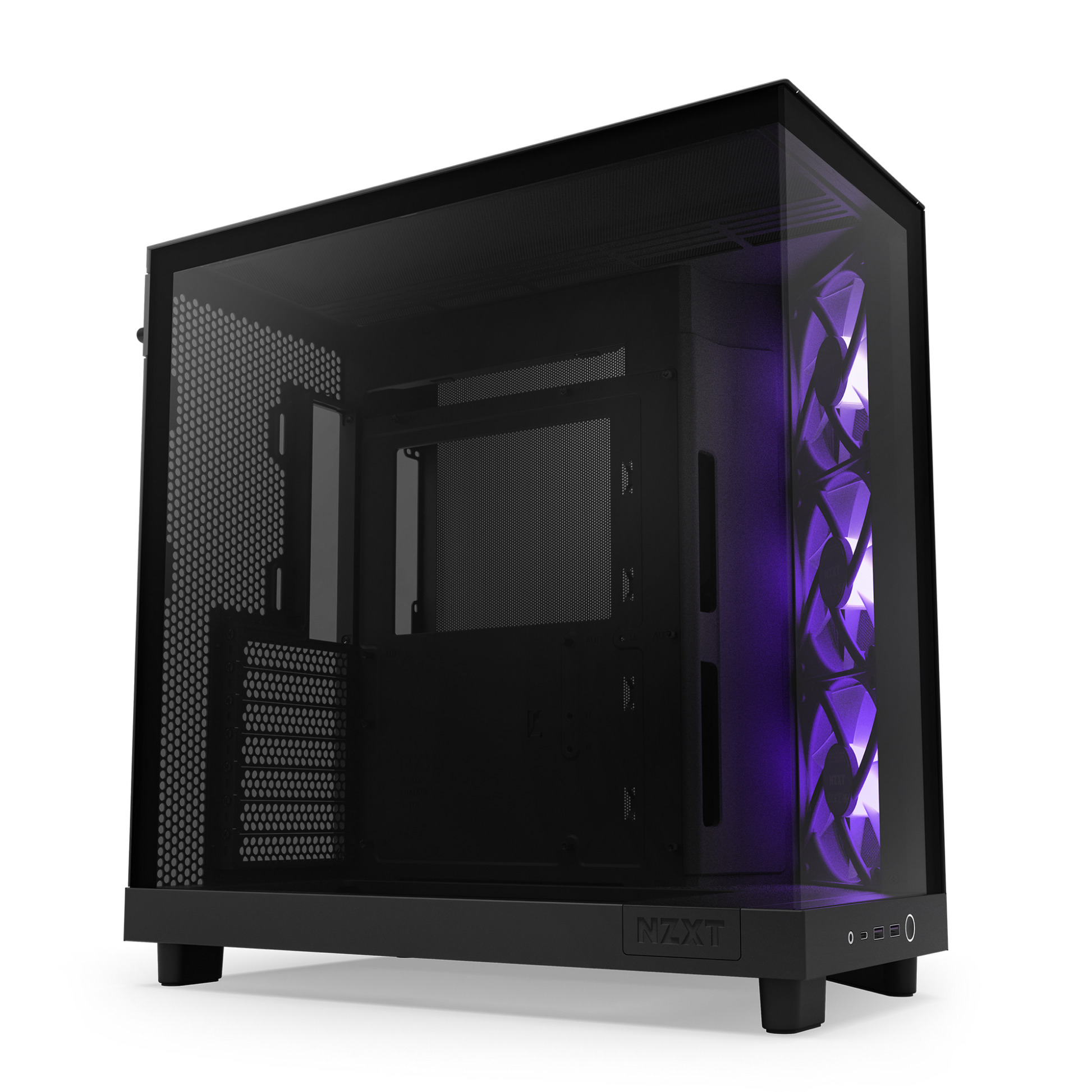

H6 FLOW RGB

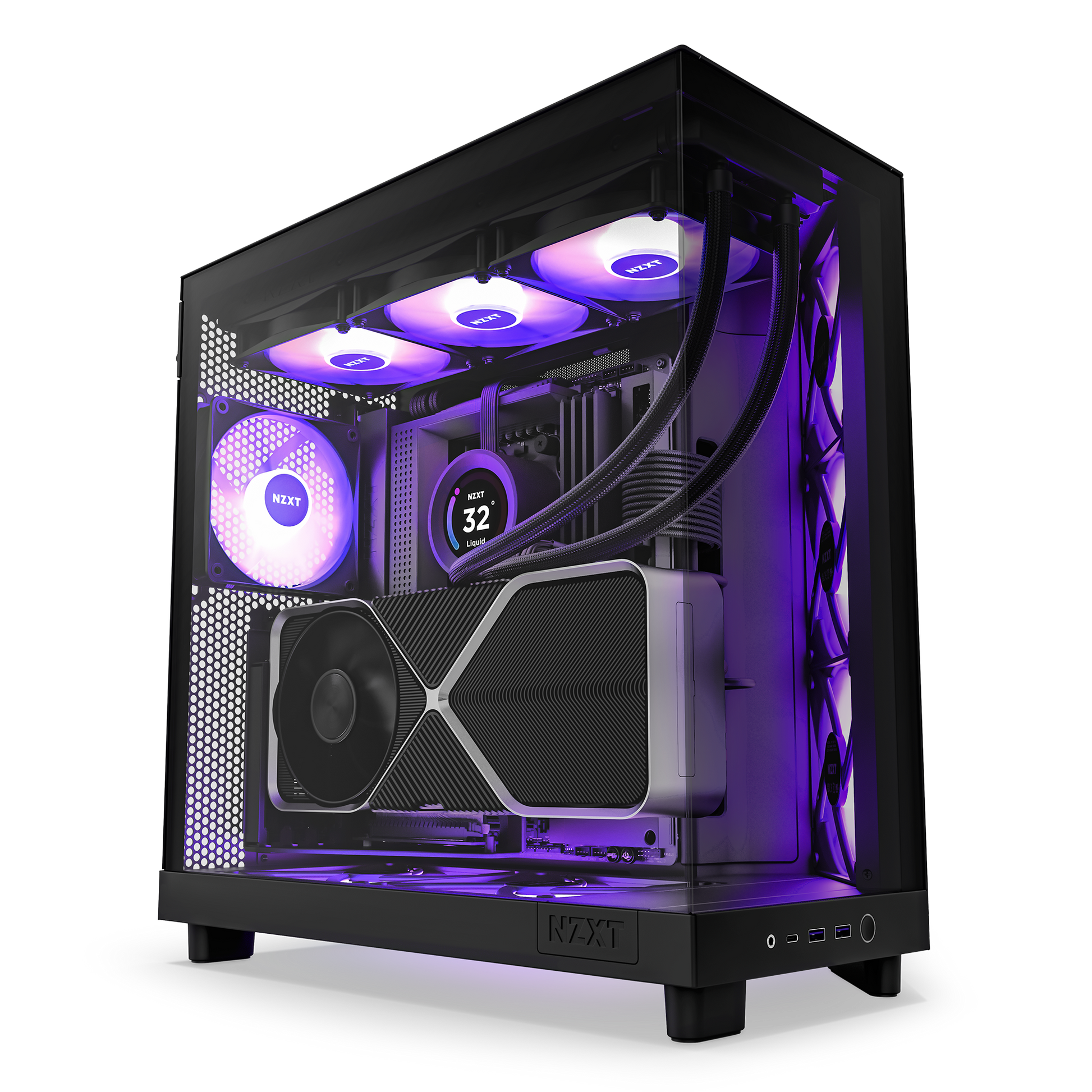

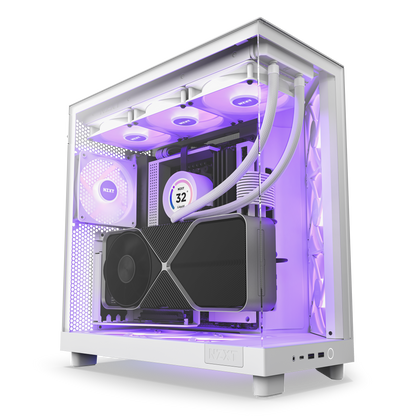

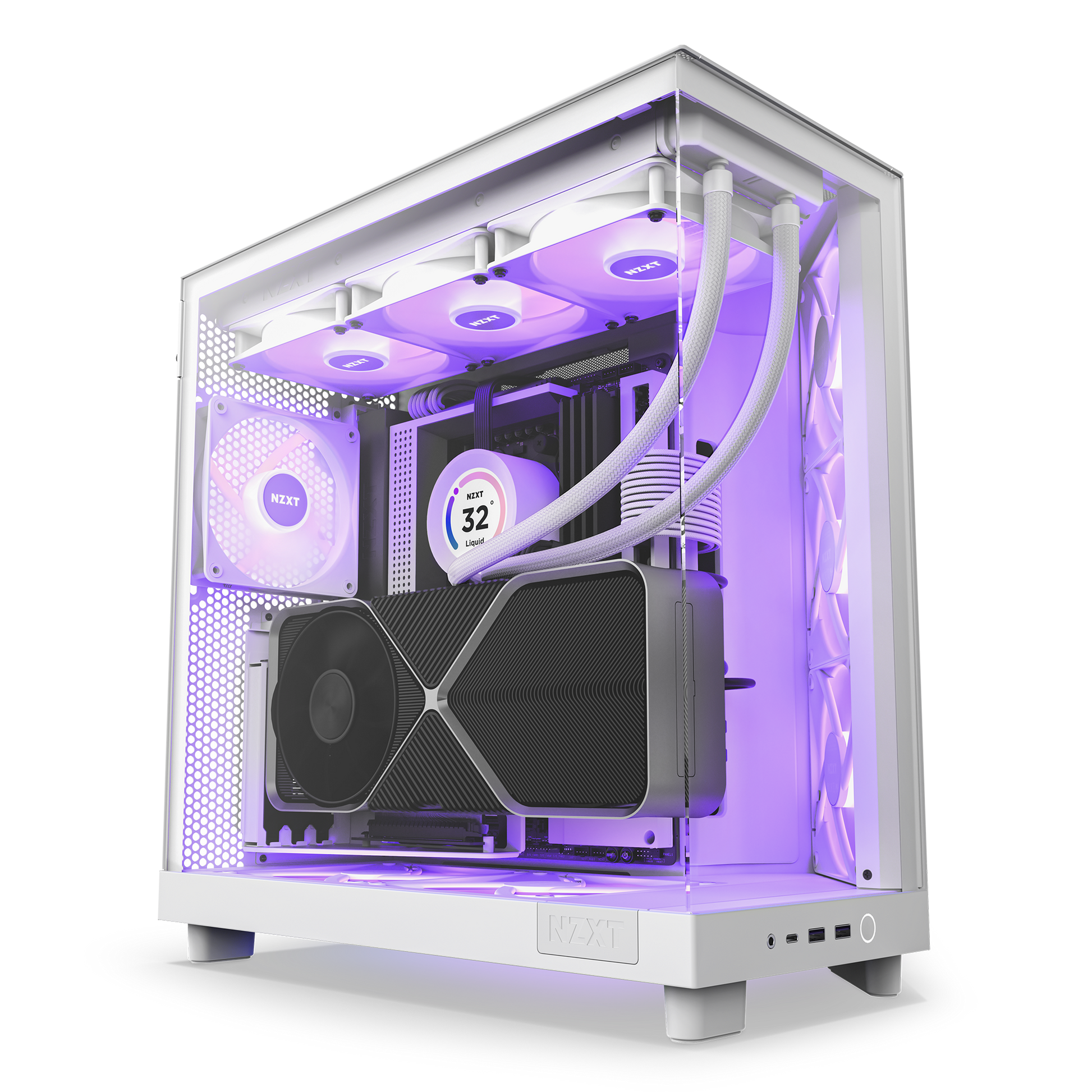

Experience peak performance and vibrant RGB within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
-
Wrap around glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
-
Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
-
Includes three pre-installed 120mm RGB fans positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.
-
The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
-
An intuitive cable management system simplifies the build process by using wide channels and straps.
-
Tool-free access to the top and side panels makes upgrading quick and convenient.
-
Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.
KEY SPECS
-
Motherboard Support : ATX, Micro-ATX, Mini-ITX
-
Enclosure Type : Mid-Tower
-
Case Material : SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only)
DIMENSIONS
-
Height (with feet) : 435 mm / 17.13 in
-
Width : 287 mm / 11.3 in
-
Depth : 415 mm / 16.34 in
-
Weight : 9.4 kg
COMPATIBILITY & CLEARANCE
-
CPU Cooler Height : 163 mm / 6.42 in
-
GPU Length : 365 mm / 14.37 in
-
PSU Length : 200 mm / 7.87 in
-
Cable Management : 91 mm / 3.58 in
-
Top Radiator : 30 mm / 1.18 in
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A : 2
-
USB 3.2 Gen 2 Type-C : 1
-
Headset Audio Jack : 1
EXPANSION SLOTS
-
Standard : 7
-
Vertical : 0
DRIVE BAYS
-
2.5" : 2
-
3.5" : 1
FAN SUPPORT
-
Front-Right : 3 x 120 mm (3 x F120Q included) H6 FLOW
-
Front-Right : 3 x 120 mm (3 x F120 RGB Core included) H6 FLOW RGB
-
Top : 3 x 120 mm / 2 x 140 mm
-
Bottom : 2 x 140 mm
-
Rear : 1 x 120 mm
-
Filters : High-Performance Mesh
RADIATOR SUPPORT
-
Top : Up to 360 mm
-
Rear : Up to 120 mm
FAN SPECS FOR H6 FLOW
-
Model : F120Q Airflow Fan (Case Version)
-
Speed : 1200 ± 240RPM
-
Airflow : 62.18 CFM
-
Static : 1.05 mm - H2O
-
Noise : 25.1 dBA
-
Fan Connector : 3-pin
FAN SPECS FOR H6 FLOW RGB
-
Model : F120 RGB Core Fan (Case Version)
-
Speed : 1300 ± 130 RPM
-
Airflow : 55.17 CFM
-
Static : 1.27 mm - H₂O
-
Noise : 26.1 dBA
-
Fan Connector : 3-pin
GENERAL FOR H6 FLOW
-
Warranty : 2 Years
-
Model Number : CC-H61FW-01 (White) / CC-H61FB-01 (Black)
-
UPC : 810074844130 (White) / 810074844147 (Black)
-
EAN : 5056547204048 (White) / 5056547204055 (Black)
GENERAL FOR H6 FLOW RGB
-
Warranty : 2 Years
-
Model Number : CC-H61FW-R1 (White) / CC-H61FB-R1 (Black)
-
UPC : 810074844154 (White) / 810074844161 (Black)
-
EAN : 5056547204062 (White) / 5056547204079 (Black)
