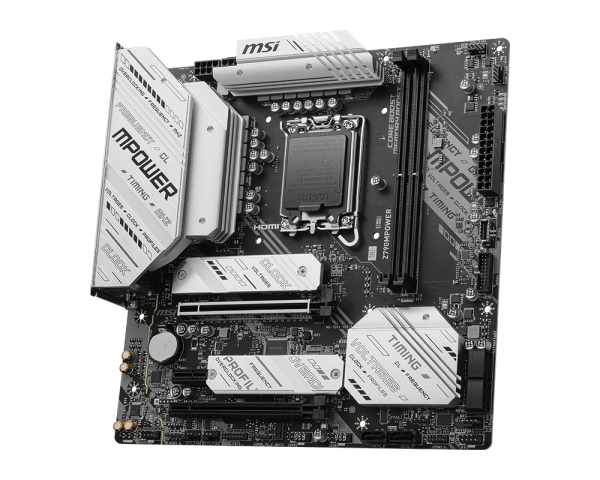

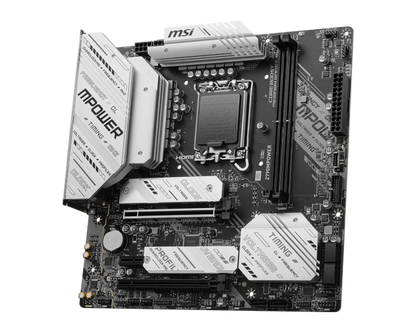

LGA1700 Socket/Wi-Fi 6E/PCIe 5.0/DDR5 Support/4x M.2/6x SATA 6G/2.5Gbps LAN/Windows 10 & 11
-
Supports 14th/13th/12th Generation Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
-
Supports DDR5 memory, up to 8000+(OC) MHz
-
2DIMM memory slot design can better unleash the performance of DDR5 memory
-
12+1+1 intelligent power supply, dual 8PIN CPU power supply solution
-
OC ENGINE
-
Extended heatsink design, M.2 Shield Frozr
-
PCIe 5.0 slot, Lightning Gen 4 x4 M.2 interface, USB 3.2 Gen 2x2 20G interface
-
6-layer server-grade PCB, 2oz thickened copper
-
Gaming Audio Components
SPECIFICATIONS
CHIPSET:
INTEL Z790
CPU
‣ Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
‣ LGA1700
MEMORY
‣ 2x DDR5, Maximum Memory Capacity 128GB
‣ Memory Support 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/ 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
‣ Max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
‣ Supports Dual-Channel mode
‣ Supports non-ECC, un-buffered memory
‣ Supports Intel® Extreme Memory Profile
AUDIO
‣ Realtek® ALC897 Codec
‣ 7.1-Channel High Performance Audio
‣ Supports S/PDIF output
STORAGE
‣ 2x M.2 (Qty)
• M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
‣ 6x SATA 6G (Qty)
LAN: Realtek® 2.5Gbps LAN
ONBOARD GRAPHICS
‣ 1x HDMI™: Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
‣ 1x DisplayPort: Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT
‣ 2x PCI-E x16 slots (Quantity)
• Supports x16/x4
‣ 1x PCI-E x1 slot (Quantity)
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
* SATA_A1_A2 do not support RAID function.
USB
‣ 4x USB 2.0 (Rear)
‣ 4x USB 2.0 (Prefix)
‣ 2x USB 5Gbps Type A (Front)
‣ 3x USB 10Gbps Type A (Rear)
‣ 1x USB 10Gbps Type C (Front)
‣ 1x USB 20Gbps Type C (Rear)
WIRELESS LAN & BLUETOOTH
‣ Intel® Wi-Fi 6E
‣ The Wireless module is pre-installed in the M.2 (Key-E) slot
‣ Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
‣ Supports 802.11 a/ b/ g/ n/ ac/ ax
‣ Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
INTERNAL IO
‣ 1x Power Connector (ATX_PWR)
‣ 2x Power Connector (CPU_PWR)
‣ 1x CPU Fan
‣ 1x Pump Fan
‣ 4x System Fan
‣ 2x Front Panel (JFP)
‣ 1x Chassis Intrusion (JCI)
‣ 1x Front Audio (JAUD)
‣ 1x TBT connector (JTBT, supports RTD3)
‣ 1x Tuning Controller connector (JDASH)
‣ 2x Addressable V2 RGB LED connector (JARGB_V2)
‣ 1x RGB LED connector (JRGB)
‣ 1x TPM pin header (Support TPM 2.0)
‣ 4x USB 2.0 ports
LED FEATURE: 4x EZ Debug LED

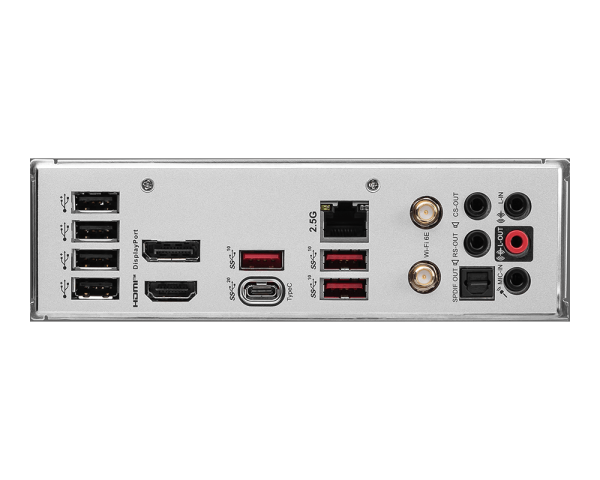

BACK PANEL PORTS
OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO: mATX, 243.84mmx243.84mm
