MSI

MSI Z790 PROJECT ZERO LGA1700 Socket/Wi-Fi 7/PCIe 5.0/DDR5 Support/4x M.2/6x SATA 6G/2.5Gbps LAN/Windows 10&11 ATX Motherboard

MSI Z790 PROJECT ZERO LGA1700 Socket/Wi-Fi 7/PCIe 5.0/DDR5 Support/4x M.2/6x SATA 6G/2.5Gbps LAN/Windows 10&11 ATX Motherboard

$509.00 SGD
$509.00 SGD
Sale Sold out

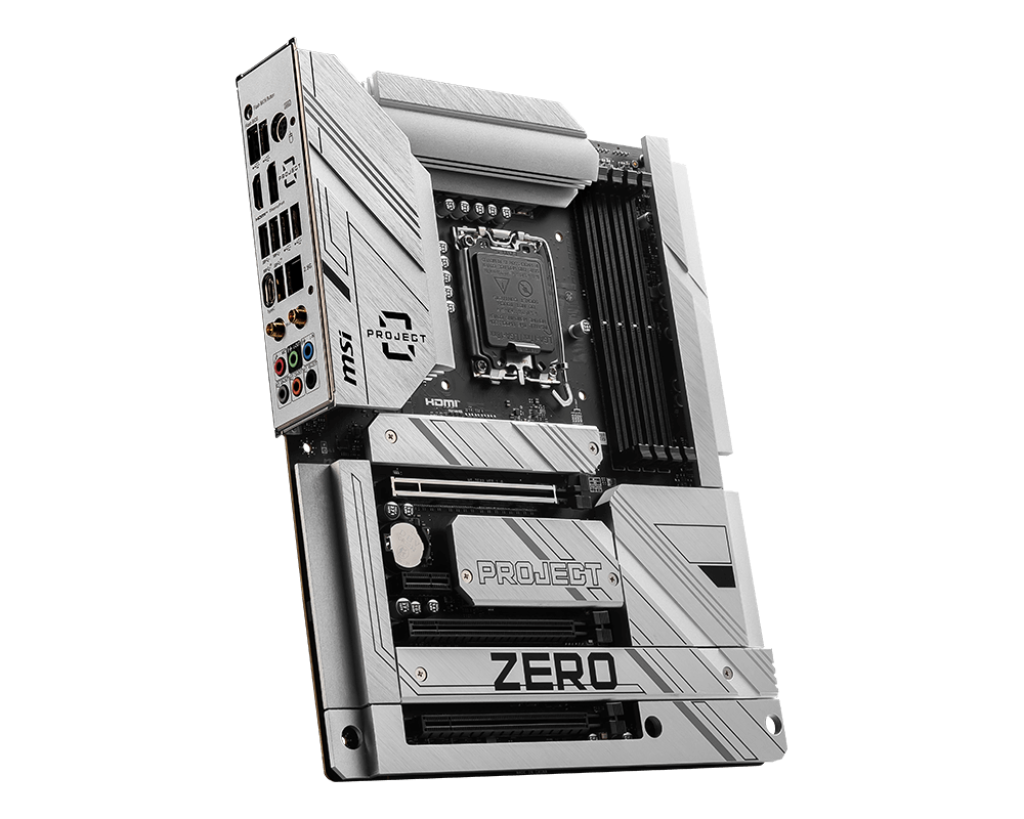

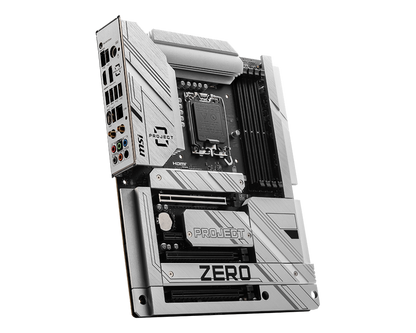

MSI Z790 PROJECT ZERO



The Z790 PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th /13th/ 12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 7 solution. This makes it an excellent choice among ATX motherboards.



  • Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7200+(OC) MHz
  • Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material


SPECIFICATIONS

CHIPSET: INTEL Z790

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

• LGA1700

MEMORY

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

• Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

• Max. overclocking frequency:

- 1DPC 1R Max speed up to 7200+ MHz

- 1DPC 2R Max speed up to 6600+ MHz

- 2DPC 1R Max speed up to 6400+ MHz

- 2DPC 2R Max speed up to 5600+ MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

• Supports Intel® Extreme Memory Profile

ONBOARD GRAPHICS

• 1x HDMI™ : Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

• 1x DisplayPort : Support DP 1.4, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

STORAGE

• 4x M.2

- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

• 6x SATA 6G

SLOT

• 3x PCI-E x16 slot

• 1x PCI-E x1 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

AUDIO

• Realtek® ALC897 Codec

• 7.1-Channel High Performance Audio

LAN: Intel® 2.5Gbps LAN

RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

• 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 2x USB 5Gbps Type A (Rear)

• 4x USB 5Gbps Type A (Front)

• 1x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Front)

• 1x USB 20Gbps Type C (Rear)

WIRELESS LAN & BLUETOOTH

• Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

• Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.

** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

INTERNAL IO

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x CPU Fan

• 1x Pump Fan

• 6x System Fan

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 1x TBT connector (JTBT, supports RTD3)

• 2x Addressable V2 RGB LED connector (JARGB_V2)

• 2x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 1x USB4 card connector (JTBT_U4_1, supports RTD3)

• 4x USB 2.0 ports

• 4x USB 5Gbps Type A ports

• 1x USB 10Gbps Type C ports

LED FEATURES: 4x EZ Debug LED

BACK PANEL PORTS

1. Mouse / Keyboard

2. DisplayPort 1.4

3. USB 2.0

4. 2.5G LAN Port

5. Wi-Fi / Bluetooth Antenna

6. HD Audio Connectors

7. Flash Bios Button

8. USB 2.0

9. HDMI™ 2.1 Port

10. USB 5Gbps Type-A

11. USB 20Gbps Type-C

12. USB 10Gbps Type-A

OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB INFO

• ATX

• 243.84mmx304.8mm
