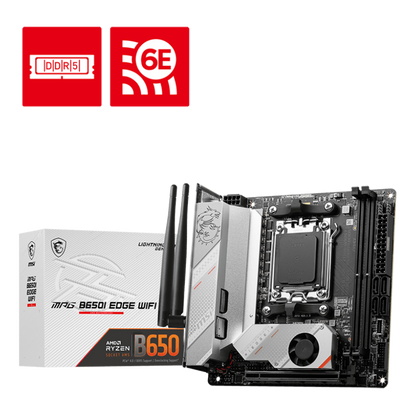

MSI MPG B650I EDGE WIFI Motherboard + AMD Ryzen 7 7800X3D Processor BUNDLE
MPG B650I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful. The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

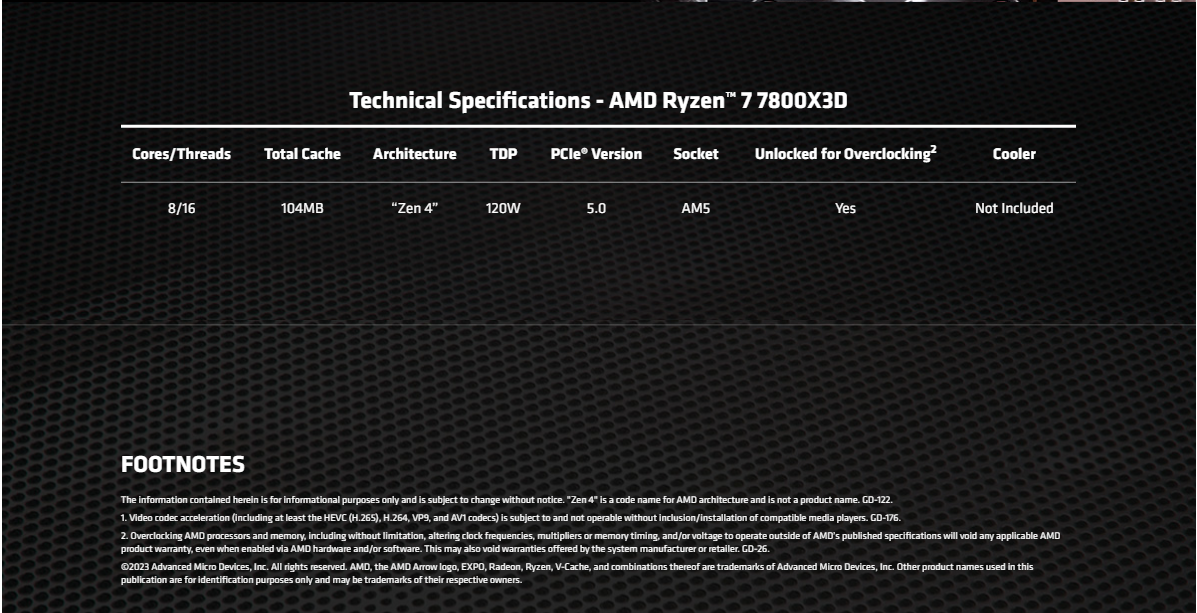

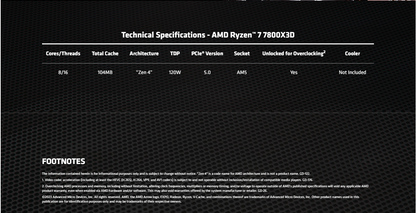

SPECIFICATIONS (AMD Ryzen™ 7 7800X3D)
- Product Line : AMD Ryzen™ 7 Processors
- Platform : Desktop
- # of CPU Cores : 8
- # of Threads : 16
- Max. Boost Clock : Up to 5.0GHz
- Base Clock : 4.2GHz
- Default TDP : 120W
- Processor Technology for CPU Cores : TSMC 5nm FinFET
- CPU Socket : AM5
- Recommended Cooler : Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax) : 89°C
- *OS Support :
• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.c
- PCI Express® Version : PCIe® 5.0
- System Memory Type : DDR5
- Memory Channels : 2
- Max Memory Speed :
• 2x1R - DDR5-5200
• 2x2R - DDR5-5200
• 4x1R - DDR5-3600
• 4x2R - DDR5-3600
- Graphics Model : AMD Radeon™ Graphics
- Graphics Core Count : 2
- Graphics Frequency : 2200 MHz
- Supported Technologies :
• AMD EXPO™ Technology
• AMD Ryzen™ Technologies

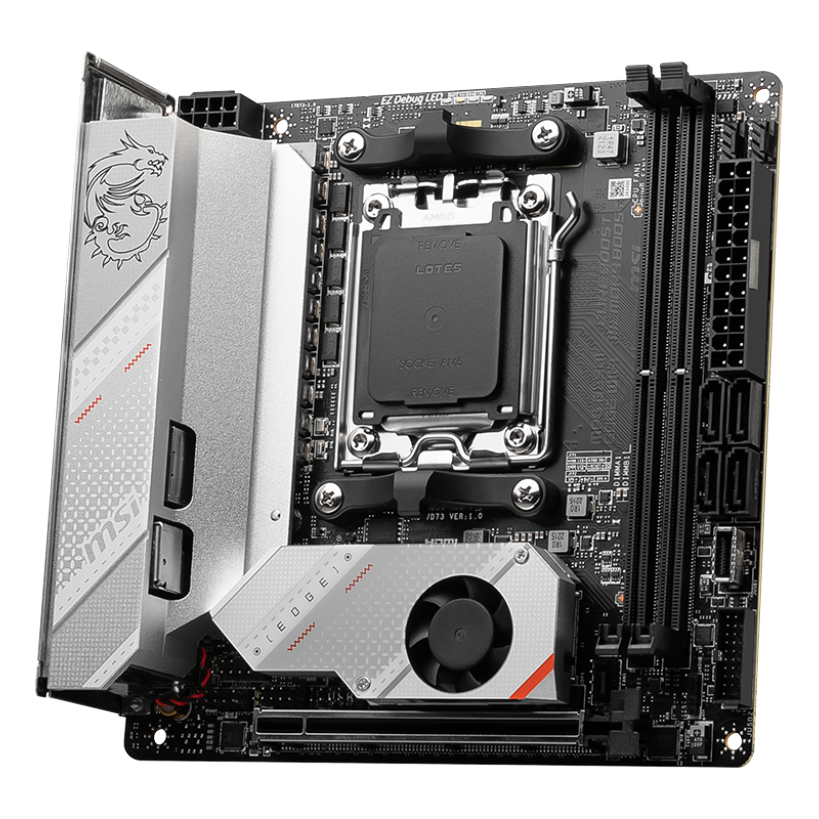

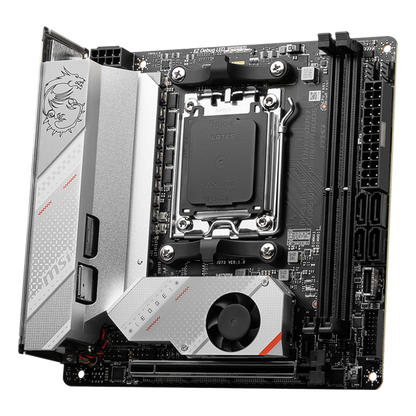

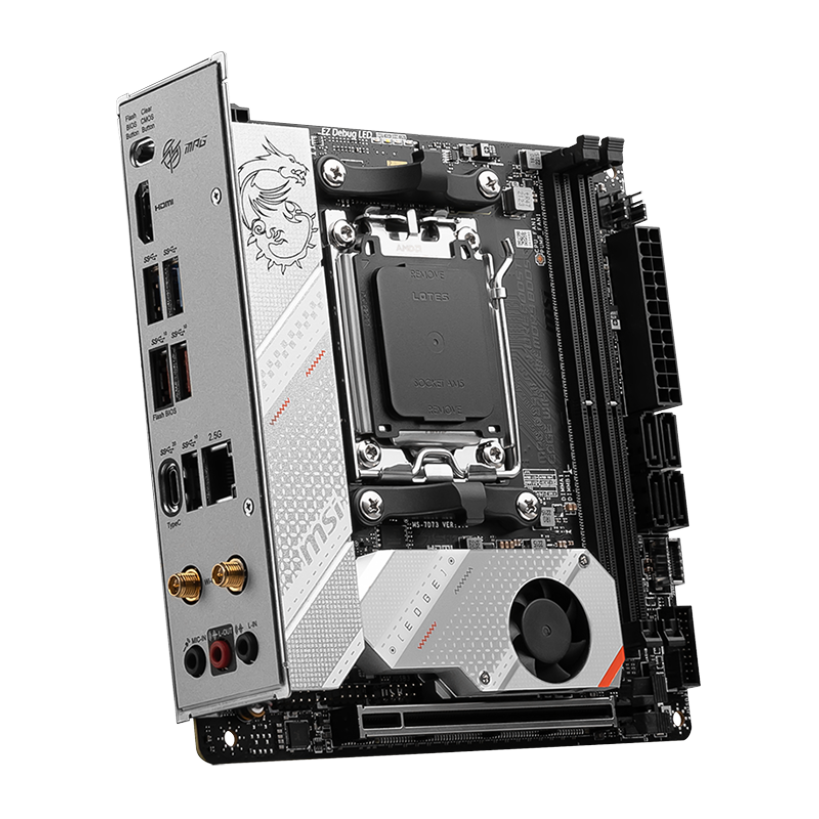

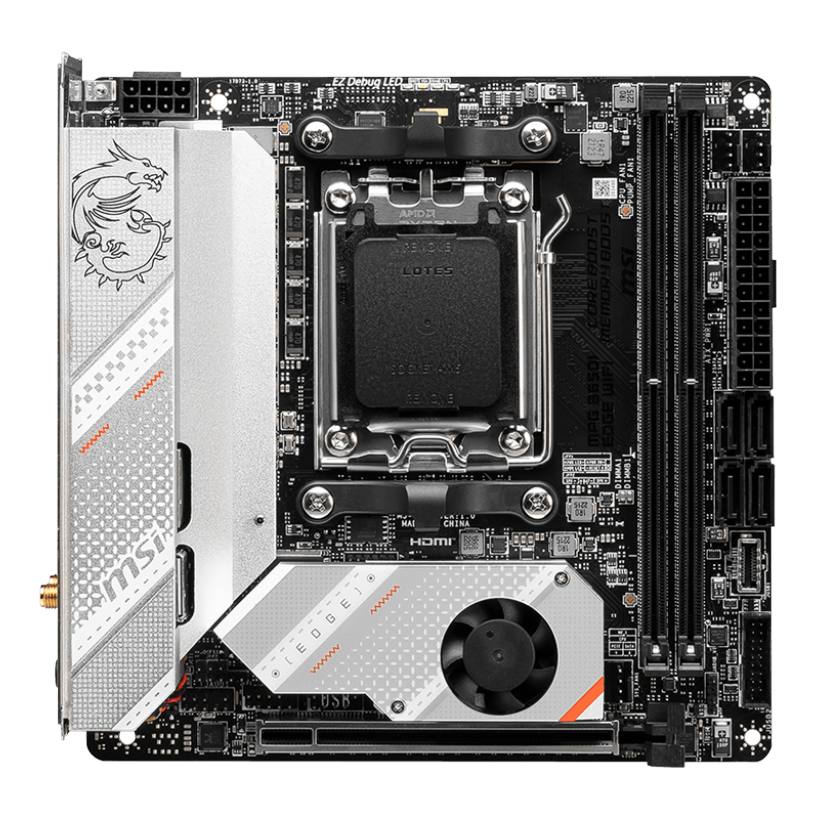

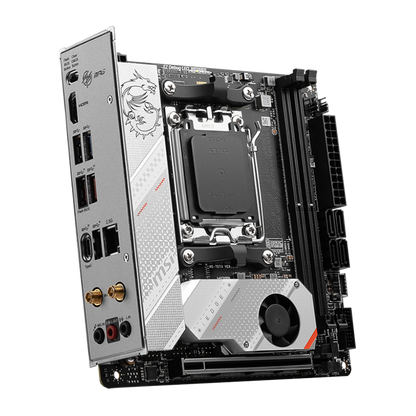

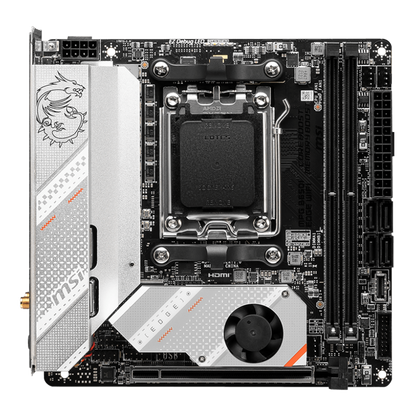

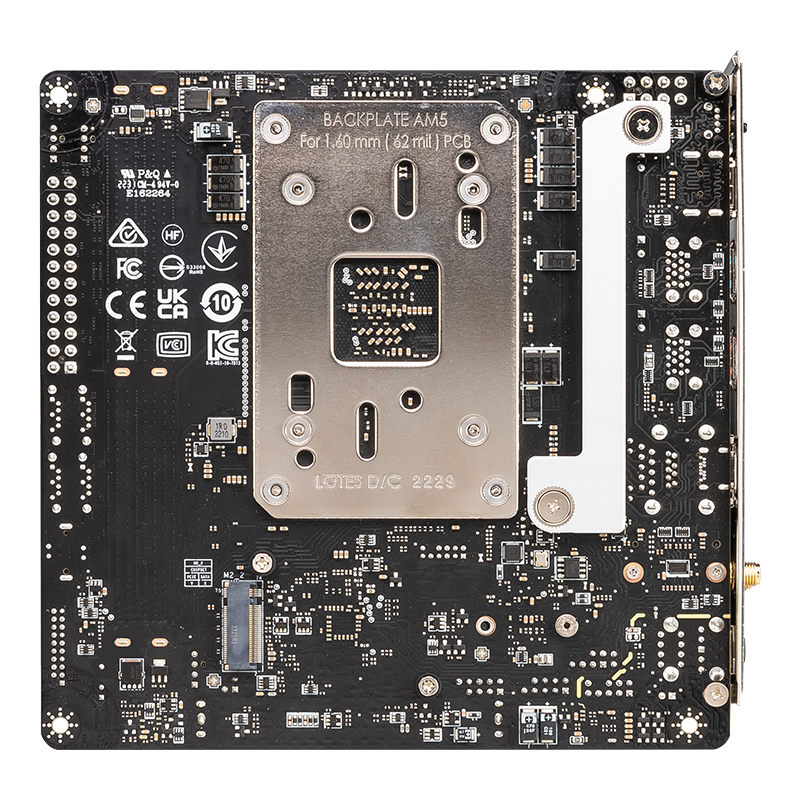

SPECIFICATIONS (MSI MPG B650I EDGE WIFI)
- CHIPSET : AMD B650
- CPU :
• Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
• Socket AM5
- MEMORY :
• 2x DDR5, Maximum Memory Capacity 96GB
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO™
- ONBOARD GRAPHICS : 1x HDMI™ - Support HDMI™ 2.1 FRL, maximum resolution of 4K 120Hz*
- SLOT : 1x PCI-E x16 slot
- STORAGE :
• 2x M.2
• 4x SATA 6G
- LAN : Realtek® RTL8125BG 2.5Gbps LAN
- WIRELESS LAN & BLUETOOTH :
• AMD Wi-Fi 6E
• Supports 802.11 a/ b/ g/ n/ ac/ ax
- AUDIO :
• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports up to 32-Bit/384 kHz playback on front panel
- LED FEATURE : 4x EZ Debug LED

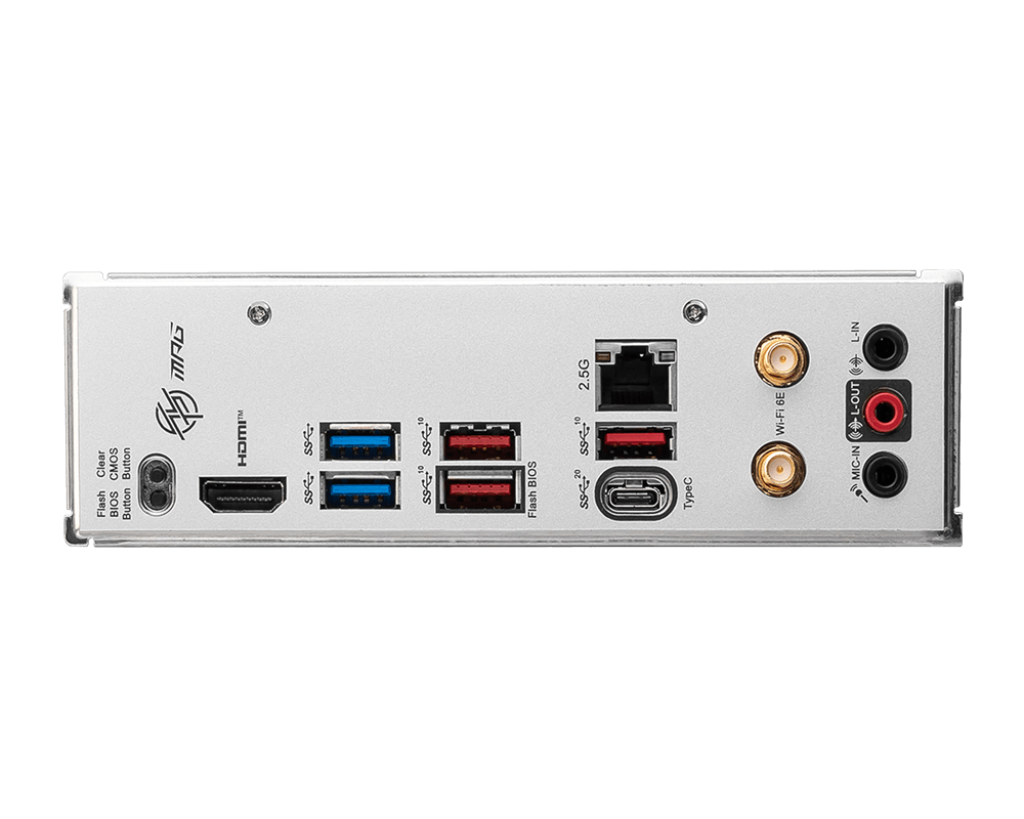

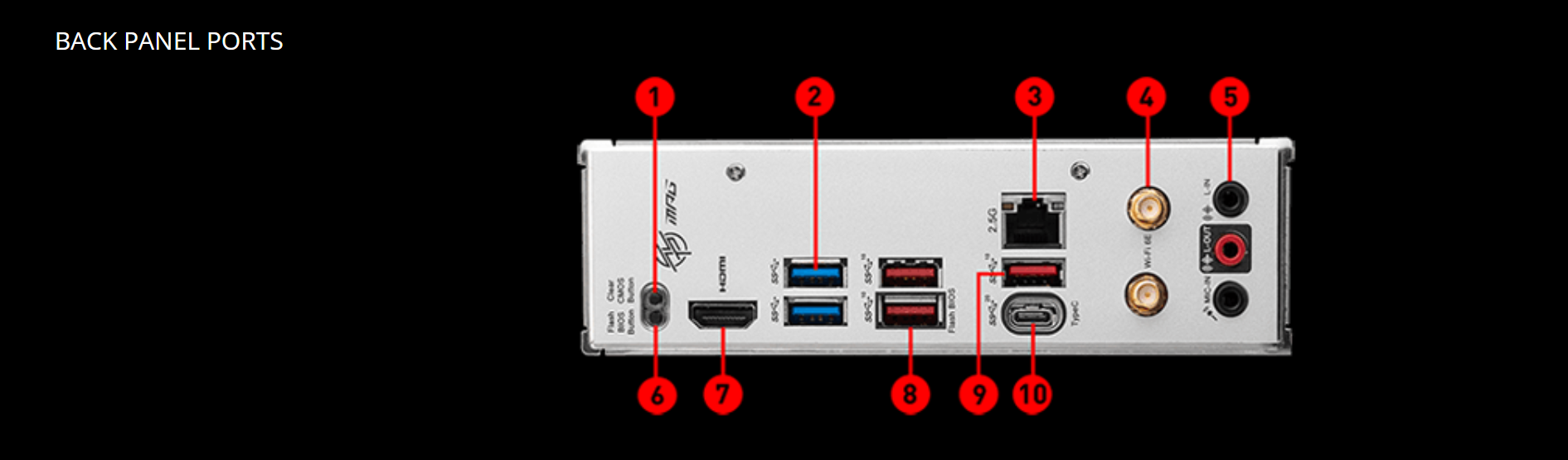

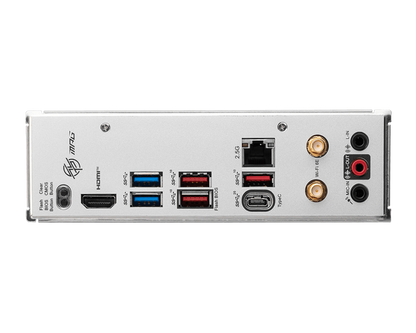

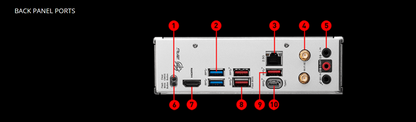

- BACK PANEL PORTS :
1. Clear CMOS Button
2. USB 3.2 Gen 1 5Gbps (Type-A)
3. 2.5G LAN
4. Wireless / Bluetooth
5. Audio Connectors
6. Flash BIOS Button
7. HDMI™
8. USB 3.2 Gen 2 10Gbps (Type-A)
9. USB 3.2 Gen 2 10Gbps (Type-A)
10. USB 3.2 Gen 2x2 20Gbps (Type-C)
- OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit

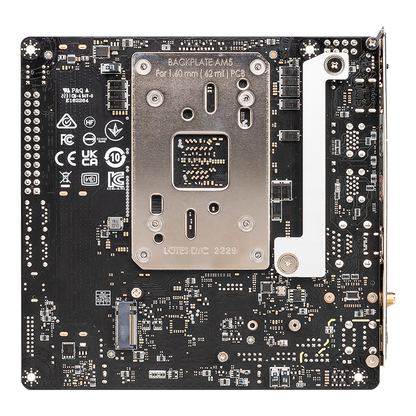

- PCB INFO : Mini-ITX - 170mmx170mm
