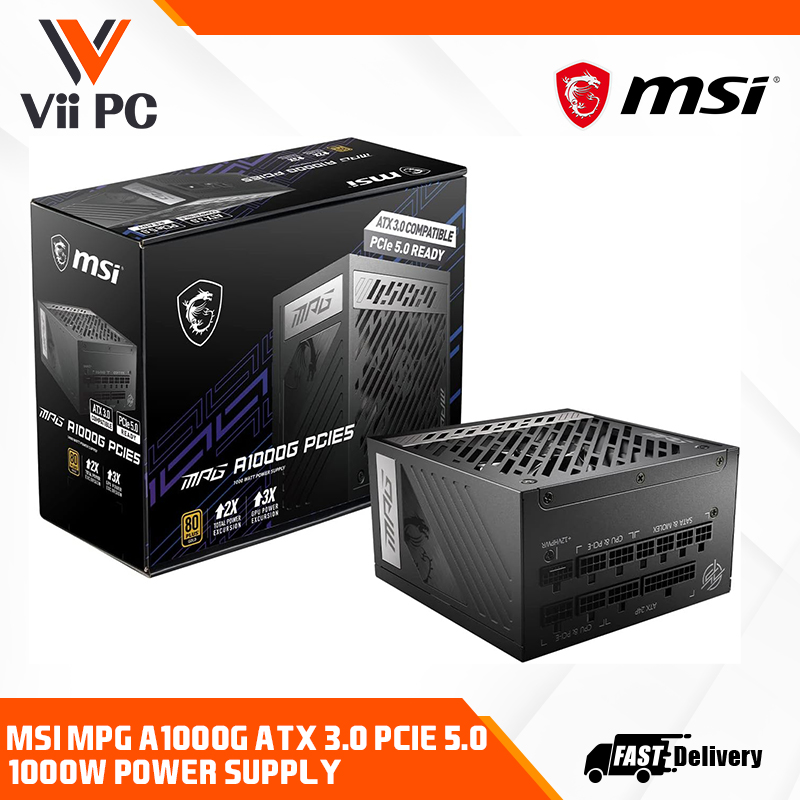

MSI MPG A1000G PCIE 5.0 ATX 3.0 80 Plus® Gold 1000W Full Modular Gaming Power Supply - 12VHPWR Cable, ATX 3.0 compatible, Supports Nvidia® GeForce RTX™ 40 Series

MSI MPG A1000G PCIE 5.0 ATX 3.0 1000W Full Modular Gaming Power Supply

FEATURES

• Supports Nvidia® GeForce RTX™ 40 Series graphics cards

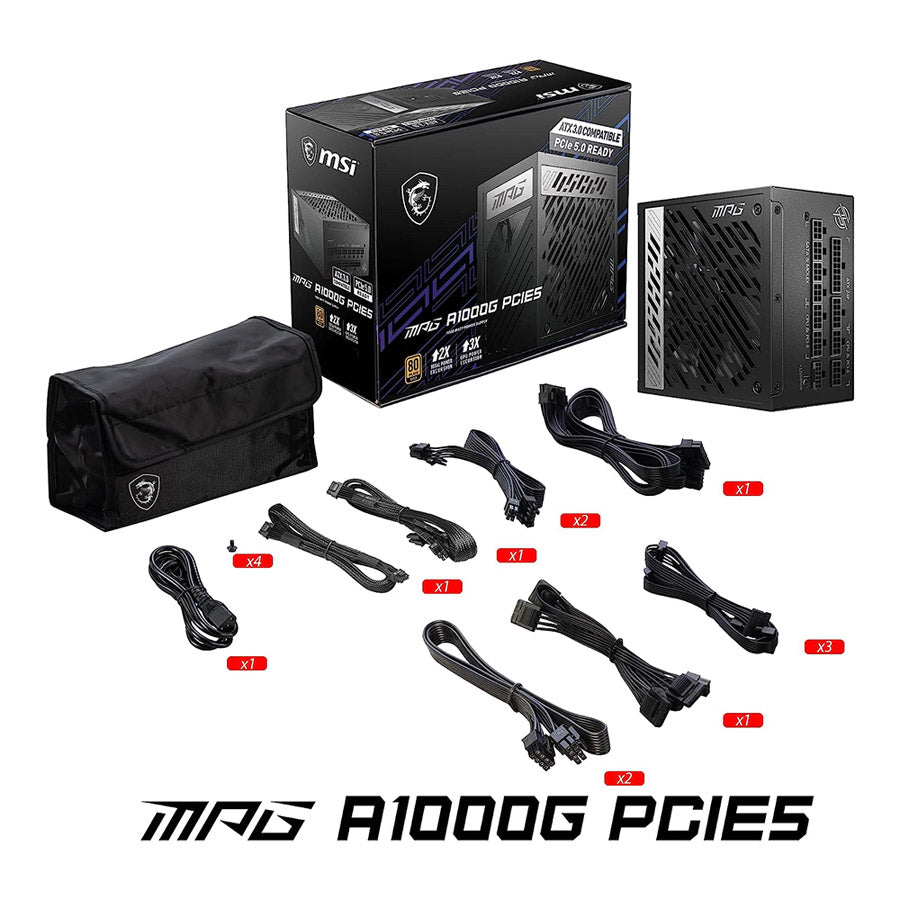

• Full modular design
• Flat cables

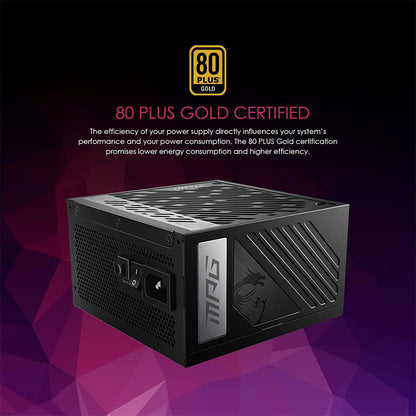

• 80 Plus Gold certified for high efficiency
• 100% all Japanese 105°C capacitor
• Active PFC design
• Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
• LLC Half Bridge Topology with DC-DC module design

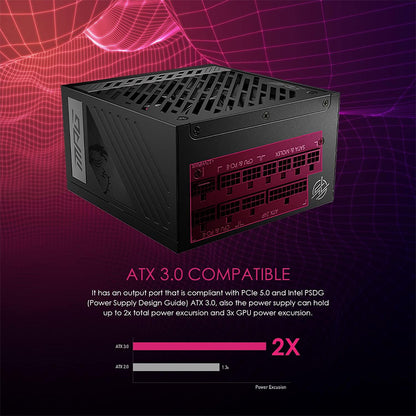

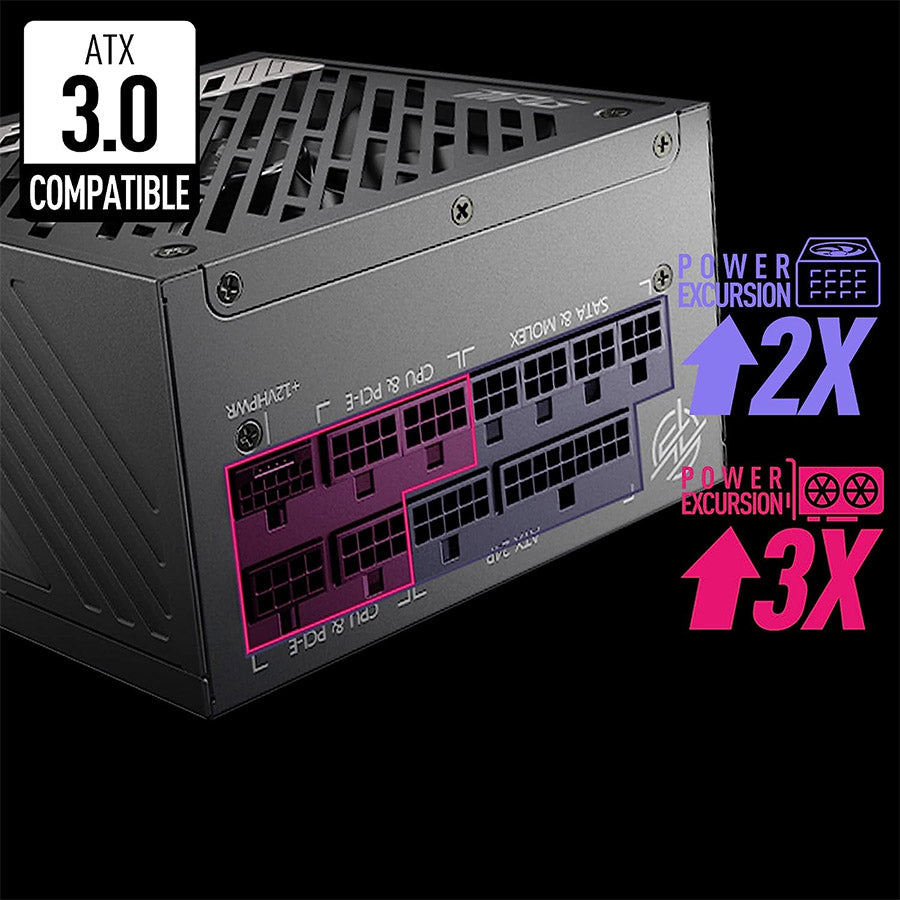

ATX 3.0 compatible

It has an output port that is compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.

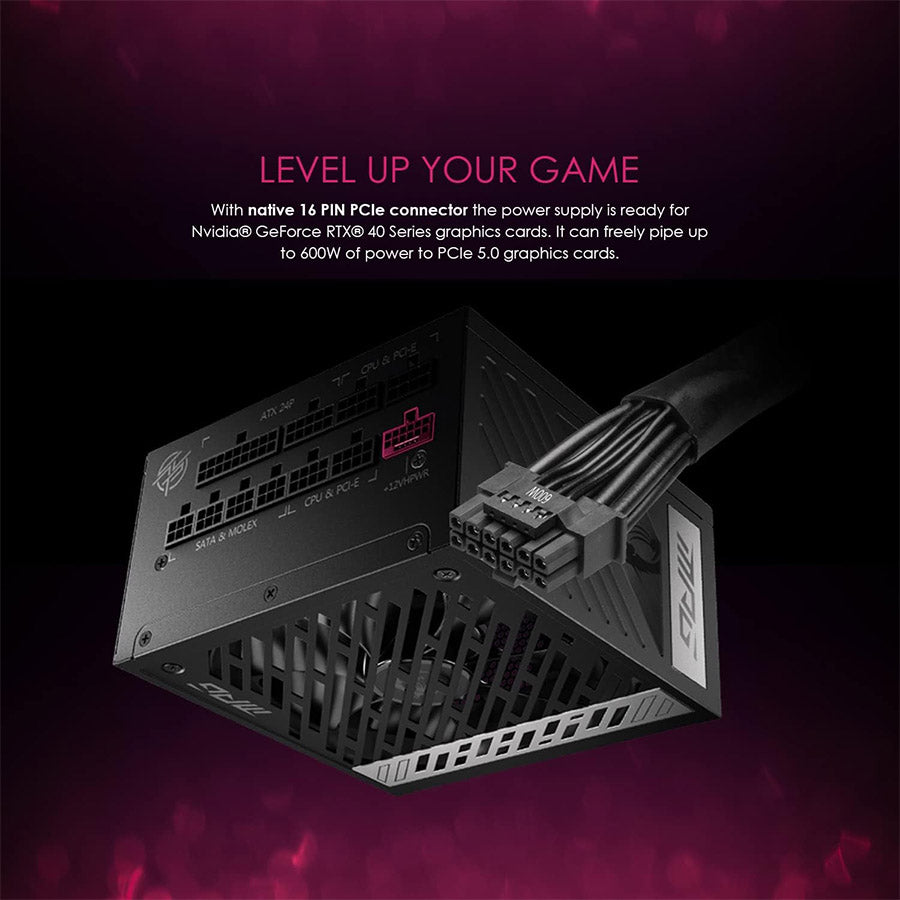

Level up your GAME

With native 16 PIN PCIe connector the power supply is ready for Nvidia® GeForce RTX® 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.

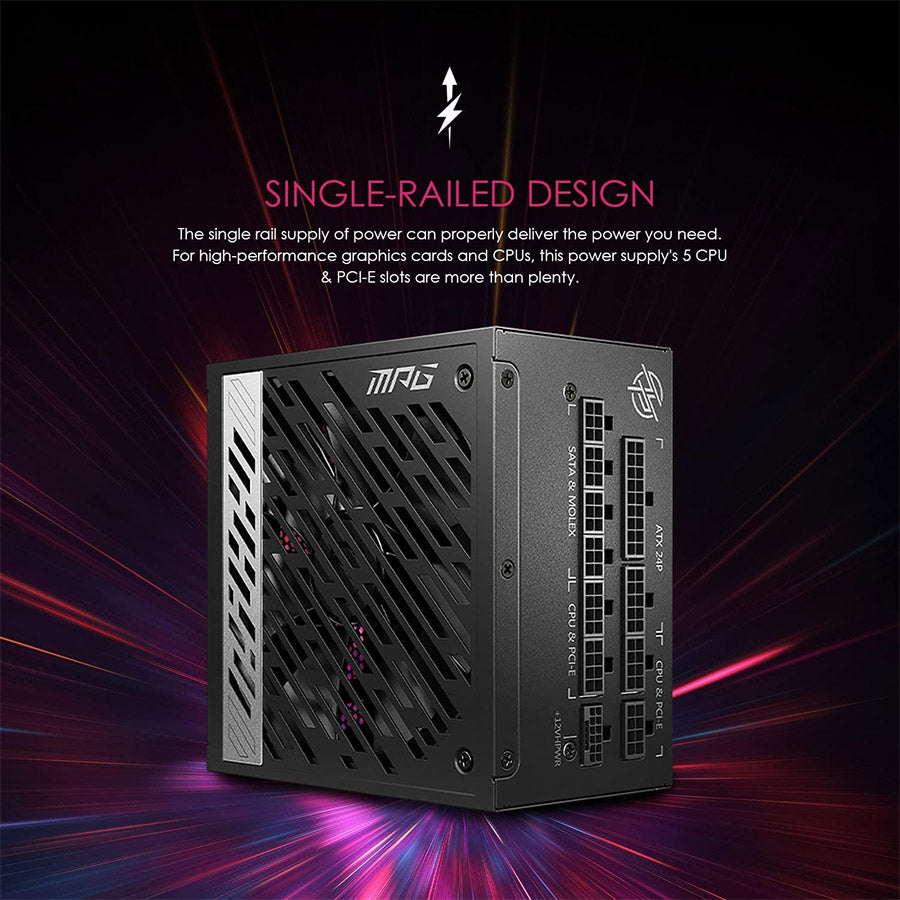

Single-Railed Design

The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

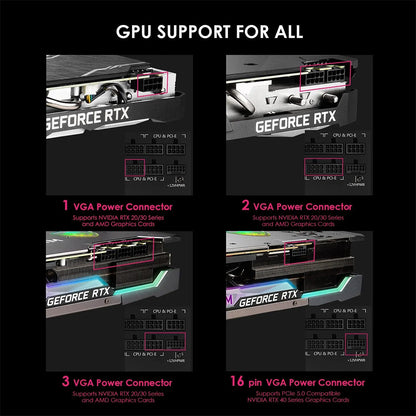

GPU Support for ALL

The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.

Fluid Dynamic Bearing

This power supply’s fan sports a fluid dynamic bearing, chosen to increase the life span of the fan while maintaining low noise level.

100% Japanese 105°C Capacitors

Aiming for unwavering product quality and performance stability, this power supply comes with 100% Japanese 105° C capacitors and solid capacitors.

SPECIFICATIONS

• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Yes (fully modular)
• Fan Size: 135 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 150 x 150 x 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100~240 VAC
• Power Watt: 1000W
• Power Excursion: 2000W (*up to 200% of the PSU's rated power for 100μs)
• Input Frequency Range: 50~60 Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP
• ATX (24 pin): 1
• EPS (4+4 pin): 2
• PCI-E 5.0 (16 pin): 1 (600W)
• PCI-E (6+2 pin): 6
• SATA (15 pin): 12
• MOLEX (4 pin): 4
• FDD (4 pin): 1
