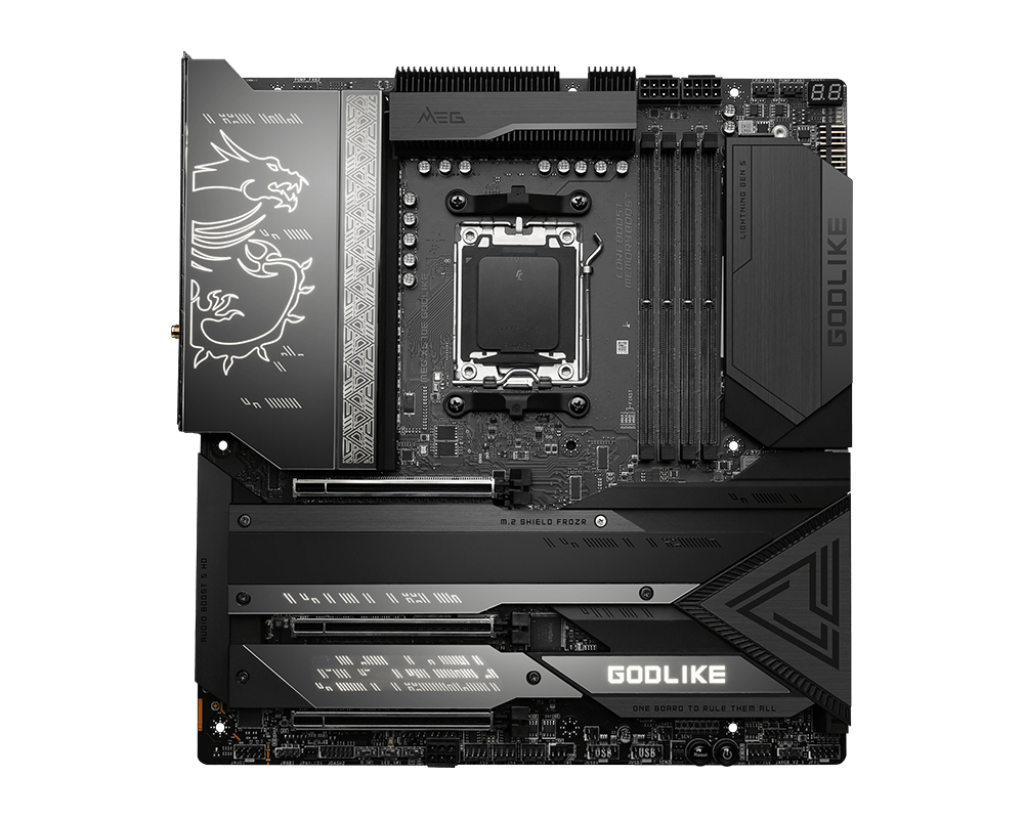

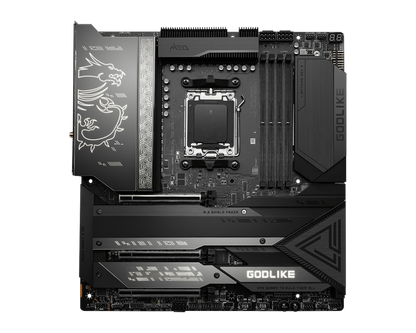

MSI MEG X670E GODLIKE
The MEG X670E GODLIKE is designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and Industry's first M-Vision Dashboard, the MEG X670E GODLIKE is developed to unleash the extreme gaming potential of the AMD X670 chipset and is ready to rule the tournament once again.
-
Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
-
Supports DDR5 Memory, Dual Channel DDR5 8000+MHz (OC)
-
M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
-
Extreme Power Design: 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
-
Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
-
Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
-
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
-
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2x2 20G with 60W USB Power Delivery.
-
10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
-
DIY Friendly Design: Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
-
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
SPECIFICATIONS
CHIPSET: AMD X670
CPU
• Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
• Socket AM5
MEMORY
• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
- 1DPC 1R Max speed up to 8000+ MHz
- 1DPC 2R Max speed up to 6400+ MHz
- 2DPC 1R Max speed up to 6400+ MHz
- 2DPC 2R Max speed up to 5400+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports AMD EXPO
AUDIO
• Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA
• 7.1-Channel USB High Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel
STORAGE
• 4x M.2
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
• 8x SATA 6G
LAN
• Marvell® AQC113CS-B1-C 10Gbps LAN
• Intel® I225V 2.5Gbps LAN
SLOT
• 3x PCI-E x16 slot
- Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 7000 Series processors)
- Supports x8/x0/x4 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
- Supports x4/x0/x2 (For Ryzen™ 5 8500G processor)
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
• PCI_E3 Gen PCIe 5.0 supports up to x4 (From CPU)
* This rear USB 3.2 Gen 2x2 20Gbps Type-C port and PCI_E3 slot share the same bandwidth. When installing a device in the PCI_E3 slot, the port would be unavailable by default. You can go to BIOS > Setting > Advanced > PCIe/PCI Subsystem Setting > PCI_E3/Rear USB-C 20 Switch to select the available device.
MULTI-GPU: AMD MULTI-GPU Support
RAID
• Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
• Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
* SATA_A1_A2, SATA_B1_B2 and SATA_B3_B4 do not support RAID function.
USB
• 4x USB 2.0 (Front)
• 4x USB 2.0 ports (Front)
• 4x USB 5Gbps Type A (Front)
• 7x USB 10Gbps Type A (Rear)
• 1x USB 10Gbps Type C (Front)
• 2x USB 20Gbps Type C (Rear)
• 1x USB 20Gbps Type C (Front)
WIRELESS LAN & BLUETOOTH
• AMD Wi-Fi 6E
• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
• Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
• 1x EZ LED Control switch
• 4x EZ Debug LED
• 1x 2-Digit Debug Code LED

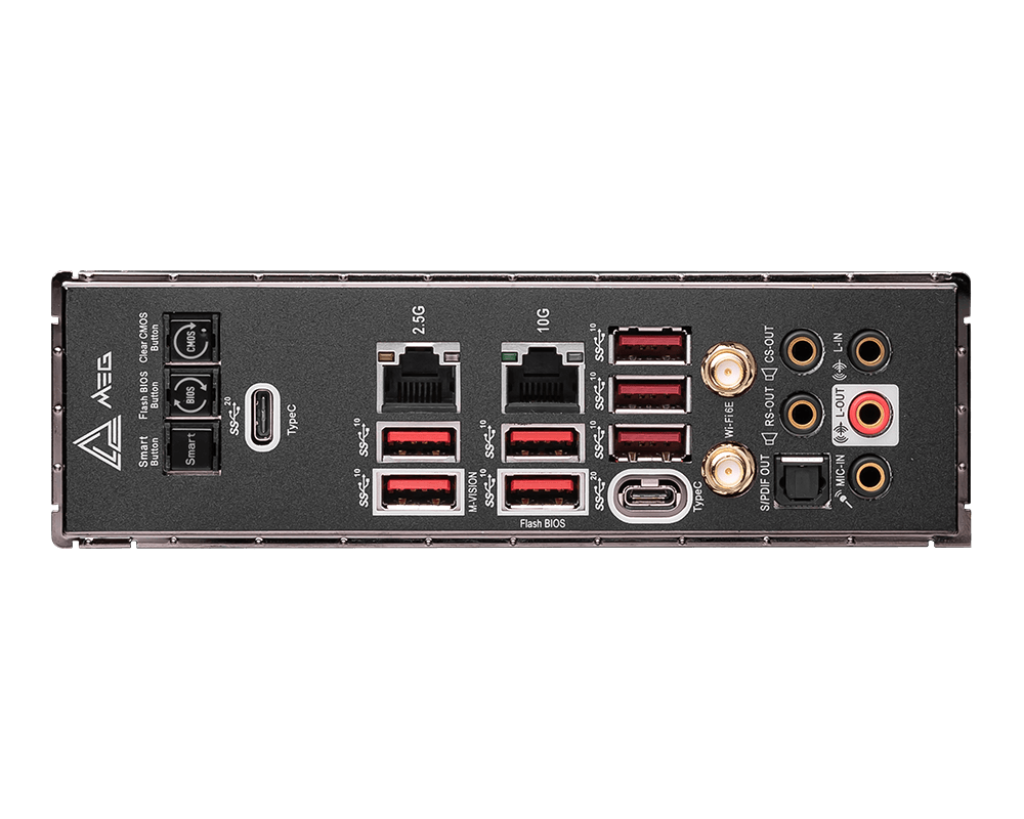

BACK PANEL PORTS
1. Clear CMOS Button
2. Flash BIOS Button
3. 2.5G LAN
4. 10G Super LAN
5. USB 3.2 Gen 2 10Gbps (Type-A)
6. Wi-Fi / Bluetooth
7. HD Audio Connectors
8. Smart Button
9. USB 3.2 Gen 2x2 20Gbps (Type-C)
10. USB 3.2 Gen 2 10Gbps (Type-A)
11. USB 3.2 Gen 2 10Gbps (Type-A)
12. USB 3.2 Gen 2x2 20Gbps (Type-C)
13. Optical S/PDIF-Out
OPERATING SYSTEM: Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB INFO: E-ATX - 288mm x 304.8mm
