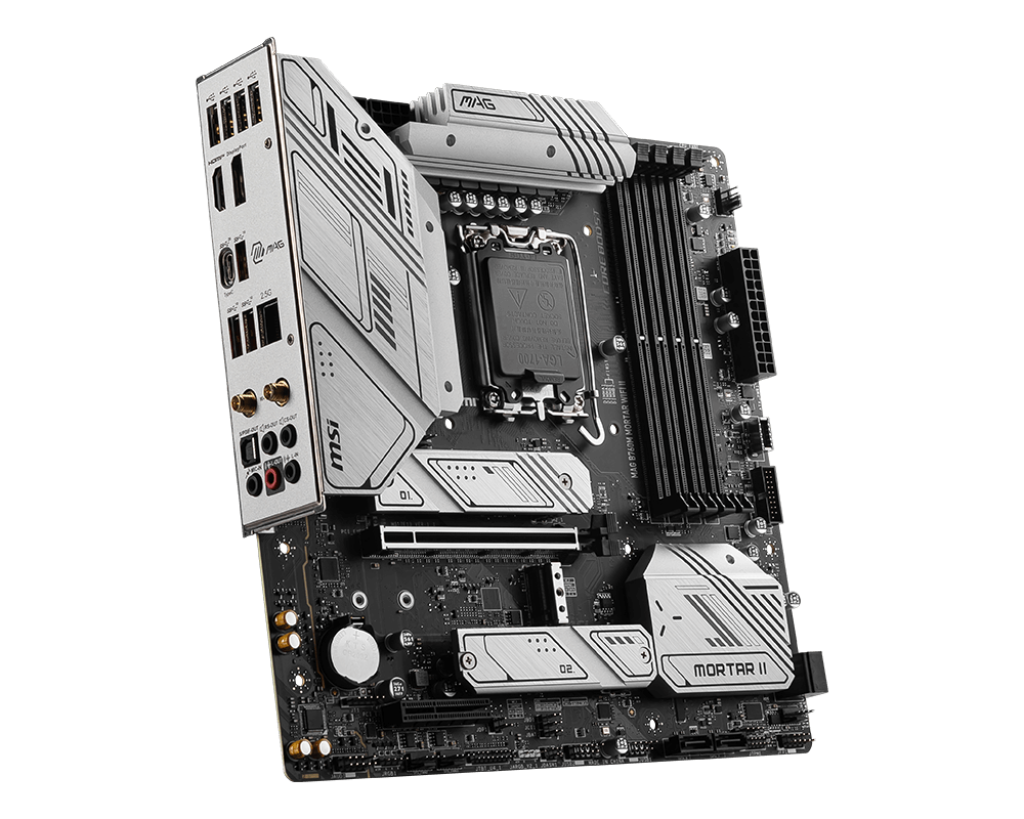

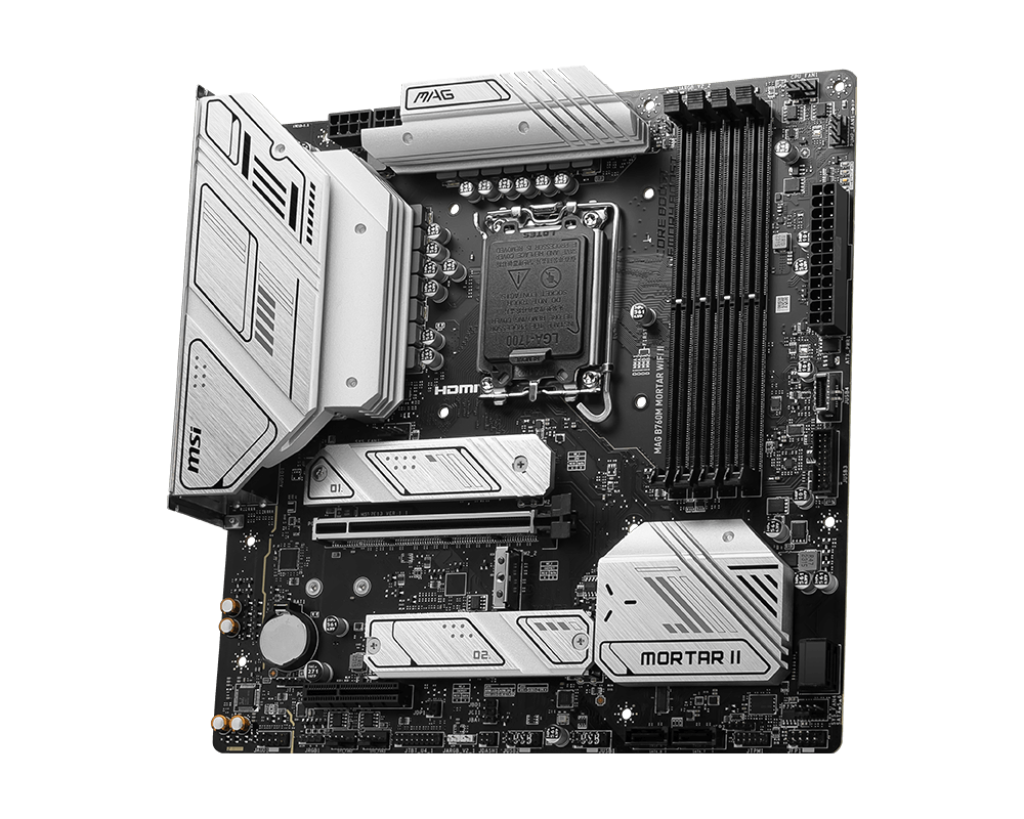

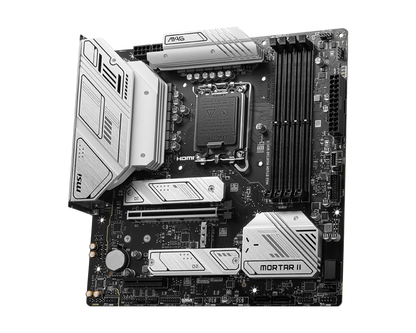

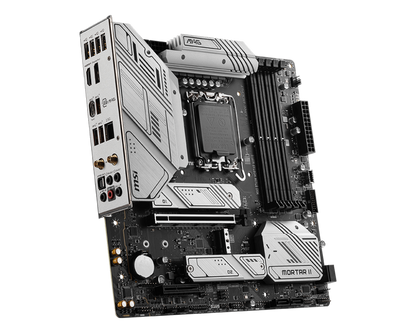

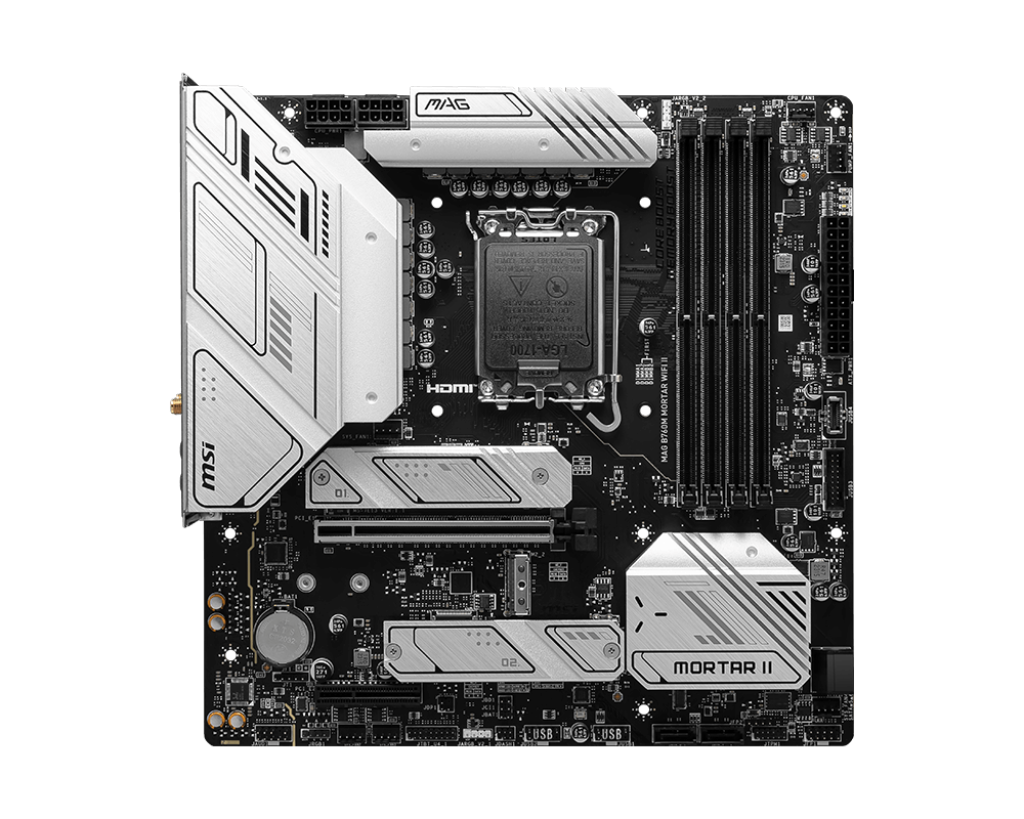

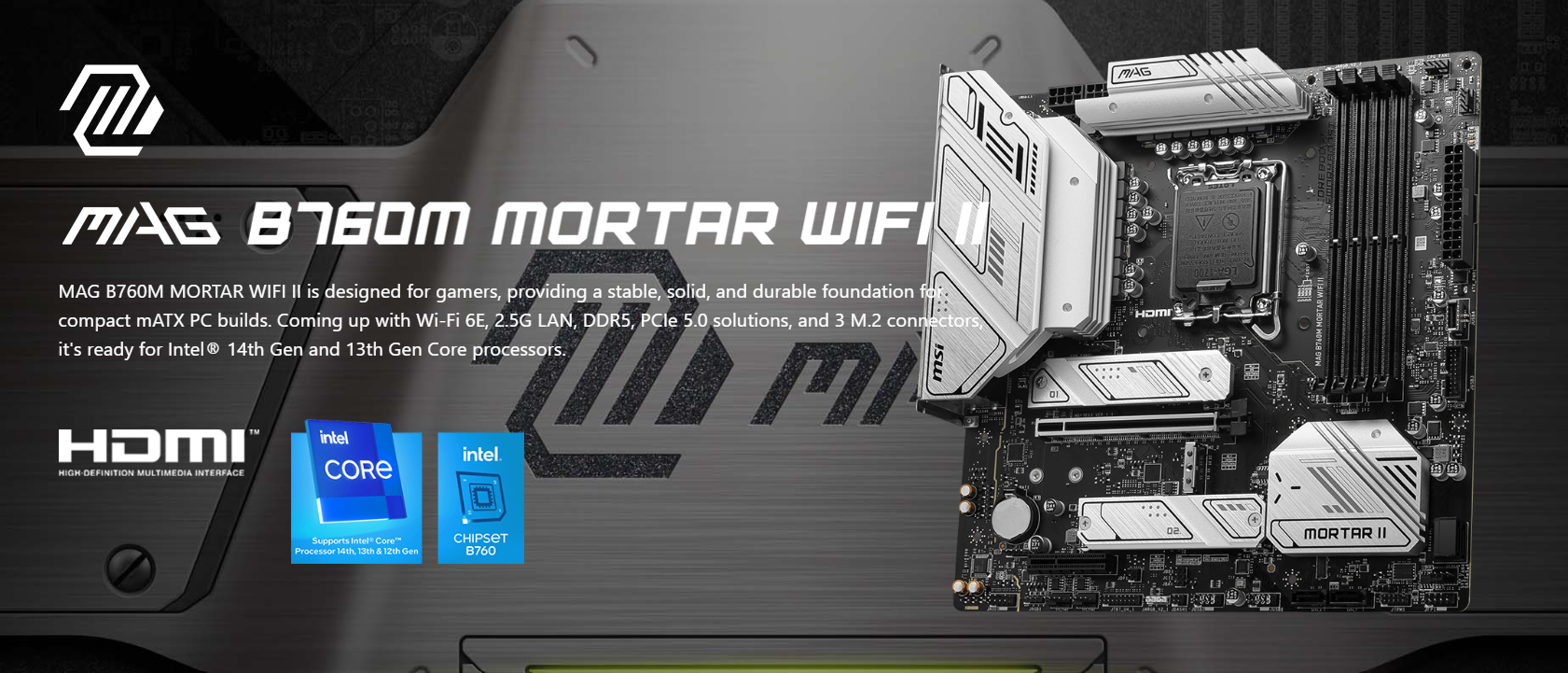

MSI MAG B760M MORTAR WIFI II DDR5 Wi-Fi 6E MATX Motherboard

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket

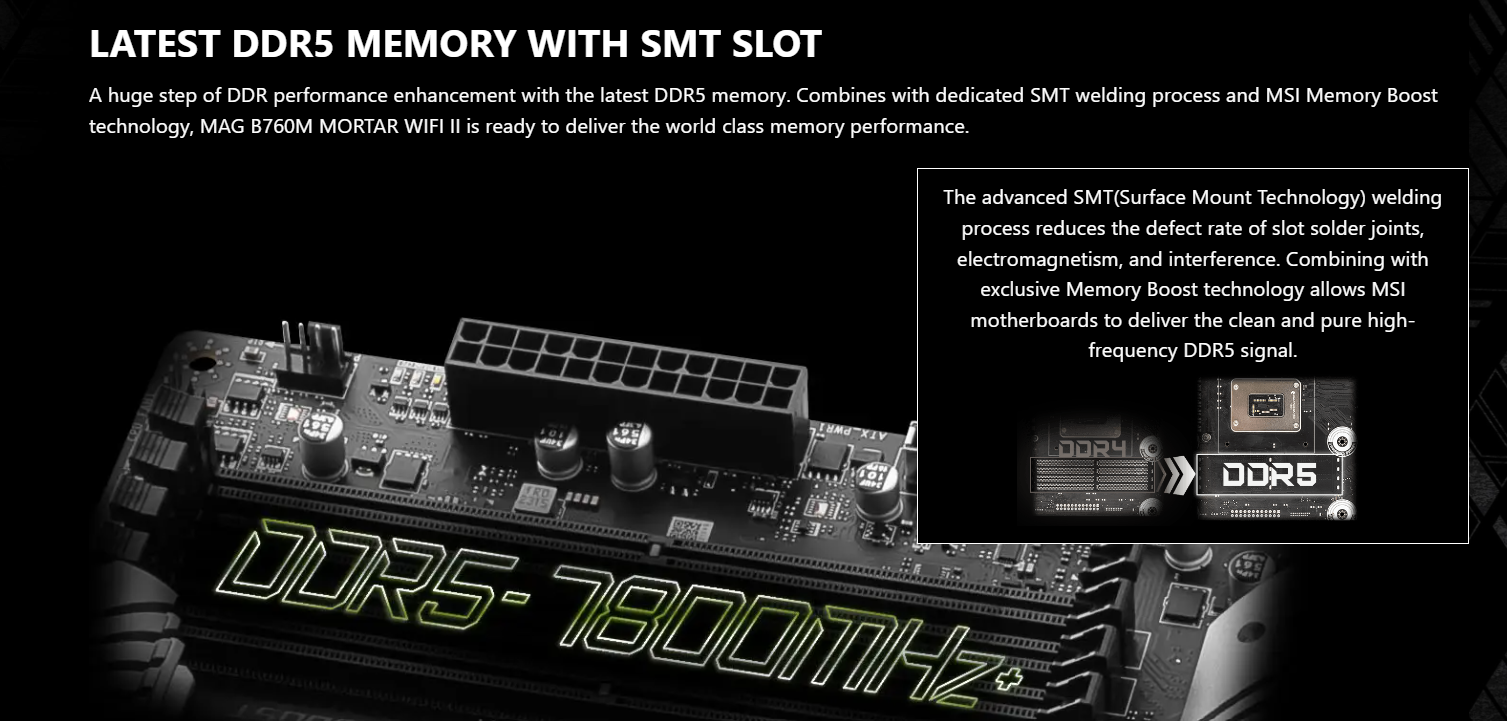

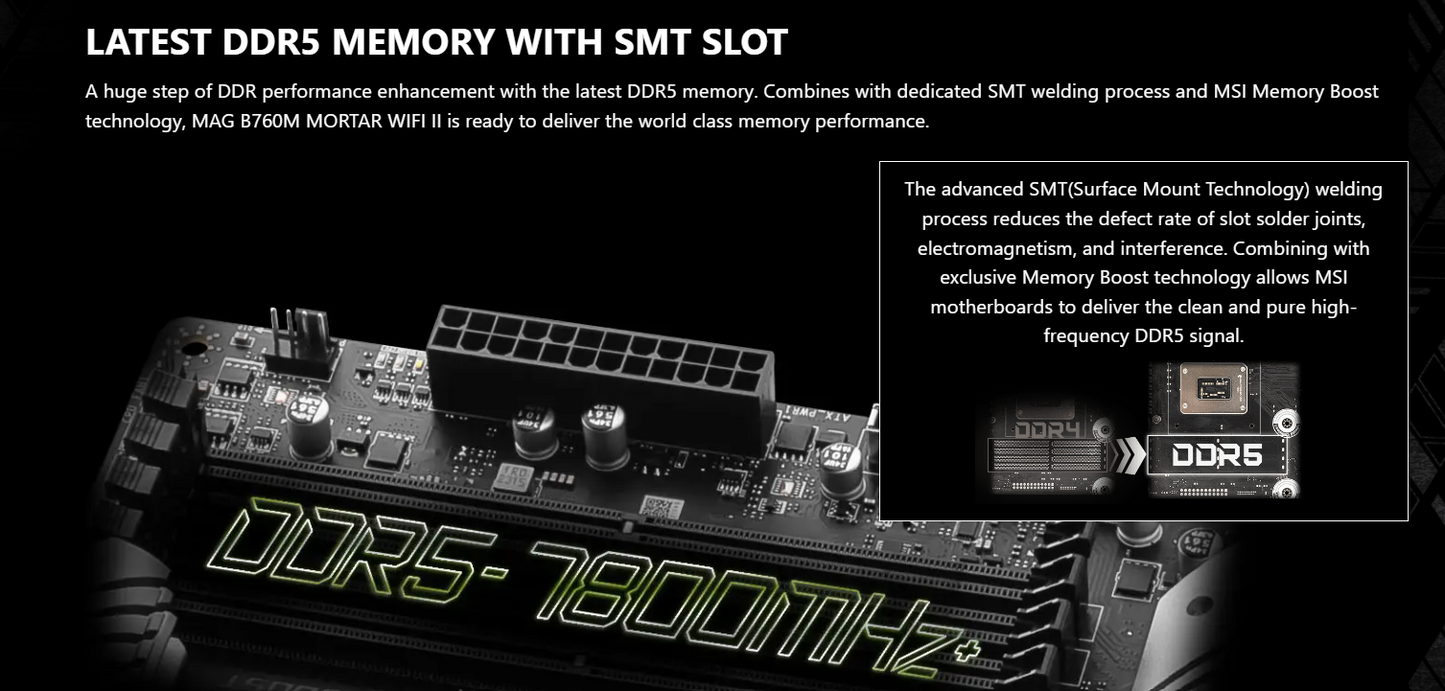

• Supports DDR5 Memory, up to 7800+(OC) MHz

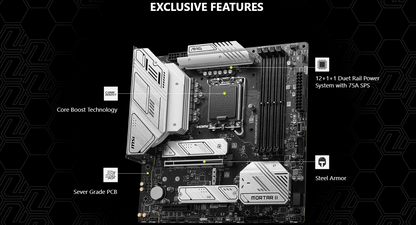

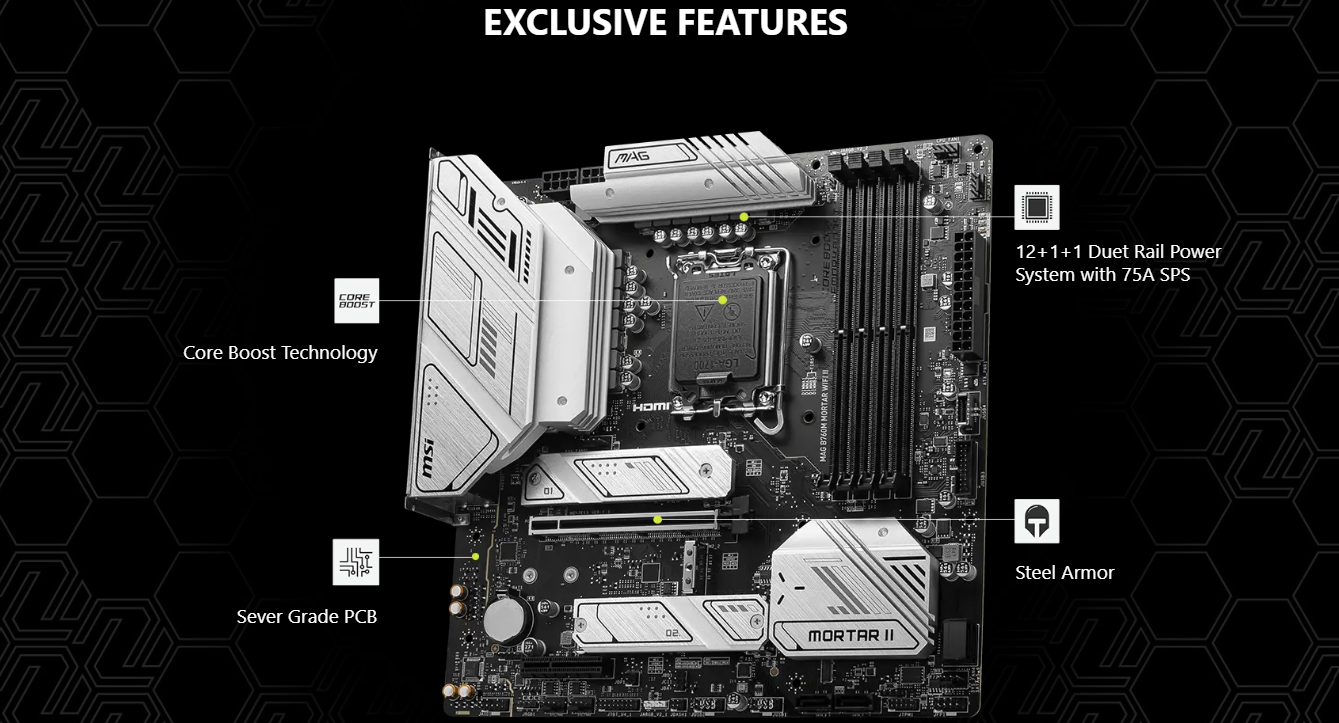

• Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost

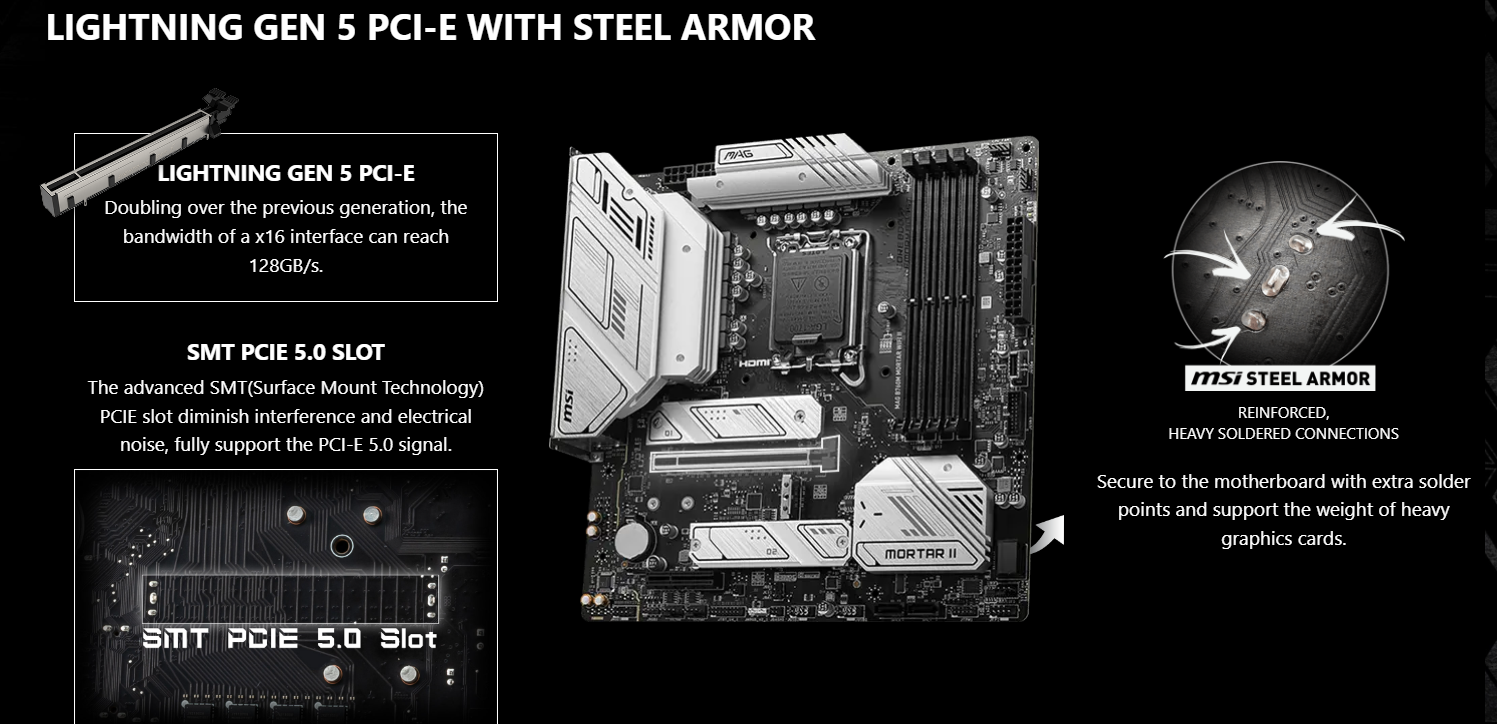

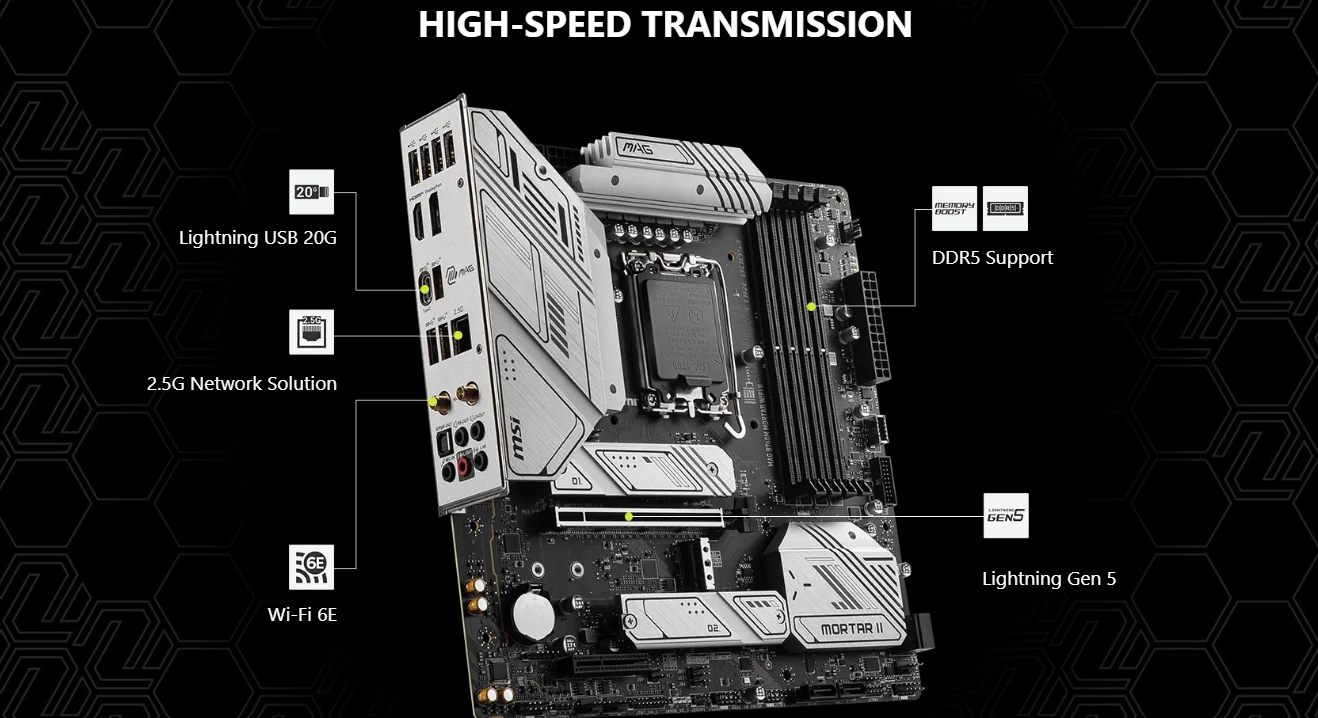

• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2

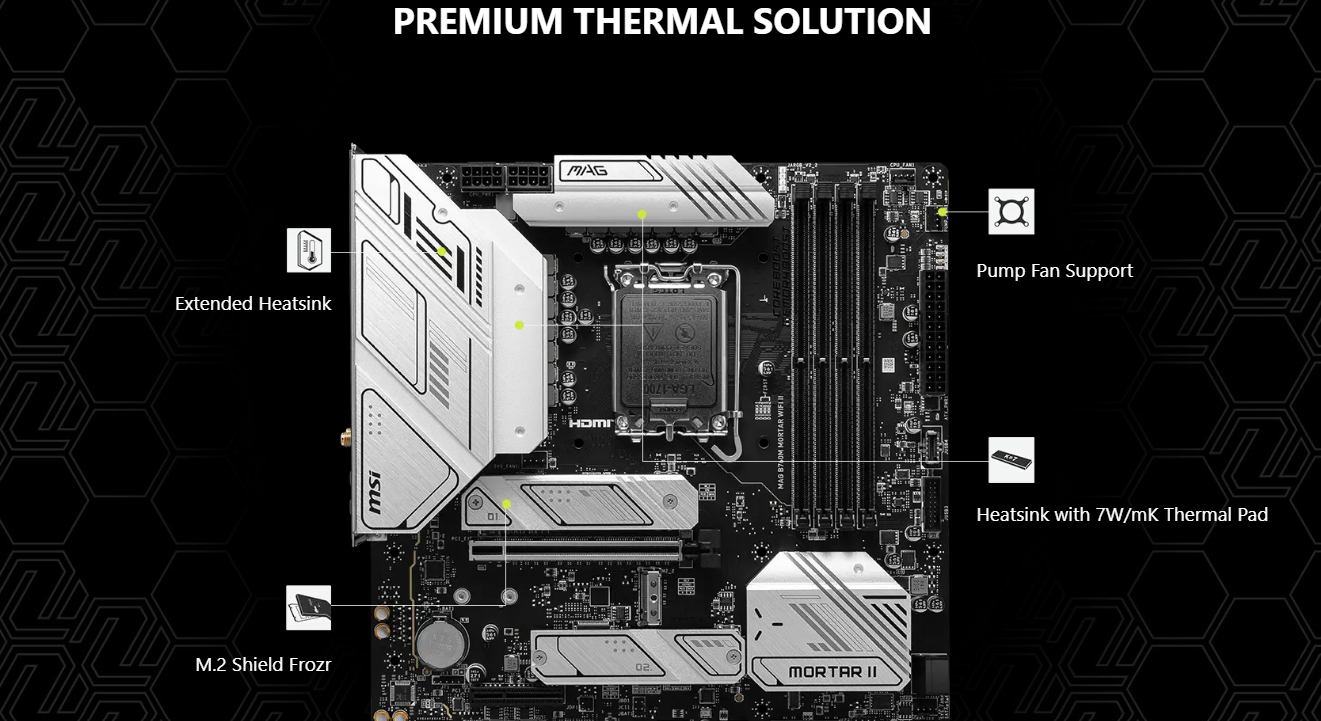

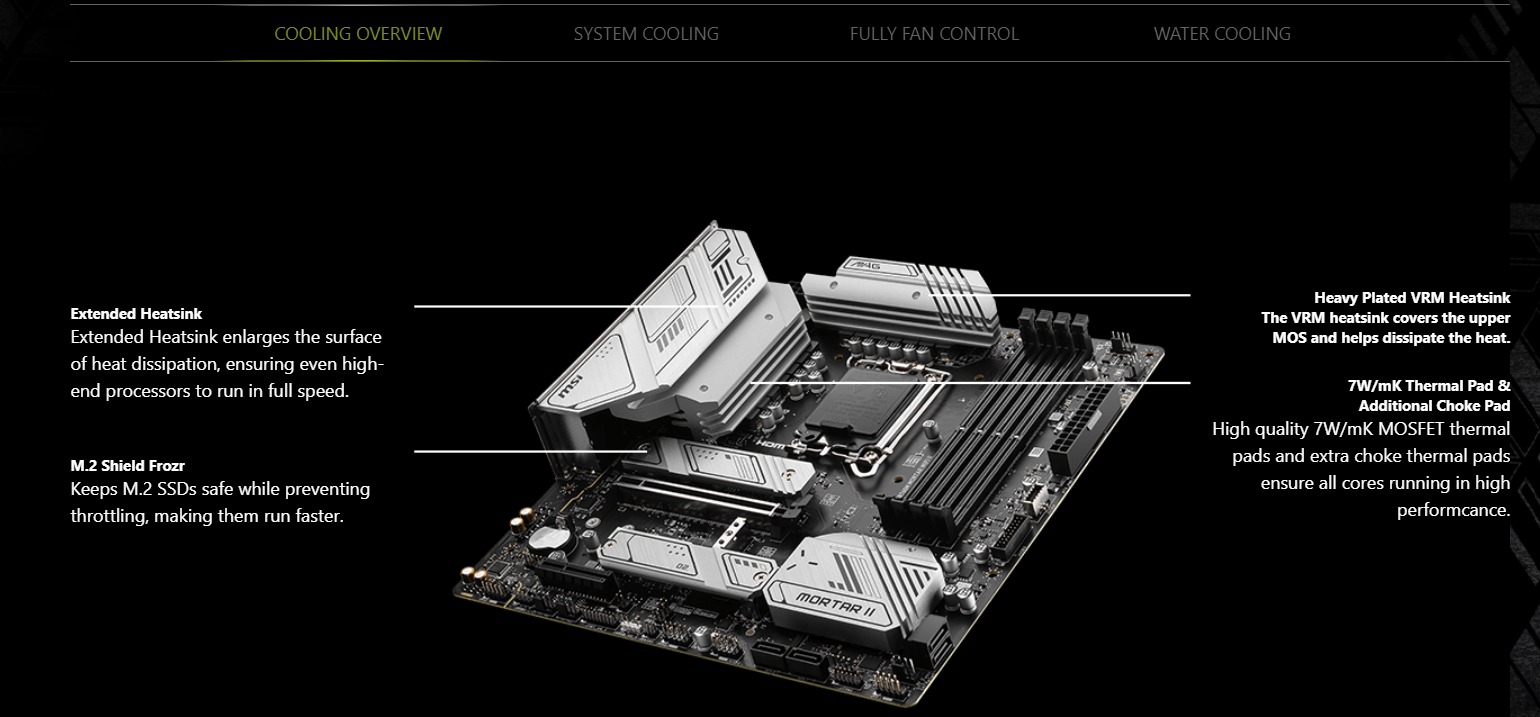

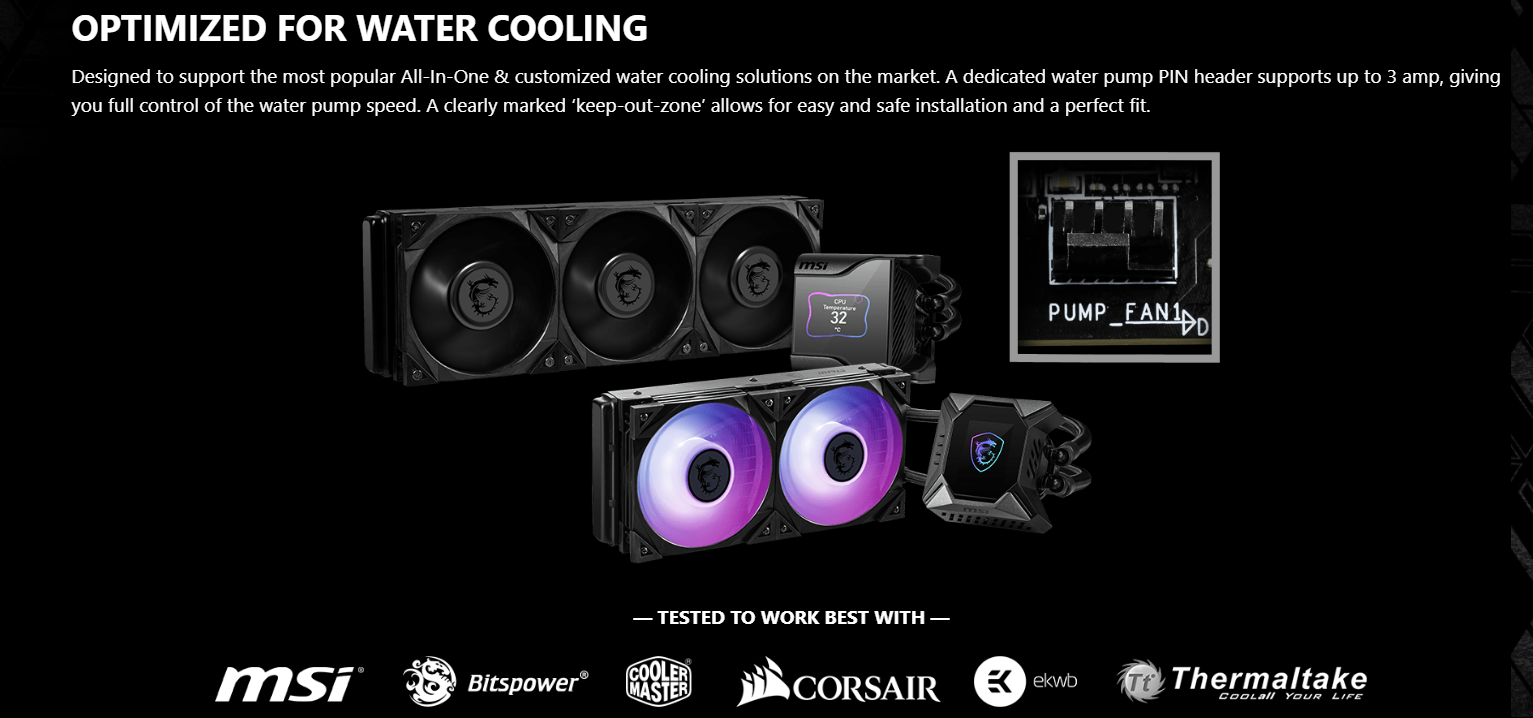

• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

• Audio Boost: Reward your ears with studio grade sound

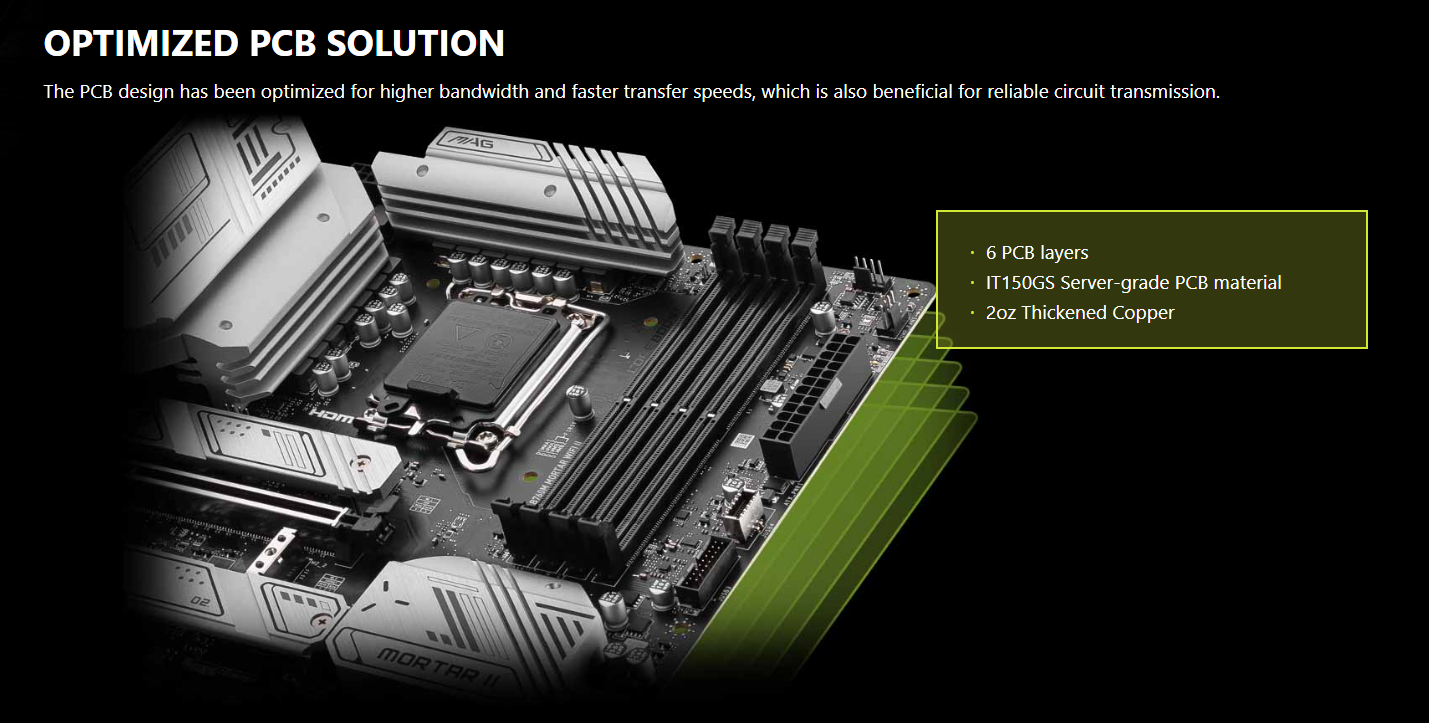

• High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

SPECIFICATIONS

- CHIPSET : INTEL B760

- CPU :

◦ Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

◦ LGA1700

- MEMORY :

◦ 4x DDR5, Maximum Memory Capacity 192GB

◦ Memory Support 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC) /5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz

◦ Supports Dual-Channel mode

◦ Supports non-ECC, un-buffered memory

◦ Supports Intel® Extreme Memory Profile

- ONBOARD GRAPHICS :

◦ 1x HDMI™ - Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*

◦ 1x DisplayPort - Support DP 1.4, maximum resolution of 4K 60Hz*

 *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

- SLOT :

◦ 1x PCI-E x16 slot

◦ Supports x16/x4

◦ PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

◦ PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

- STORAGE :

◦ 3x M.2

 • M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

 • M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

 • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices

◦ 4x SATA 6G

- RAID : Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- LAN : Realtek® 2.5Gbps LAN

- WIRELESS LAN & BLUETOOTH :

◦ Intel® Wi-Fi 6E

◦ The Wireless module is pre-installed in the M.2 (Key-E) slot

◦ Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

◦ Supports 802.11 a/ b/ g/ n/ ac/ ax

◦ Supports Bluetooth® 5.3, FIPS, FISMA

 * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

 ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

- AUDIO :

◦ Realtek® ALC897 Codec

◦ 7.1-Channel High Definition Audio

◦ Supports S/PDIF output

- LED FEATURE : 4x EZ Debug LED

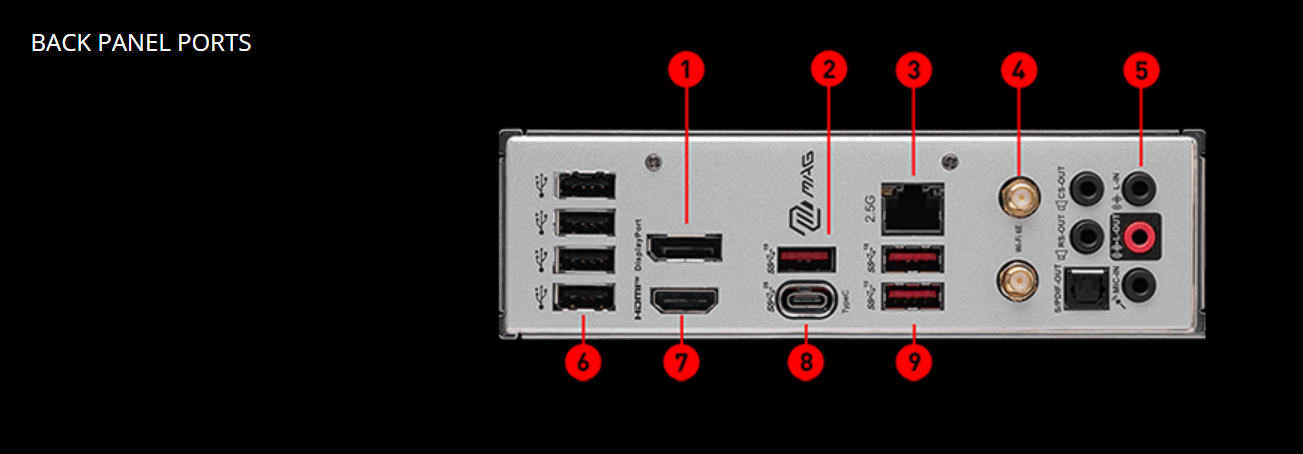

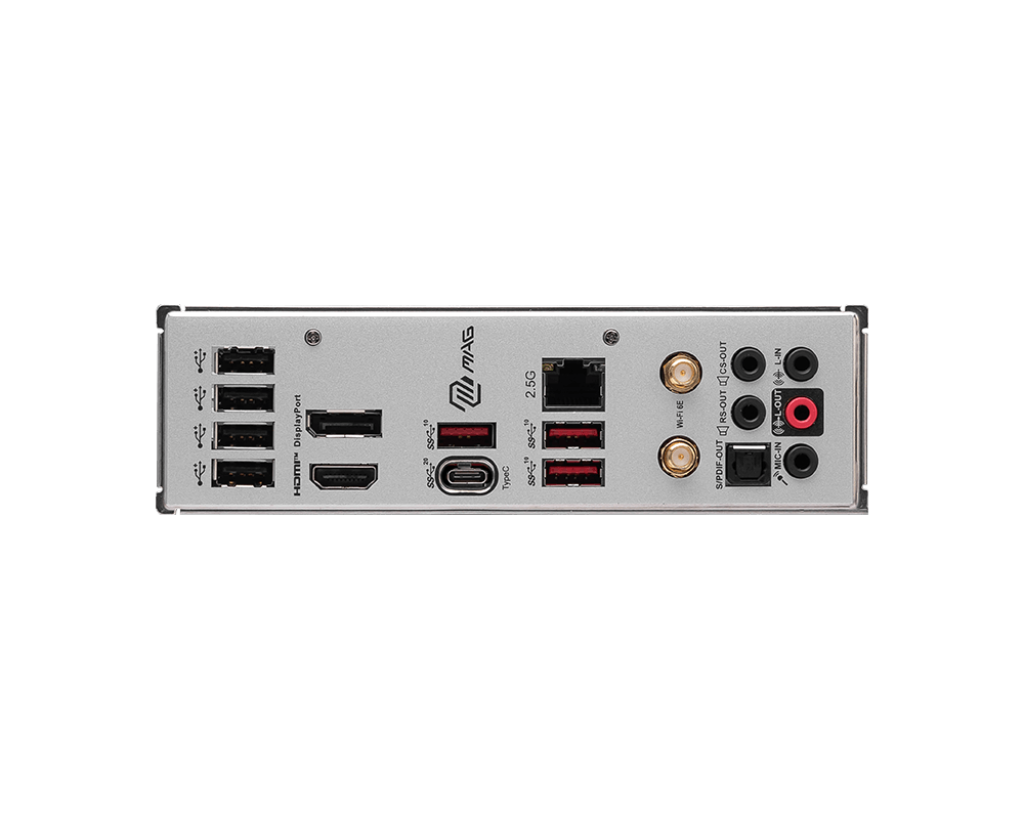

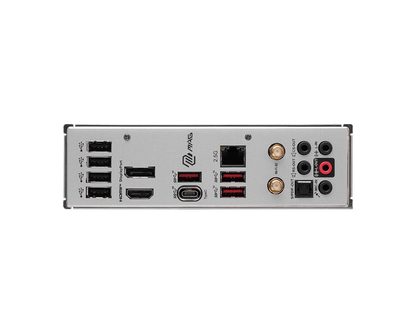

- BACK PANEL PORTS :

1. DisplayPort 1.4

2. USB 3.2 Gen 2 10Gbps Type-A

3. 2.5G LAN Port

4. Wi-Fi / Bluetooth

5. HD Audio Connectors

6. USB 2.0

7. HDMI™ 2.1 Port

8. USB 3.2 Gen 2x2 20Gbps Type-C

9. USB 3.2 Gen 2 10Gbps Type-A

- OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit

- PCB INFO :

◦ mATX

◦ 243.84mmx243.84mm
