MSI MAG B650 TOMAHAWK WIFI Motherboard + AMD Ryzen 7 7800X3D Processor BUNDLE
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

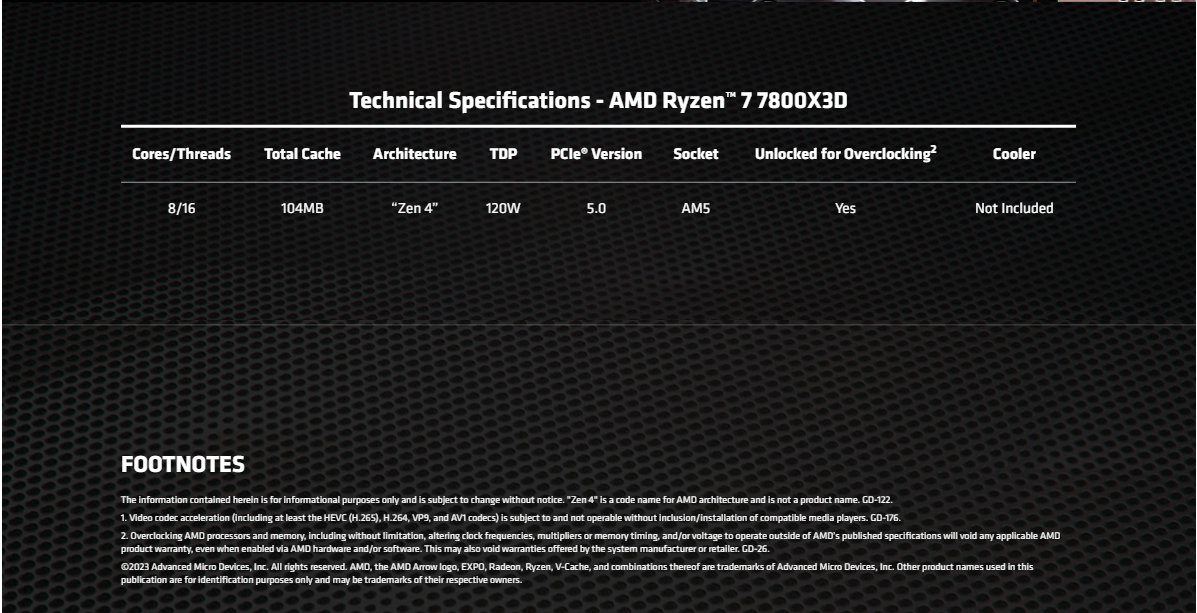

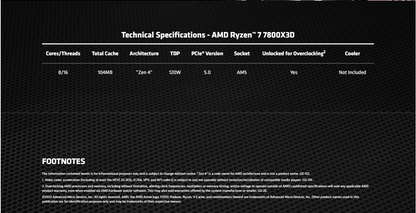

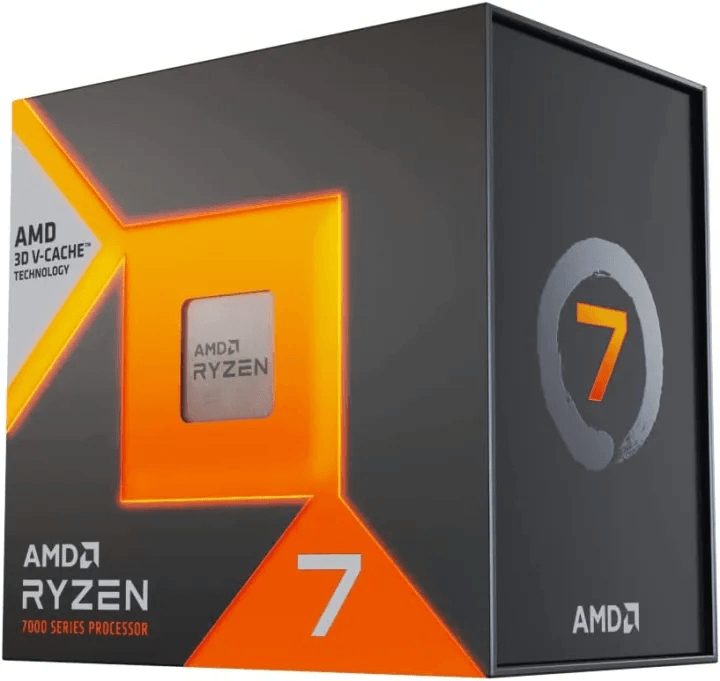

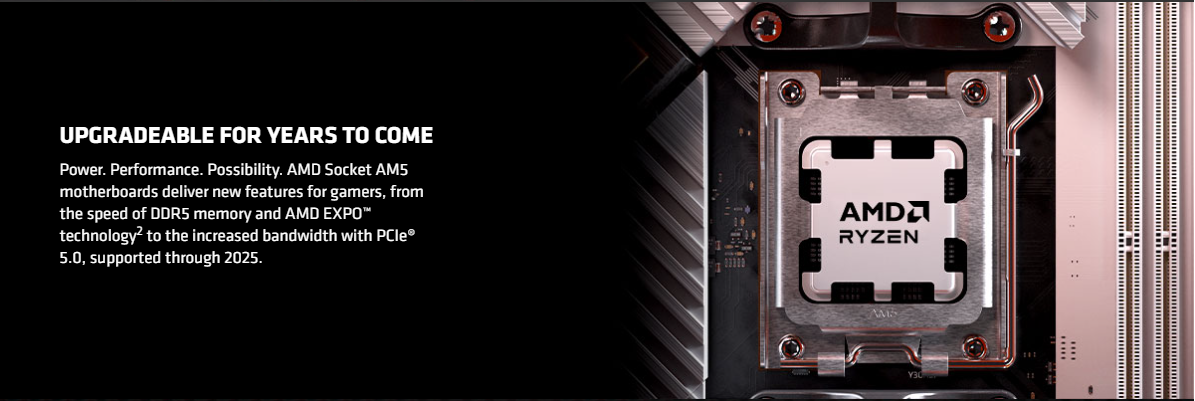

SPECIFICATIONS (AMD Ryzen™ 7 7800X3D)
- Product Line : AMD Ryzen™ 7 Processors
- Platform : Desktop
- # of CPU Cores : 8
- # of Threads : 16
- Max. Boost Clock : Up to 5.0GHz
- Base Clock : 4.2GHz
- Default TDP : 120W
- Processor Technology for CPU Cores : TSMC 5nm FinFET
- CPU Socket : AM5
- Recommended Cooler : Liquid cooler recommended for optimal performance
- Max. Operating Temperature (Tjmax) : 89°C
- *OS Support :
• Windows 11 - 64-Bit Edition
• Windows 10 - 64-Bit Edition
• RHEL x86 64-Bit
• Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.c
- PCI Express® Version : PCIe® 5.0
- System Memory Type : DDR5
- Memory Channels : 2
- Max Memory Speed :
• 2x1R - DDR5-5200
• 2x2R - DDR5-5200
• 4x1R - DDR5-3600
• 4x2R - DDR5-3600
- Graphics Model : AMD Radeon™ Graphics
- Graphics Core Count : 2
- Graphics Frequency : 2200 MHz
- Supported Technologies :
• AMD EXPO™ Technology
• AMD Ryzen™ Technologies

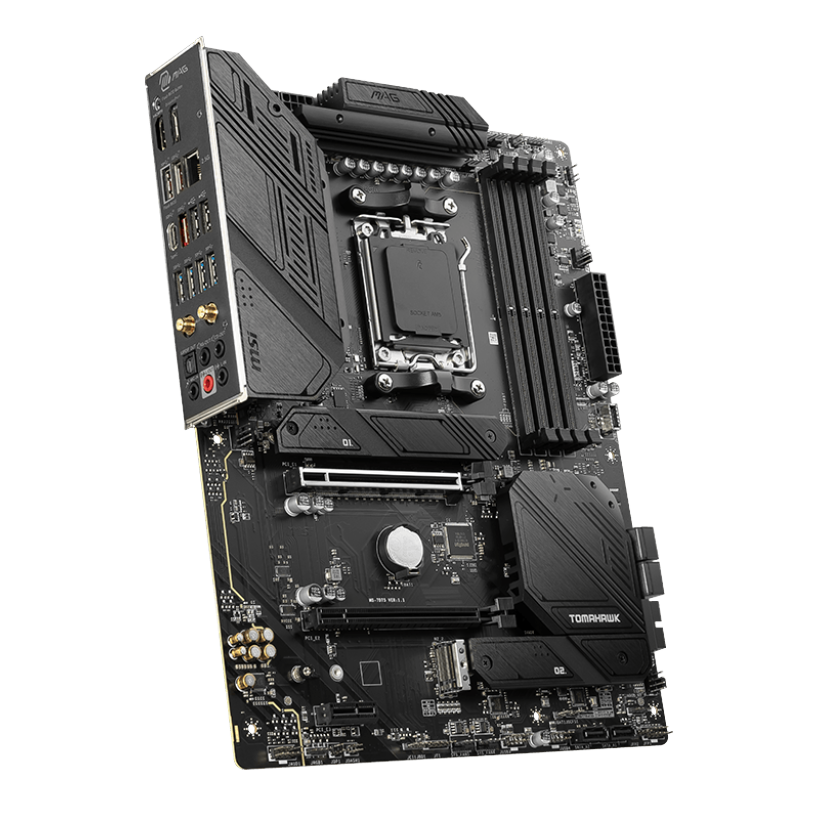

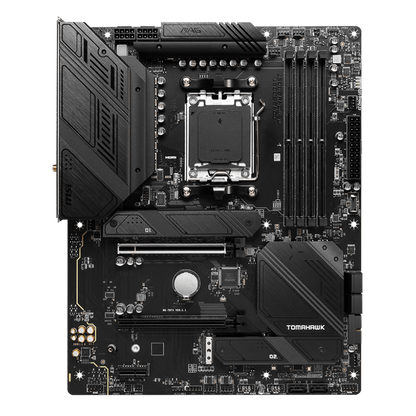

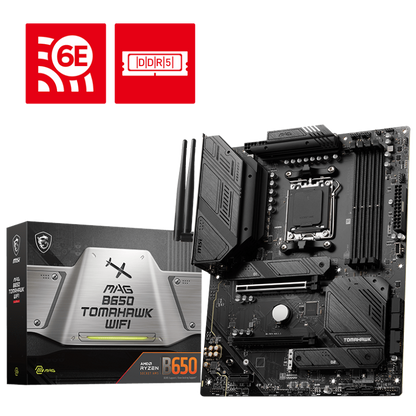

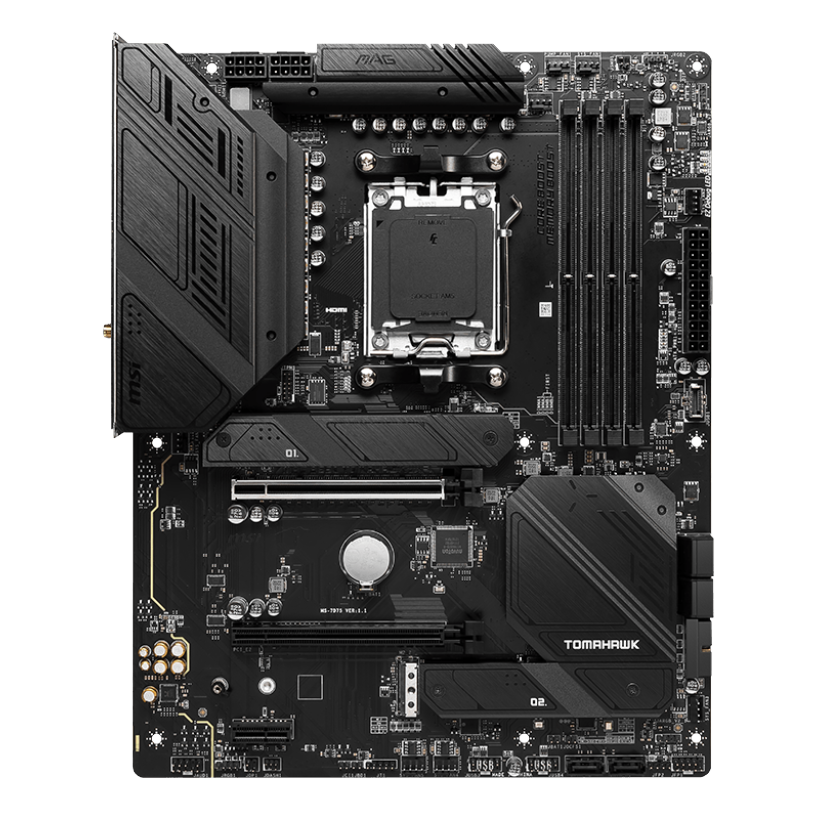

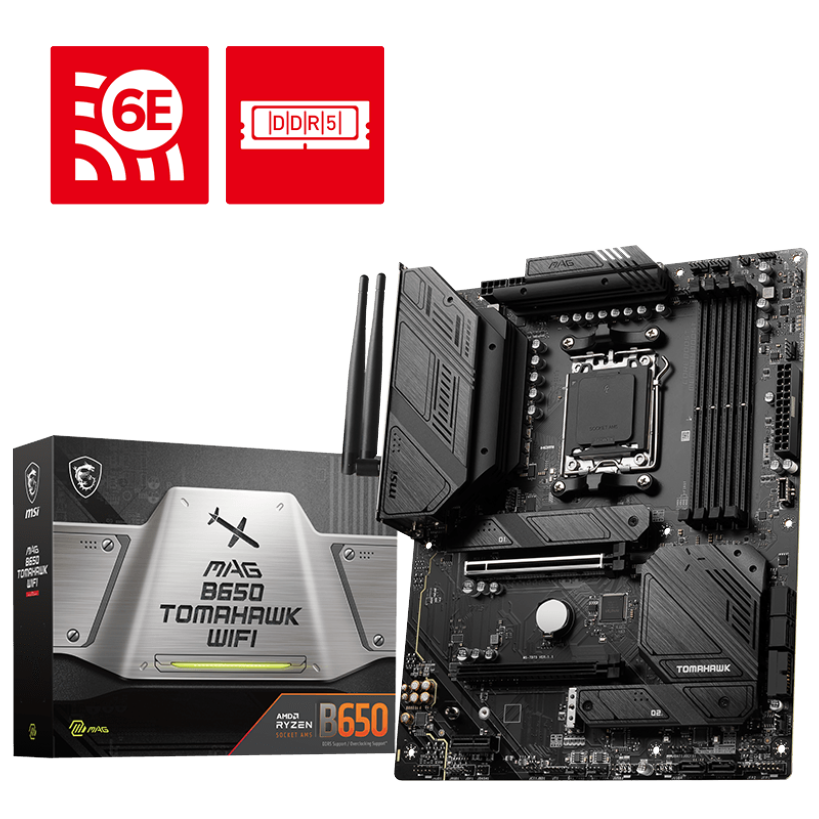

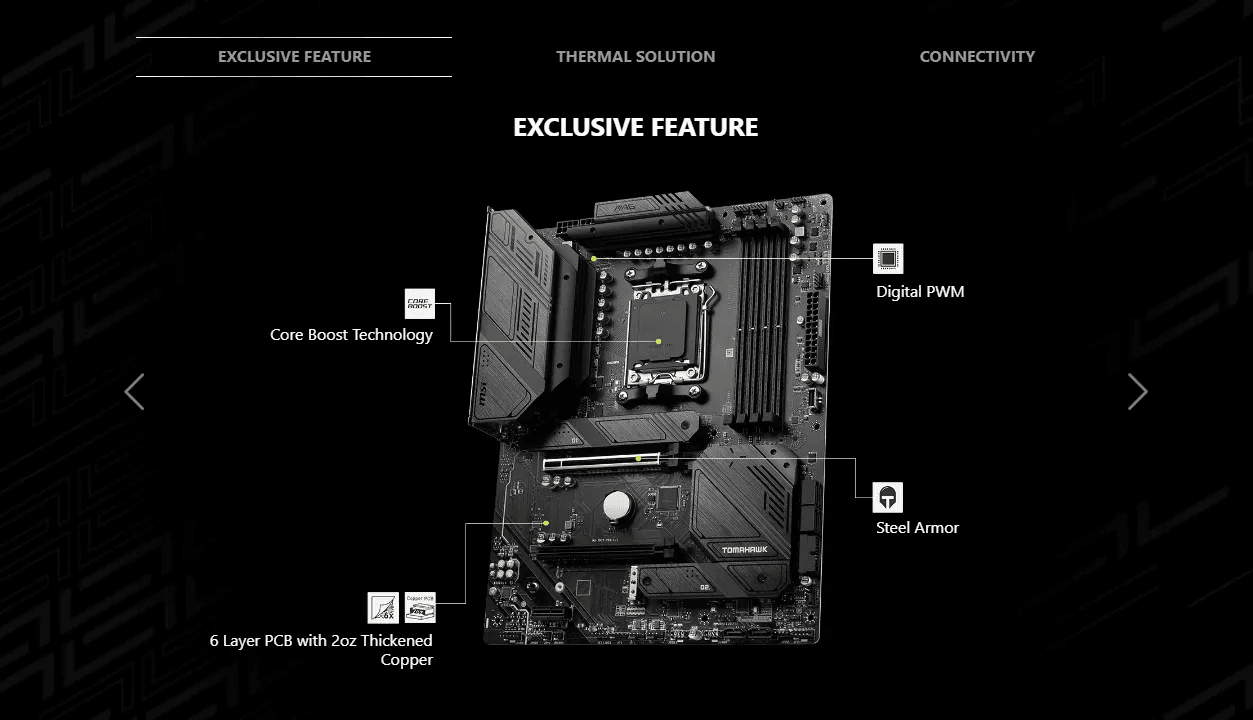

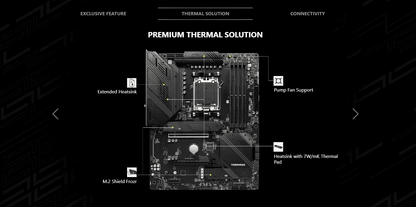

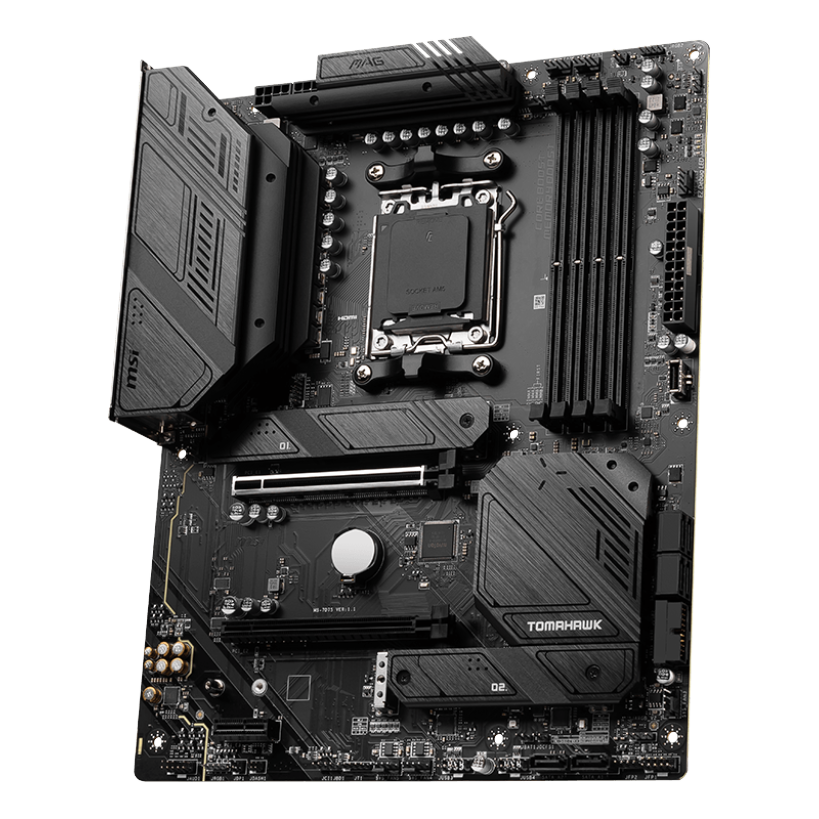

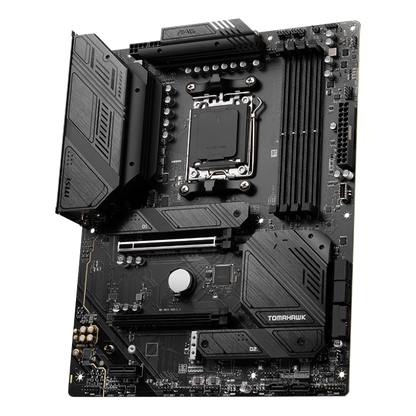

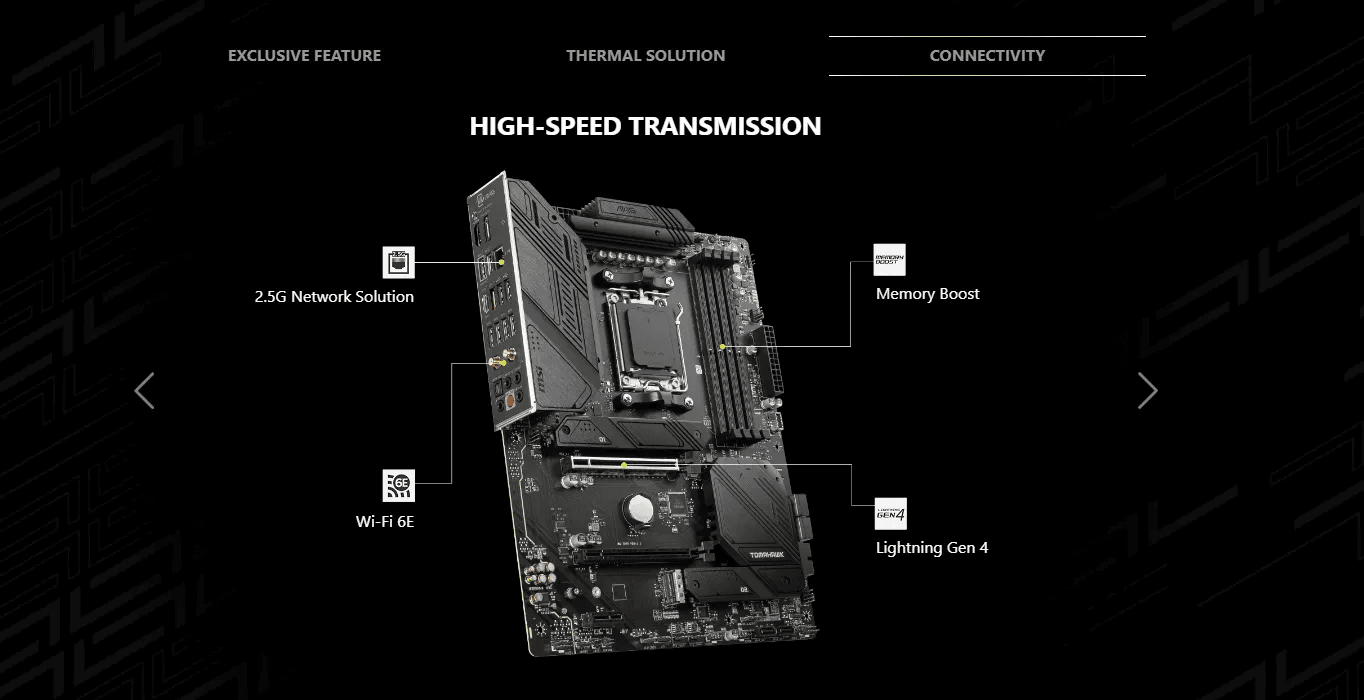

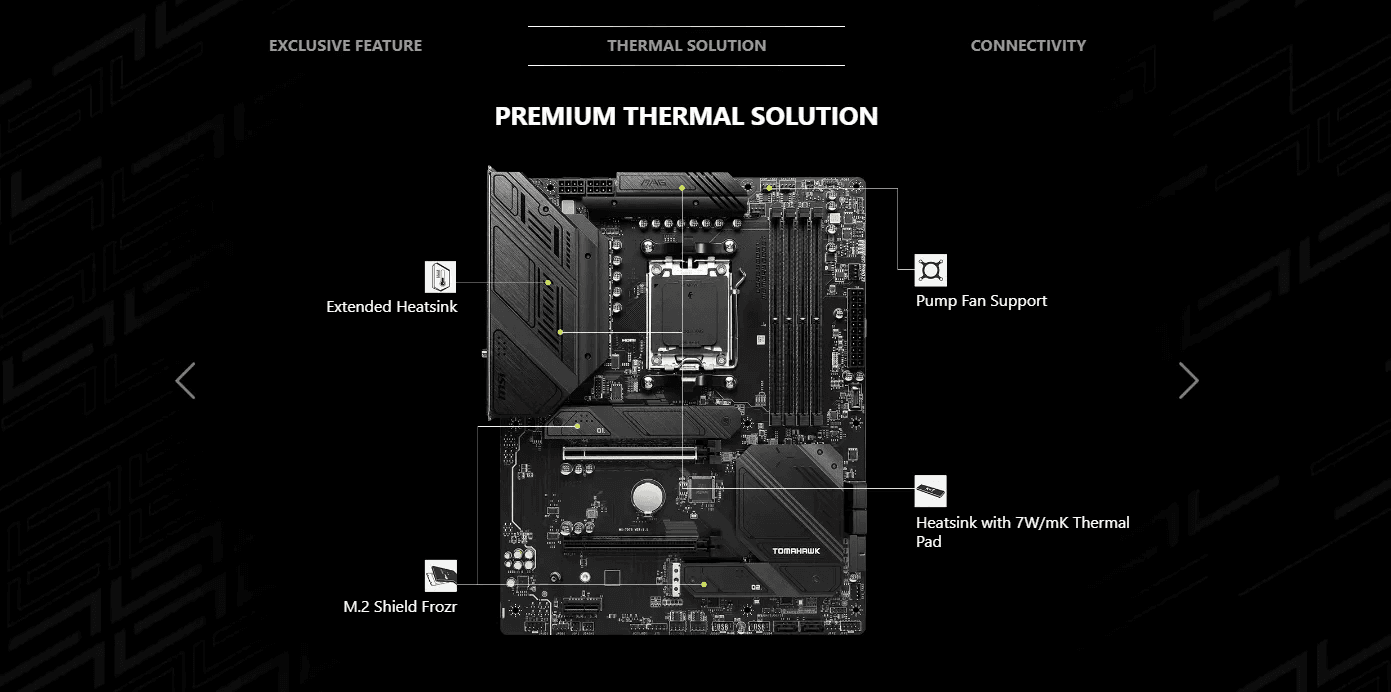

SPECIFICATIONS (MSI MAG B650 TOMAHAWK WIFI)
- CHIPSET : AMD B650
- CPU :
• Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
• Socket AM5
- MEMORY : 4x DDR5, Maximum Memory Capacity 192GB
- ONBOARD GRAPHICS :
• 1x HDMI™ - Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
• 1x DisplayPort - Support DP 1.4, maximum resolution of 8K 60Hz*
- SLOT :
• 2x PCI-E x16 slot
• 1x PCI-E x1 slot
- STORAGE :
• 3x M.2
• 6x SATA 6G
- LAN : Realtek® RTL8125B 2.5Gbps LAN
- WIRELESS LAN & BLUETOOTH :
• AMD Wi-Fi 6E
• Supports 802.11 a/ b/ g/ n/ ac/ ax
- AUDIO :
• Realtek® ALC4080 Codec
• 7.1-Channel USB High Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel
- LED FEATURE : 4x EZ Debug LED

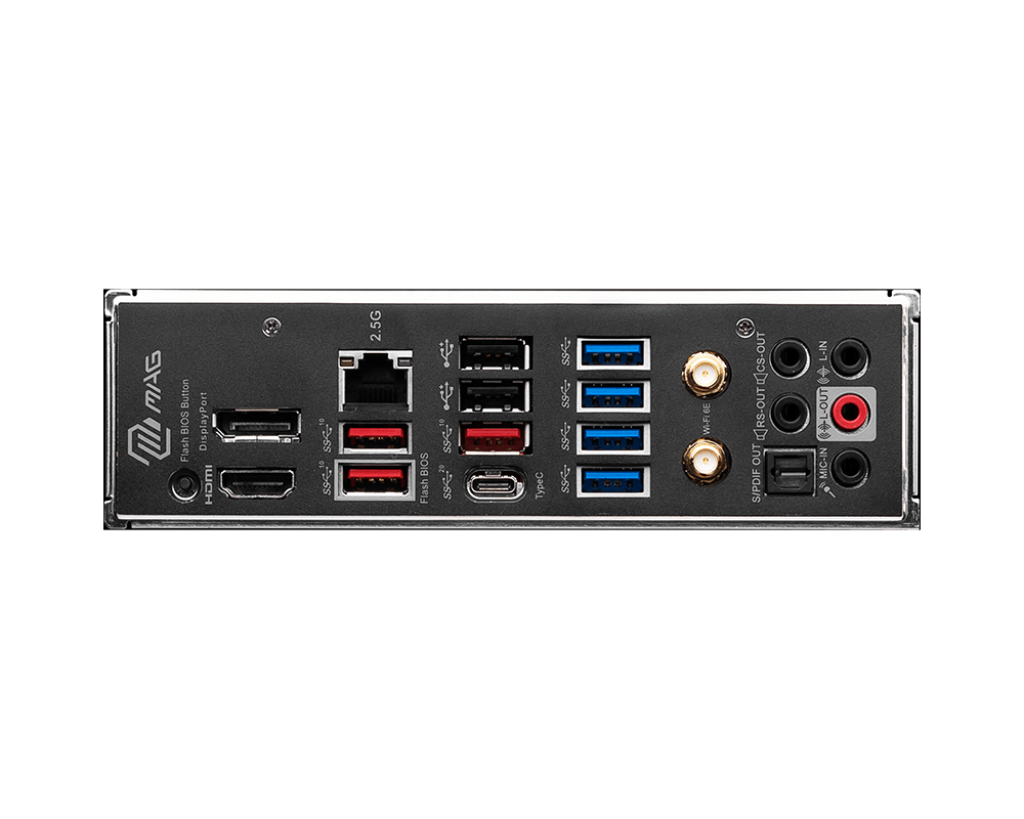

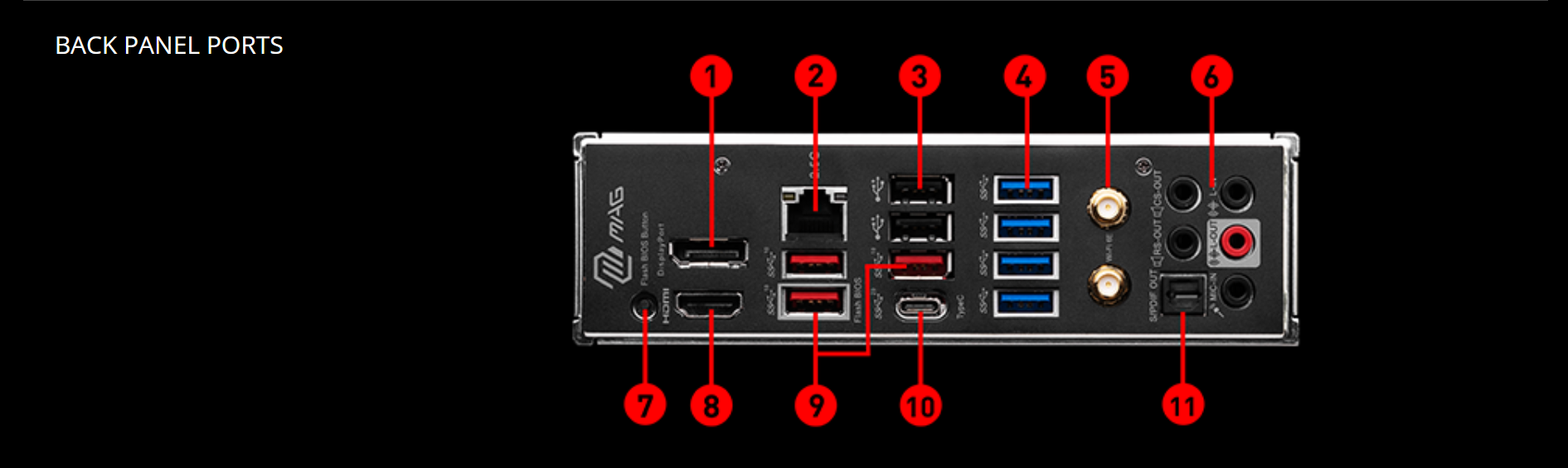

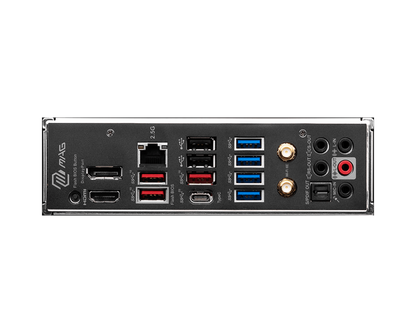

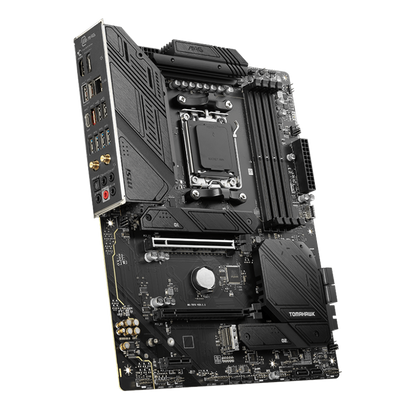

- BACK PANEL PORTS :
1. DisplayPort 1.4
2. 2.5G LAN Port
3. USB 2.0 Port
4. USB 3.2 Gen 1 5Gbps Type-A
5. Wi-Fi / Bluetooth Antenna
6. HD Audio Connectors
7. Flash BIOS Button
8. HDMI™ 2.1 Port
9. USB 3.2 Gen 2 10Gbps Type-A
10. USB 3.2 Gen 2x2 20Gbps Type-C
11. Optical S/PDIF OUT
- OPERATING SYSTEM : Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB INFO : ATX - 243.84mmx304.8mm
