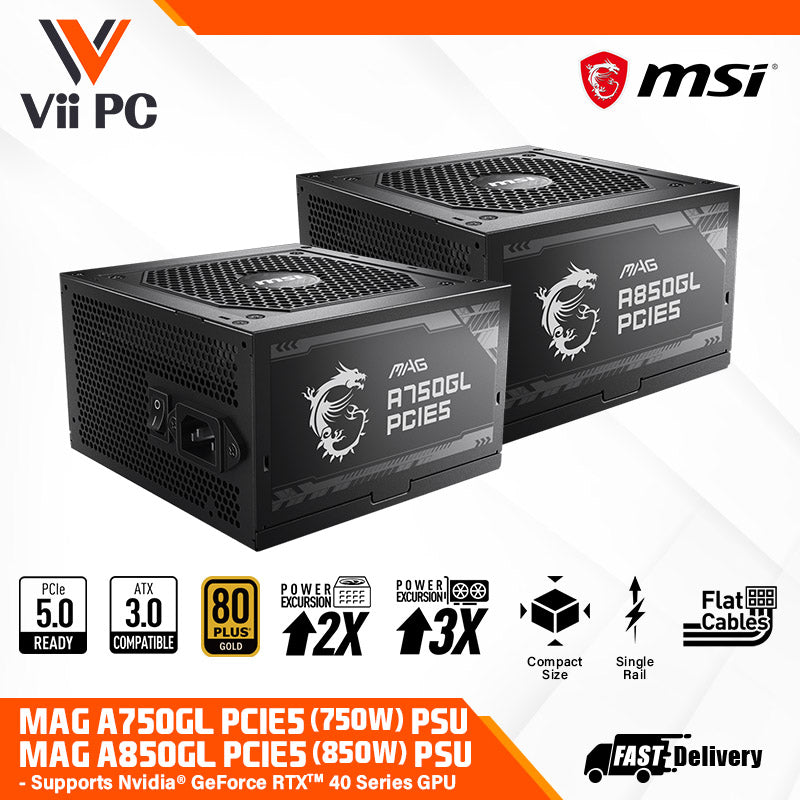

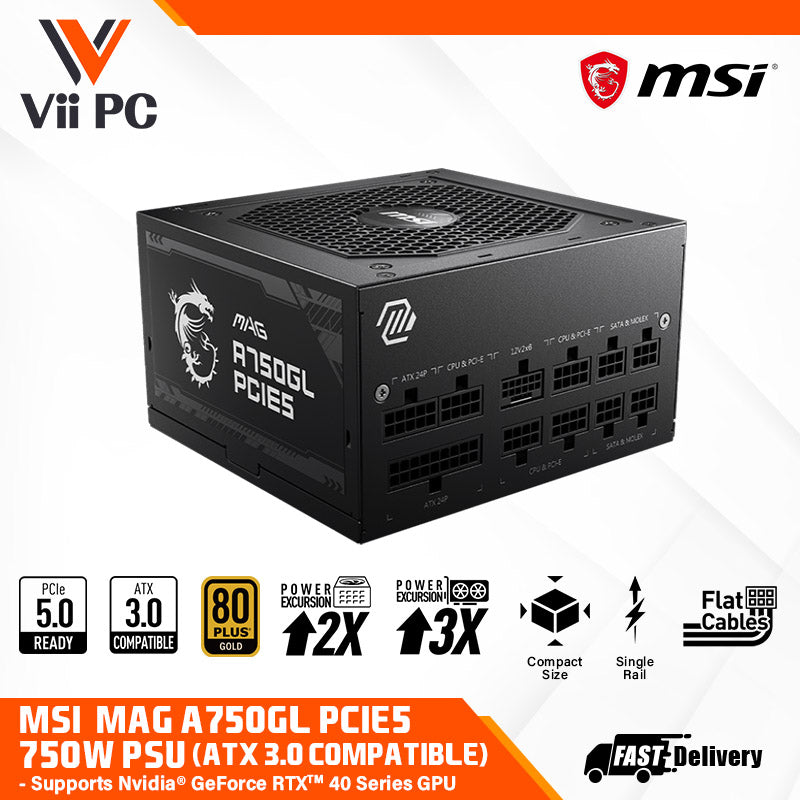

MSI MAG A750GL PCIE5 (750W) / A850GL PCIE5 (850W) 80 Plus® Gold Full Modular Power Supply - ATX 3.0 / PCIE 5.0 / Flat Cables / Supports NVIDIA® GeForce RTX™ 40 Series graphics cards (7 Year Warranty)

MAG A750GL PCIE5 AND MAG A850GL PCIE5

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

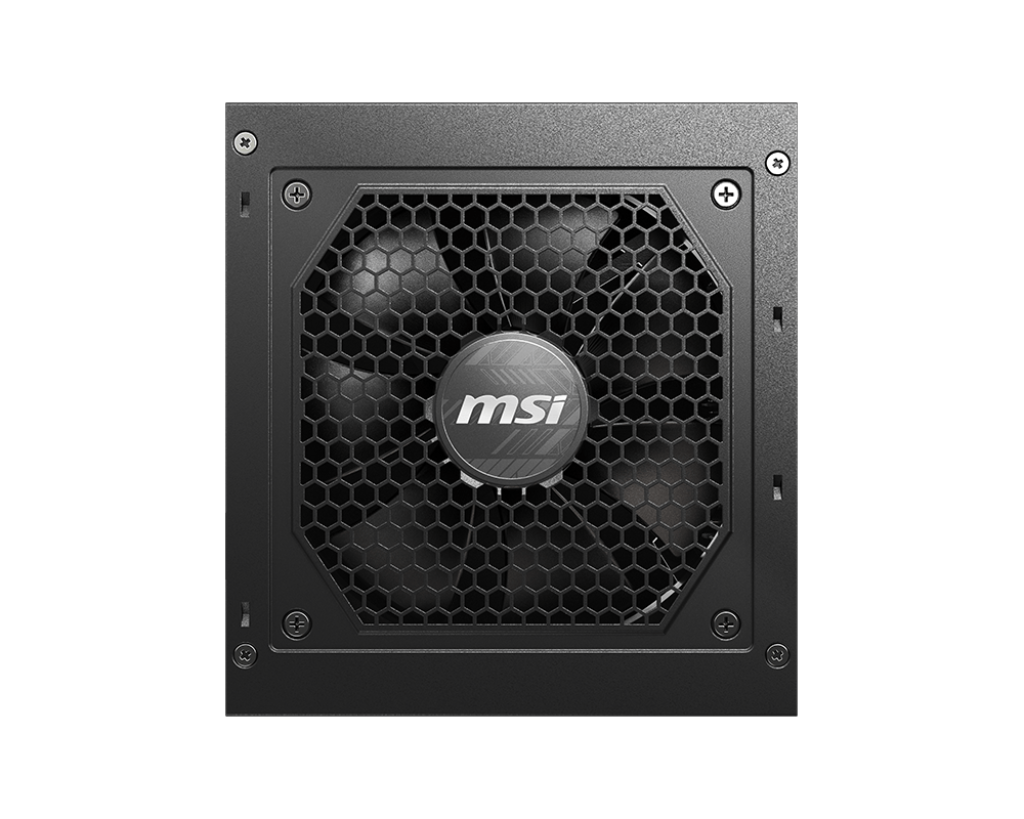

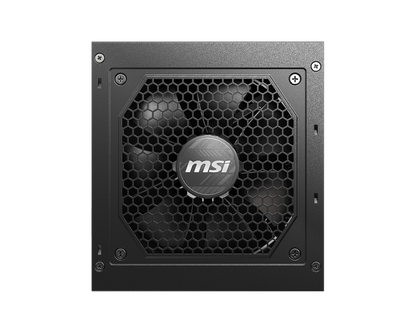

FLUID DYNAMIC BEARING

The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC to DC & Full bridge

DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

FEATURES

• ATX 3.0 compatible, native PCIe 5.0 connector
• Supports NVIDIA®GeForce RTX™ 40 Series graphics cards
• Full modular design, Flat cables
• 80 Plus Gold certified for high efficiency
• Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
• 120mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design

SPECIFICATIONS

• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Yes (full modular)
• Fan Size: 120 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 140 x 150 x 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100~240 VAC


• Power Watt: 750W (A750GL) / 850W (A850GL)
• Power Excursion:
  750W (A750GL) - 1500W (*up to 200% of the PSU's rated power for 100μs)
  850W (A850GL) - 1700W (*up to 200% of the PSU's rated power for 100μs)


• Input Frequency Range: 47-63Hz
• Protection: OCP / OVP / OPP / OTP / SCP / UVP
• ATX (24 pin): 1
• EPS (4+4 pin): 2


• PCI-E 5.0 (16 pin): A750GL - 1 (450W) / A850GL - 1 (600W)
• PCI-E (6+2 pin): 3 (A750GL) / 4 (A850GL)


• SATA (15 pin): 8
• MOLEX (4 pin): 4
• FDD (4 pin): 1
