Montech CENTURY 850 Fully Modular 80 Plus® Gold Certified 850W Power Supply

CENTURY 850 Gold

Fully Modular Gold Certified Power Supply

• 80 plus Gold certified, with 91% efficiency or higher under typical loads
• Fully modular to reduce clutter and improve airflow
• 100% high quality Japanese 105°C/221°F capacitors, full-bridge LLC resonant converter and DC-DC technology
• Fluid Dynamic Bearing premium fan enhanced quiet operation and increased lifespan
• Heavy-duty protections, including OCP, OVP, UVP, OPP, SCP, and OTP



POWER UP WITHOUT ANY NOISE

The Century series brings a premium power supply unit in 550, 650, 850 wattage. It offers 80 Plus Gold efficiency rating, full modular cables, premium FDB fan, 100% Japanese high-quality capacitors.

And it features superior full bridge LLC resonant converter together with DC-DC circuitry, put this product on the mountain top for gold power supply.

HIGH EFFICIENCY AND LOWER OPERATING COSTS

Century series is certified 80 PLUS® Gold, it can effectively save energy consumption and guaranties a minimum of 90 % efficiency at 50% load, producing less heat generation. Also, the series has been optimized with all generations of Intel's processors to maximize energy saving.

MODERN CIRCUIT LAYOUT DELIVERS SUPERIOR PERFORMANCE

Century series uses a full bridge LLC resonant converter framework together with DC-DC circuity, plus 100% Japanese capacitors and all high- quality components. Making the Century Series power supply reliable for safety and stable voltage outputs, better performance and higher efficiency.

DURABLE AND SECURE - High Quality Components

Century series adopts 100% Japanese industrial level electronic capacitors for high durability, also achieve tight voltage and low ripple noise to enhance performance.
Moreover, it’s durable in high temperature and high pressure, therefore can effectively increase the lifespan of computer components.

SILENT OPERATION AND LONGER LIFESPAN

The advantage of using Fluid Dynamic Bearing (FDB) in the fan is to enhance the impact absorbance effects of oil. It generates less noise and heat than most of the other bearing. And, it can effectively reduce friction and vibration due to the lubrication of the bearing surface. Therefore, more reliable performance and considerably longer lifespan.

USER FRIENDLY CABLING

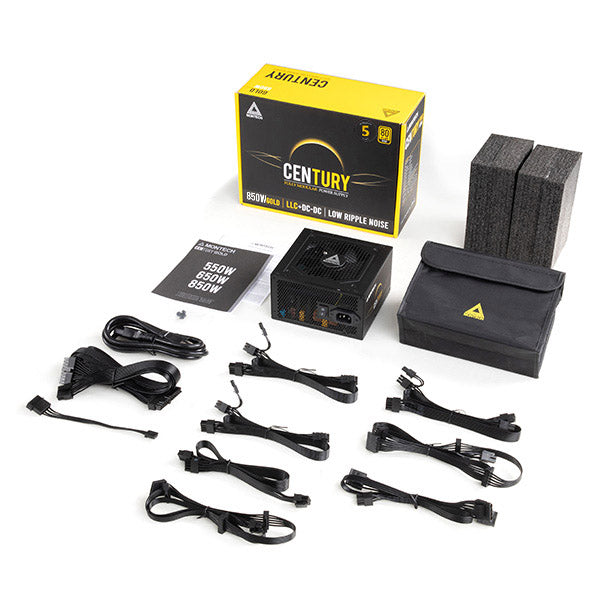

Fully modular cable set allows users to only attach the cables they need, reducing cable clutter and increasing airflow.

5 YEAR WARRANTY

The century series offers 5 year warranty. This shows our confidence and the quality of this power supply.

SPECIFICATIONS

• Name: CENTURY 850
• ATX Version: ATX12V
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240Vac
• Input Current: 12A
• Input Frequency: 47-63Hz
• Dimensions (L*B*H): 140*150*86mm
• Fan Size: 120mm ( FDB Fan )
• Hold Up Time: 10msec (minimum) at 80% of full load at 230Vac input.
• Efficiency: 90%
• Typically MTBF: >100,000 Hours
• Operating Temperature: 0-45°C
• Protection: OCP/OVP/UVP/OPP/SCP/OTP
• Regulatory: cTUVus / TUV / CB / CE / RoHS / FCC

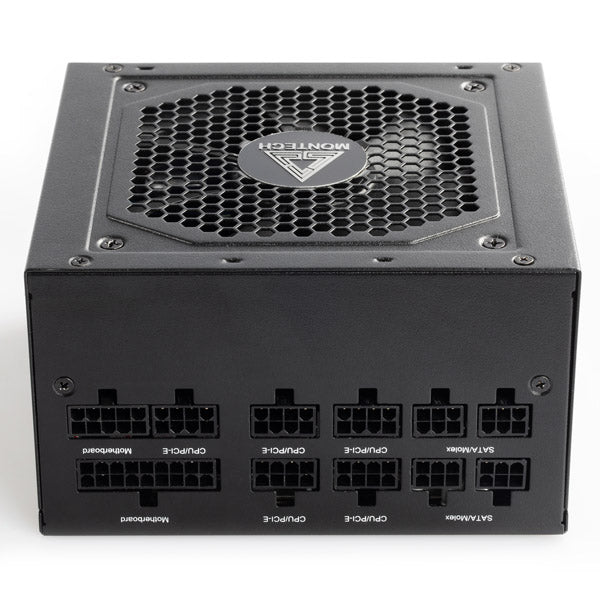

• Connectors:
  • M/B 20+4Pin - 1
  • CPU 4+4Pin - 2
  • PCIE 6+2 - 6
  • SATA - 10
  • Molex 4Pin - 3
  • FDD - 1


• AC Input: 100-240Vac 47-63Hz 12.0A
• DC Output: +3.3V / +5V / 12V / -12V / +5VSB
• Max. Output Current: 20A / 20A / 70.5A / 0.3A / 2.5A
• Max. Output Power: 110W / 846W / 3.6W / 12.5W
• Total POWER: 850W
