LIAN LI

LIAN LI UNI FAN TL120 RGB Single Pack BLACK/WHITE Cooler - 3 Yrs Wty

LIAN LI UNI FAN TL120 RGB Single Pack BLACK/WHITE Cooler - 3 Yrs Wty

Regular price $49.00 SGD
Regular price Sale price $49.00 SGD
Sale Sold out
Color

LIAN LI UNI FAN TL120 RGB Single Pack



• NEXT GENERATION OF UNI FAN : Building on the design success of the UNI FAN series, the UNI FAN TL series takes clutter-free setups to the next level .

•  ENGINEERED MOTOR, STURDY STRUCTURE : UNI FAN TL is engineered for high performance with minimal friction and vibration, ensuring quiet operation even at high speeds .

•  ULTIMATE COOLING : Crafted with LCP material, the UNI FAN TL has a larger 9-blade impeller, with tight clearance to the fan frame, which ensures efficient airflow while minimizing acoustic levels for cooling .

• CUSTOMISABLE FAN SPEED : Able to set different fan speeds for each fan cluster to optimize different scenarios of use providing flexibility for radiator or case fan needs with L-Connect 3 .

• COMBINATION OF PERFORMANCE AND AESTHETICS : Redefining the visual appeal of high-performance cooling, the UNI FAN TL fans integrate the elements of SL-INF and P28, ensuring a striking look without compromising on performance .



Key Features :

  • Noise-optimized and performance-oriented fan.
  • LCP (liquid crystal polymer) fan blades are used for tight tolerance.
  • FDB bearing with copper shielding to ensure stable rotation of the impeller.

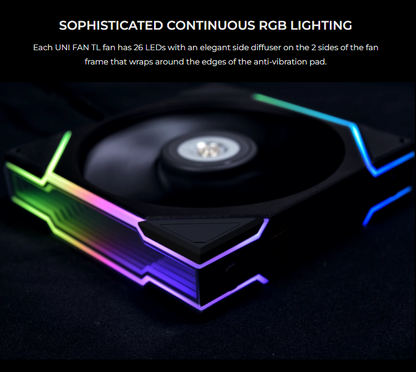

  • Enlarged infinity mirror around the frame with a longer light guide for a unified daisy-chained look.
  • Features two light zones for increased lighting customizability.
  • UNIFAN interlocking system for ease of cable management.
  • Cable connection is supported on both sides of the fan.
  • Support up to 10 fans per controller port via a daisy-chain POGO cable.
  • LED lighting and fan speed controller shared with UNIFAN TL LCD.
  • Complete software control with L-Connect 3.



SPECIFICATIONS

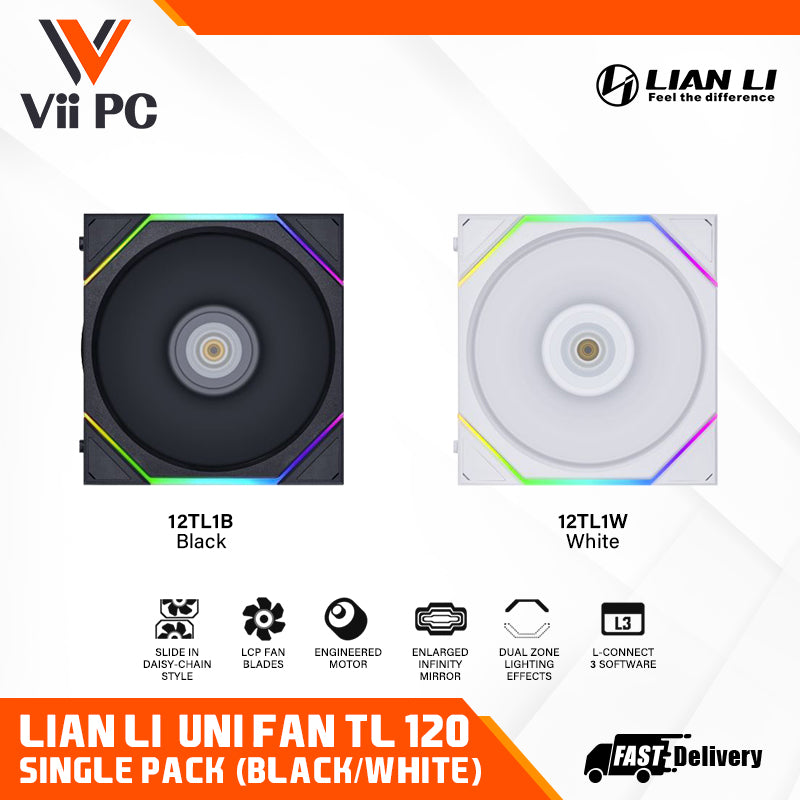

• PRODUCT NAME : UNI FAN TL 120

• MODEL : 12TL1B / 12TL1W

• COLOR : Black / White

• NUMBER OF FANS : 1

• CONTROLLER : Yes

• CONNECTOR TYPE :

 - UNI FAN Controller Cable x 1 (P-7P)

 - Extension Cable x 1 (P-P)

• FAN DIMENSION : 124 x 120 x 28 mm

• FAN SPEED : 0, 200~2600 RPM

• MAX. AIR PRESSURE : 3.97 mmH2O (Maximum)

• MAX. AIRFLOW : 90.1 CFM (Maximum)

• ACOUSTIC NOISE : 33 dB(A) Max

• INPUT POWER : 5.8W

• MATERIAL : PA66 / LCP

• RATED VOLTAGE : DC 12V (FAN) & 5V (LED)

• BEARING TYPE : Fluid Dynamic Bearing (FDB)

• OPERATE VOLTAGE : DC12V & 5V

• WARRANTY : 3 years
