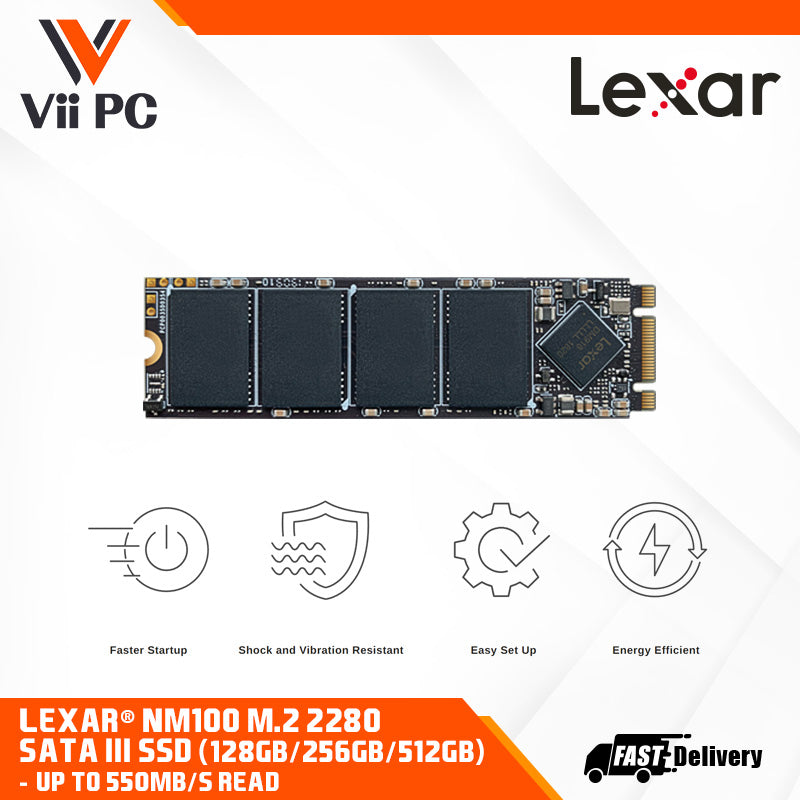

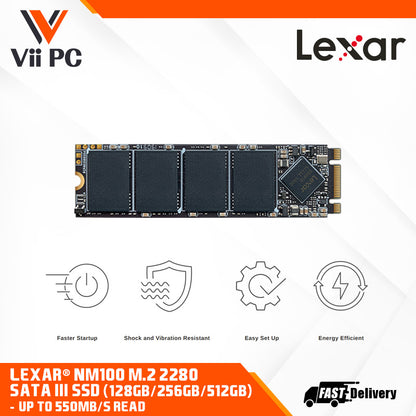

Lexar® NM100 M.2 2280 SATA III (6Gb/s) SSD (128GB / 256GB / 512GB) - Up to 550MB/s read

Lexar® NM100 M.2 2280 SATA III (6Gb/s) SSD (128GB, 256GB, 512GB)

- Up to 550MB/s read

• Faster Startup
• Shock and Vibration Resistant
• Easy Set Up
• Energy Efficient

Features

Rejuvenate your laptop or PC for a faster experience

Improve your existing system’s performance with the Lexar NM100 M.2 2280 SATA 6Gb/s SSD. This easy upgrade gives you faster boot-ups, application load times, and data transfers turning your old computer from dinosaur to dynamo with read speeds of up to 550MB/s¹. It is also cooler, quieter, and uses less battery life than a traditional hard disk drive.

Give your laptop or PC computer a boost

With the NM100 SSD, you can save time and money by upgrading your laptop or PC. With improved performance and read speeds of up to 550MB/s¹, it will make boot-ups, data transfers and application load times a breeze.

Performance problems are behind you

The NM100 SSD gets rid of your computer’s performance anxiety from having an old traditional hard drive and allows it to take center stage with more speed and storage space than ever had before².

Built to last

Unlike traditional hard disk drives, the NM100 SSD has no moving parts, so it’s more durable and less likely to fail. Add to that, it’s shock and vibration resistant and you’ve got one robust and reliable SSD to safely store and render your large-sized data, photos, and 4K videos³.

Rigorously Tested

All Lexar products undergo extensive testing in the Lexar Quality Labs, facilities with thousands of different cameras and digital devices to ensure performance, quality, compatibility, and reliability.

Specifications

• Form Factor: M.2 2280
• Interface: SATA III (6Gb/s)
• Performance:
  - 128 GB – 512 GB sequential read up to 550 MB/s, Minimum Write Speed of 700MB/s
  - IOPS: up to 75/75K
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Dimension (L x W x H): 80 mm x 22 mm x 2.25 mm / 3.15” x 0.87” x 0.09”
• Weight: 9g
• Warranty: 3 year limited warranty
• Shock Resistant: 1500 G, duration 0.5ms, Half Sine Wave
• Vibration Resistant: 10~2000Hz, 1.5mm, 20 G, 1 Oct/min, 30min/axis(X,Y,Z)
• TBW: 512 GB: 256 TB, 256 GB: 128 TB, 128 GB: 75 TB
• DWPD: 1 TB: 0.46, 512 GB: 0.46, 256 GB: 0.44
• NAND flash: 3D TLC
• MTBF: 1,500,000 Hours

^{1 Up to 550MB/s read transfer, write transfer speeds lower. Speeds based on internal testing. Actual performance may vary.
2Comparison based on internal testing. Actual performance may vary..
3Shock resistant (1500G, duration 0.5ms, Half Sine Wave) and vibration resistant (10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)). Based on internal testing. Actual performance may vary.
[Note]:]
Security safeguards, by their nature, are capable of circumvention. Lexar does not guarantee data will be 100% secure from unauthorized access, alteration, or destruction.
Actual usable memory capacity may vary. 1GB equals 1 billion bytes.
Product appearance, performance, software offerings, and packaging may vary depending on ship date and available inventory.
Lexar is not liable for any loss of data or images.}
