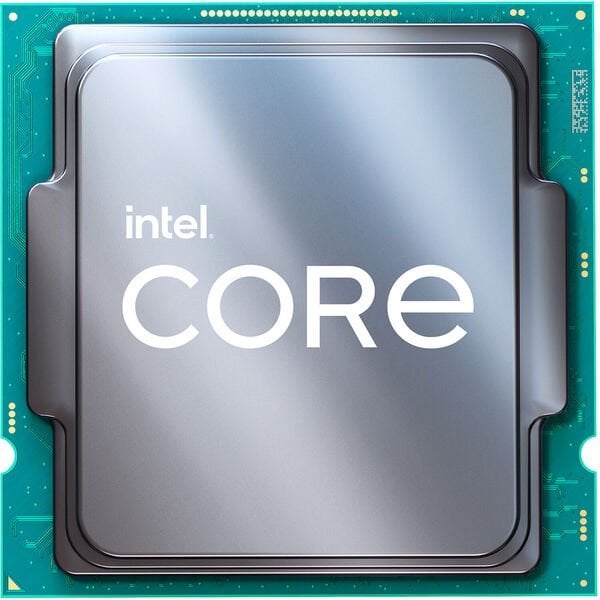

Intel CORE i9-14900KF / i9-14900K 14th Gen
CPU Specifications
-
Total Cores : 24 (i9-14900K)/(i9-14900KF)
-
# of Performance-cores : 8 (i9-14900K)/(i9-14900KF)
- # of Efficient-cores : 16 (i9-14900K)/(i9-14900KF)
- Total Threads : 32 (i9-14900K)/(i9-14900KF)
-
Max Turbo Frequency : 6 GHz (i9-14900K)/(i9-14900KF)
-
Intel® Thermal Velocity Boost Frequency : 6 GHz (i9-14900K)/(i9-14900KF)
-
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ : 5.8 GHz (i9-14900K)/(i9-14900KF)
-
Performance-core Max Turbo Frequency : 5.6 GHz (i9-14900K)/(i9-14900KF)
-
Efficient-core Max Turbo Frequency : 4.4 GHz (i9-14900K)/(i9-14900KF)
-
Performance-core Base Frequency : 3.2 GHz (i9-14900K)/(i9-14900KF)
-
Efficient-core Base Frequency : 2.4 GHz (i9-14900K)/(i9-14900KF)
-
Cache : 36 MB Intel® Smart Cache (i9-14900K)/(i9-14900KF)
-
Total L2 Cache : 32 MB (i9-14900K)/(i9-14900KF)
-
Processor Base Power : 125 W (i9-14900K)/(i9-14900KF)
- Maximum Turbo Power : 253 W (i9-14900K)/(i9-14900KF)
Memory Specifications
-
Max Memory Size (dependent on memory type) : 192 GB (i9-14900K)/(i9-14900KF)
-
Memory Types : Up to DDR5 5600 MT/s (i9-14900K)/(i9-14900KF)
Up to DDR4 3200 MT/s (i9-14900K)/(i9-14900KF)
-
Max # of Memory Channels : 2 (i9-14900K)/(i9-14900KF)
-
Max Memory Bandwidth : 89.6 GB/s (i9-14900K)/(i9-14900KF)
- ECC Memory Supported ‡ : Yes (i9-14900K)
GPU Specifications (i9-14900K)
-
Processor Graphics ‡ : Intel® UHD Graphics 770
-
Graphics Base Frequency : 300 MHz
-
Graphics Max Dynamic Frequency : 1.65 GHz
-
Graphics Output : eDP 1.4b, DP 1.4a, HDMI 2.1
-
Execution Units : 32
-
Max Resolution (HDMI)‡ : 4096 x 2160 @ 60Hz
-
Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz
-
Max Resolution (eDP - Integrated Flat Panel)‡ : 5120 x 3200 @ 120Hz
-
DirectX* Support : 12
-
OpenGL* Support : 4.5
-
OpenCL* Support : 3.0
-
Multi-Format Codec Engines : 2
-
Intel® Quick Sync Video : Yes
-
Intel® Clear Video HD Technology : Yes
-
# of Displays Supported ‡ : 4
- Device ID : 0xA780
Expansion Options
-
Direct Media Interface (DMI) Revision : 4.0 (i9-14900K)/(i9-14900KF)
-
Max # of DMI Lanes : 8 (i9-14900K)/(i9-14900KF)
-
Scalability : 1S Only (i9-14900K)/(i9-14900KF)
-
PCI Express Revision : 5.0 and 4.0 (i9-14900K)/(i9-14900KF)
-
PCI Express Configurations ‡ : Up to 1x16+4, 2x8+4 (i9-14900K)/(i9-14900KF)
- Max # of PCI Express Lanes : 20 (i9-14900K)/(i9-14900KF)
