HYTE Y60 LCD DIY KIT
Meet the HYTE Y60 12.6 LCD DIY Kit, a unique modification kit that allows users to replace the corner glass of the HYTE Y60 PC case with a high-resolution vertically long LCD display.
* NOTE : Just the LCD only, does not include the PC CASE !
DIY LCD Screen for Y60
You can further personalize your Y60 case with the Y60 LCD DIY Kit. This DIY kit offers a high-resolution LCD screen fits perfectly into the Y60 corner panel to customize sub-display for showcasing video wallpapers, animations, system monitoring/information, gifts and more. Let's explore the features and specifications of this innovative kit.
HYTE Y60 12.6 LCD DIY Kit Features:
-
LCD Display : The kit includes a high-resolution vertically long display with a resolution of 1,920 x 515 dots, offering a vibrant visual experience.
-

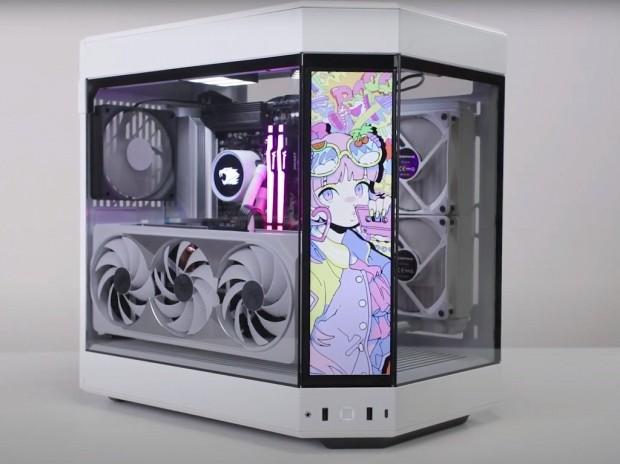

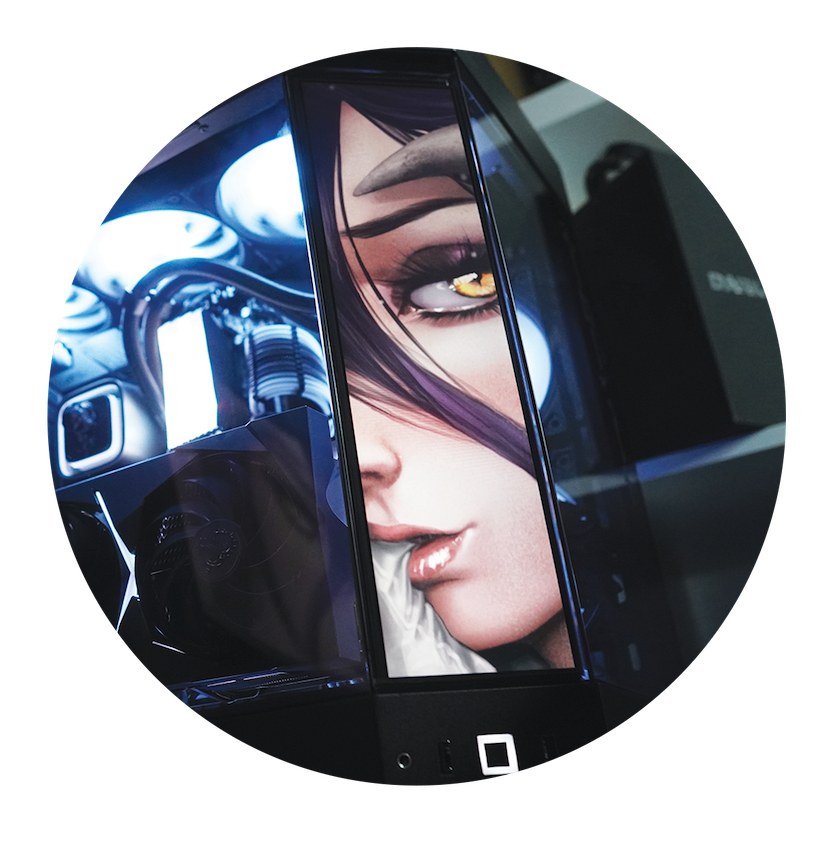

Panoramic Glass Replacement : Replace the corner glass of the HYTE Y60 PC case with the LCD display, transforming the case into a unique and customizable setup.
-

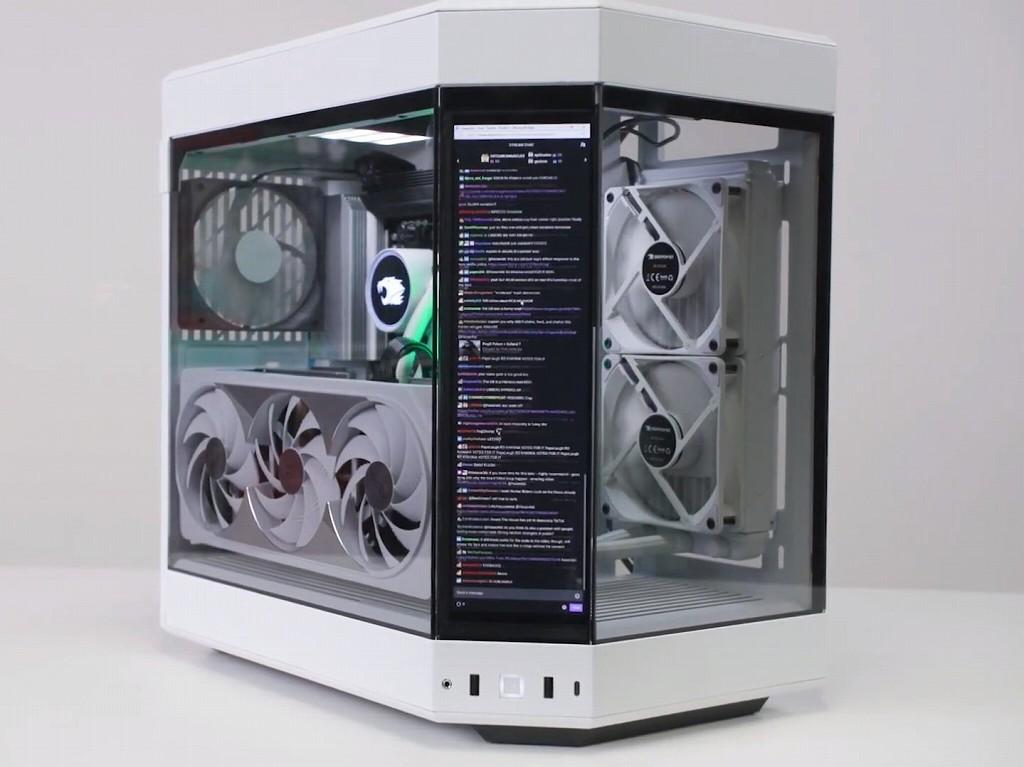

Sub-Display Functionality : Connect the LCD display to the motherboard or graphics card using the HDMI output to operate it as a sub-display, showcasing various content.
-
Color Gamut and Power Consumption : The LCD display features a color gamut with an NTSC coverage rate of 45% and a power consumption of 2.9W.
-

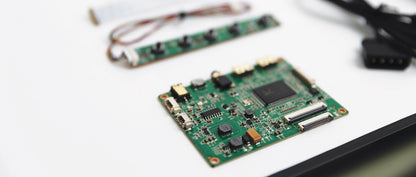

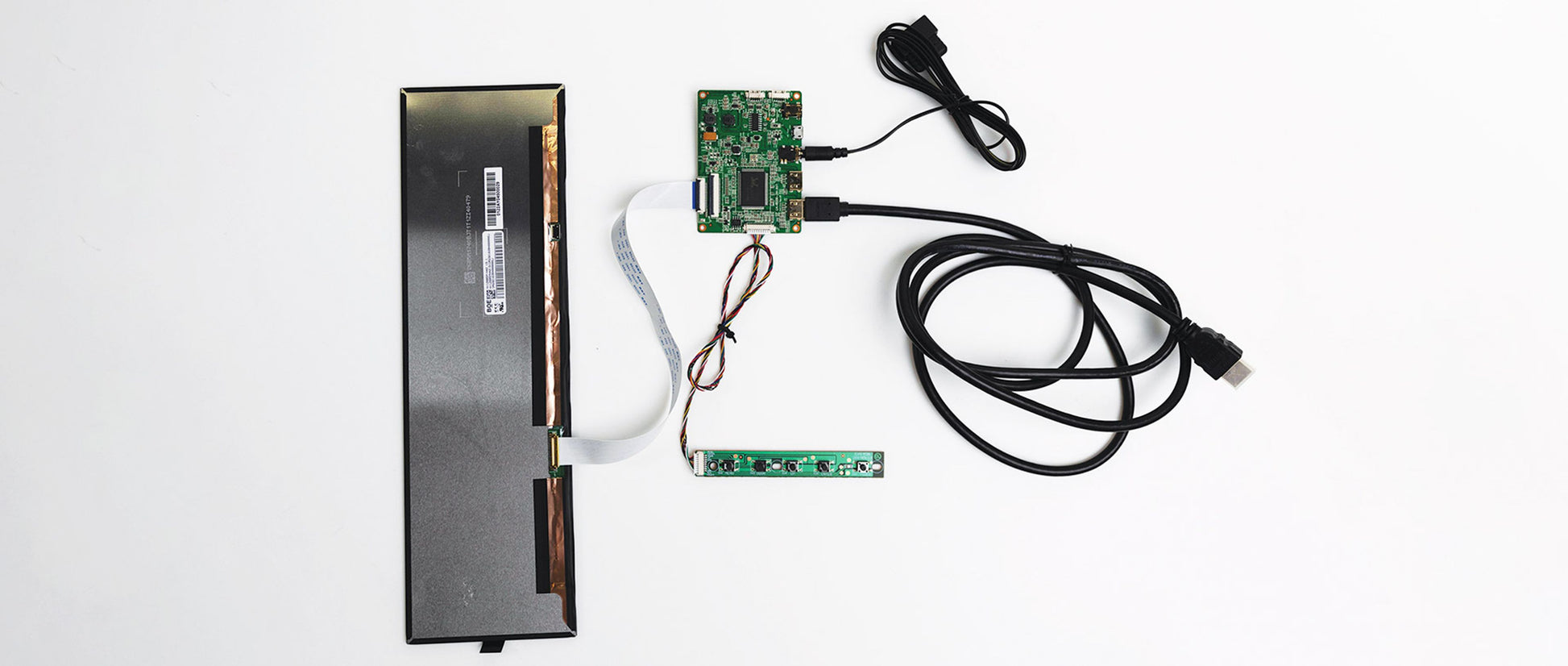

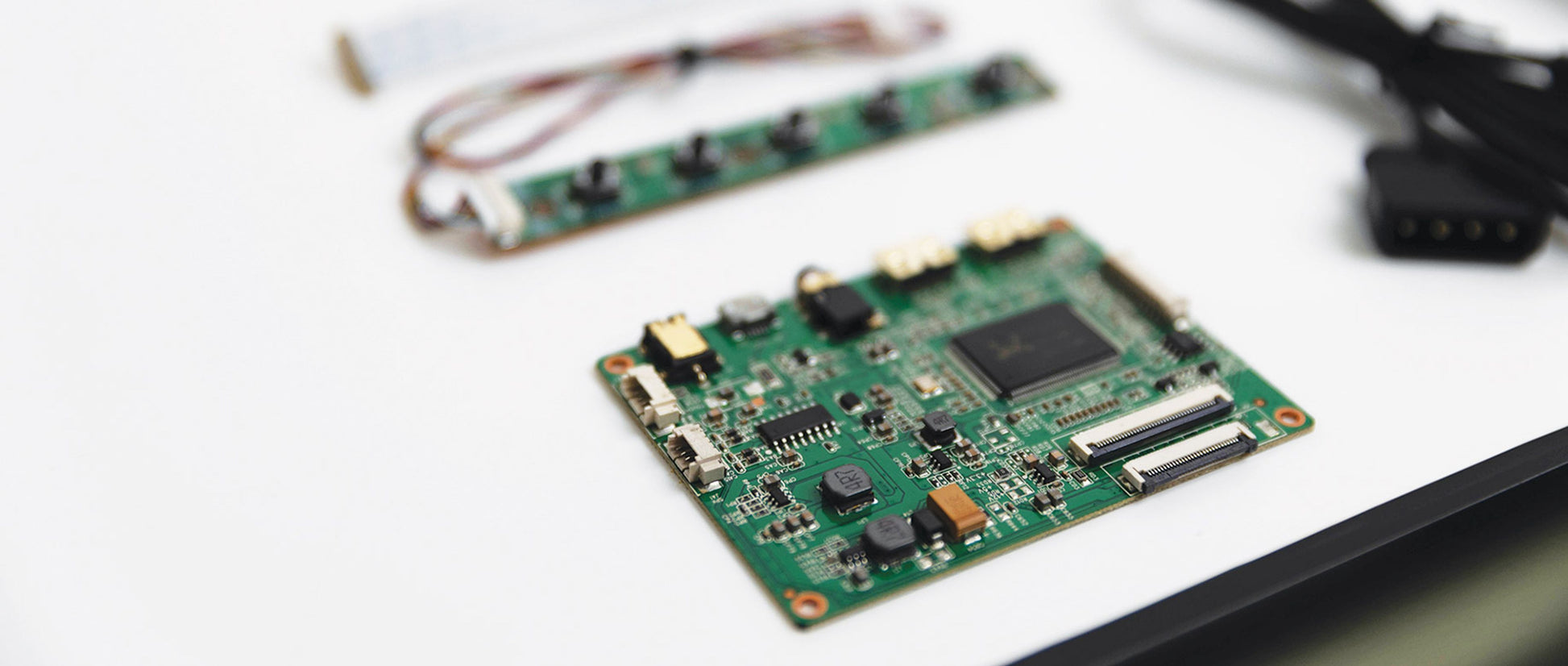

Kit Contents : The kit includes the LCD display, main board, control board (used for LCD settings), a mini HDMI to HDMI cable, a peripheral 4pin cable, and an eDP ribbon cable.
-

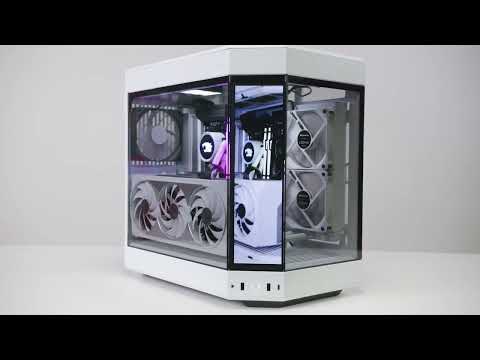

Installation and Fixing Parts : Please note that this kit does not include parts for fixing the display and board. Installation support is not provided, and users should refer to the official HYTE installation reference video for guidance.
Out of the box, HYTE will provide the LCD screen, driver board, and necessary cables to power the display, but you will need to DIY a mounting solution.
TECH SPECS
Model : NV126B5M N42 V3.2
Resolution : 1920 x 515
Color Gamut : 45% NTSC
eDP Version : 1.2
Power Usage : 2.9W
