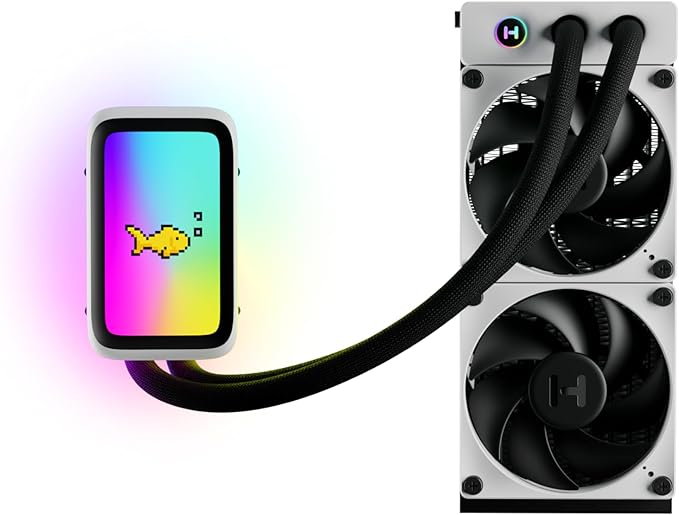

HYTE THICC Q60 Digital All-In-One CPU Liquid Cooler with 5” Ultraslim IPS Display, 32mm THICC FP12 Fans - Powered by Nexus Link

HYTE THICC Q60 Digital All-In-One CPU Liquid Cooler with 5” Ultraslim IPS Display, 32mm THICC FP12 Fans, 42-Pixel qRGB Array, Dual Harmonic Pumps, Ginormous Heat Exchanger - Powered by Nexus Link

• Cooling unlocks potential
• Performance over patents
• Cables are just super gross, so we got rid of like all the cables
• THICC: Technology Harnessing Innovative Chonk for Cooling
• Dropping temps like Country Riddim at a Four Tet show
• “People turn the TV on, it looks just like a window”


Product Features

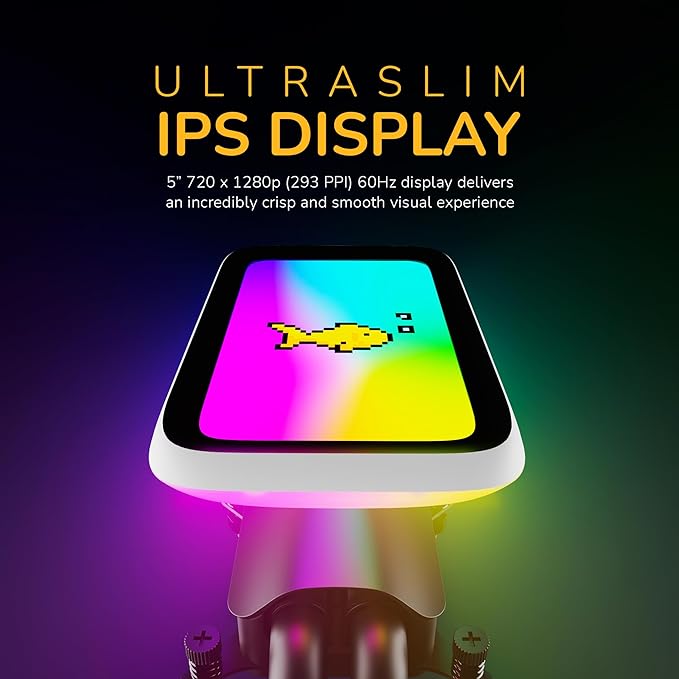

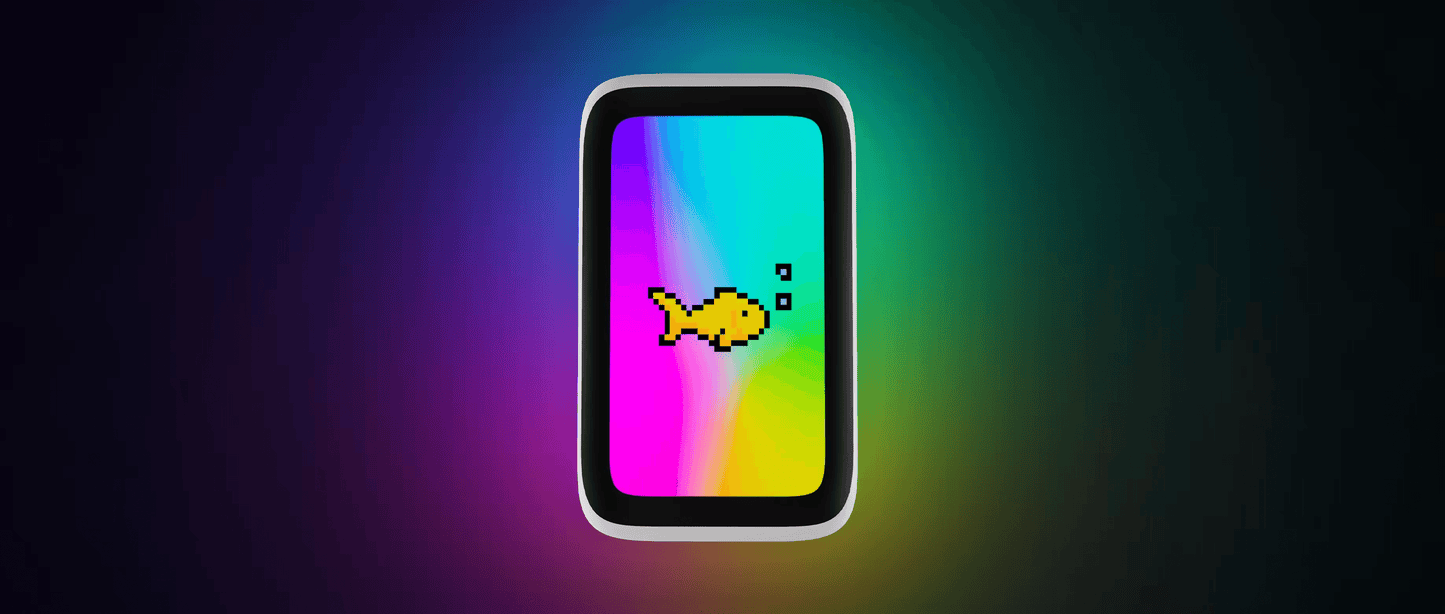

• 5” Ultraslim IPS Display: 720 x 1280 resolution, 60Hz refresh rate, and 300 nits of brightness for an incredibly crisp and smooth visual experience delivered to your physical world with real life depth
• 42-Pixel qRGB Array: Brings your system to life, deeply soaking it in mesmerizingly saturated color
• Double-Hinged Floating Spout: Rises above and takes aim at your attention with 90 degrees of adjustable swivel

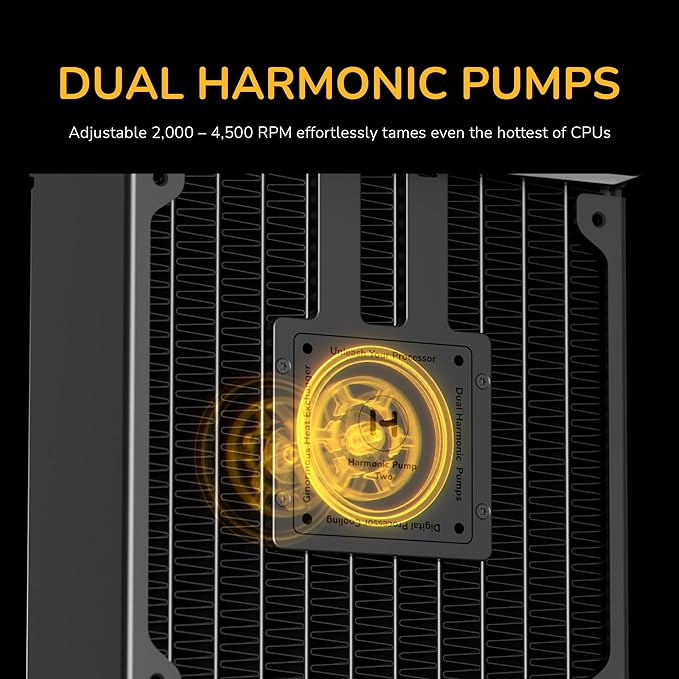

• Dual Harmonic Pumps: Adjustable 2,000 - 4,500 RPM circulate liquid with silenced acoustics and groundbreaking efficiency, effortlessly taming even the hottest of CPUs

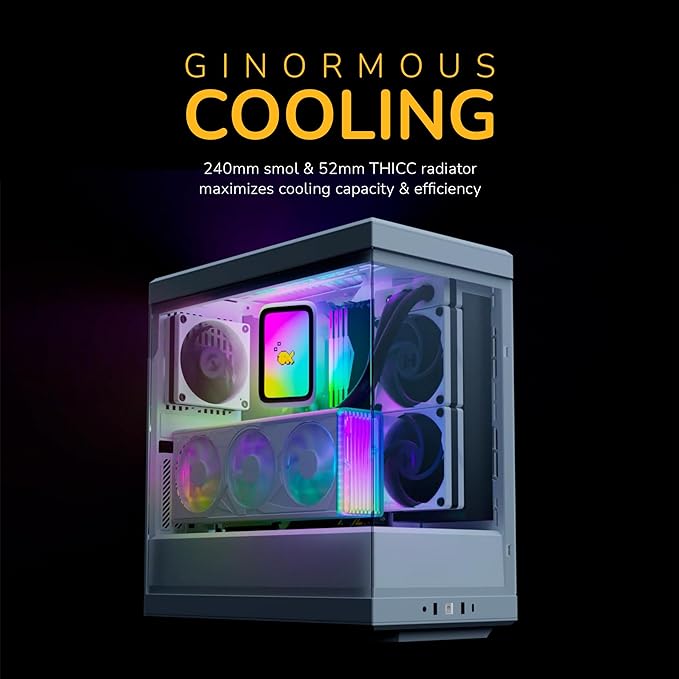

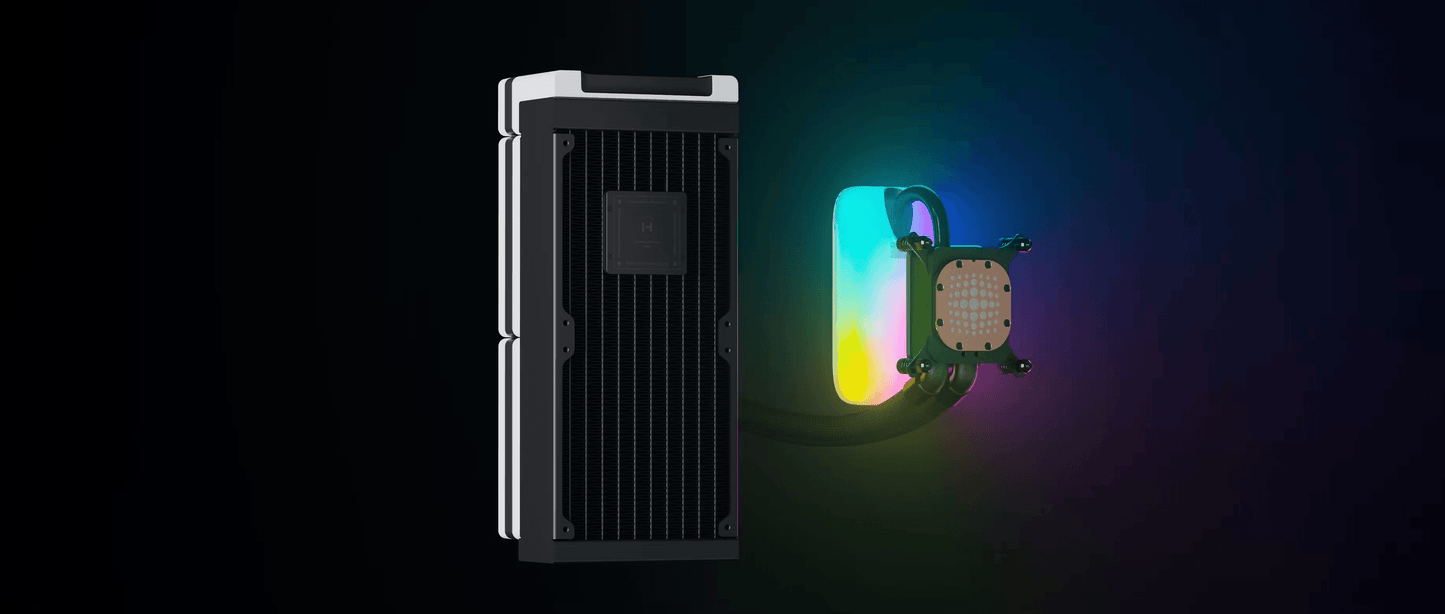

• Ginormous Heat Exchanger: 240mm smol and 52mm THICC, this short king cuts above the competition with class leading thermal performance, utilizing a parallel dual-pass design to maximize both cooling capacity and efficiency

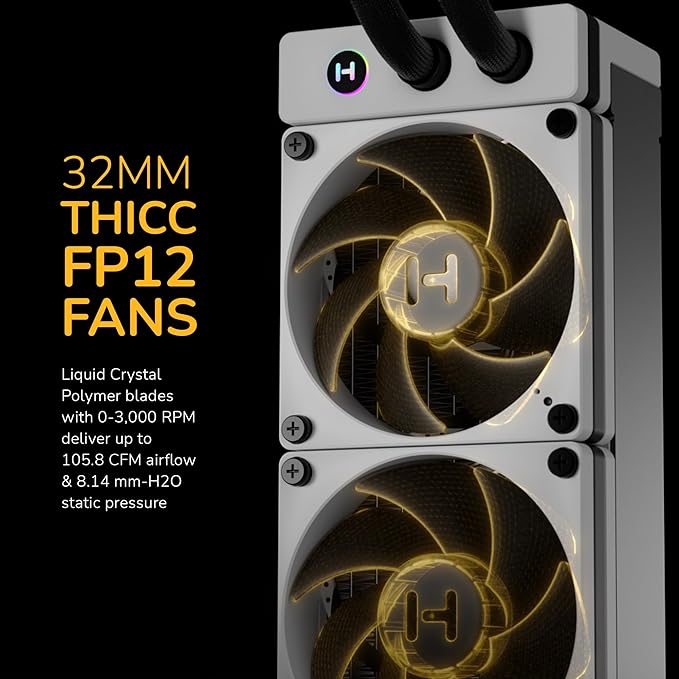

• 32mm THICC FP12 Fans: Dynamic adjustable 0 - 3,000 RPM fan speed with Fiberglass reinforced Liquid Crystal Polymer supercharges the fan blades, delivering a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure

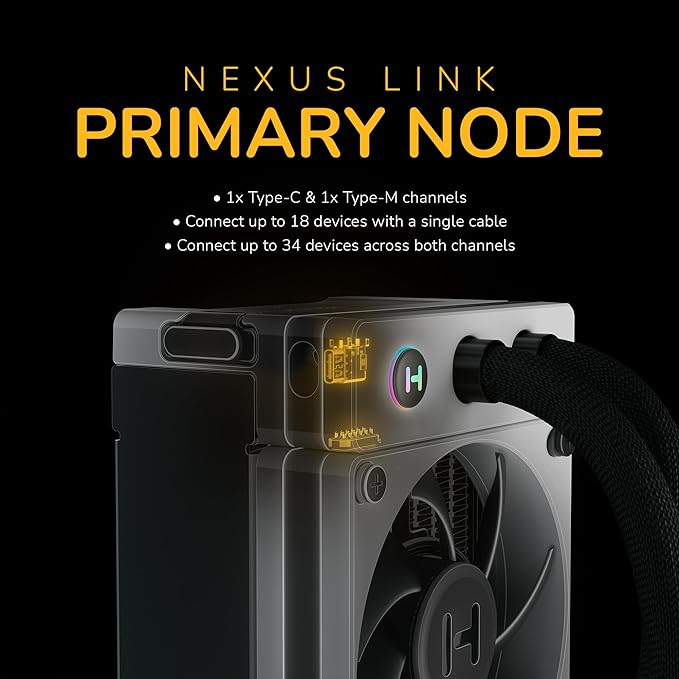

• Nexus Link Primary Node: Utilizes HYTE’s revolutionary new digital hardware interface for sequential lighting and cooling control with both thermal and positioning sensor data over a single cable, capable of supporting up to 34 devices across 2 channels with Nexus Link AmpScale
• Luxury Product Experience: Full compatibility across a range of AMD and Intel sockets, concealed cable harness for a clean look, seamless OTA updates, and 6-year warranty for piece of mind



SPECIFICATIONS

WEIGHT: 5.1 lbs

CPU COMPATIBILITY
• Intel Socket - LGA 1700, 1200, 115X, 2011*, 2066*
• AMD Socket - AM5, AM4, TR4* - *Optional brackets, please contact support

HEAT EXCHANGER DIMENSIONS: 120 x 288 x 52 mm

HEAT EXCHANGER MATERIAL: Aluminum

HEAT EXCHANGER TECHNOLOGY: Parallel Dual Pass

COLD PLATE DIMENSIONS: 56 x 56 x 1.5 mm

COLD PLATE MATERIAL: Copper

COLD PLATE TECHNOLOGY: Micro-Skived Fin

MAGNETIC INTERCHANGEABLE COLD PLATE COVER: Anodized Aluminum

TUBE LENGTH: 400 mm

TUBE MATERIAL: CIIR Rubber with Nylon Sleeving

TOTAL CPU BLACK + LCD SCREEN HEIGHT: 105 mm

FANS: THICC FP12 x 2

FAN DIMENSIONS: 120 x 120 x 32 mm

FAN SPEED: 0 – 3,000 RPM

AIR FLOW: 105.8 CFM

STATIC PRESSURE: 8.14 mm-H2O

NOISE LEVEL: <10.0* - 47.3 dBA - *Measuring below 10 dBA was not possible in our test chamber due to the noise floor

BEARINGS: Fluid Dynamic Bearing

FAN BLADE MATERIAL: >Fiberglass Reinforced Liquid Crystal Polymer (LCP)

FAN FRAME MATERIAL: Polycarbonate

FAN CONNECTOR: Nexus Link Type-M

NEXUS-LINK CHANNELS: 1x Type-C, 1x Type-M

MAXIMUM DEVICES - SINGLE CHANNEL: 18

MAXIMUM DEVICES - ALL CHANNELS: 34

MAXIMUM CURRENT - SINGLE CHANNEL: 8A/12V

MAXIMUM CURRENT - ALL CHANNELS: 15A/12V

MAXIMUM PSU POWER DRAW: Up to 180W depending on the number of connected Nexus Link devices

LCD SIZE: 5 Inches

LCD MOUNTING ORIENTATION: Portrait Only

LCD RESOLUTION: 720 x 1280 (293 PPI)

LCD PANEL TYPE: IPS

LCD HINGE: Double-Hinged Floating Spout

LCD REFRESH RATE: 60 Hz

LCD BRIGHTNESS: 300 nits

BIAS LIGHTING: 42-Pixel qRGB Array

LOGO LIGHTING: 4-Pixel qRGB Array

PUMP RPM: 2,000 – 4,500 RPM

PUMP BEARING: Ceramic

PUMP IMPELLER DIAMETER: 24 mm

COOLANT OPERATION TEMPERATURES: -10 to 60 C

PROCESSOR: Quad-Core 64-bit ARM Cortex

SPEED: 1.3 GHz

RAM: 2GB DDR4 @2666 MT/s

STORAGE: 32GB eMMC

GRAPHICS ENGINE: 500 MHz

CO-PROCESSOR: 32-Bit ARM Cortex-M4

INPUT CONNECTIONS: USB 2.0 Header, PWM, 6-Pin PCIe Power

INCLUDED ACCESSORIES
• Intel Mounting Kit (LGA 1700, 1200, 115X)
• AMD Mounting Kit (AM5, AM4)
• Fan Screws

NEXUS POWERED: Yes

WARRANTY: 6 years

SKU: FAN-HYTE-Q60-BW
