GIGABYTE Z790 AORUS XTREME X ICE Motherboard + AORUS GeForce RTX4080 SUPER XTREME ICE 16GB Graphics Card Bundle **Limited Stock**

GIGABYTE Z790 AORUS XTREME X ICE Motherboard + AORUS GeForce RTX4080 SUPER XTREME ICE 16GB Graphics Card Bundle **Limited Stock**

Regular price $5,888.00 SGD
Regular price Sale price $5,888.00 SGD
Sale Sold out

GIGABYTE Z790 AORUS XTREME X ICE Motherboard + AORUS GeForce RTX4080 SUPER XTREME ICE 16GB Graphics Card Bundle

Finely Crafted, Beauty Beyond Measure Anchored in white aesthetics, blended with unique titanium crystallization and iridescent designs, each piece bears a distinctive 99% golden serial number—a symbol of prestige and a tribute to the pinnacle of craftsmanship and aesthetic pursuit.

  • The refined titanium craftsmanship of dazzling crystalized titanium finish
  • 99% Gold Limited Edition Exclusive Serial Plaque
  • Iridescent Craftsmanship

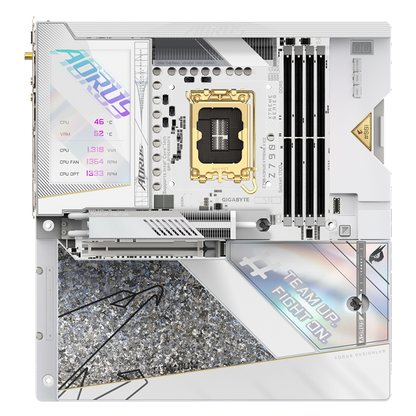

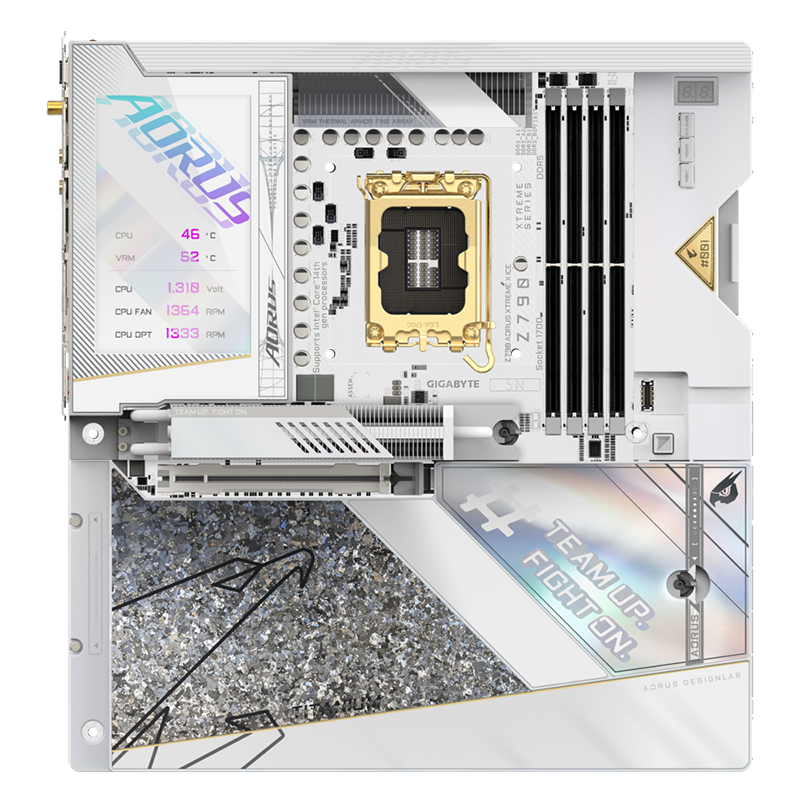

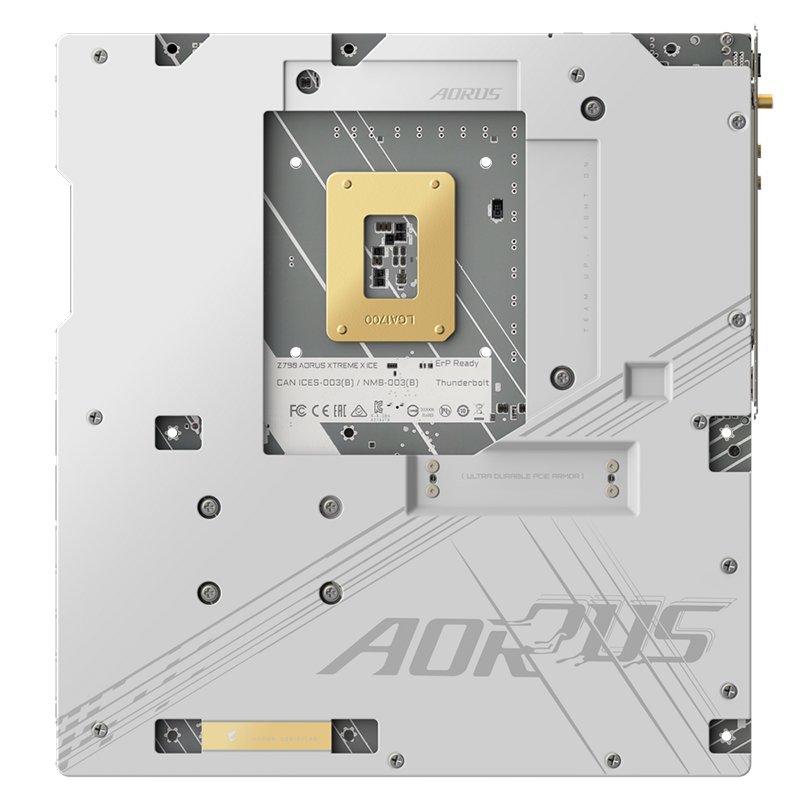

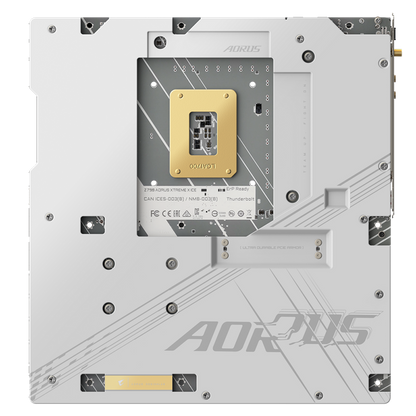

Z790 AORUS XTREME X ICE

  • Supports Intel® Core™ 14th and 13th processors
  • Digital twin 24+1+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support
  • PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • EZ-Latch Plus: PCIe 5.0 x16 slot & M.2 slots with quick release design
  • UC BIOS: User-Centred intuitive UX with Quick Access function
  • Ultra-Fast Storage: 5*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal: VRM Thermal Armor Fins-Array & M.2 Thermal Guard XTREME
  • Fast Networking: 10GbE+2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
  • Extended Connectivity: Dual Thunderbolt 4™, Dual Front USB-C® 20Gb/s

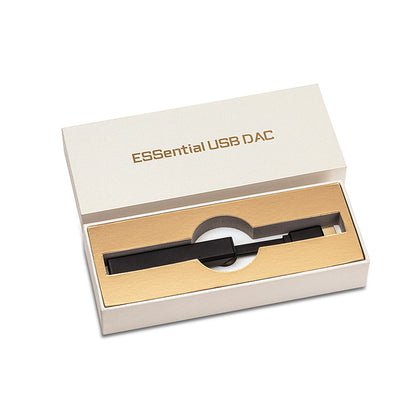

  • DTS: X® Ultra Audio: ESS ES9280A DAC and ESS ES9080A with Front ESSential USB DAC Bundled

a) SPECIFICATIONS(Z790 AORUS XTREME X ICE)

  • CPU:
    • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
    • L3 cache varies with CPU
    * Please refer to "CPU Support List" for more information.

  • CHIPSET: Intel® Z790 Express Chipset

  • MEMORY:
    • Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • ONBOARD GRAPHICS:
    Integrated Graphics Processor+Intel® Thunderbolt™ 4 Controller: 2x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)

    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt ™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.4 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)


  • AUDIO:
    • 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
    • DTS® Sound Unbound™
    • High Definition Audio
    • 2-channel
    • Support for S/PDIF Out
    * The line out jack and the optical S/PDIF out connector can only be used one at a time.

  • LAN:
    • Marvell® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
    • Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)

  • WIRELESS COMMUNICATION MODULE:
    • Intel® Wi-Fi 7 BE200
    • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.3
    • Support for 11be 320MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

    Note:
    • Wi-Fi 7 features require Windows 11 SV3 to function properly.
    (There is no support driver for Windows 10)
    • Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.


  • EXPANSION SLOTS:
    CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

  • STORAGE INTERFACE
    CPU:
    • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
    • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:
    • 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    • 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) • 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices

  • USB:
    Chipset+Intel® Thunderbolt™ 4 Controller: 2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support
    Chipset:
    • 2 x USB Type-C® ports with USB 3.2 Gen 2x2 support, available through the internal USB header
    • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+2 USB 3.2 Gen 2 Hubs: 8 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers

  • INTERNAL I/O CONNECTORS:
    • 1 x 24-pin ATX main power connector
    • 2 x 8-pin ATX 12V power connectors
    • 1 x CPU fan header
    • 1 x CPU fan/water cooling pump header
    • 1 x system fan header
    • 1 x system fan extension cable header (can extend three system fan headers through one cable)
    • 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
    • 1 x noise detection header
    • 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable)
    • 4 x SATA 6Gb/s connectors
    • 5 x M.2 Socket 3 connectors
    • 1 x front panel header
    • 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support
    • 2 x USB 3.2 Gen 1 headers
    • 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
    • 2 x temperature sensor headers
    • 1 x power button
    • 1 x reset button
    • 1 x Clear CMOS button

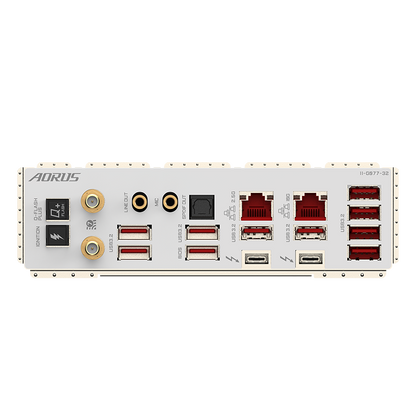

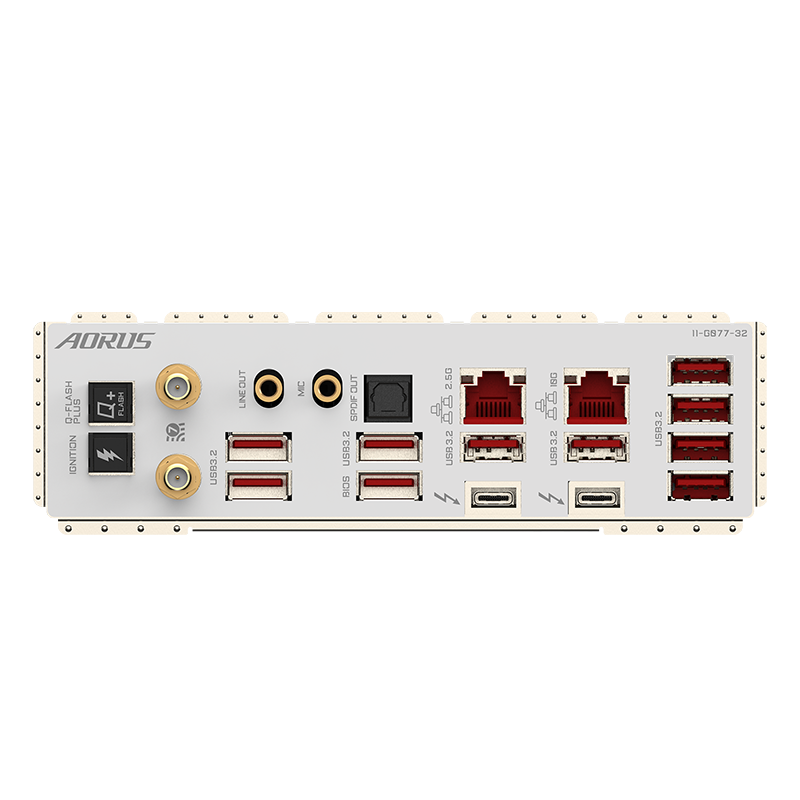

  • BACK PANEL CONNECTORS:
    • 1 x Q-Flash Plus button
    • 1 x OC Ignition button
    • 2 x SMA antenna connectors (2T2R)
    • 2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)
    • 10 x USB 3.2 Gen 2 Type-A ports (red)
    • 2 x RJ-45 ports
    • 1 x optical S/PDIF Out connector
    • 2 x audio jacks
    * The mic in jack supports only mono microphone input

  • I/O CONTROLLER: iTE® I/O Controller Chip

  • H/W MONITORING:
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
    • Noise detection BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI
  • BIOS: PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • UNIQUE FEATURES:
    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • Support for Q-Flash
    • Support for Q-Flash Plus
    • Support for Smart Backup

  • SOFTWARE INCLUDED:
    • Norton® Internet Security (OEM version)
    • LAN bandwidth management software

  • OPERATING SYSTEM: Support for Windows 11 64-bit
  • FORM FACTOR: E-ATX Form Factor; 30.5cm x 28.5cm

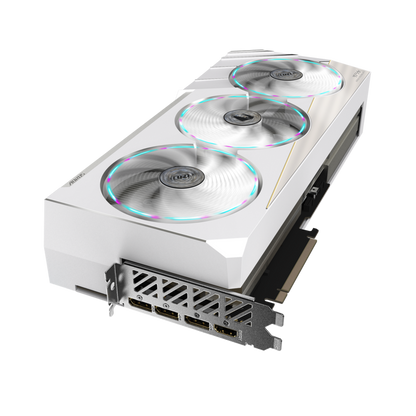

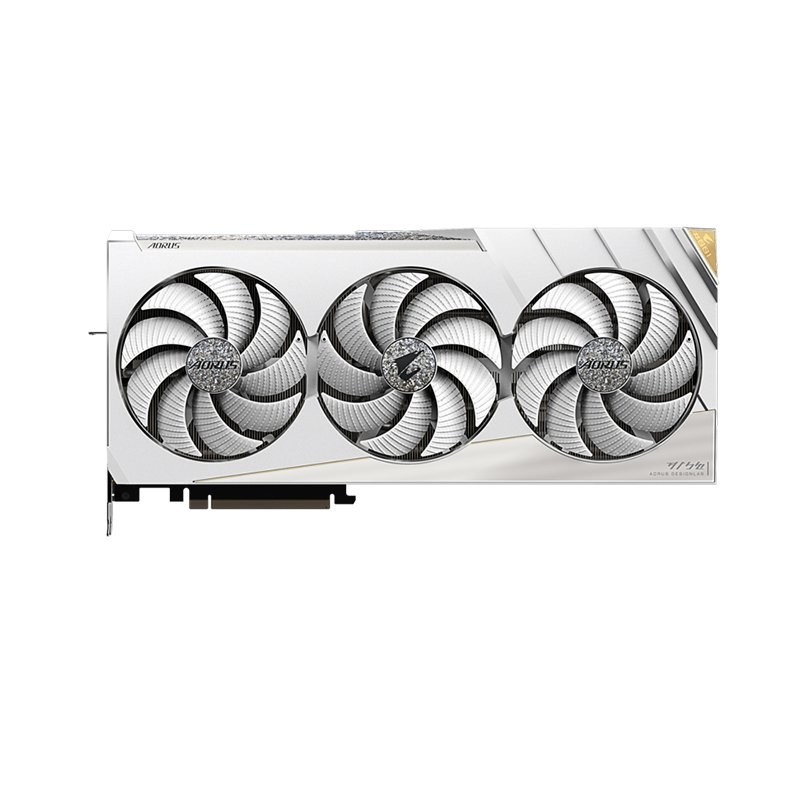

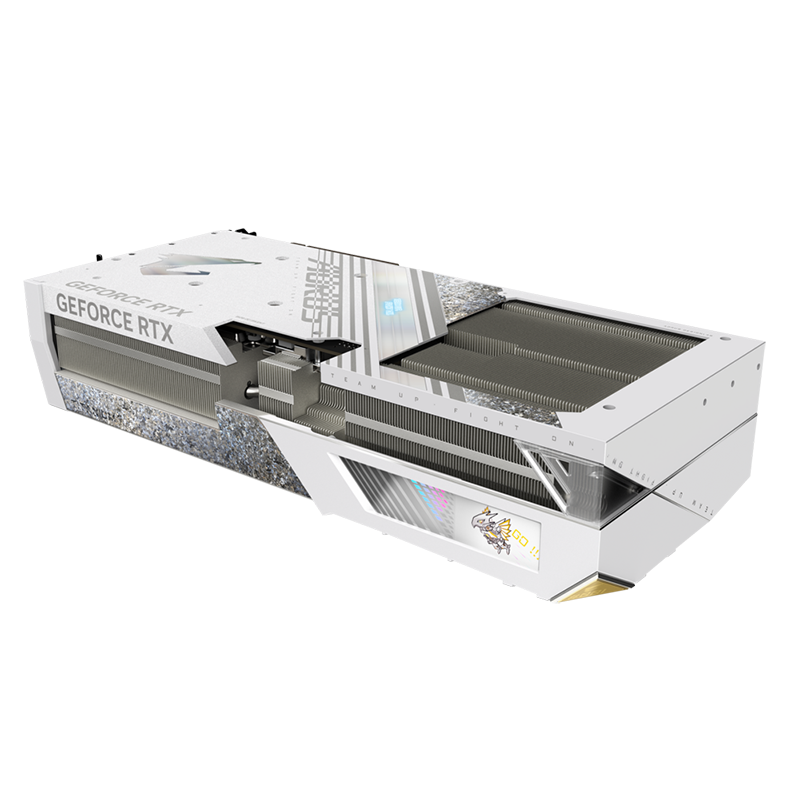

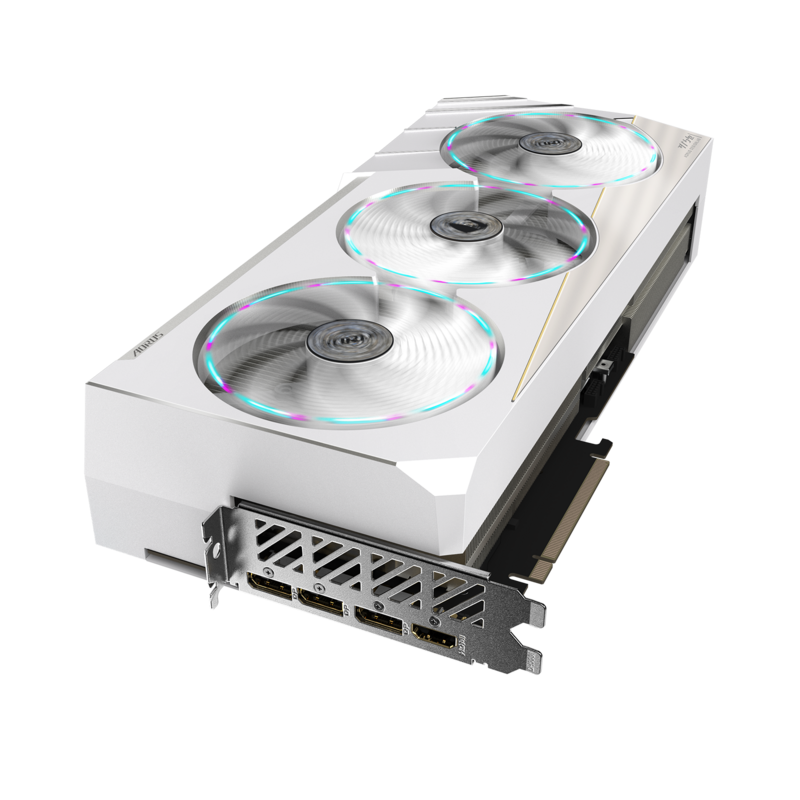

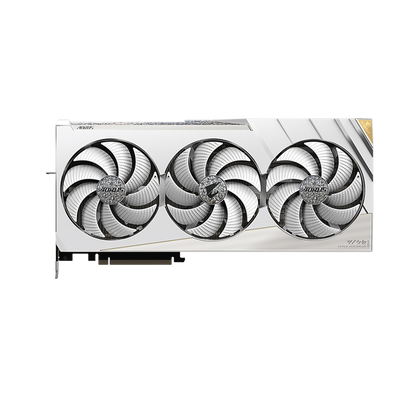

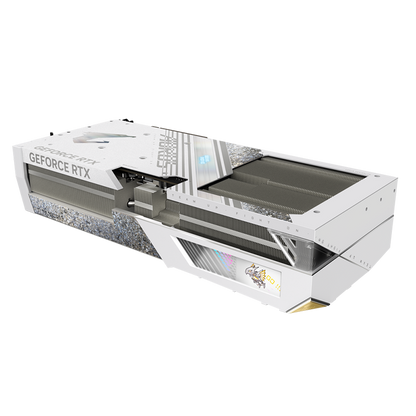

AORUS GeForce RTX™ 4080 SUPER XTREME ICE 16G

  • Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
  • 4th Generation Tensor Cores: Up to 4X performance with DLSS 3 vs. brute-force rendering
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Powered by GeForce RTX™ 4080 SUPER
  • Integrated with 16GB GDDR6X 256-bit memory interface
  • WINDFORCE Cooling System
  • LCD Edge View
  • RGB Fusion
  • Dual BIOS
  • Protection metal back plate
  • 4 Years Warranty (Online registration required)

b) SPECIFICATIONS (GV-N408SAORUSX ICE-16GD)

  • GRAPHICS PROCESSING: GeForce RTX™ 4080 SUPER
  • CORE CLOCK: 2700 MHz (Reference card : 2550 MHz)
  • CUDA® CORES: 10240
  • MEMORY CLOCK: 23 Gbps
  • MEMORY SIZE: 16 GB
  • MEMORY TYPE: GDDR6X
  • MEMORY BUS: 256 bit
  • CARD BUS: PCI-E 4.0
  • Digital max resolution: 7680x4320
  • MULTI-VIEW: 4
  • CARD SIZE: L=357 W=166 H=75 mm
  • PCB FORM: ATX
  • DirectX: 12 Ultimate
  • OpenGL: 4.6
  • RECOMMENDED PSU: 850W
  • POWER CONNECTORS: 16 pin*1
  • OUTPUT: DisplayPort 1.4a *3 / HDMI 2.1a *1

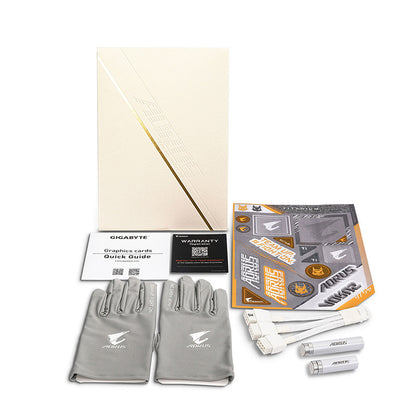

  • ACCESSORIES: Quick guide, Warranty registration, Gold guarantee card, One 16 pin to triple 8-pin power adaptor, VGA holder kit, AORUS anti-static gloves & AORUS sticker
