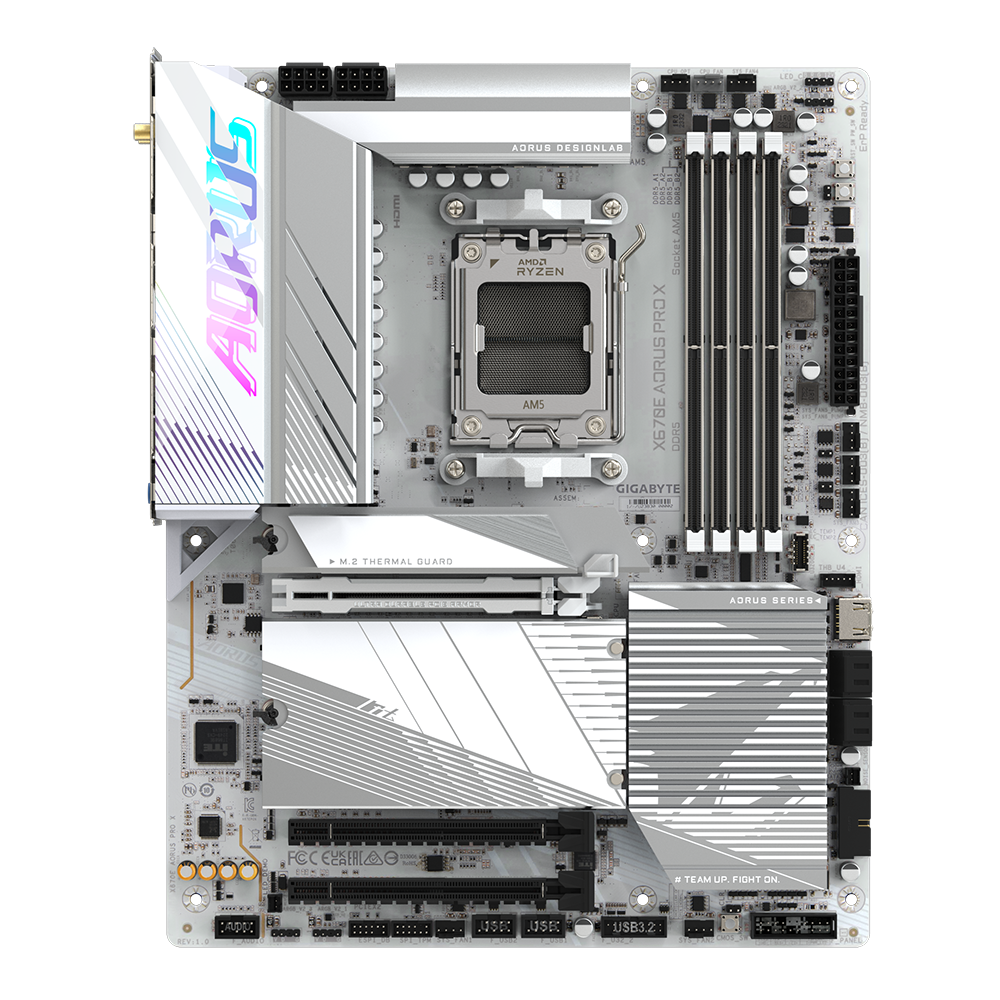

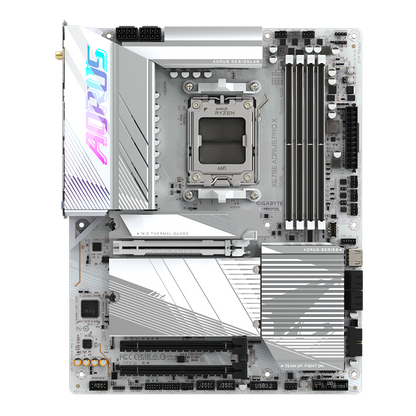

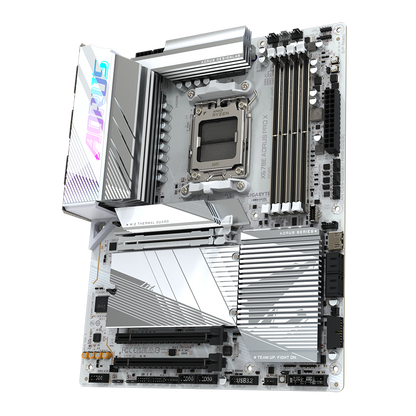

GIGABYTE X670E AORUS PRO X

• AMD Socket AM5 : Supports AMD Ryzen™ 7000 Series Processors

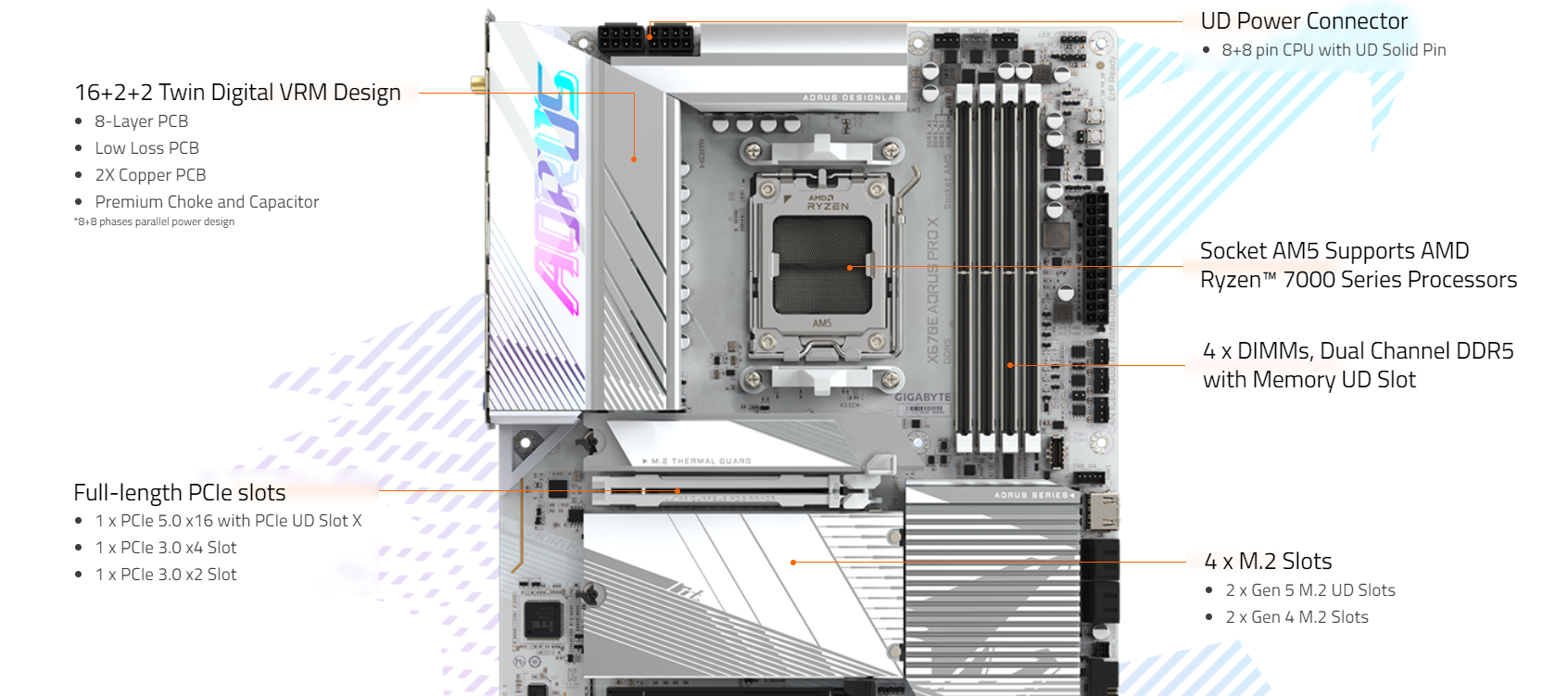

• Digital twin 16+2+2 phases VRM solution

• Dual Channel DDR5 : 4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support

• PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

• EZ-Latch Click : M.2 heatsinks with screwless design

• EZ-Latch Plus : M.2 slots with Quick Release & Screwless Design

• Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup

• UC BIOS : User-Centred intuitive UX with Quick Access function

• Ultra-Fast Storage : 4*M.2 slots, including 2* PCIe 5.0 x4

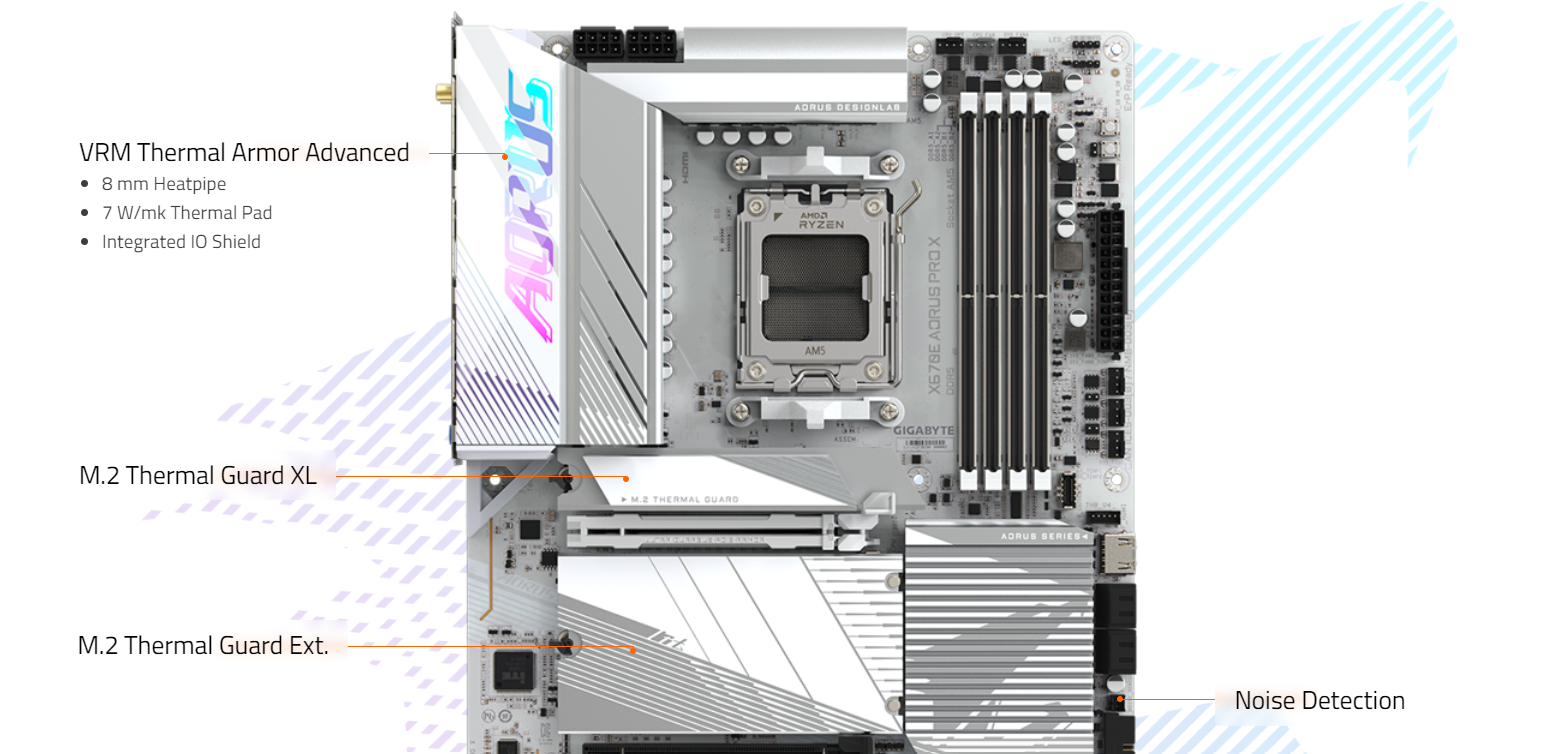

• Efficient Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL

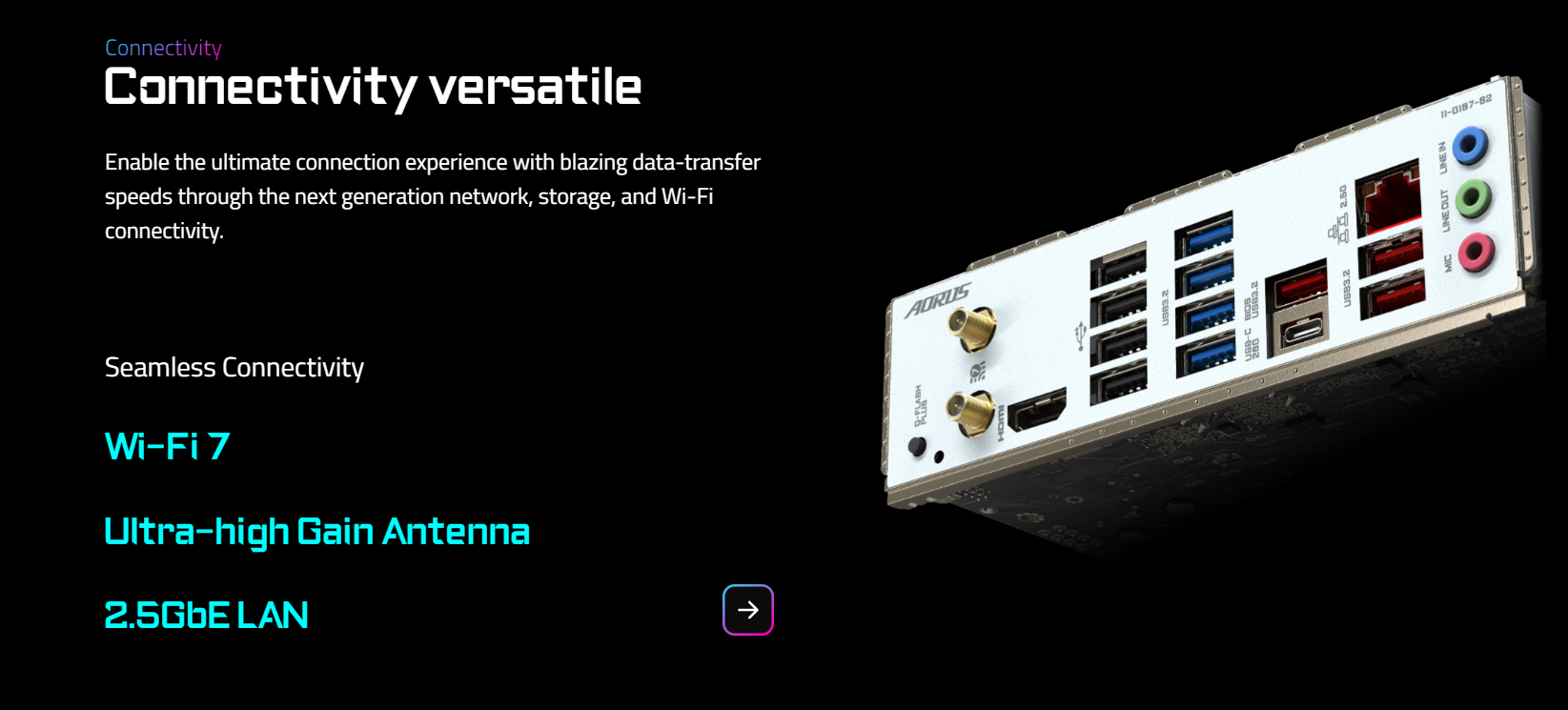

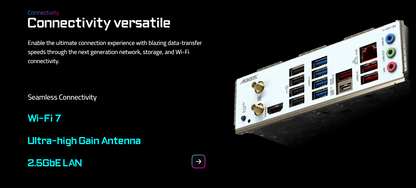

• Fast Networking : 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

• Extended Connectivity : HDMI, Rear & Front USB-C® 20Gb/s

• Reliable Audio : 8-Ch HD Audio & Audiophile Grade Capacitors

SPECIFICATIONS

- CPU : AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors

- Chipset : AMD X670

- Memory :

 • Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/ 6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

 • 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

 • Dual channel memory architecture

- Onboard Graphics :

 • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

 * Support for HDMI 2.1 version and HDCP 2.3.

 * Support for native HDMI 2.1 TMDS compatible ports.

 • 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

 * Support for HDMI 1.4 version

- Audio :

 • Realtek® Audio CODEC

 • High Definition Audio

 • 2/4/5.1/7.1-channel

 * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

- LAN : Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

- USB :

- Chipset :

 • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)

 • 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

 • 6 x USB 3.2 Gen 1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

 • 4 x USB 2.0/1.1 ports available through the internal USB headers

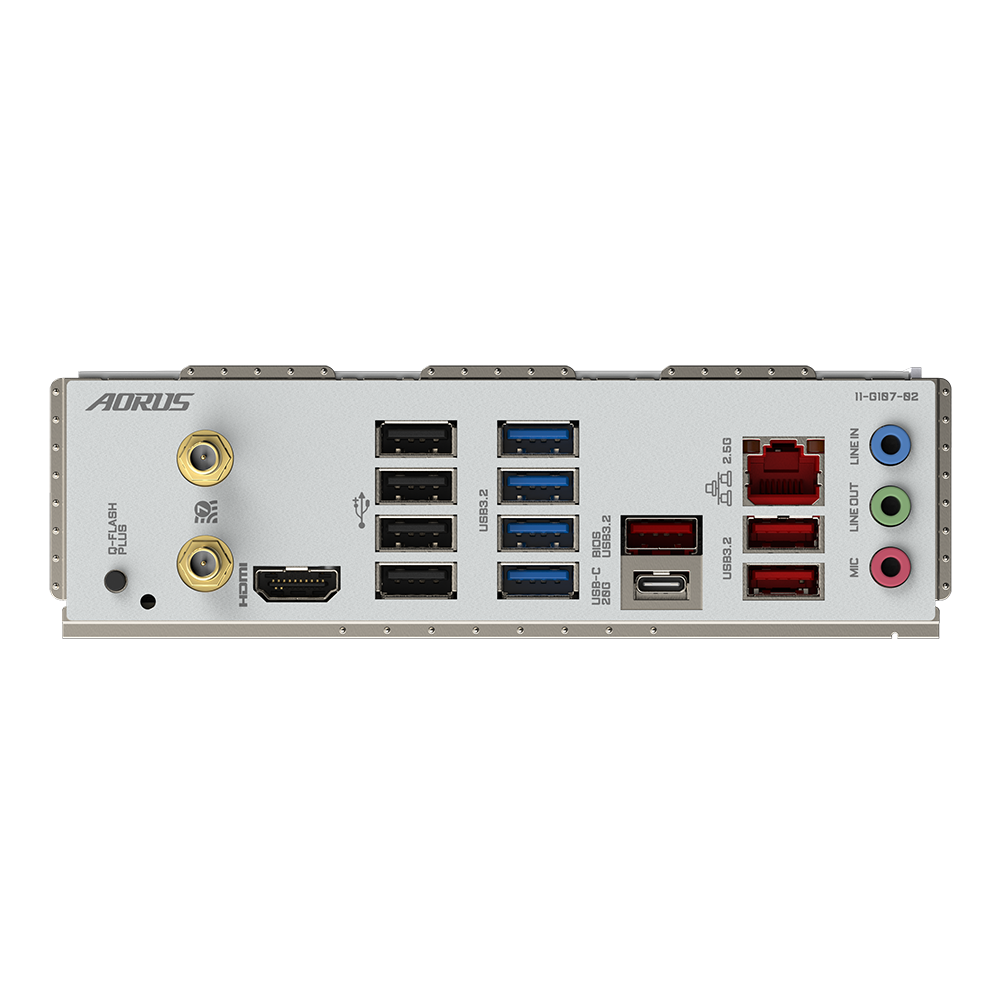

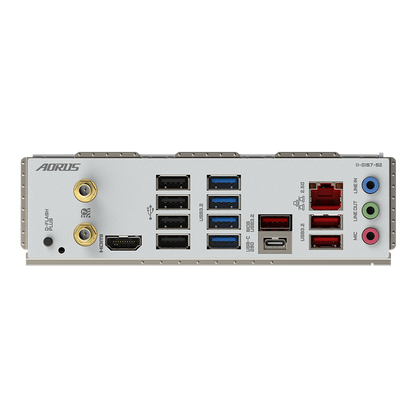

- Back Panel Connectors :

 • 1 x Q-Flash Plus button

 • 2 x SMA antenna connectors (2T2R)

 • 1 x HDMI port

 • 4 x USB 3.2 Gen 1 ports

 • 4 x USB 2.0/1.1 ports

 • 3 x USB 3.2 Gen 2 Type-A ports (red)

 • 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

 • 1 x RJ-45 port

 • 3 x audio jacks

- I/O Controller : iTE® I/O Controller Chip

- BIOS :

 • 1 x 256 Mbit flash

 • Use of licensed AMI UEFI BIOS

 • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- Operating System : Support for Windows 11 64-bit

- Form Factor : ATX Form Factor; 30.5cm x 24.4cm
