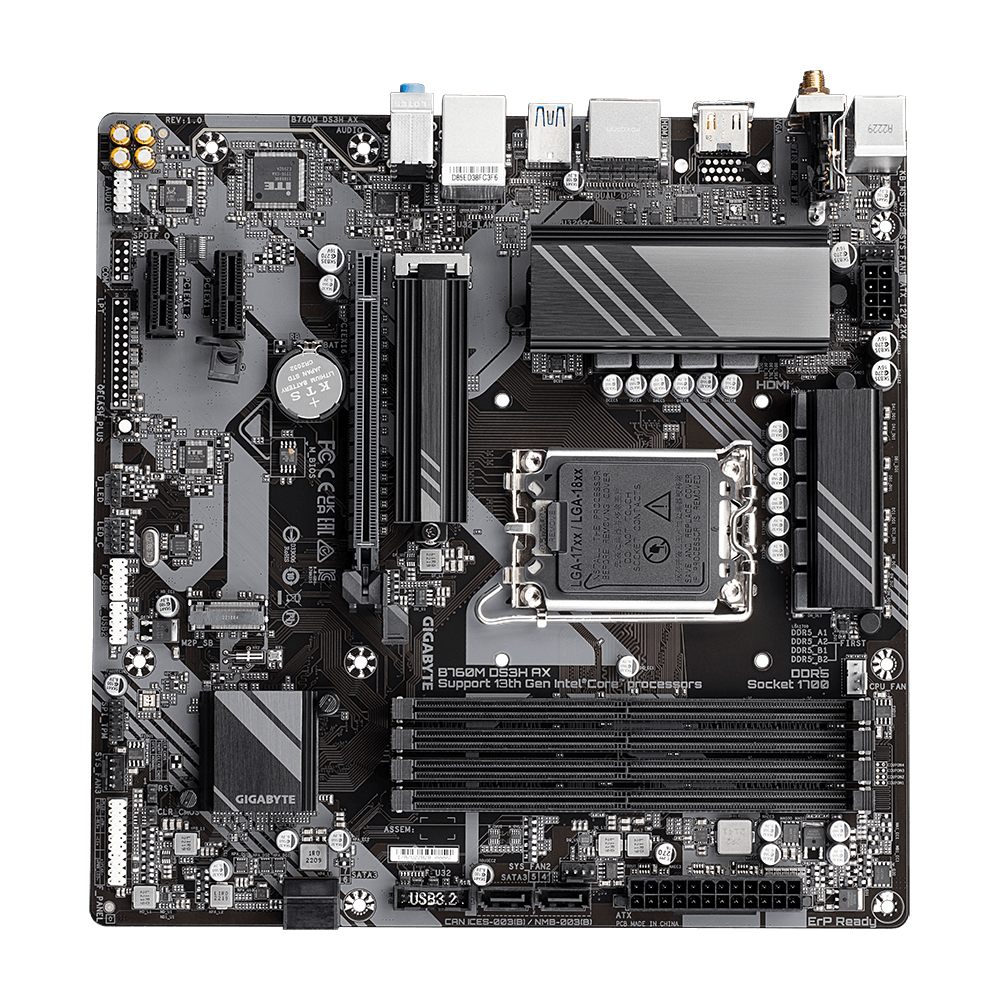

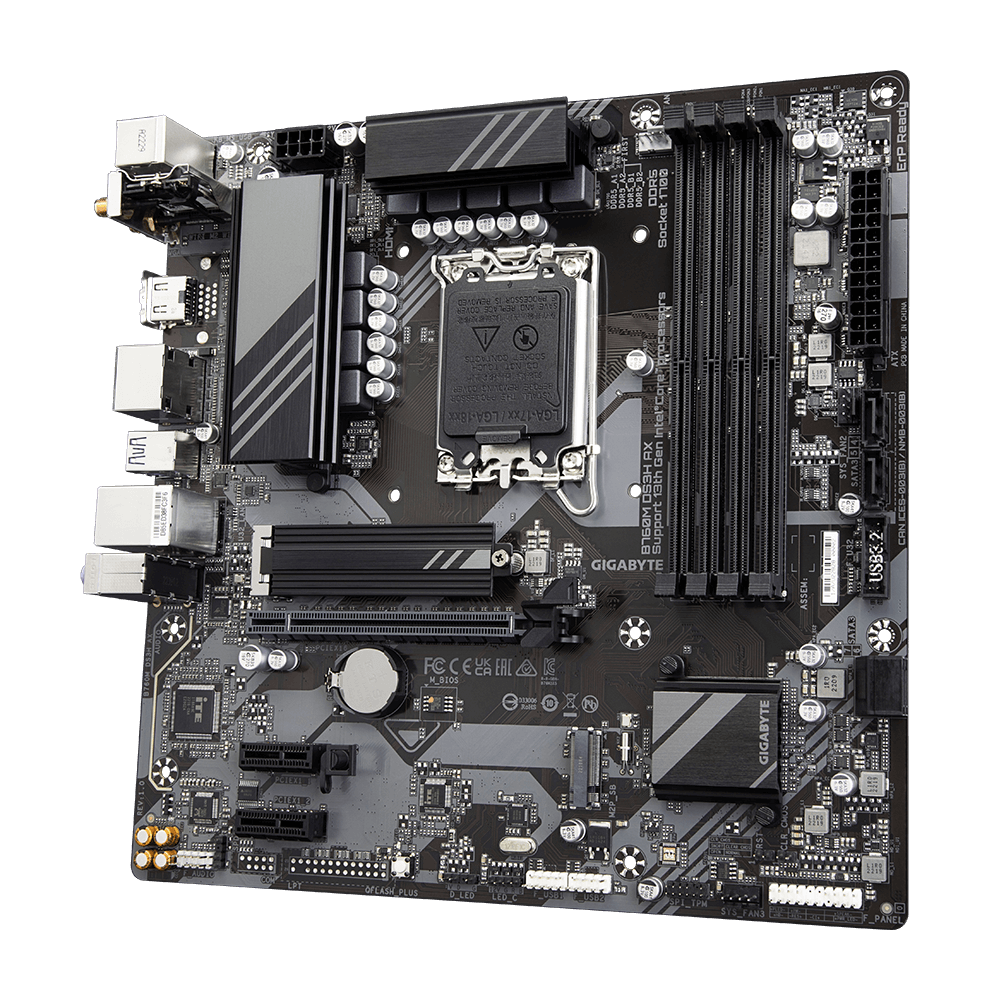

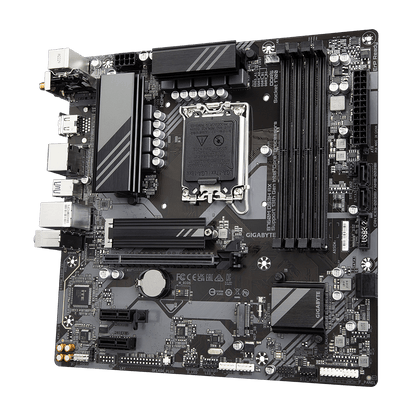

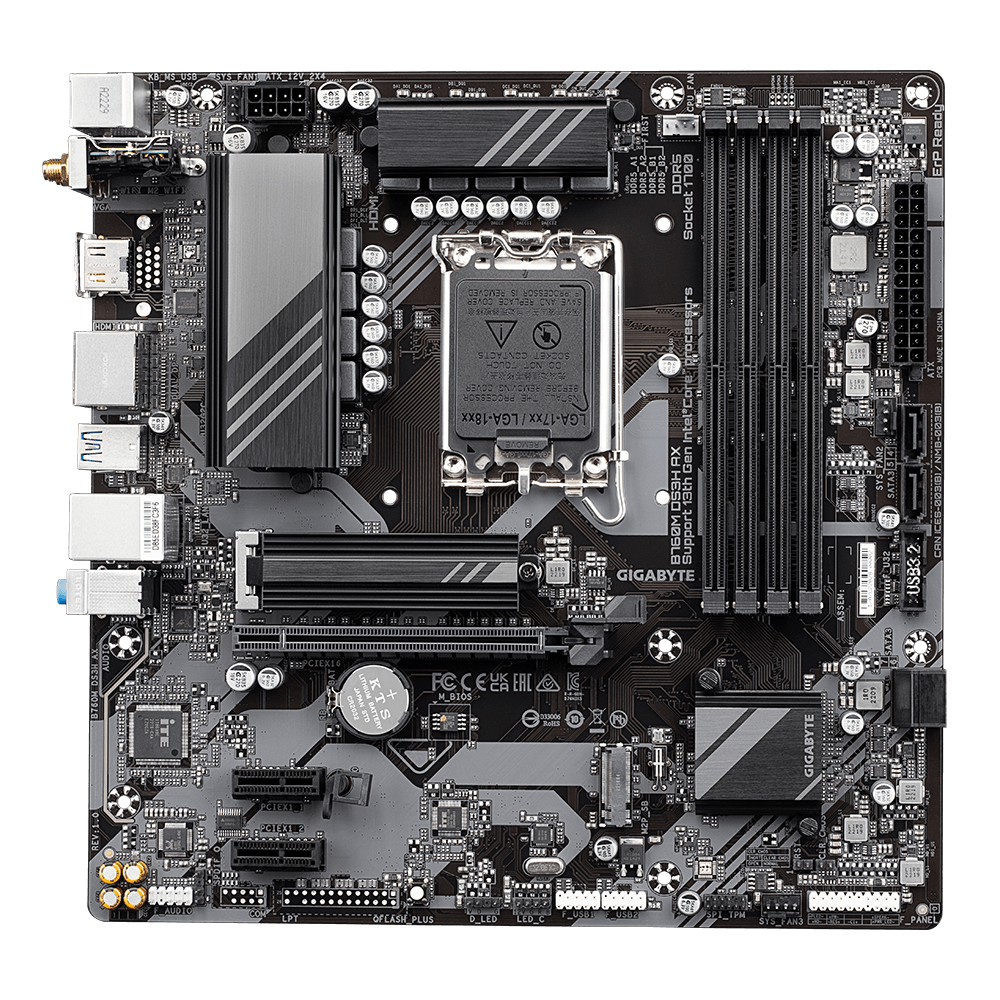

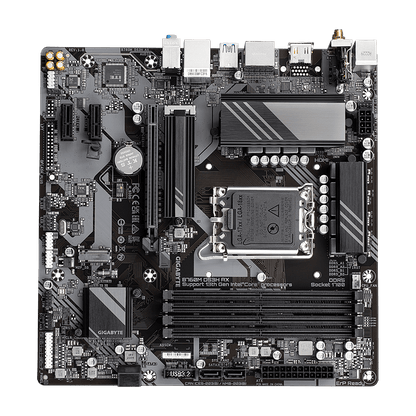

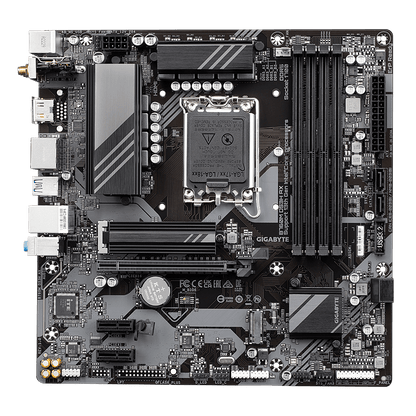

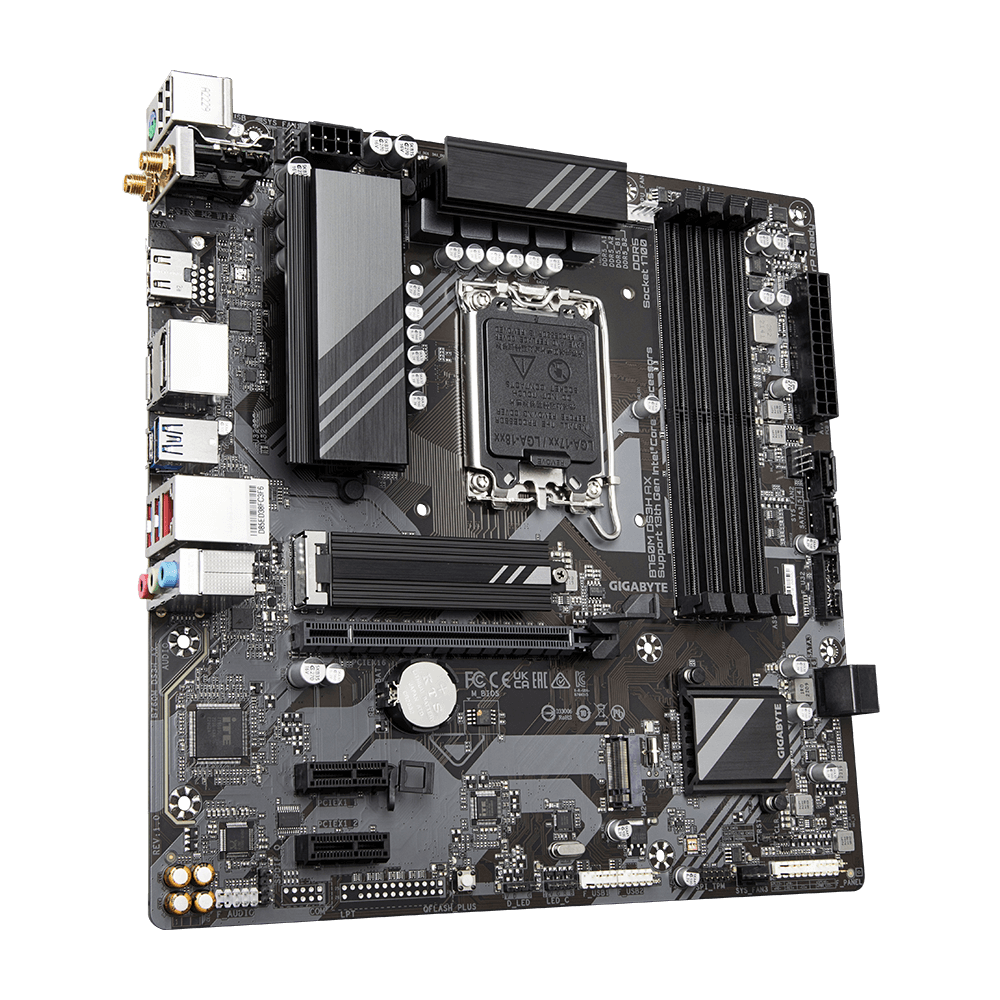

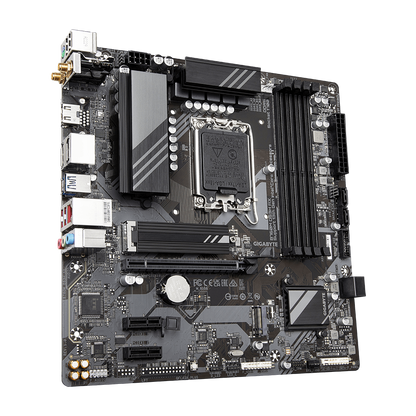

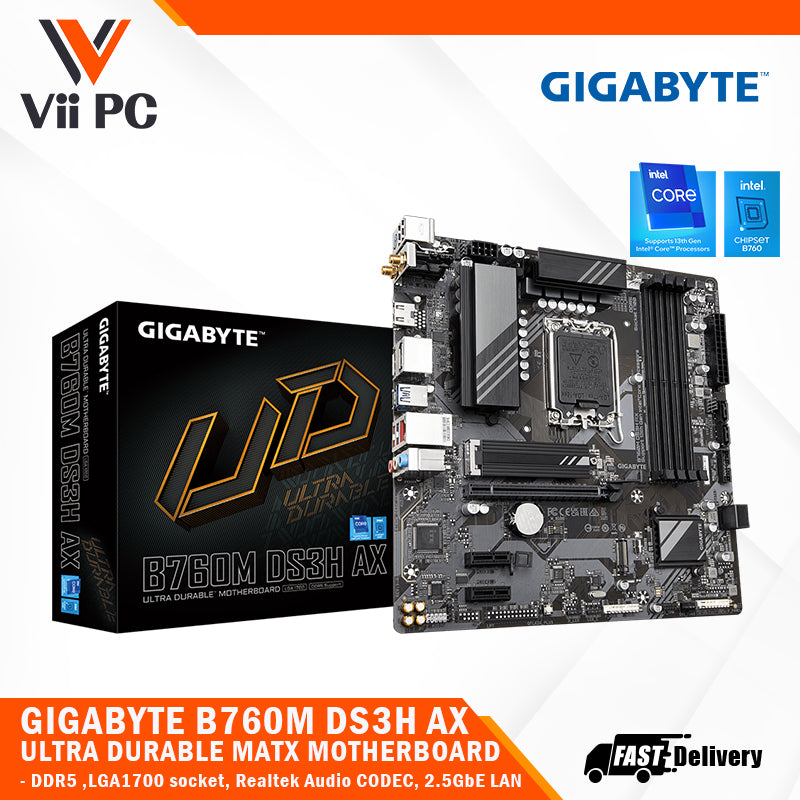

GIGABYTE B760M DS3H AX (rev. 1.x) LGA1700 socket/Wi-Fi 6E/DDR5 Support/2.5GbE LAN/ULTRA DURABLE MATX Motherboard

GIGABYTE B760M DS3H AX (rev. 1.x) LGA1700 socket/Wi-Fi 6E/DDR5 Support/2.5GbE LAN/ULTRA DURABLE MATX Motherboard

Regular price $199.00 SGD
Regular price $225.00 SGD Sale price $199.00 SGD
Sale Sold out

GIGABYTE B760M DS3H AX (rev. 1.x)

LGA1700 socket/Wi-Fi 6E/DDR5 Support/2.5GbE LAN/ULTRA DURABLE MATX Motherboard



  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*DIMMs XMP Memory Module Support
  • Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard: To Ensure M.2 SSD Performance
  • EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: Rear USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card


SPECIFICATIONS

CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Golf and Celeron® Processors

• L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

CHIPSET: Intel® B760 Express Chipset

MEMORY

• Support for DDR5 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/ 6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5400(O.C.)/5200(O.C.)/4800/ 4000 MT/s memory modules

• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

ONBOARD GRAPHICS

Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3

• 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version.

(Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time

AUDIO

• Realtek® Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

• Support for S/PDIF Out

LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WIRELESS COMMUNICATION MODULE

AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0):

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• BLUETOOTH 5.2

• Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate

Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1):

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• BLUETOOTH 5.3

• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2):

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• BLUETOOTH 5.3

• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3):

• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

• BLUETOOTH 5.3

• Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

EXPANSION SLOTS

CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

STORAGE INTERFACE

CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support  (M2A_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

• 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

• 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers

INTERNAL I/O CONNECTORS

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 3 x system fan headers

• 1 x addressable LED strip header

• 1 x RGB LED strip header

• 2 x M.2 Socket 3 connectors

• 4 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 2 x USB 2.0/1.1 headers

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.  module only)

• 1 x S/PDIF Out header

• 1 x Q-Flash Plus button

• 1 x reset jumper

• 1 x Clear CMOS jumper

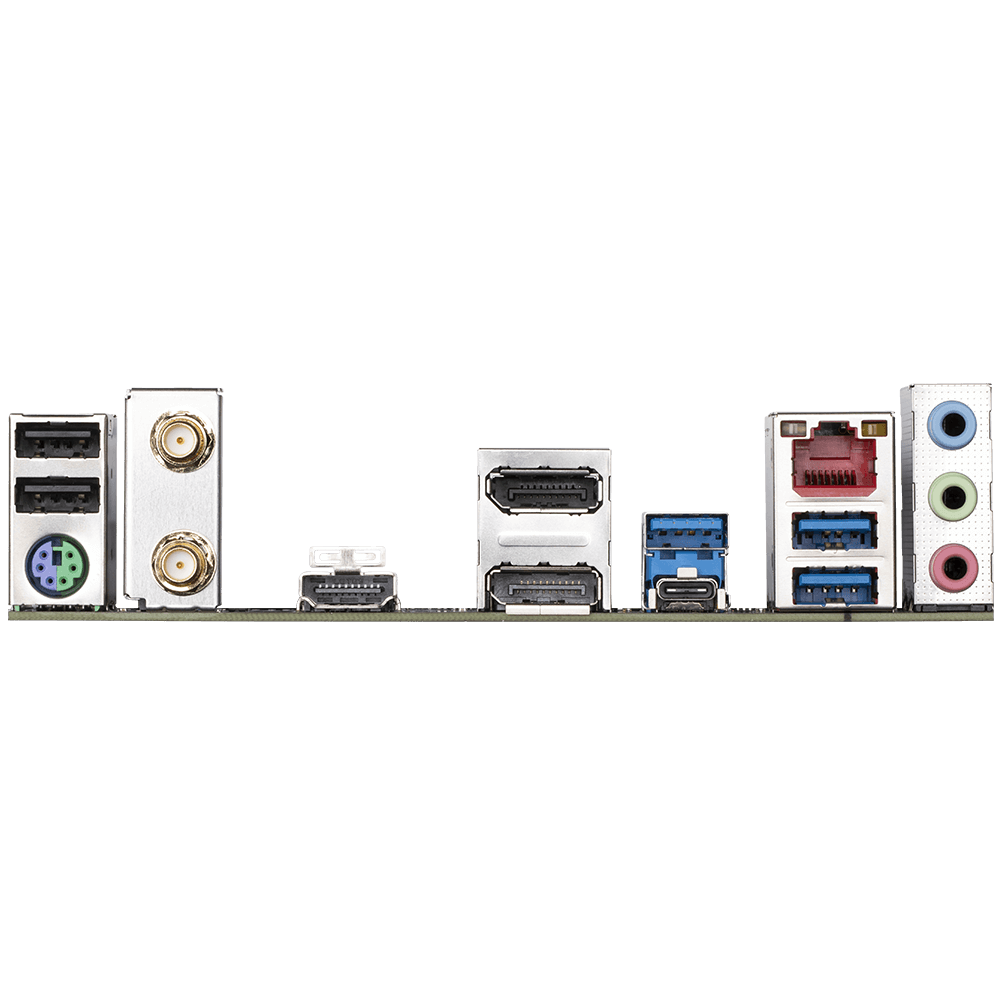

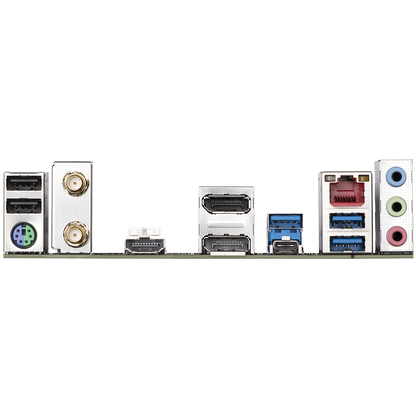

BACK PANEL CONNECTORS

• 2 x USB 2.0/1.1 ports

• 1 x PS/2 keyboard/mouse port

• 2 x SMA antenna connectors (2T2R)

• 1 x HDMI port

• 2 x DisplayPorts

• 3 x USB 3.2 Gen 1 ports

• 1 x USB Type-C® port, with USB 3.2 Gen 2 support

• 1 x RJ-45 port

• 3 x audio jacks

I/O CONTROLLER: iTE® I/O Controller Chip

H/W MONITORING

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

• 1 x 128 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

UNIQUE FEATURES

• Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

• Support for Q-Flash

• Support for Q-Flash Plus

BUNDLED SOFTWARE

• Norton® Internet Security (OEM version)

• LAN bandwidth management software

OPERATING SYSTEMtp-link

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit

FORM FACTOR: Micro ATX Form Factor; 24.4cm x 24.4cm

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
