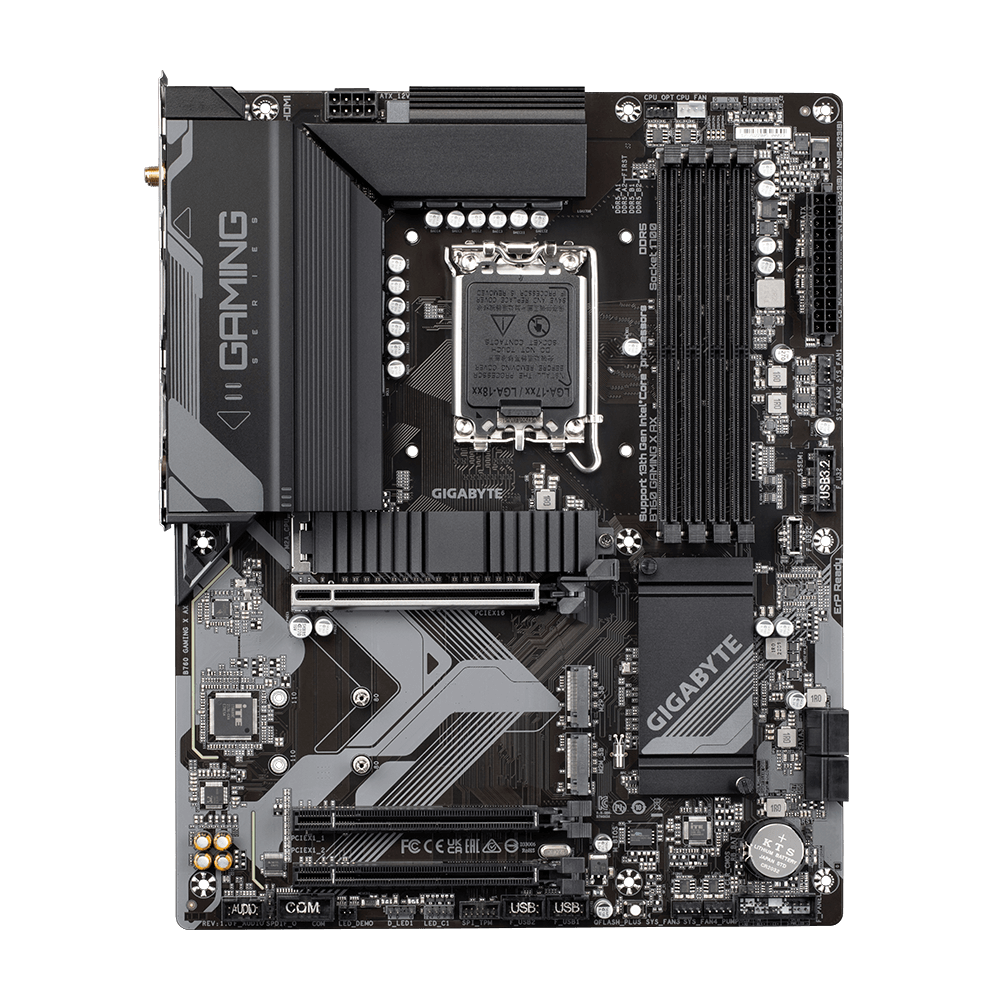

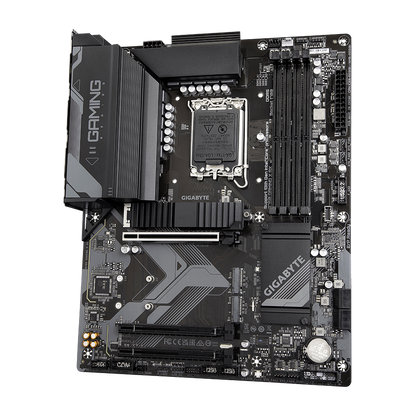

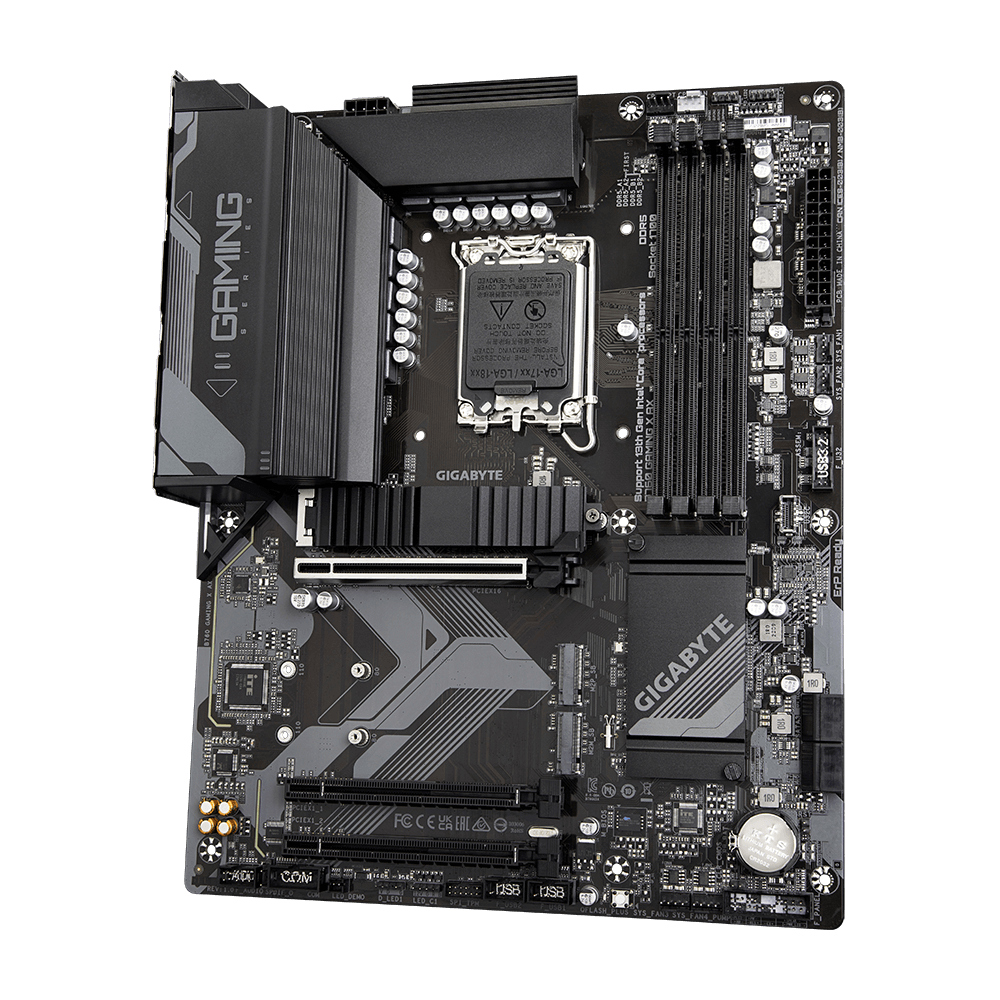

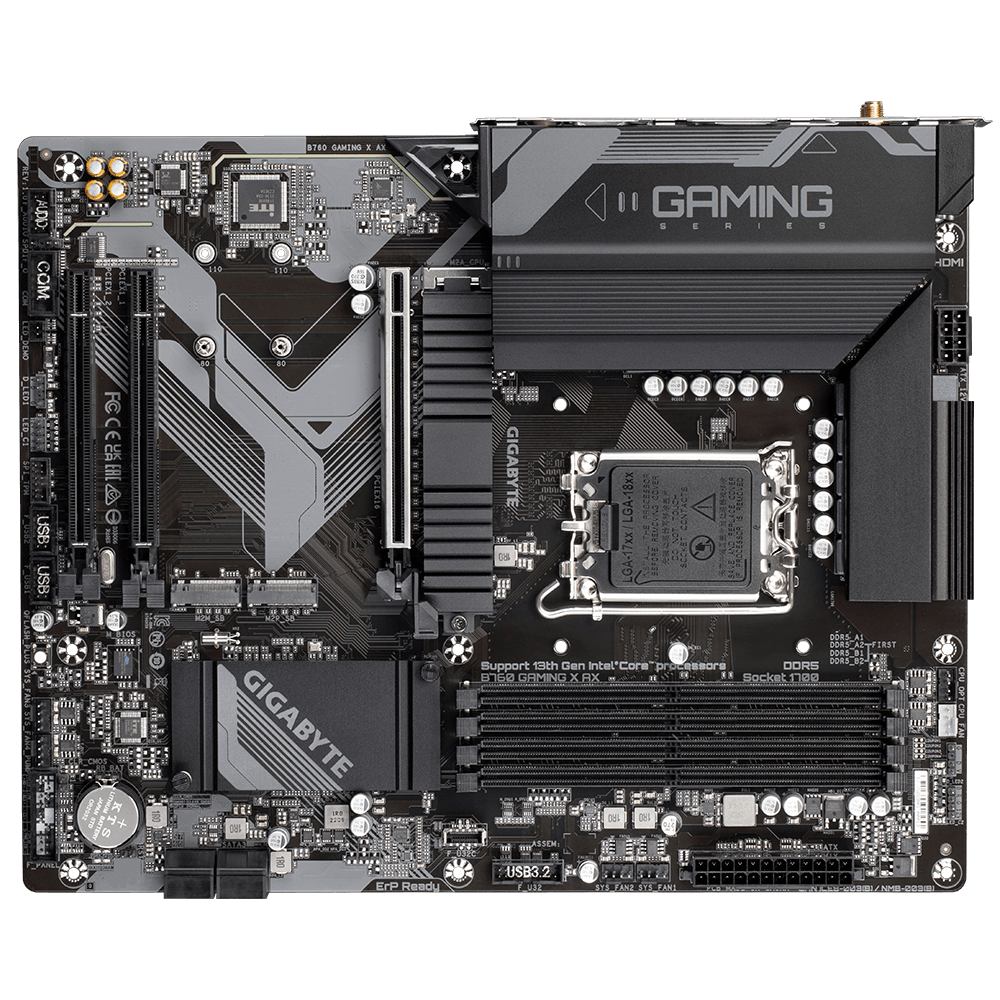

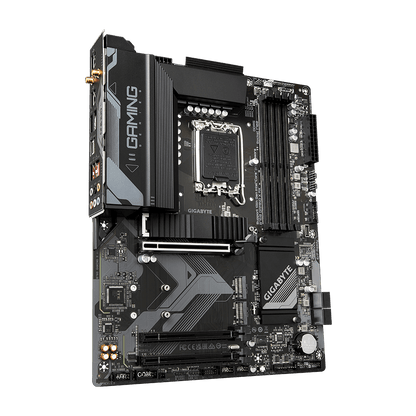

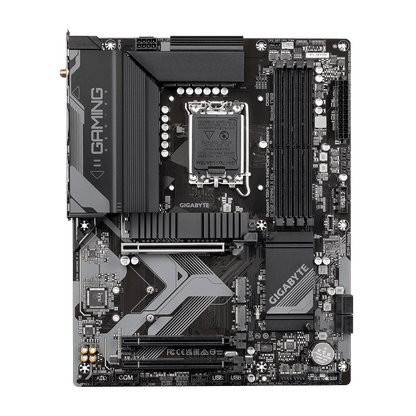

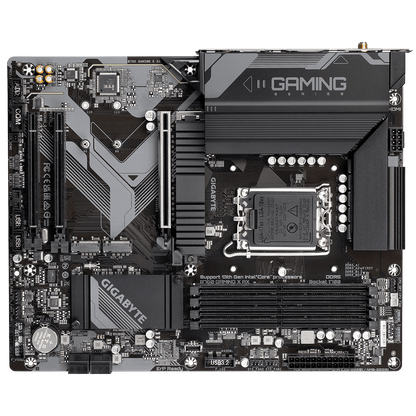

GIGABYTE B760 GAMING X AX (rev. 1.x)
• Supports Intel® Core™ 14th/ 13th /12th processors

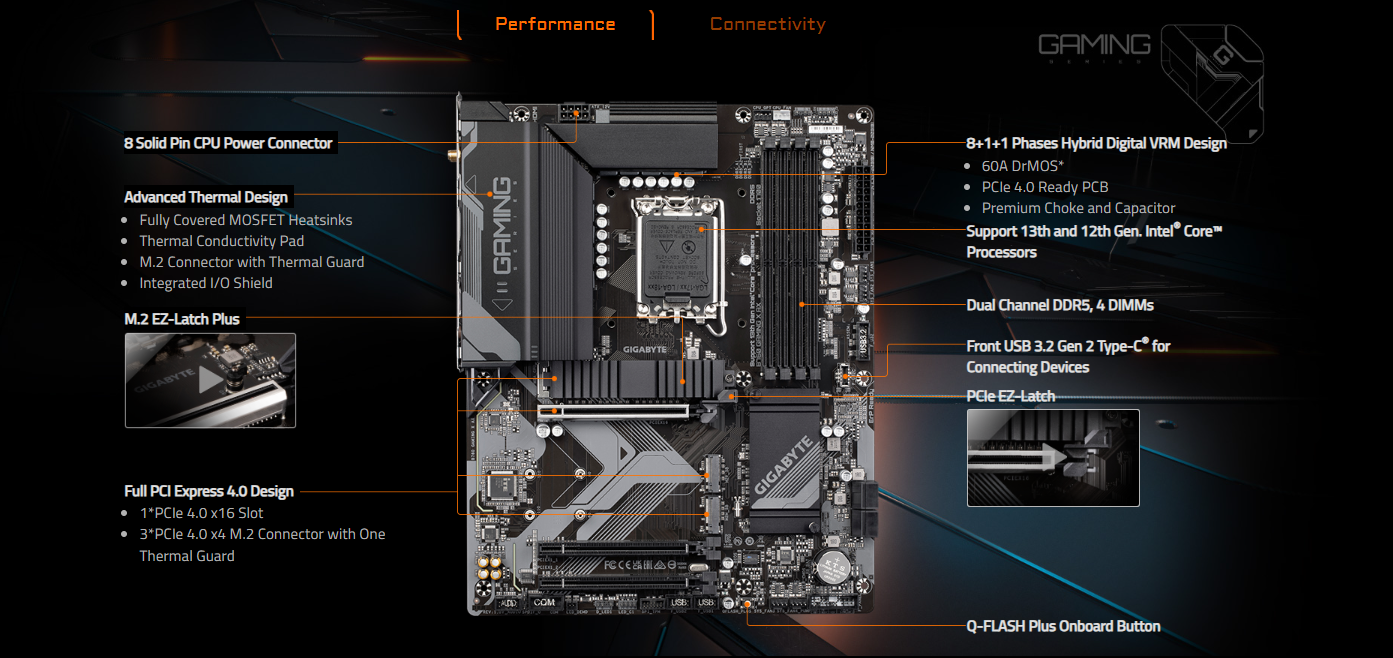

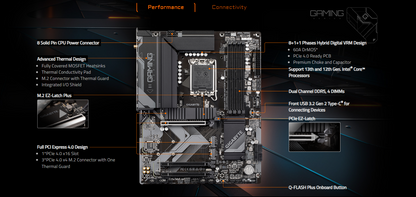

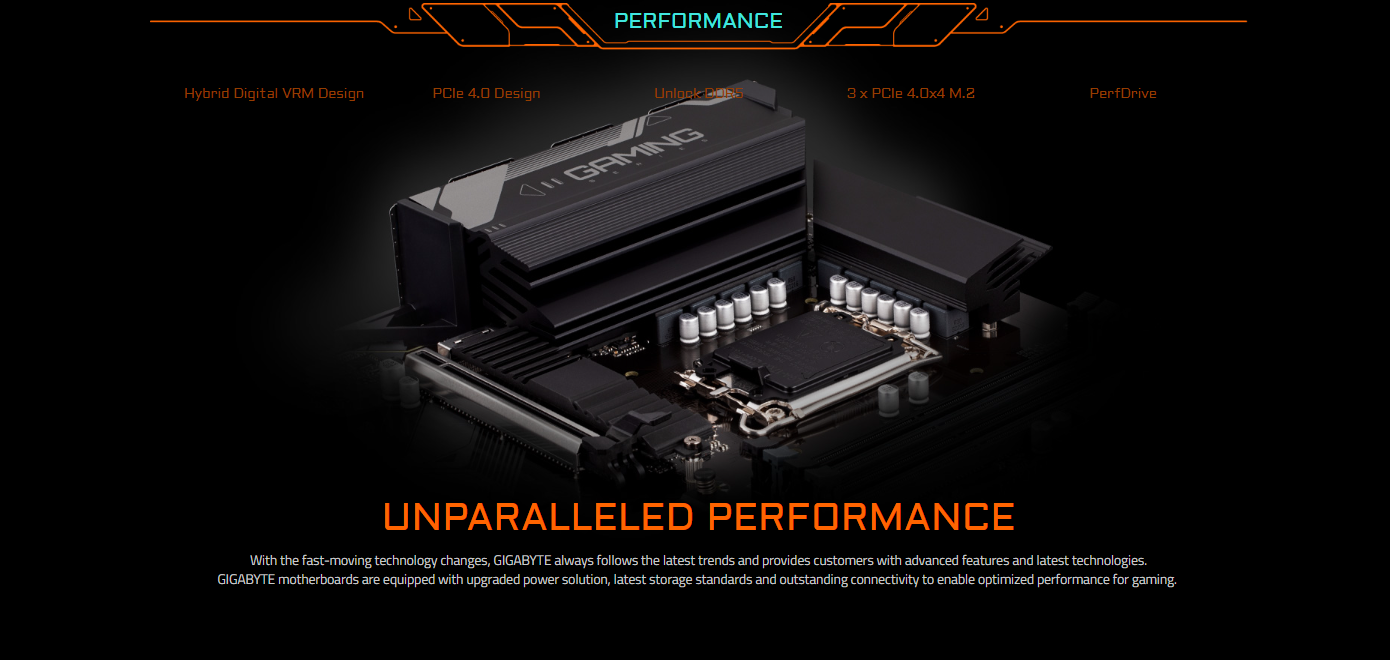

• Unparalleled Performance : Hybrid 8+1+1 Phases Digital VRM Solution
• Dual Channel DDR5 : 4*DIMMs XMP Memory Module Support
• Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors

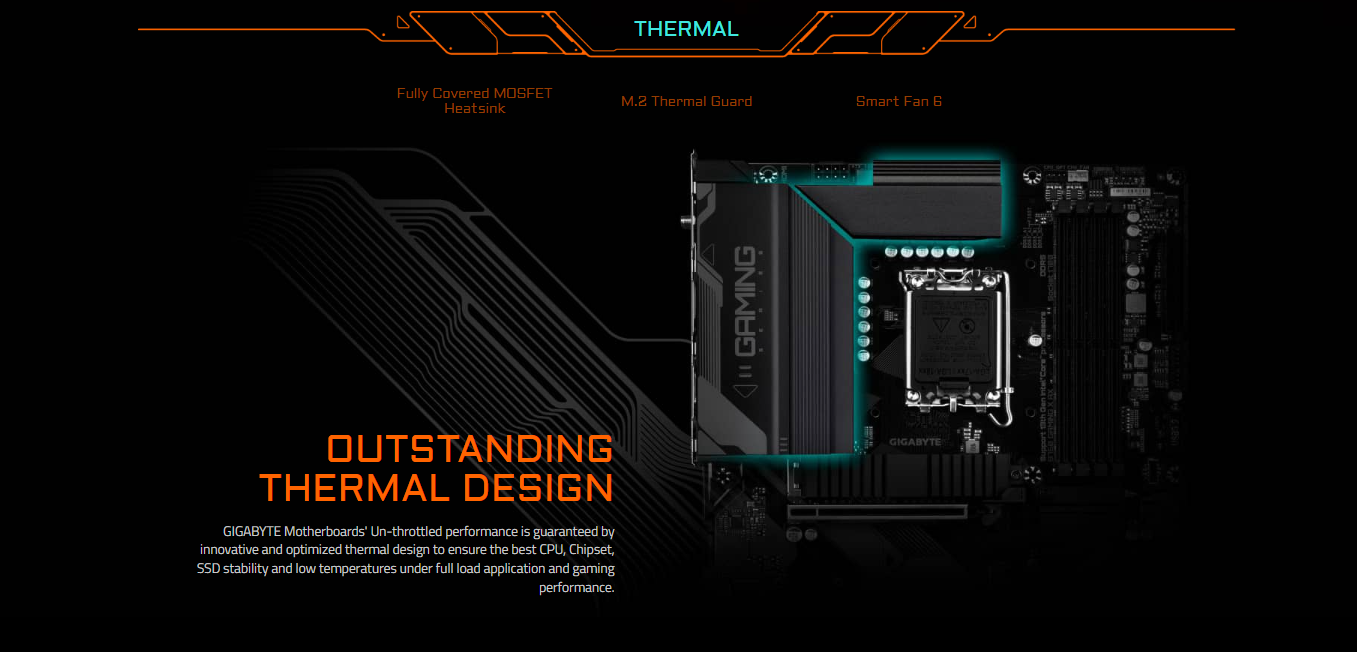

• Advanced Thermal Design & M.2 Thermal Guard : To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch : PCIe 4.0x16 Slot with Quick Release Design
• Fast Networks : 2.5GbE LAN & Wi-Fi 6E 802.11ax

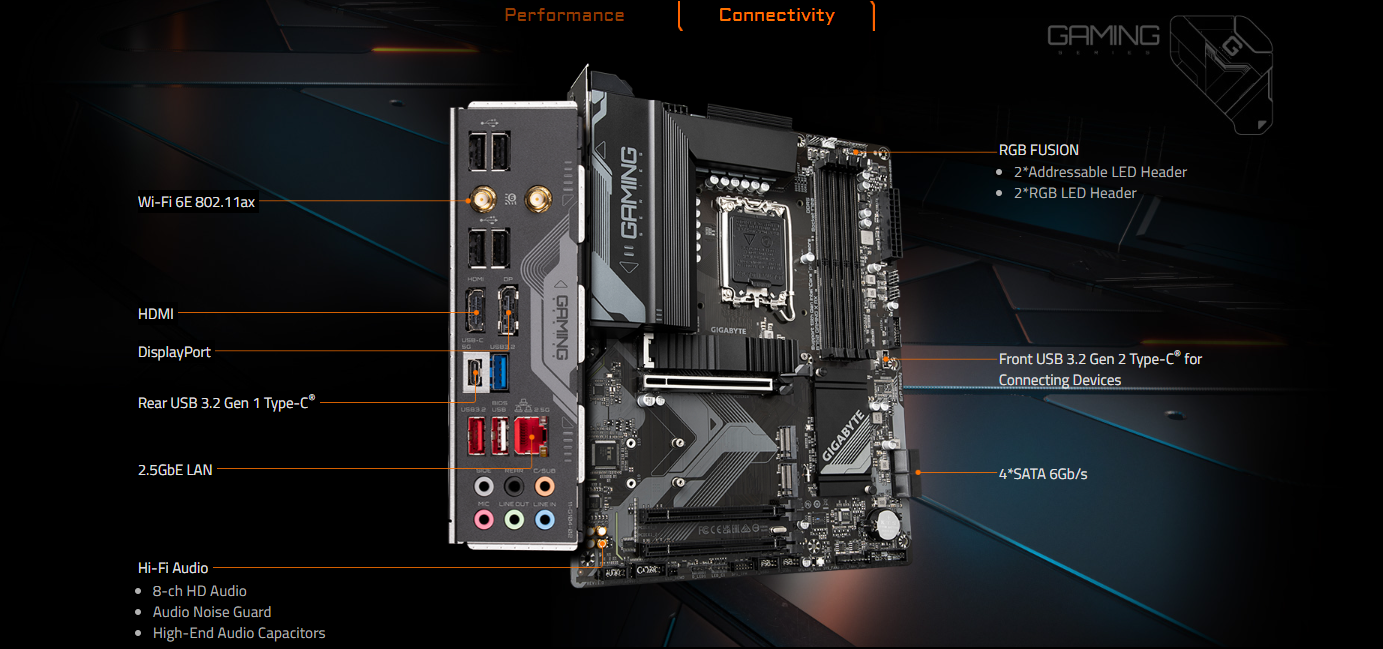

• Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
• Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
SPECIFICATIONS
• CPU : LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
• CHIPSET : Intel® B760 Express Chipset
• MEMORY :
◦ Support for DDR5 7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/ 5800(O.C.)/5600(O.C.)/5400(O.C.)/5200(O.C.)/4800/4000 MT/s memory modules
◦ 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
◦ Dual channel memory architecture
• ONBOARD GRAPHICS :
◦ Integrated Graphics Processor-Intel® HD Graphics support :
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3.
• AUDIO :
◦ Realtek® Audio CODEC
◦ High Definition Audio
◦ 2/4/5.1/7.1-channel
◦ Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• WIRELESS COMMUNICATION MODULE :
◦ AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0) :
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
- Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
◦ Intel® Wi-Fi 6E AX210 (PCB rev. 1.1), Intel® Wi-Fi 6E AX211 (PCB rev. 1.2) & Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3) :
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• EXPANSION SLOTS :
◦ CPU : 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16).
◦ Chipset : 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
• STORAGE INTERFACE :
◦ CPU : 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
◦ Chipset :
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
- 4 x SATA 6Gb/s connectors
• USB :
◦ Chipset :
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
- 1 x USB 2.0/1.1 port on the back panel
◦ Chipset+2 USB 2.0 Hubs : 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

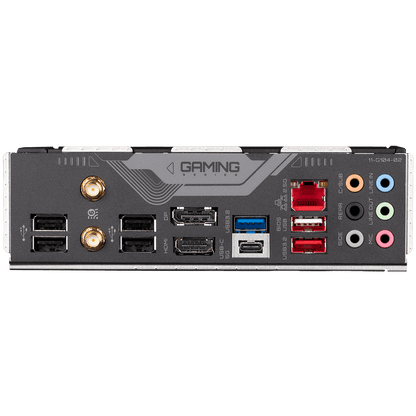

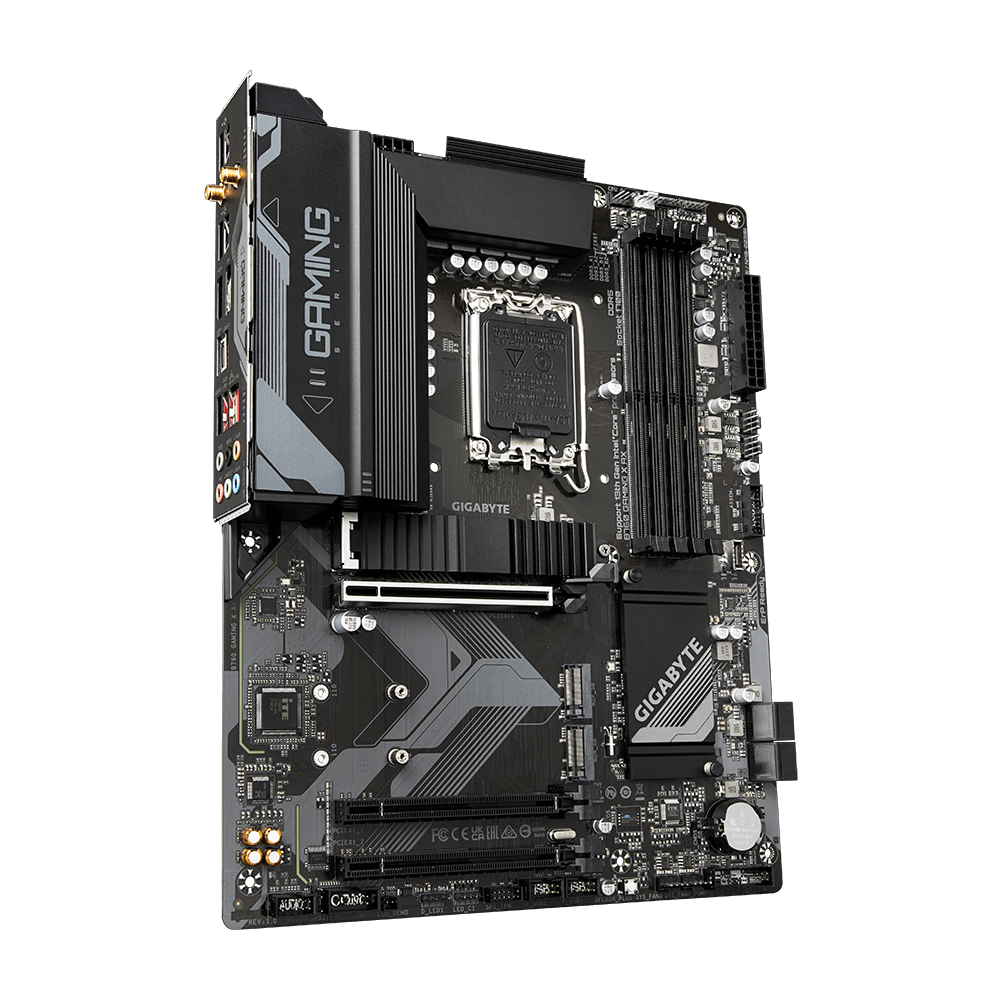

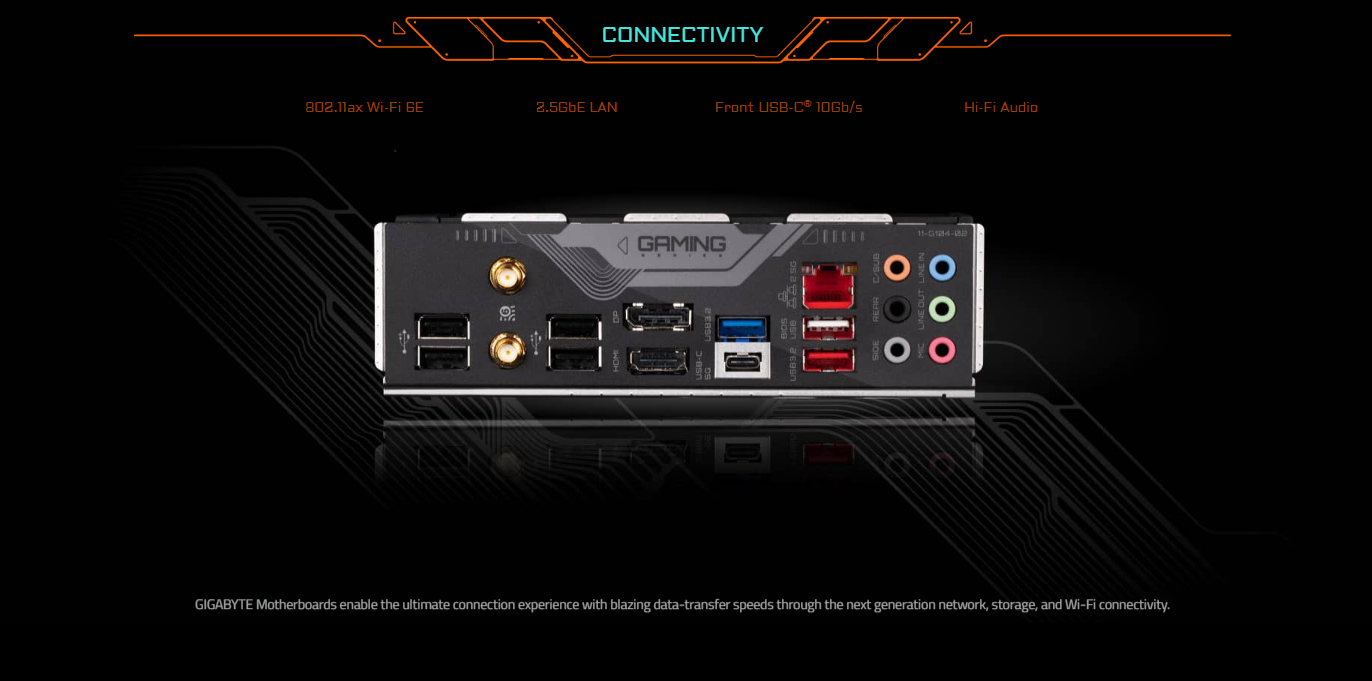

• BACK PANEL CONNECTORS :
◦ 1 x USB 3.2 Gen 2 Type-A port (red)
◦ 1 x USB Type-C® port, with USB 3.2 Gen 1 support
◦ 1 x USB 3.2 Gen 1 port
◦ 5 x USB 2.0/1.1 ports
◦ 2 x SMA antenna connectors (2T2R)
◦ 1 x DisplayPort

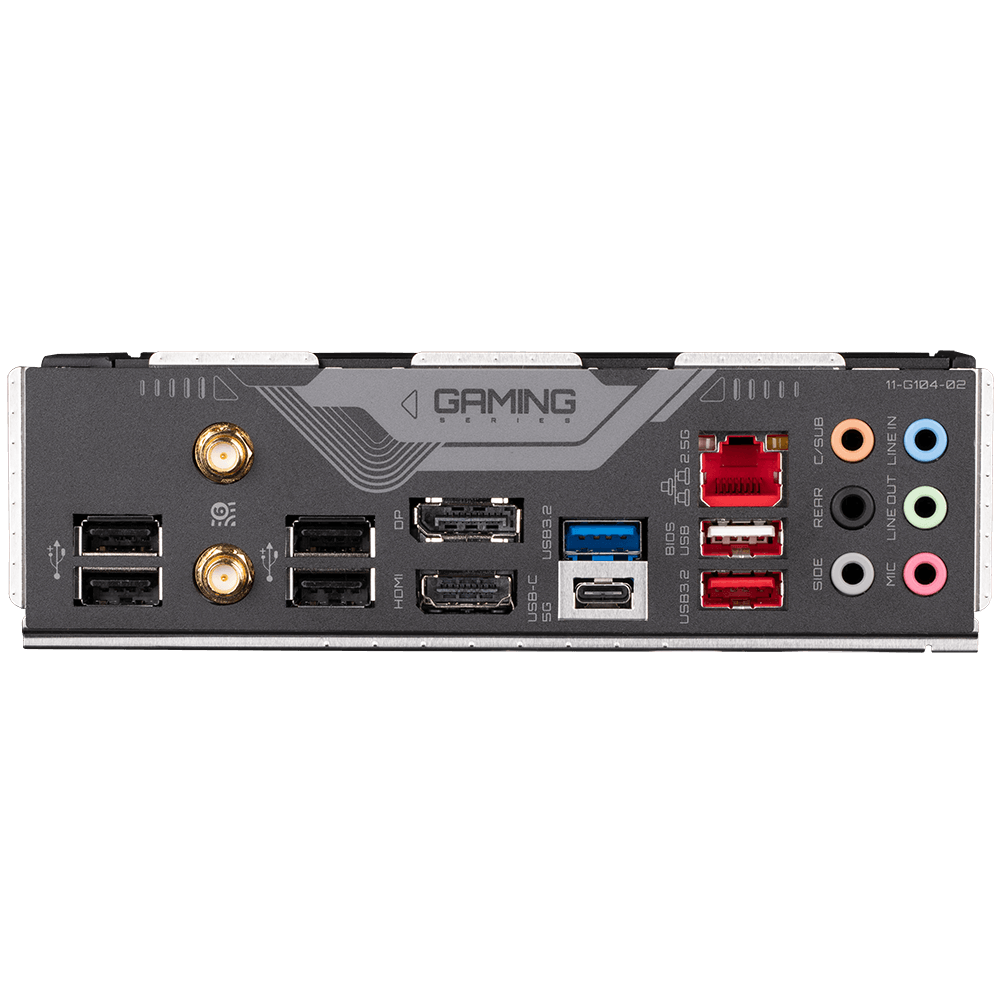

◦ 1 x HDMI port
◦ 1 x RJ-45 port
◦ 6 x audio jacks
• I/O CONTROLLER : iTE® I/O Controller Chip
• BIOS :
◦ 1 x 256 Mbit flash
◦ Use of licensed AMI UEFI BIOS
◦ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• BUNDLED SOFTWARE : Norton® Internet Security (OEM version) & LAN bandwidth management software
• OPERATING SYSTEM : Support for Windows 11 64-bit & Windows 10 64-bit
• FORM FACTOR : ATX Form Factor; 30.5cm x 24.4cm
