GIGABYTE

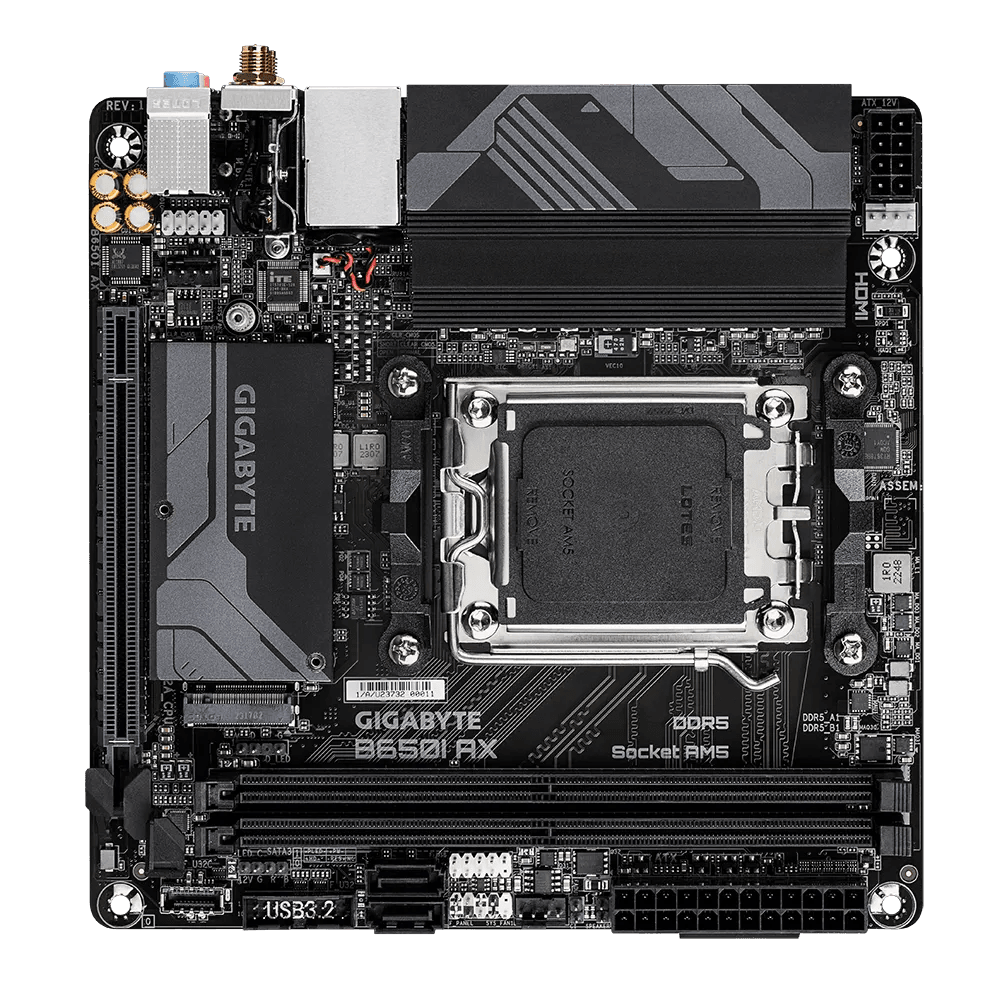

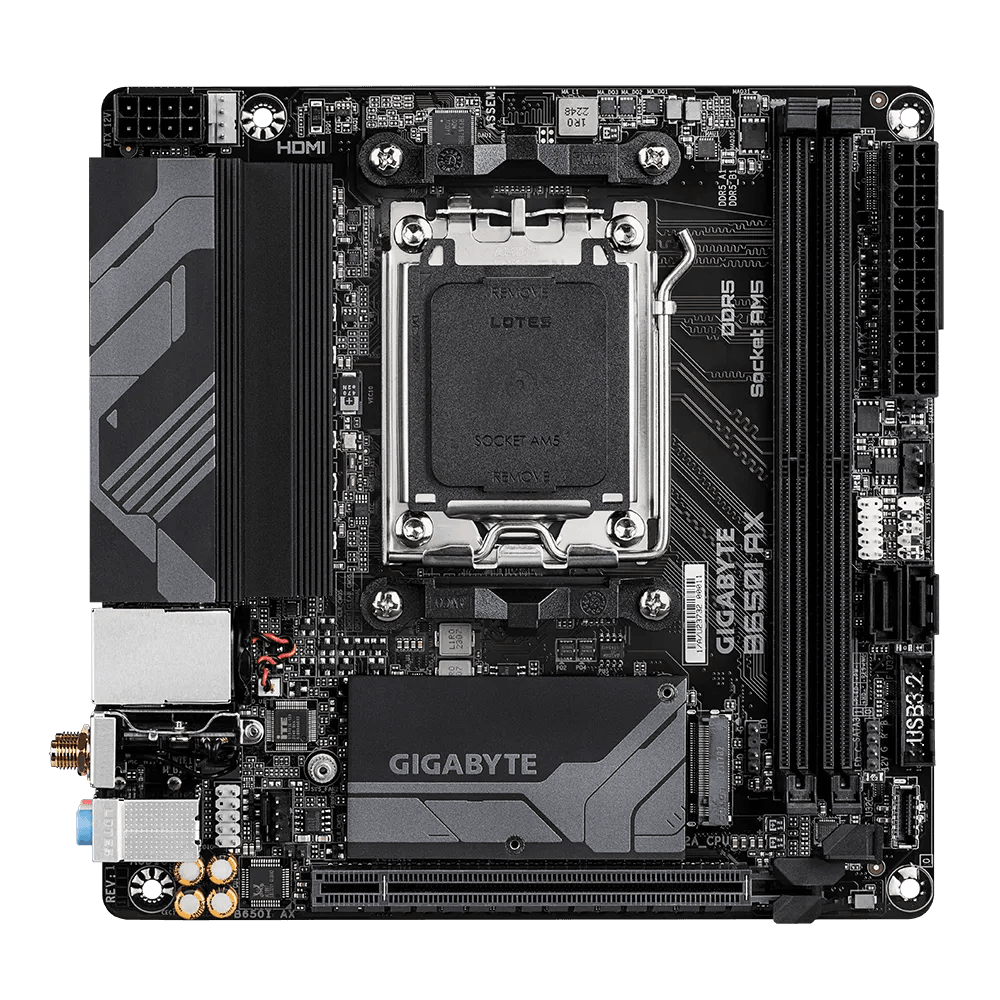

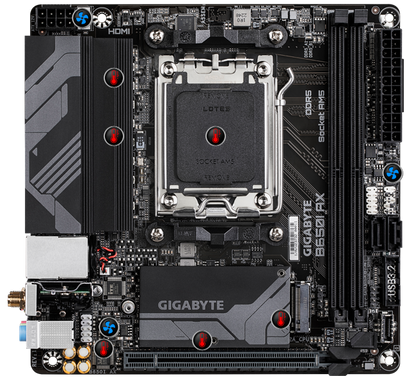

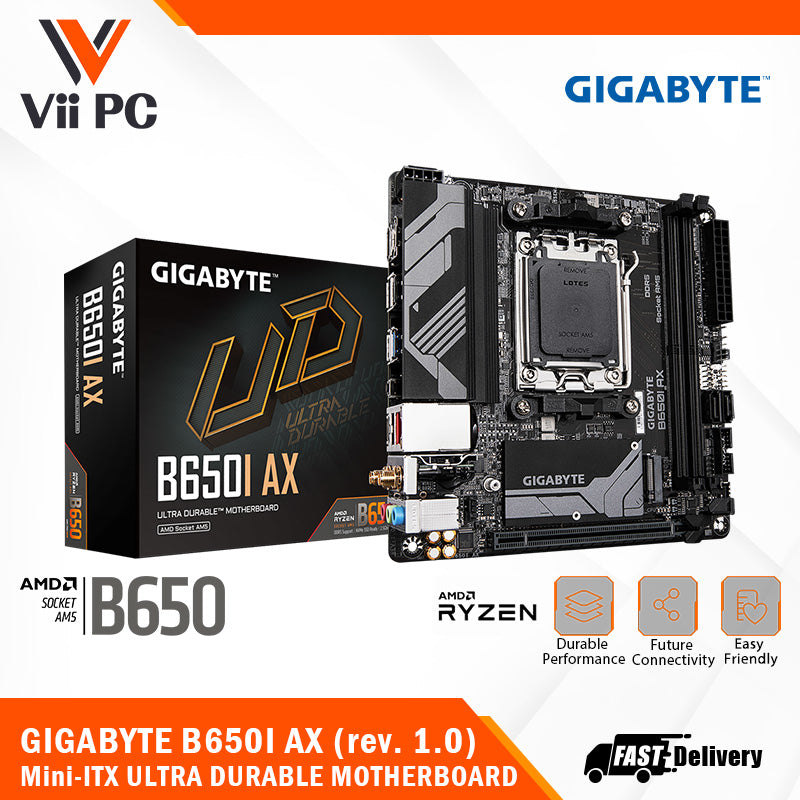

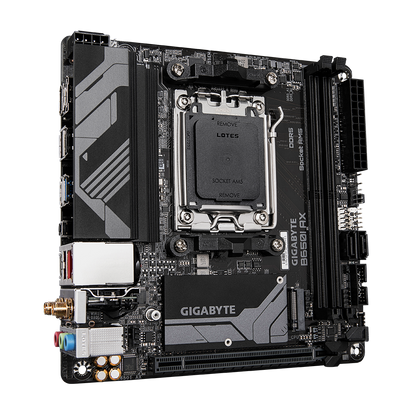

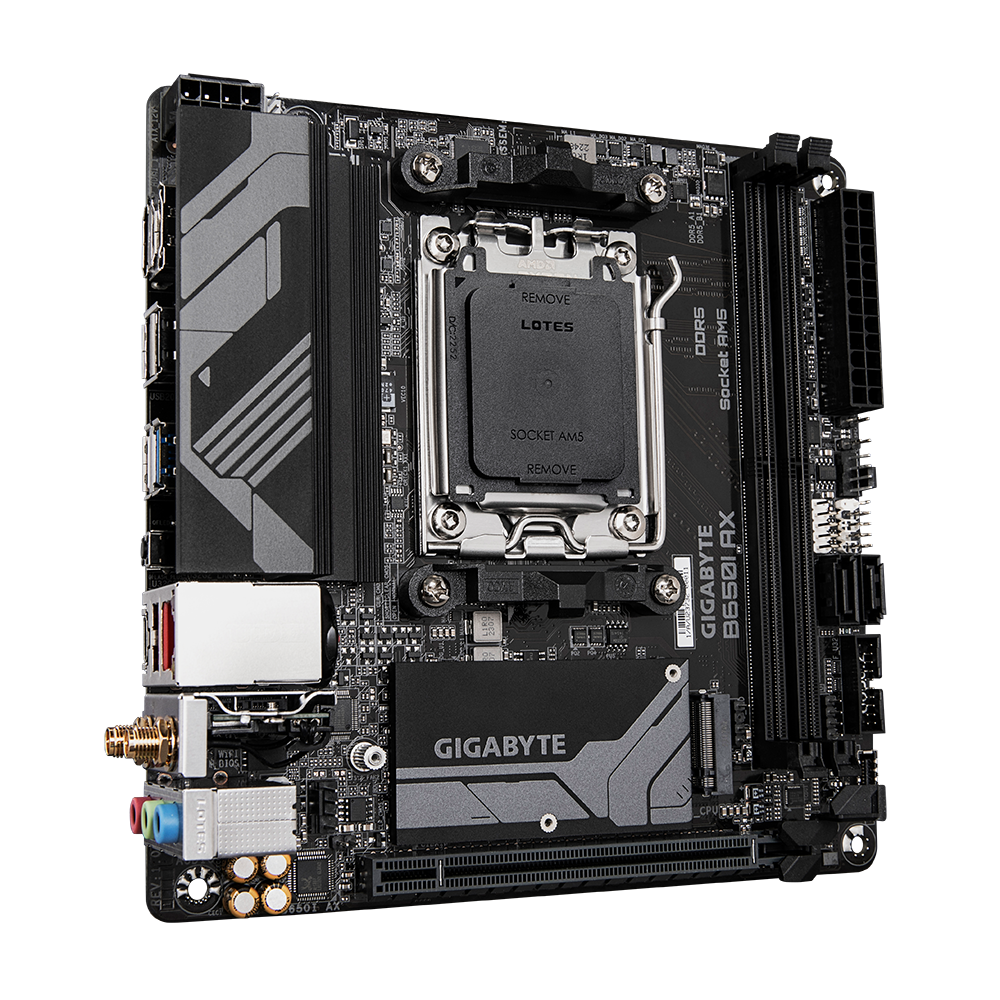

GIGABYTE B650I AX (rev. 1.0) AMD Socket AM5/Wi-Fi 6E/DDR5 Support/NVMe SSD Ready/2.5GbE LAN/ULTRA DURABLE Mini-ITX Motherboard

GIGABYTE B650I AX (rev. 1.0) AMD Socket AM5/Wi-Fi 6E/DDR5 Support/NVMe SSD Ready/2.5GbE LAN/ULTRA DURABLE Mini-ITX Motherboard

Regular price $329.00 SGD
Regular price Sale price $329.00 SGD
Sale Sold out

GIGABYTE B650I AX (rev. 1.0)

AMD Socket AM5/Wi-Fi 6E/DDR5 Support/NVMe SSD Ready/2.5GbE LAN/Realtek® Audio/PCIe 4.0 x16/DisplayPort 1.4/HDMI 2.1/HDCP 2.3 ULTRA DURABLE Mini-ITX Motherboard


(Durable Performance, Future Connectivity, Easy Friendly)

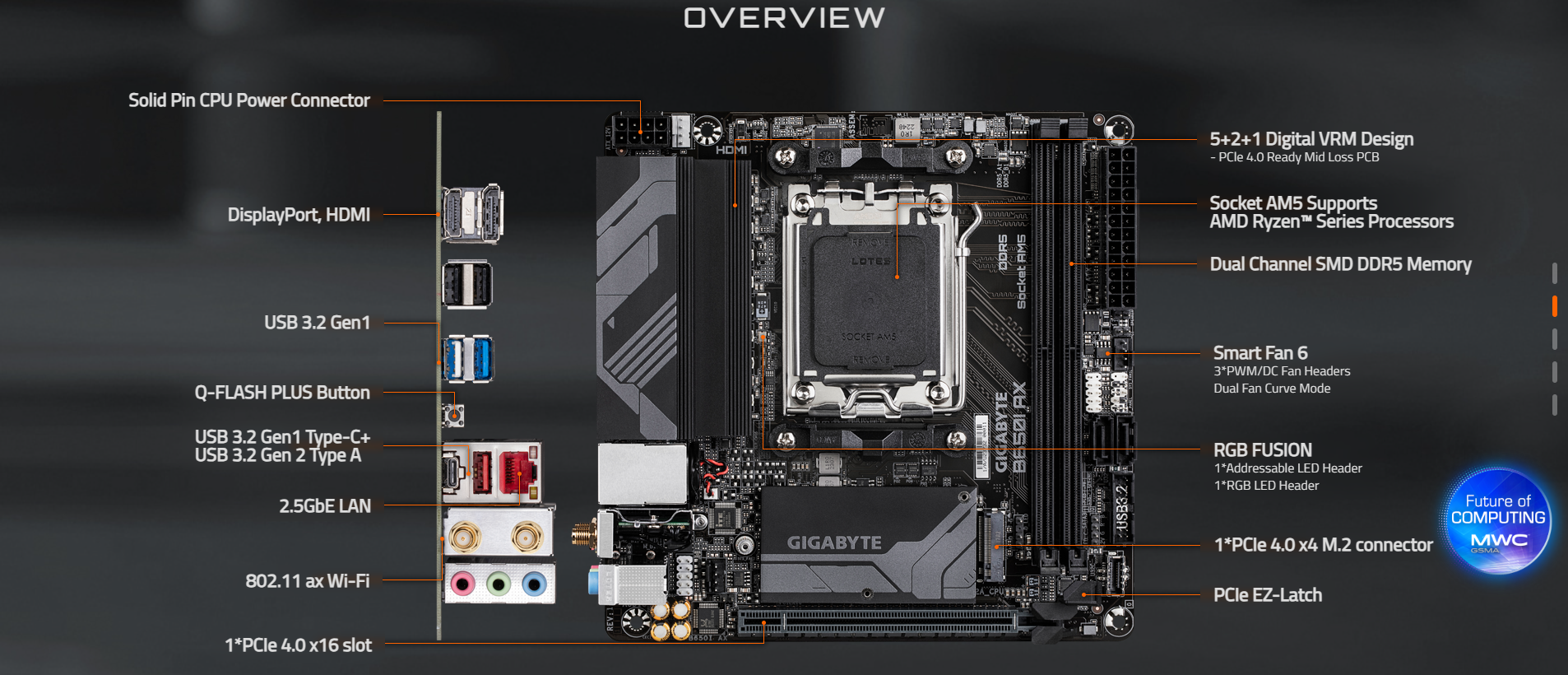

FEATURES :

  • AMD Socket AM5 : Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
  • Unparalleled Performance : 5+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5 : 2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage : PCIe 4.0 x4 M.2 Connector
  • EZ-Latch : PCIe x16 Slot with Quick Release Design
  • Fast Networks : Wi-Fi 6E 802.11ax & 2.5GbE LAN
  • Extended Connectivity : DP, HDMI

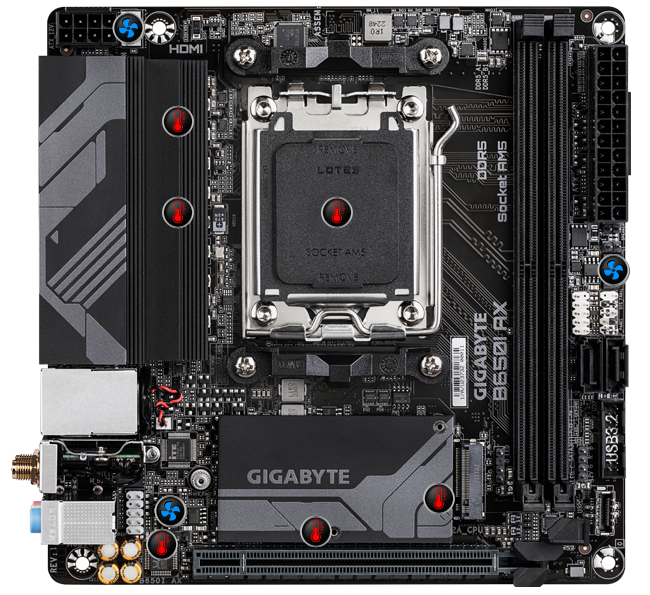

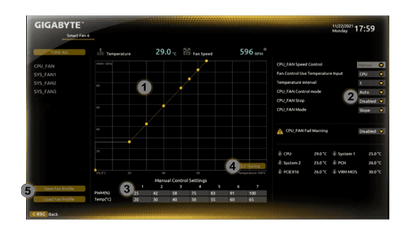

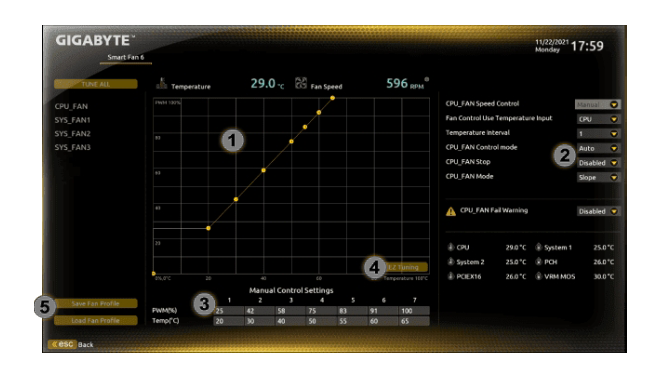

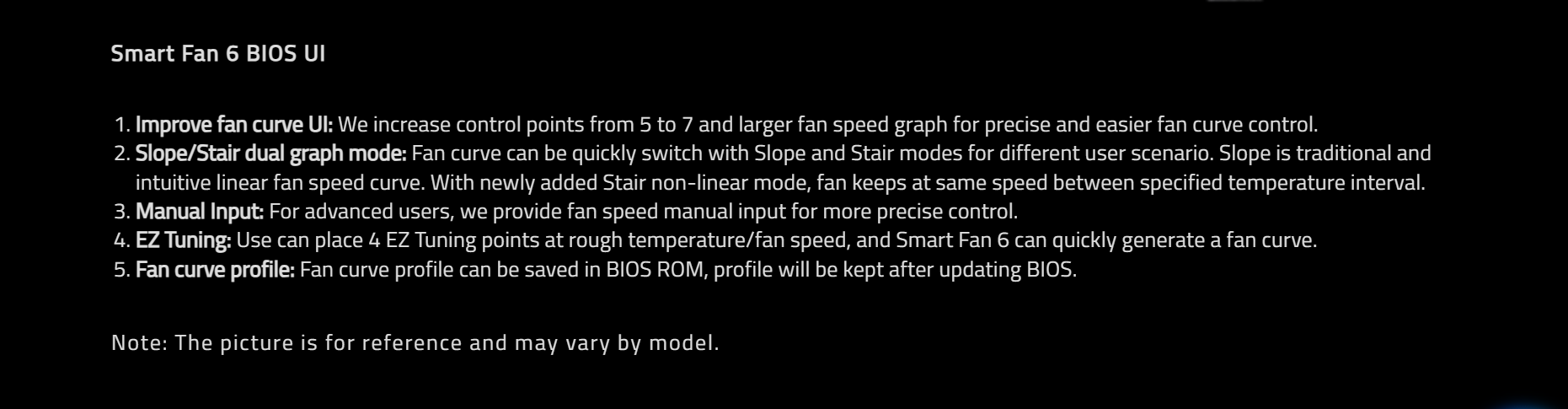

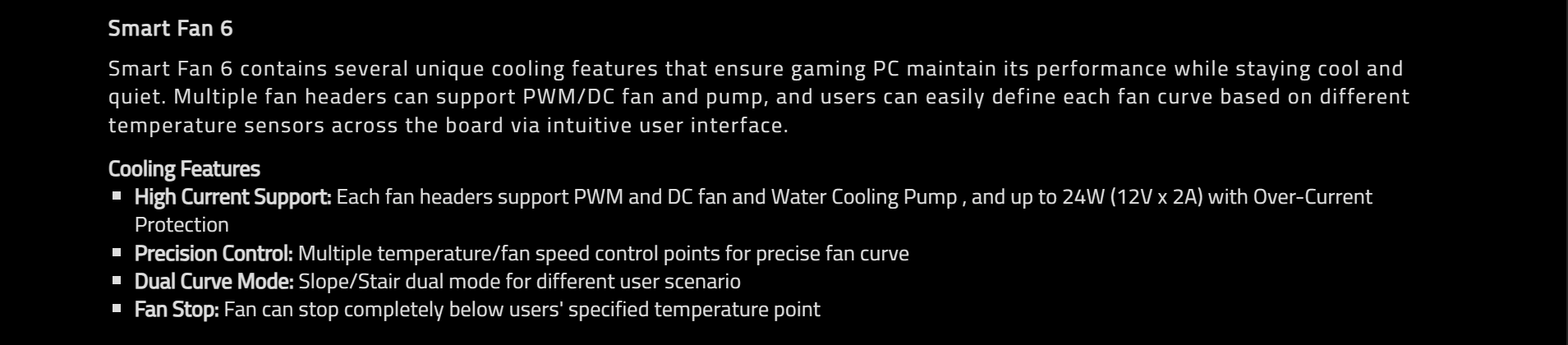

  • Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card


SPECIFICATIONS

- CPU : AMD Socket AM5, support for : AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

(Please refer "CPU Support List" for more information.)

- Chipset : AMD B650

- Memory :

 Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory

 Dual channel memory architecture

 Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

 Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

- Onboard Graphics :

Integrated Graphics Processor :

 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version.

 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

- Audio :

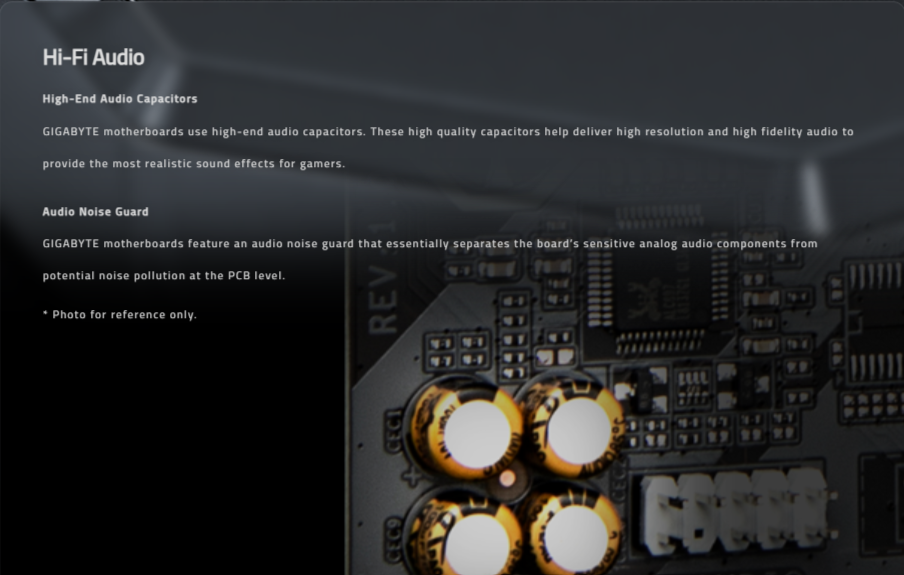

 Realtek® Audio CODEC

 High Definition Audio

 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

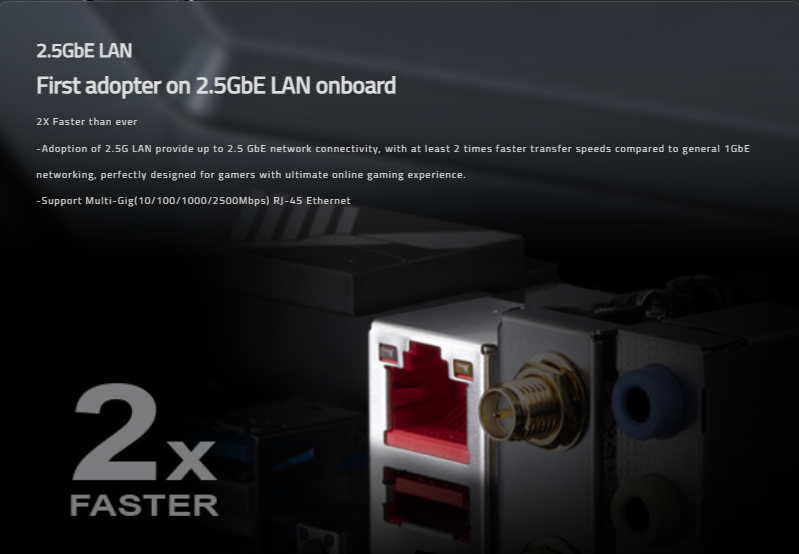

- LAN : Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

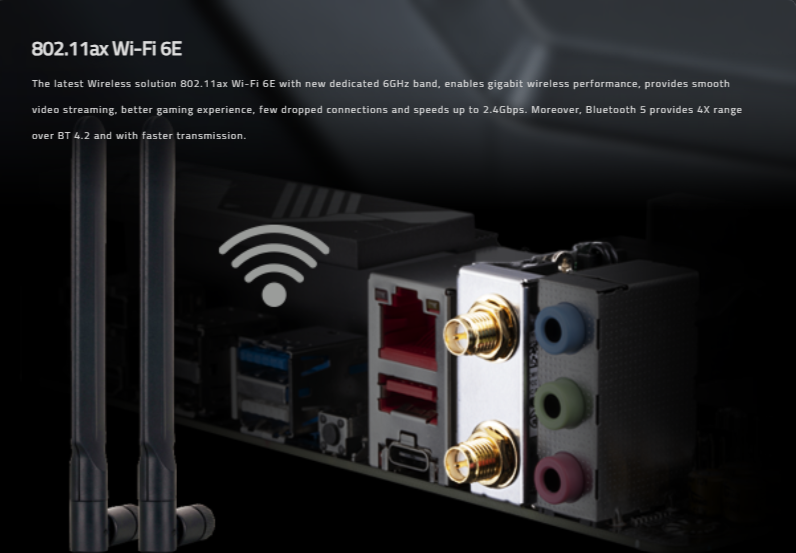

- Wireless Communication module :

Realtek® Wi-Fi 6E RTL8852CE :

 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

 BLUETOOTH 5.3

 Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

- Expansion Slots :

1 x PCI Express x16 slot, integrated in the CPU :

 AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode

 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

- Storage Interface :

1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs :

 AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x SATA 6Gb/s connectors

RAID 0 and RAID 1 support for NVMe SSD storage devices

RAID 0 and RAID 1 support for SATA storage devices

- USB :

CPU :

 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support

 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

 1 x USB 2.0/1.1 port on the back panel

Chipset :

 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)

 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- Internal I/O Connectors :

 1 x 24-pin ATX main power connector

 1 x 8-pin ATX 12V power connector

 1 x CPU fan header

 2 x system fan headers

 1 x addressable LED strip header

 1 x RGB LED strip header

 1 x M.2 Socket 3 connector

 2 x SATA 6Gb/s connectors

 1 x front panel header

 1 x front panel audio header

 1 x speaker header

 1 x USB Type-C® header, with USB 3.2 Gen 1 support

 1 x USB 3.2 Gen 1 header

 1 x USB 2.0/1.1 header

 1 x Clear CMOS jumper

 1 x chassis intrusion header

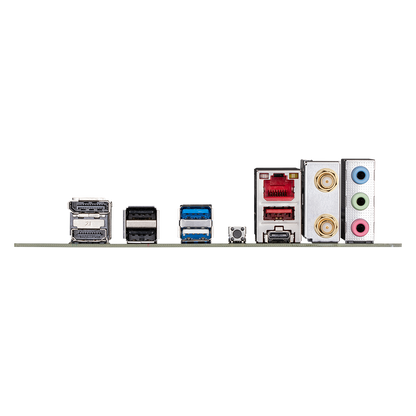

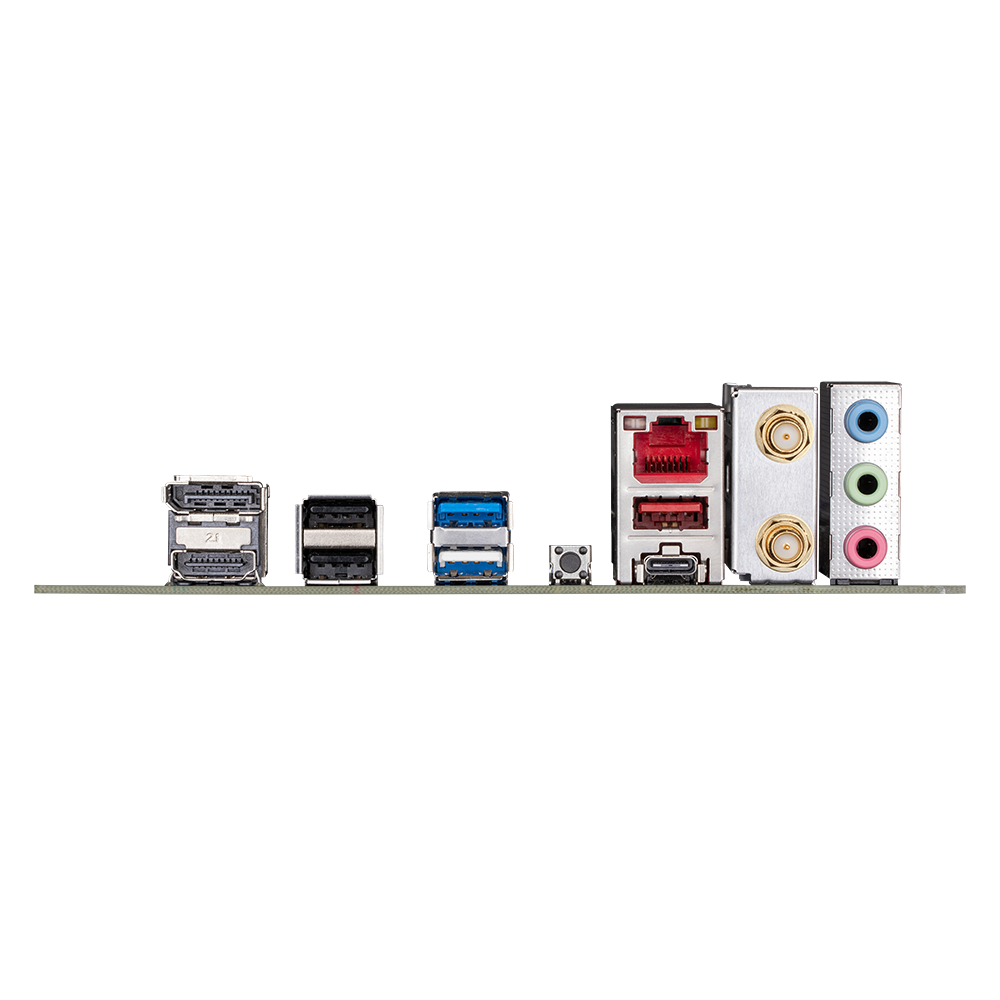

- Back Panel Connectors :

 1 x DisplayPort

 1 x HDMI port

 1 x USB Type-C® port, with USB 3.2 Gen 1 support

 1 x USB 3.2 Gen 2 Type-A port (red)

 1 x USB 3.2 Gen 1 port

 3 x USB 2.0/1.1 ports

 1 x Q-Flash Plus button

 1 x RJ-45 port

 2 x SMA antenna connectors (2T2R)

 3 x audio jacks

- I/O Controller : iTE® I/O Controller Chip

- H/W Monitoring :

 Voltage detection

 Temperature detection

 Fan speed detection

 Water cooling flow rate detection

 Fan fail warning

 Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

- BIOS :

 1 x 256 Mbit flash

 Use of licensed AMI UEFI BIOS

 PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

- Unique Features :

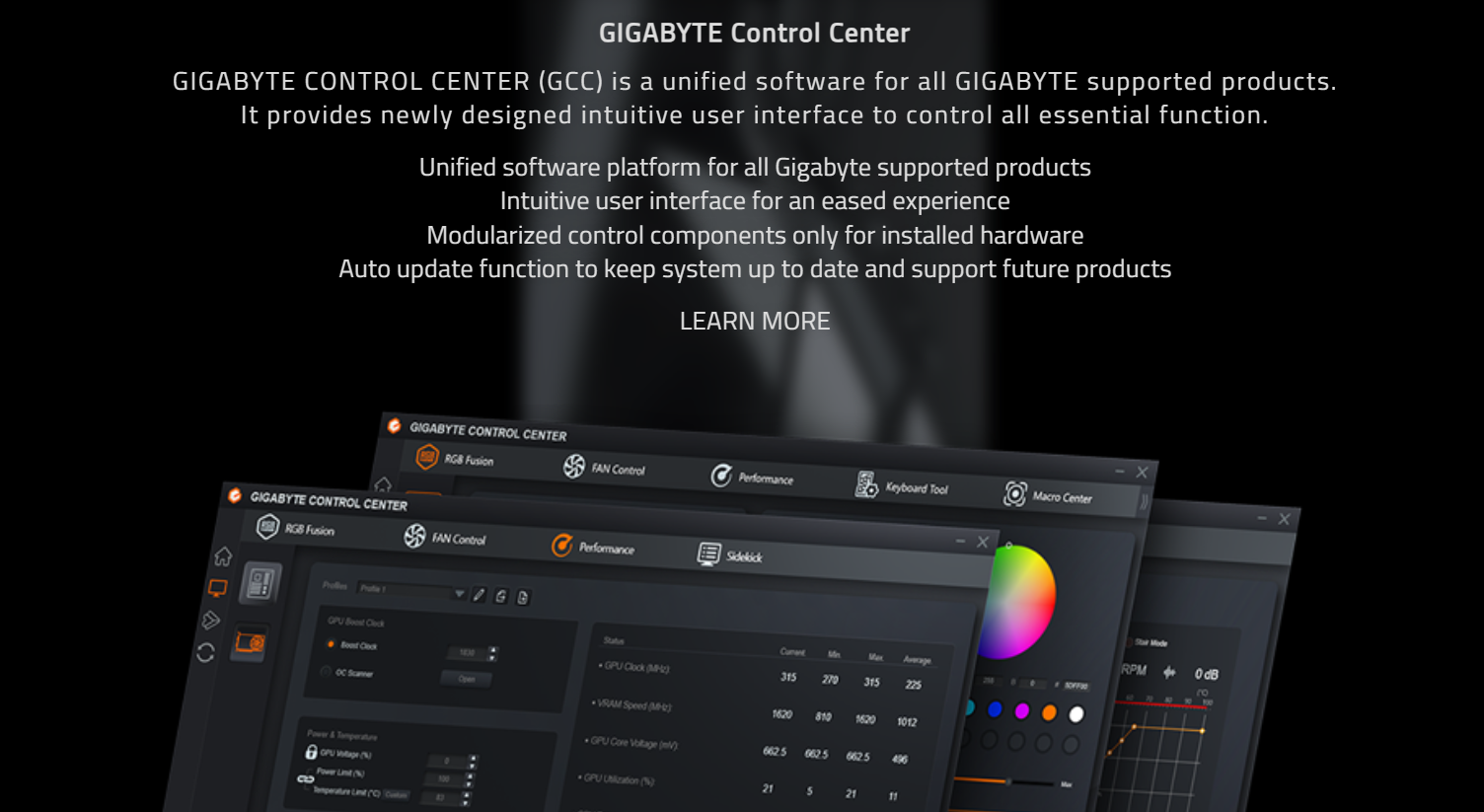

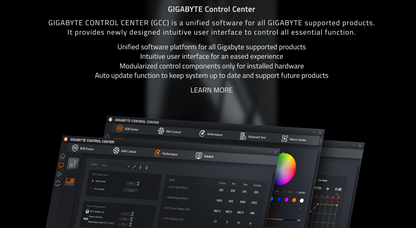

 Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

 Support for Q-Flash

 Support for Q-Flash Plus

- Bundled Software :

 Norton® Internet Security (OEM version)

 LAN bandwidth management software

- Operating System :

 Support for Windows 11 64-bit

 Support for Windows 10 64-bit

- Form Factor : Mini-ITX Form Factor; 17.0cm x 17.0cm
