DEEPCOOL CH160 Ultra-Portable Tempered Glass Full-Sized Air Cooler Support Mini-ITX CASING, BLACK/WHITE

DEEPCOOL CH160 CASE (BLACK/WHITE)

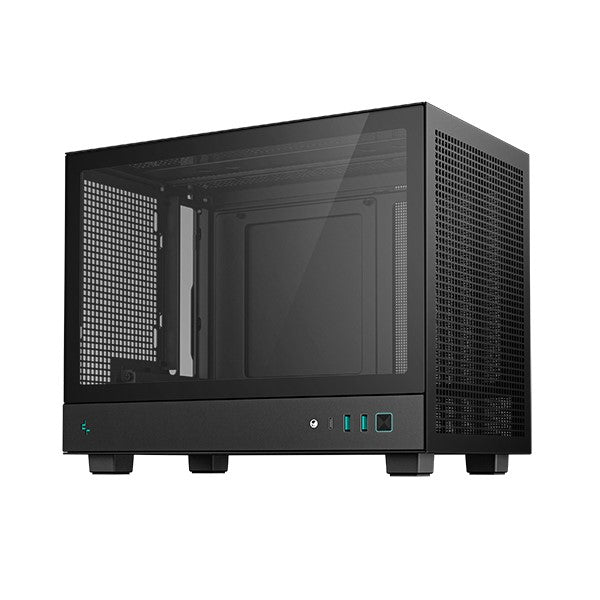

The CH160 (BLACK/WHITE) is an ultra-portable mini-ITX case that has all the hallmarks of a high-airflow DeepCool case but in a small footprint. The internal layout provides a lot of flexibility for drives and PSU options.

PREMIUM AIRFLOW: Mesh panels surround the CH160 from numerous sides and create a high-airflow environment; the ability to install up to 172mm tall air coolers also adds to it.

NO ADDED GPU LATENCY: 3-slot GPUs up to 305mm can be inserted directly into the motherboard without the aid of a rise cable.

FLEXIBLE POWER OPTIONS: Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH160 can support any of them up to 140mm.

ULTIMATE PORTABILITY: The small size of the CH160, paired with the sturdy carry handle, makes carrying your system painless.

FLEXIBLE DRIVE OPTIONS: The fan brackets are removable, and the front fan bracket can be utilized to support both an SSD and an HDD drive.

QUALITY OF LIFE IMPROVEMENTS: With 3 dust filters, 2 USB 3.0, a Type-C, and a hybrid audio port, the CH160 puts everything within arm's reach.

TECHNICAL SPECIFICATIONS

PRODUCT DIMENSIONS: 336×200×283.5mm (L×W×H)
NET WEIGHT: 3.3Kg
MATERIALS: ABS+SPCC+Tempered Glass
MOTHERBOARD SUPPORT: Mini-ITX
FRONT I/O Ports: USB3.0×2, Audio×1, Gen2 Type-C×1

3.5" DRIVE BAYS: 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three)
2.5" DRIVE BAYS: 1 (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three)

EXPANSION SLOTS: 3 Slots
PRE-INSTALLED FANS: None

FAN SUPPORT
• Front: 1×120 mm (2.5 SSD / 3.5 HDD / Front 120 FAN: Choose one of the three)
• Top: 2×120mm
• Rear: 1×120mm

RADIATOR SUPPORT: None
CPU COOLER HEIGHT LIMIT: 172mm

GPU SIZE LIMIT
• Length: SFX/SFX-L: 305mm / ATX: 230mm
• Height: 138mm
• Width: 65mm (3 Slots)

POWER SUPPLY TYPE: ATX PS2 (maximum length: 140mm) / SFX / SFX-L

EAN: 6933412774457 (BLACK) / 6933412774440 (WHITE)
P/N: R-CH160-BKNGI0-G-1 (BLACK) / R-CH160-WHNGI0-G-1 (WHITE)
