Next Gen Dual Chamber Pump: Patented Next Gen dual chamber design refined for enhanced cooling synergy. Increased water pressure and optimized flow targeted directly at CPU hot spots.
Customize Your Pump Design: Personalize the pump top cover with your own unique 3D design. Create a one-of-a-kind design along with full control of Addressable Gen 2 RGB lighting.
Sickleflow Edge: Latest Sickleflow Edge 120mm fans pre-installed for superior cooling and a simpler streamlined user installation.
Fine Tuned Performance Ration: Precision-engineered ultra-thin spade fins have been designed to maximize microchannels, ensuring precise targeting of heat spots.
Going Green: Pump cover crafted from recycled plastics and 35% of metal components recyclable as well. 30% smaller packaging constructed with sustainable materials sets the Atmos as an eco-pioneer.
SPECIFICATIONS
PRODUCT NUMBER

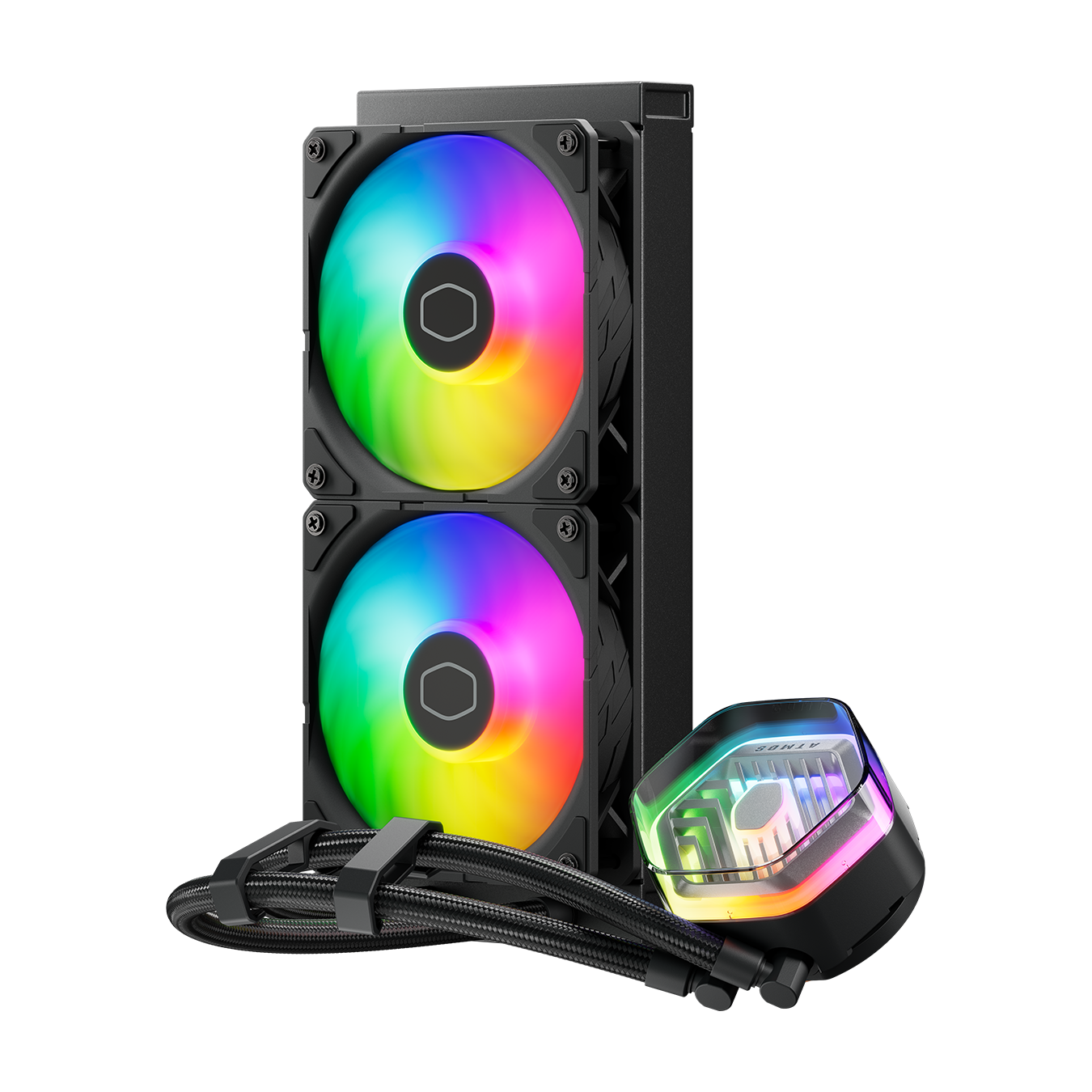

• MLX-D24M-A25PZ-R1 (240mm)
• MLX-D36M-A25PZ-R1 (360mm)
EXTERIOR COLOR: Black
CPU SOCKET: LGA1700, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4
RADIATOR MATERIAL: ALUMINUM
RADIATOR DIMENSIONS
• 240mm : 277 x 119.6 x 27.2 mm /10.9 x 4.7 x 1.1 inch
• 360mm : 394 x 119 x 27.2 mm / 15.5 x 4.7 x 1.1 inch
PUMP DIMENSIONS: 84.9 x 81 x 53.15 mm / 3.3 x 3.2 x 2.1 inch
PUMP MTTF: >210,000 Hours
PUMP NOISE LEVEL: 25 dBA (Max)
PUMP CONNECTOR: 4-Pin
PUMP RATED VOLTAGE: 12 VDC
PUMP POWER CONSUMPTION: 3.84W
FAN DIMENSIONS (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
