ASUS ZenScreen MB14AC Portable USB Monitor - 14" IPS FHD, Hybrid Signal Solution, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare, Foldable Smart case, Eye Care technology, Lightweight

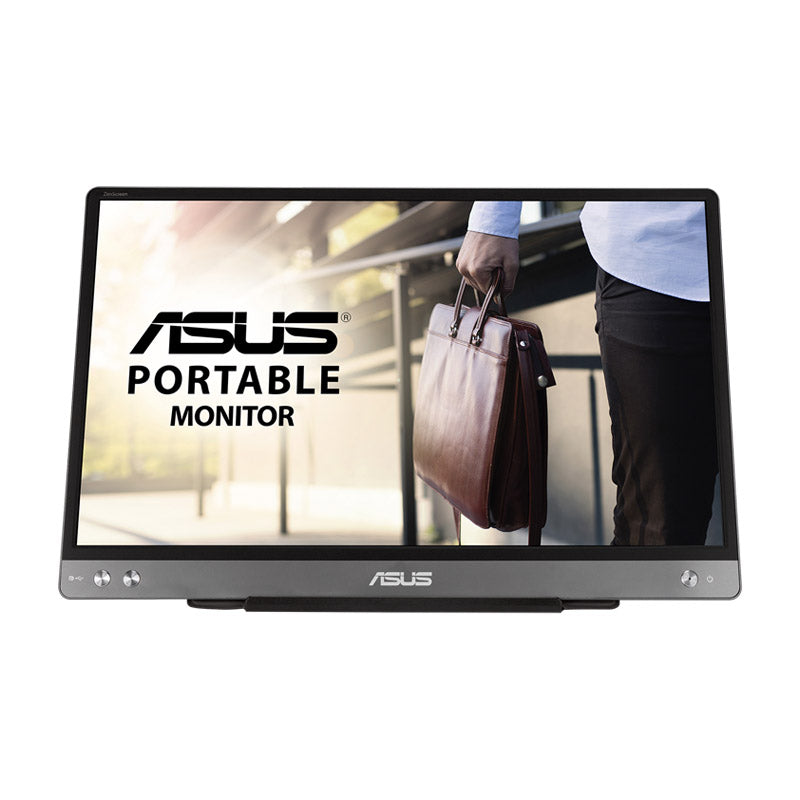

ASUS ZenScreen MB14AC Portable USB Monitor

Extend your vision. Free your world.

ASUS ZenScreen™ MB14AC is designed to keep you productive, wherever you are. It‘s the portable monitor with a hybrid USB-C signal solution(DP Alt mode+ USB 3.0), which means that it only needs a single USB-C cable for both power and video transmission. With a slim 9mm profile, and weighing just 0.59kg, ZenScreen MB14AC is also a compact 14-inch companion monitor to meet different needs for laptop users.

ASUS ZenScreen MB14AC Portable USB Monitor- 14 inch, IPS Full HD, Hybrid Signal Solution, USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface

• Features a hybrid-signal solution that supports power and video transmission, and enables compatibility with any laptop with a USB Type-C or Type A port
• Can automatically sense its orientation and switch the monitor between landscape and portrait modes
• 14-inch Full HD portable anti-glare IPS display with an ultra-slim design helps you get things done more efficiently when you’re on the go
• Foldable smart case can be turned into a stand to prop the monitor up in either portrait or landscape mode
• ASUS Eye Care monitors feature TÜV Rheinland-certified Flicker-free and Low Blue Light technologies to ensure a comfortable viewing experience



Hybrid-signal solution: USB Type-A and Type-C support

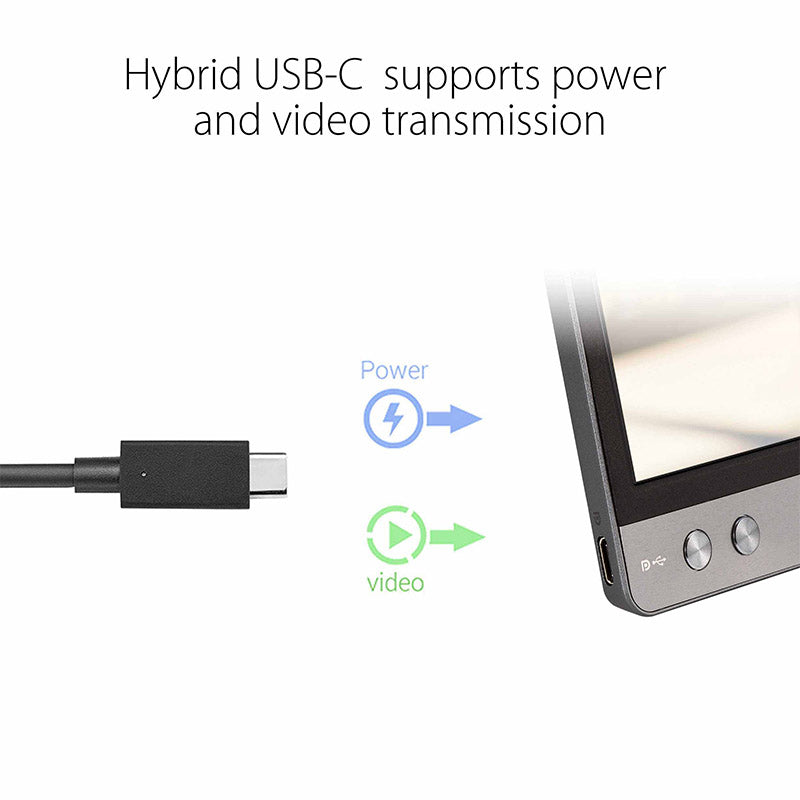

ZenScreen™ MB14AC only requires a single USB connection for both power and video transmission from your host device. It features an innovative hybrid-signal solution with native support for USB Type-C™ (USB-C™) connections, and uses an installed driver* to support USB Type-A connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.

^{*DisplayLink driver required for hybrid-signal connections via USB Type-A.}

Slim and stylish ultraportable design

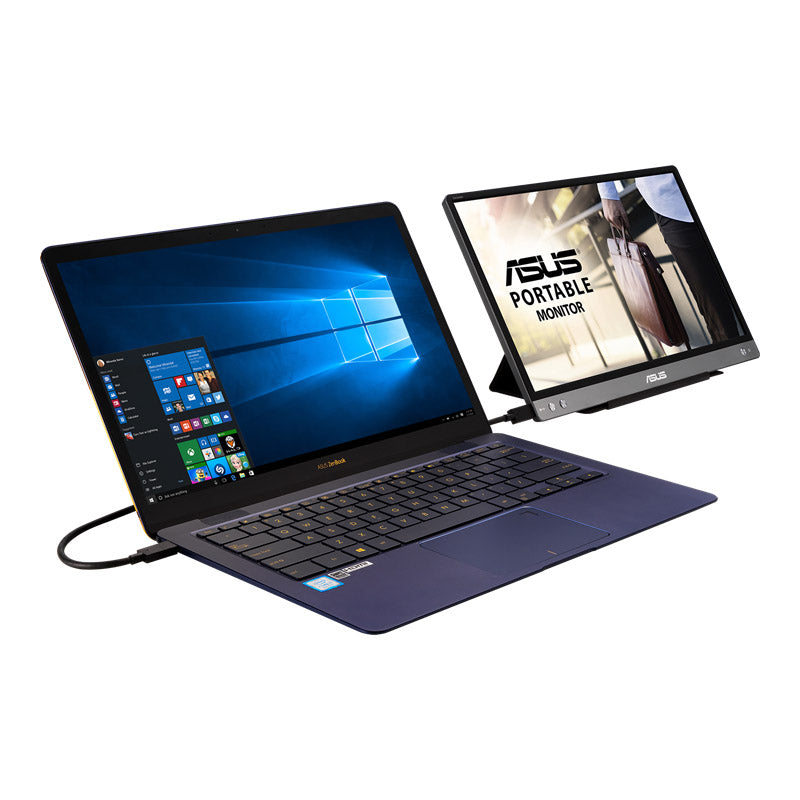

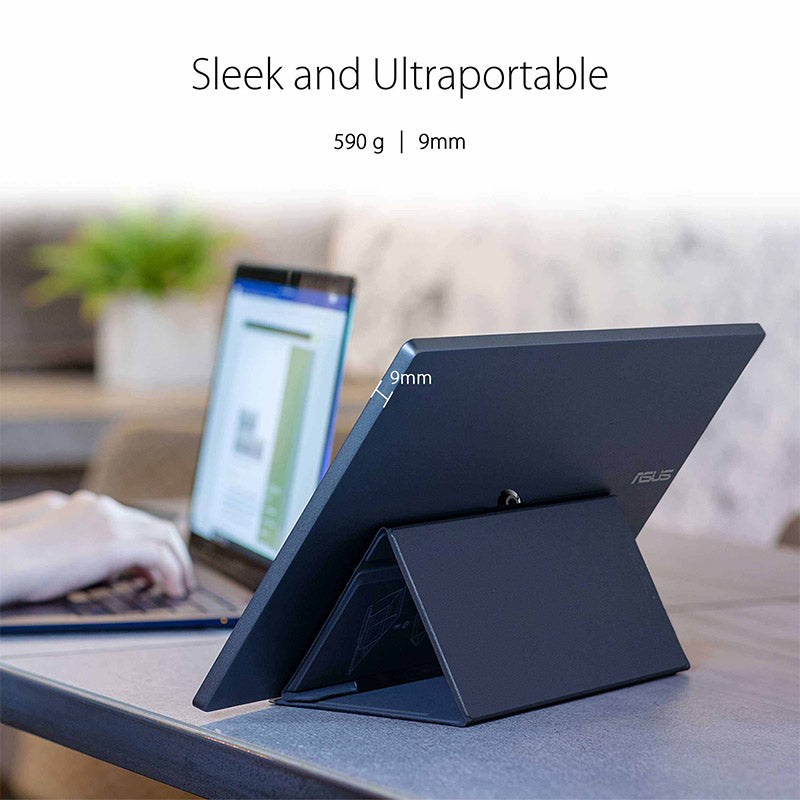

ZenScreen™ MB14AC is ideal for use as a secondary monitor for dual-monitor presentations, and its versatility helps you get things done more efficiently when you're on the go. It barely tips the scales at a lightweight 590g, and with its ultra-slim 9mm profile it fits easily in any travel bag.

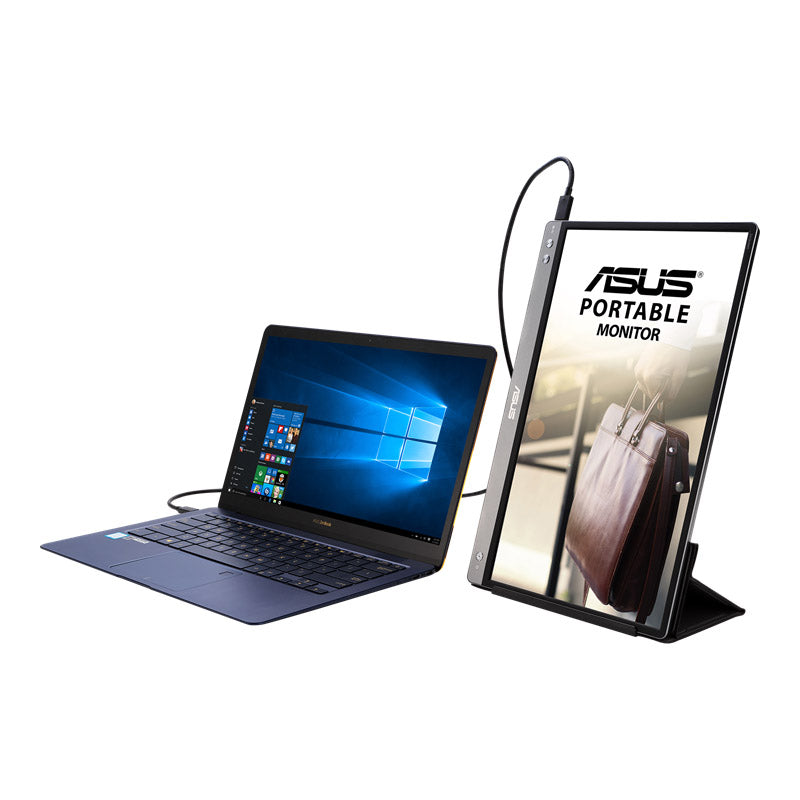

Automatic screen orientation

With DisplayWidget software*, ZenScreen™ MB14AC can automatically sense its orientation and switch the monitor between landscape and portrait modes. Landscape mode is ideal for presentations and Excel sheets, while Portrait mode gives you a perfect view of items such as codes, documents, books or mobile websites.

^{*Driver required. Auto Rotate function only works with Windows OS}

Wide viewing angles

ZenScreen™ MB14AC features a Full HD panel that delivers stunning 1920 x 1080 resolution visuals with outstanding color reproduction. It uses IPS technology to give you more flexibility when extending your screen, so you still get superb color and contrast - even from extreme viewing positions.

Designed with versatility

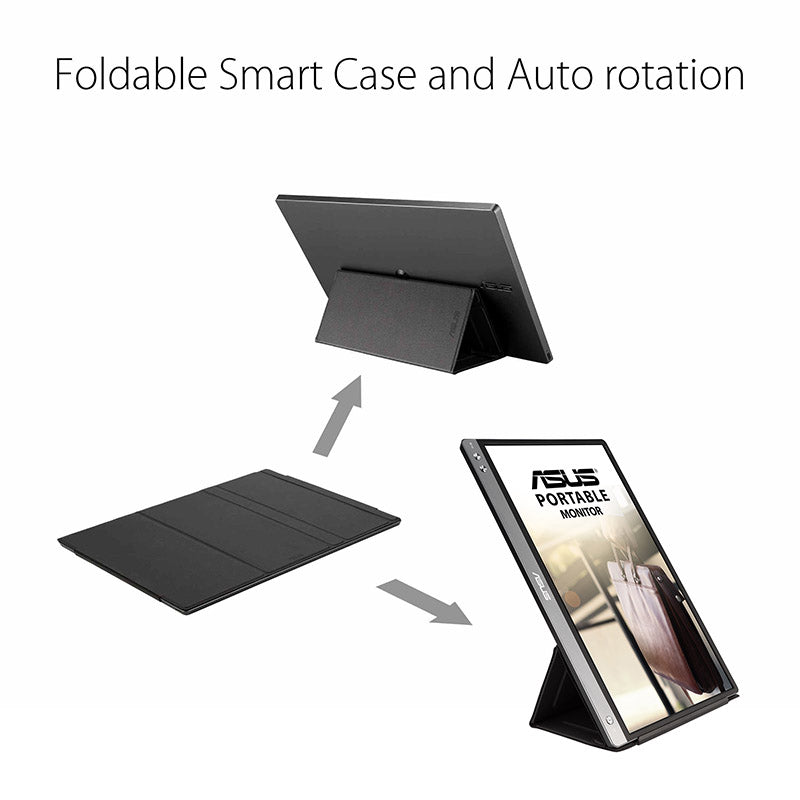

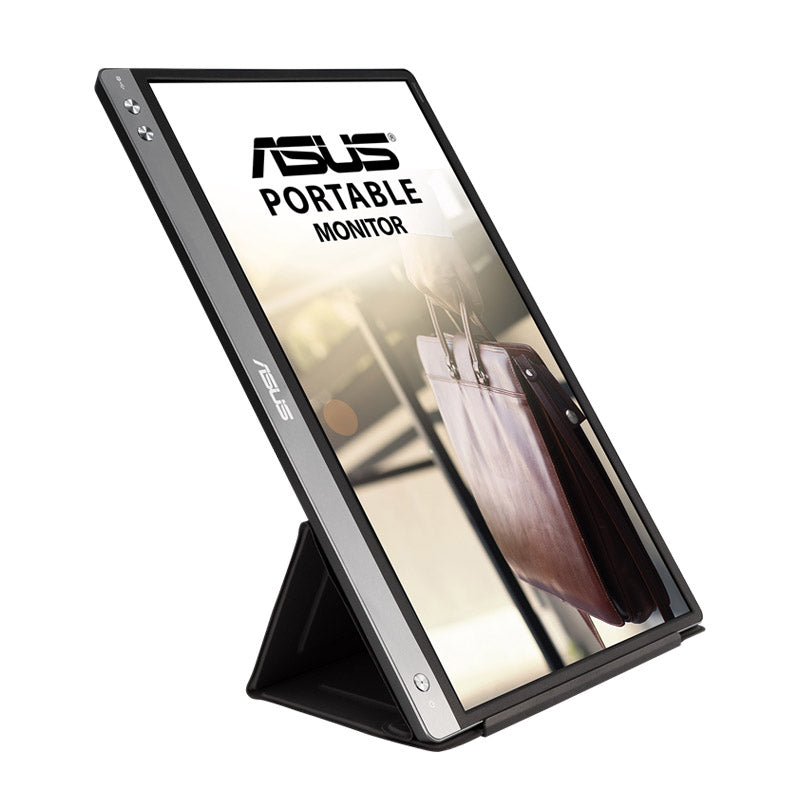

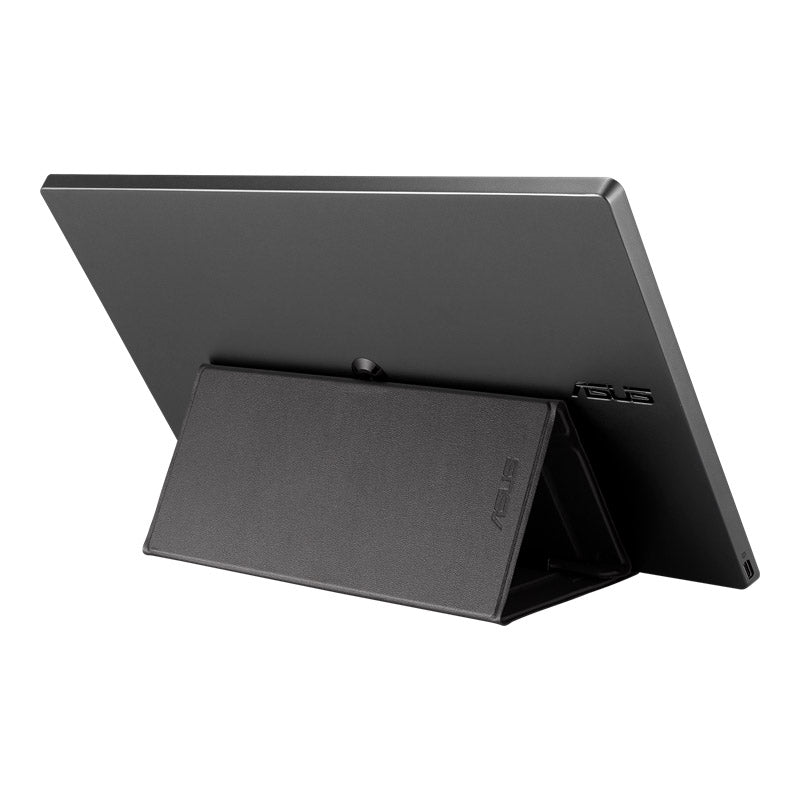

The new foldable smart case protects ZenScreen™ MB14AC from dust and scratches with lighter weight. The case can be folded into a stand to prop the monitor up in either portrait or landscape orientation. Besides, the exclusively designed mounting hole on the rear cover, which supports standard 1/4 “ screw thread, lets you assemble a conventional tripod or tabletop mounting system with ease.

Protect your eyes with ASUS Eye Care technology

• ASUS Blue Light Filter / ASUS Flicker-free technology


SPECIFICATIONS

Model: ZenScreen MB14AC

Display

• Panel Size (inch) : 14
• Aspect Ratio : 16:9
• Display Viewing Area (H x V) : 309.312 x 173.99 mm
• Display Surface : Non-Glare
• Backlight Type : LED
• Panel Type : IPS
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Pixel Pitch : 0.160mm
• Resolution : 1920x1080
• Brightness (Typ.) : 250cd/㎡
• Contrast Ratio (Typ.) : 700:1
• Display Colors : 16.7M
• Response Time : 5ms(GTG)
• Refresh Rate (Max) : 60Hz
• Flicker-free : Yes



Video Feature

• Trace Free Technology : Yes
• SPLENDID Technology : Yes
• Color Temp. Selection : Yes (4 modes)
• QuickFit : Yes
• Low Blue Light : Yes



Audio Feature

• Speaker : No



I/O Ports

• USB-C x 1 (DP Alt Mode & USB 3.2)



Power Consumption

• Power Consumption : 4.8 W
• Power Saving Mode : <0.5W
• Power Off Mode : <0.5W
• Voltage : DC: 5V, 3A



Mechanical Design

• Height Adjustment : No
• 1/4" Tripod Socket : Yes



Dimensions (Esti.)

• Phys. Dimension (W x H x D) : 32.49 x 20.80 x 0.90 cm (12.79" x 8.19" x 0.35")
• Box Dimension (W x H x D) : 39.20 x 7.70 x 25.70 cm (15.43" x 3.03" x 10.12")



Weight (Esti.)

• Net Weight : 0.59 kg (1.30 lbs)
• Gross Weight : 1.3 kg (2.87 lbs)

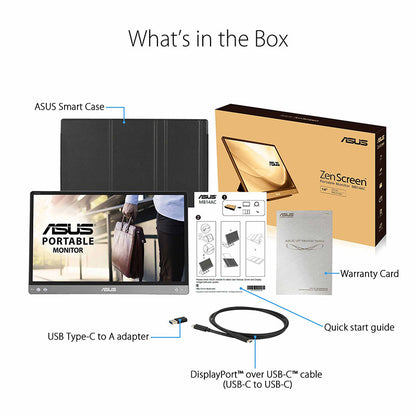

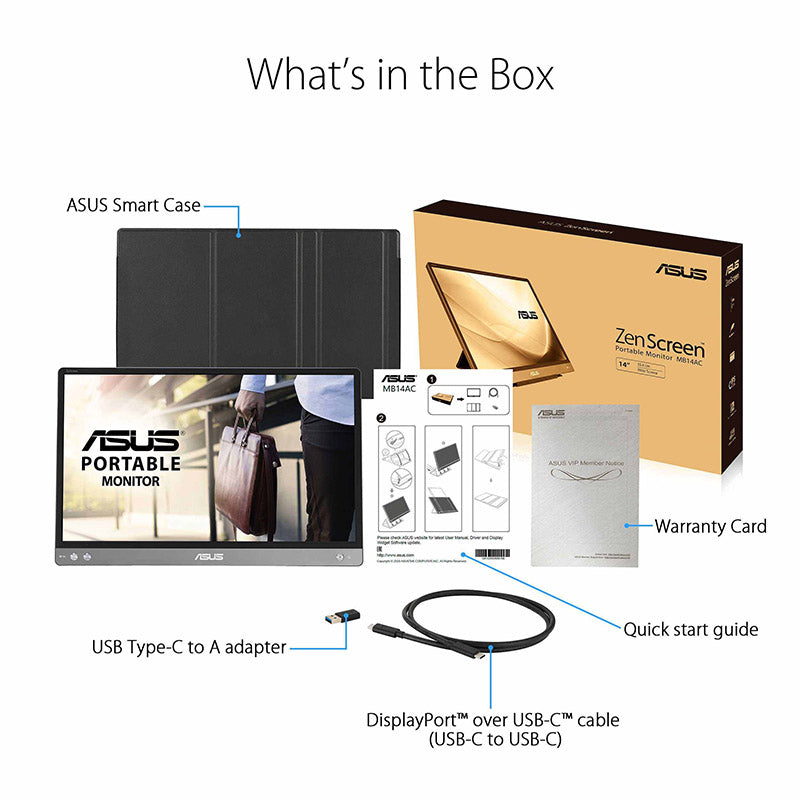

Accessories (vary by regions)

• ASUS Smart Case
• Quick start guide
• USB-C cable
• Warranty Card



Certificate

• TÜV Flicker-free
• TÜV Low Blue Light
