ASUS ZenScreen MB166B Portable USB Monitor- 16" (15.6" viewable) FHD, IPS, USB 3.2, Eye Care monitor, Anti-glare surface, ZenScreen sleeve

ASUS ZenScreen MB166B Portable USB Monitor

ASUS ZenScreen MB166B Portable USB Monitor- 16 inch (15.6 inch viewable) Full HD, IPS, USB 3.2, Anti-glare surface

• 15.6-inch portable USB-powered monitor with a single USB 3.2 cable for power and video signal transmission
• Anti-glare IPS display with an ultra-slim design helps you get things done more efficiently when you’re on the go

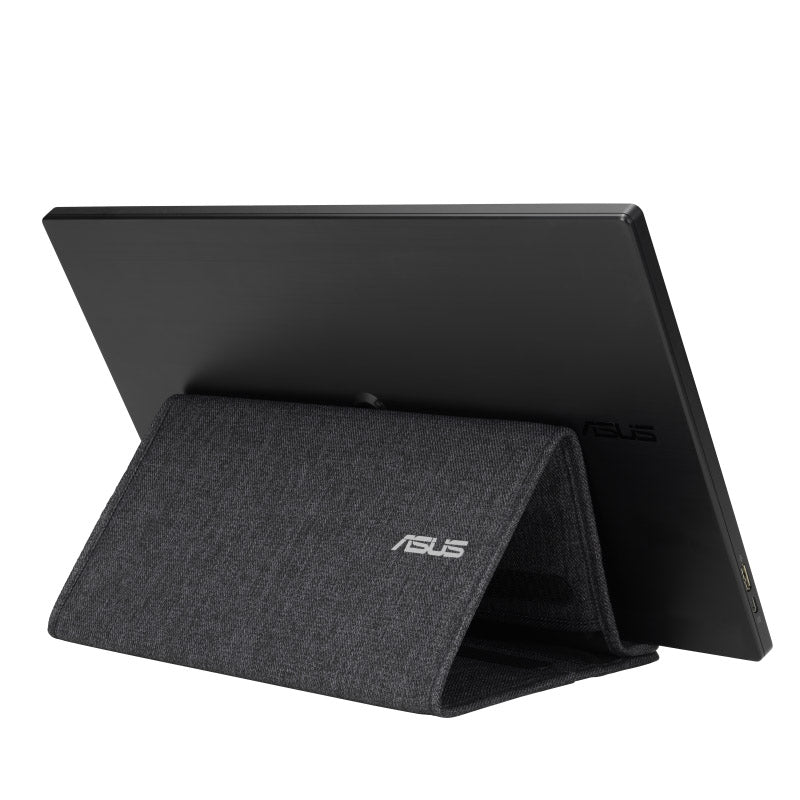

• User-friendly design with embedded tripod socket on the rear and foldable sleeve for versatility
• Can automatically sense its orientation and switch the monitor between landscape and portrait modes



Sleek and portable design

ASUS ZenScreen™ MB166B is ideal for life on the road. This sleek portable display weighs just 0.78kg and has an 11.8 mm slim profile, so it fits easily in any travel bag and is ready for productivity, anytime and anywhere.

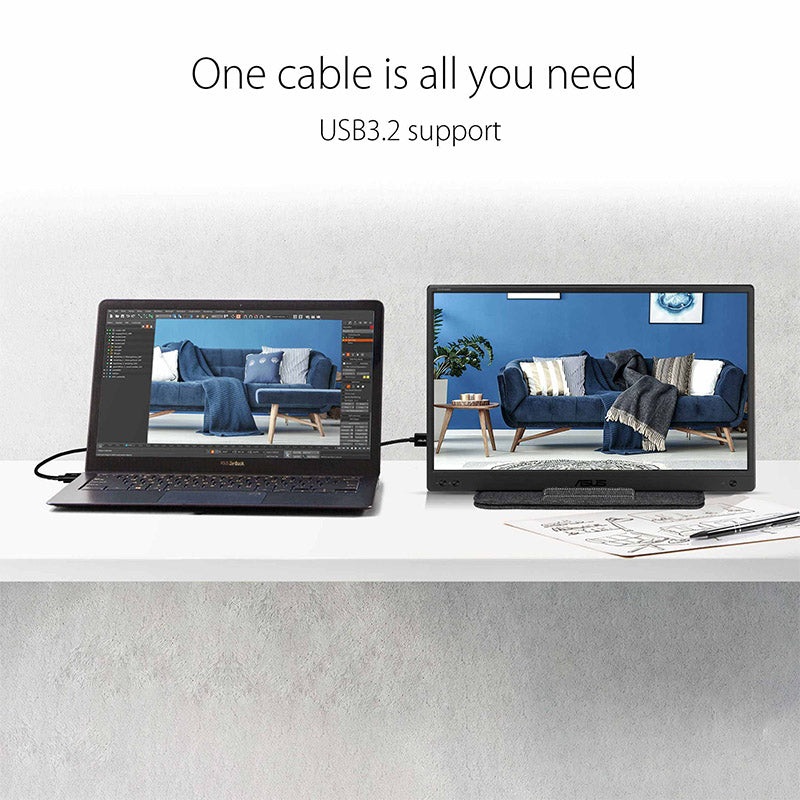

One Cable is all you need

ZenScreen™ MB166B portable USB-powered monitor needs just one USB cable for both its video signal* and power, to be fully compatible with almost any laptop.

^{*Please install the USB Monitor Driver first prior to using it. Then connect the upper micro B USB 3.0 port for video connection with MB166B by inbox cable.}

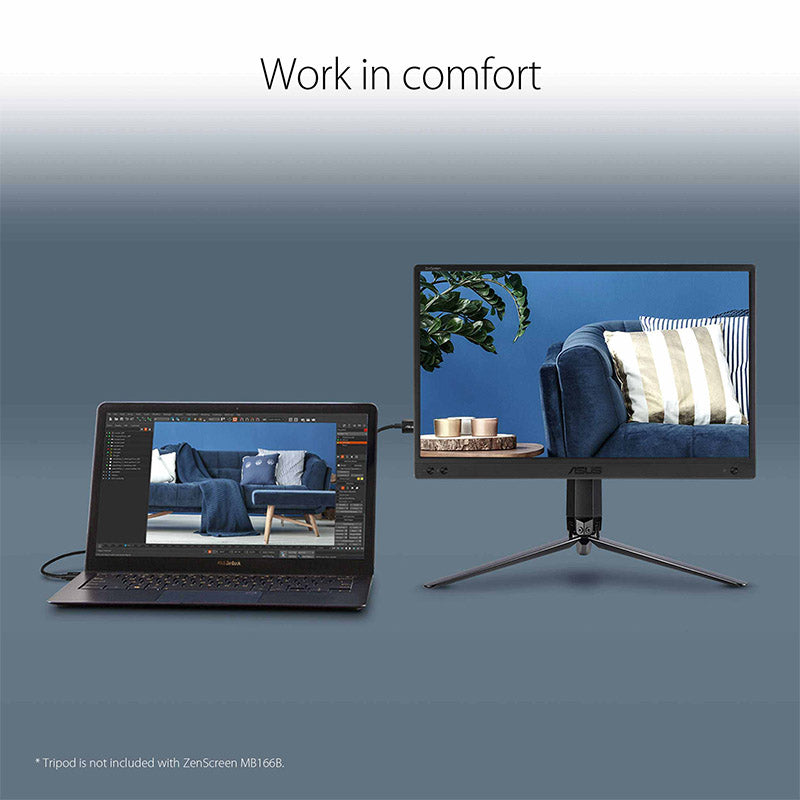

Work in comfort

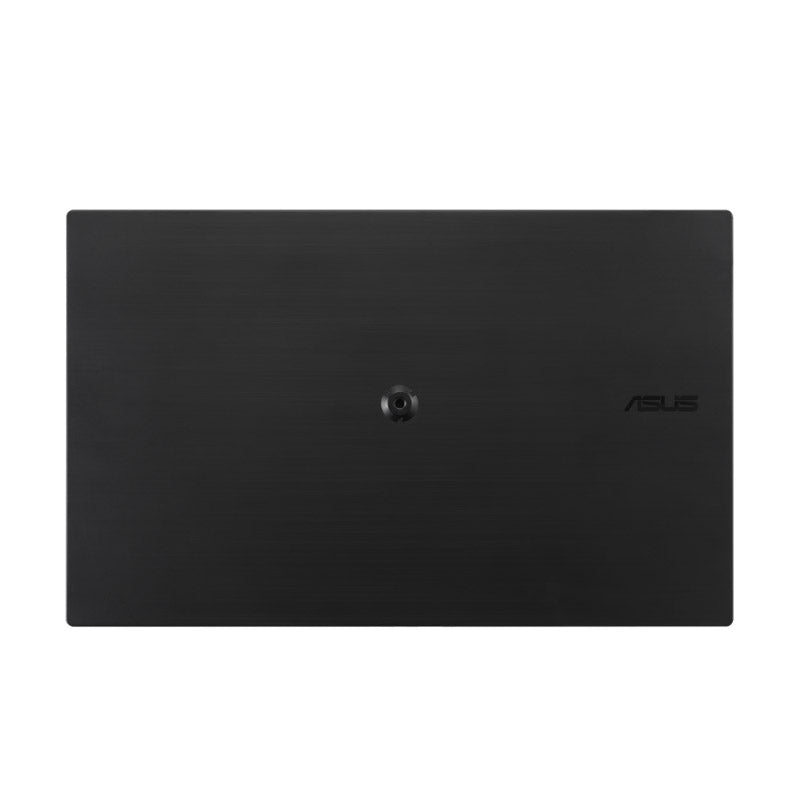

A ¼”-threaded hole at the rear of the monitor lets you to attach ZenScreen MB166B to a conventional tripod* or table-mount easily.

^{*Tripod is not included with ZenScreen MB166B.}

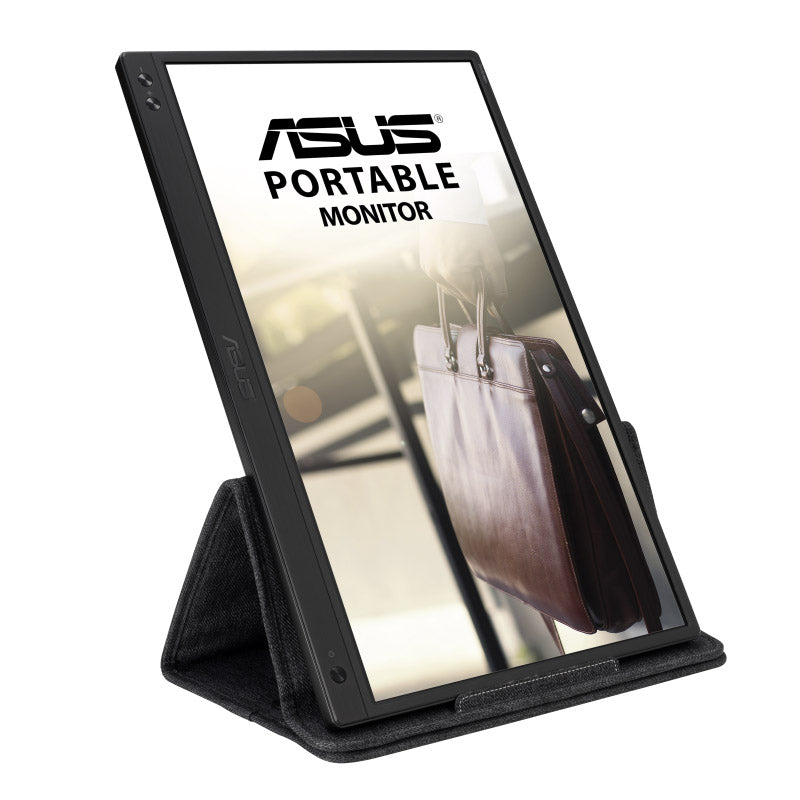

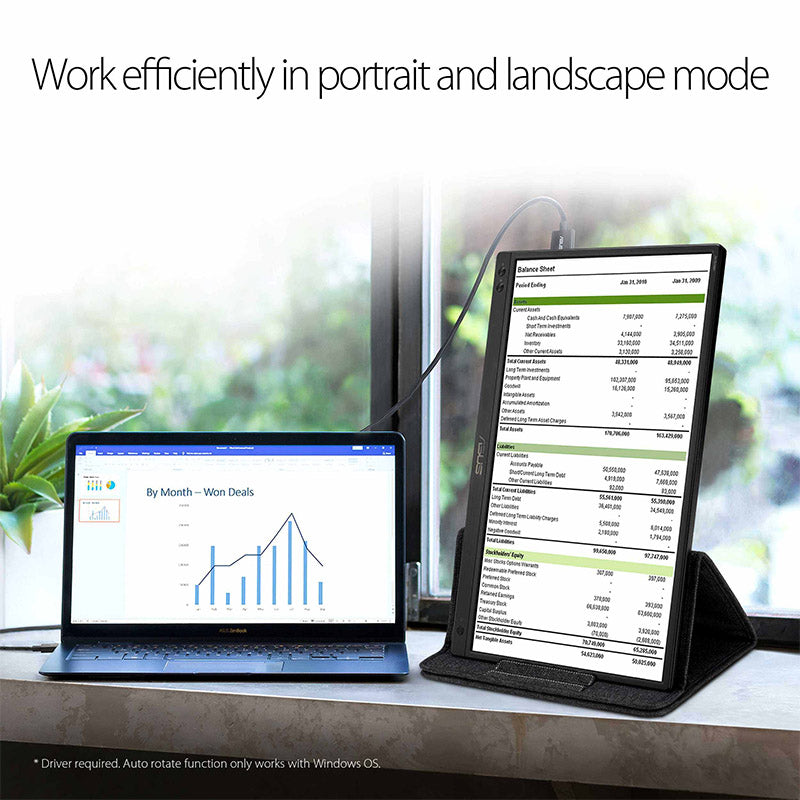

Work efficiently in portrait and landscape modes

With ASUS DisplayWidget software*, ZenScreen MB166B can automatically sense its orientation and switch the display between landscape and portrait modes while connected to your laptop. Landscape mode is ideal for presentations and spreadsheets, while Portrait mode gives you a perfect view of items such as documents, books or websites.

^{*Driver required. Auto Rotate function only works with Windows OS}

Extend your workspace

The FHD (1920 x 1080) IPS panel delivers stunning visuals and 178° viewing angles, ensuring you get superb color and contrast even when viewing the screen from off-center positions.

SPECIFICATIONS

Model: ZenScreen MB166B

Display

• Panel Size (inch) : 15.6
• Aspect Ratio : 16:9
• Display Viewing Area (H x V) : 344.16 x 193.59mm
• Display Surface : Non-Glare
• Backlight Type : LED
• Panel Type : IPS
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Pixel Pitch : 0.179mm
• Resolution : 1920x1080
• Brightness (Typ.) : 250cd/㎡
• Contrast Ratio (Typ.) : 1000:1
• Display Colors : 262K
• Response Time : 25ms (Tr+Tf)
• Refresh Rate (Max) : 60Hz



I/O Ports

• USB 3.2 (Signal) : x 1



Signal Frequency

• Digital Signal Frequency : USB: 60Hz



Power Consumption

• Power Consumption : 5 W
• Power Saving Mode : <0.5W
• Power Off Mode : <0.3W
• Voltage : DC: 5V, 3A



Mechanical Design

• 1/4" Tripod Socket : Yes



Dimensions (Esti.)

• Phys. Dimension without Stand (W x H x D) : 36.01 x 22.56 x 1.18 cm (14.18" x 8.88" x 0.46")
• Box Dimension (W x H x D) : 43.40 x 29.00 x 7.60 cm (17.09" x 11.42" x 2.99")



Weight (Esti.)

• Net Weight without Stand : 0.78 kg (1.72 lbs)
• Gross Weight : 1.65 kg (3.64 lbs)

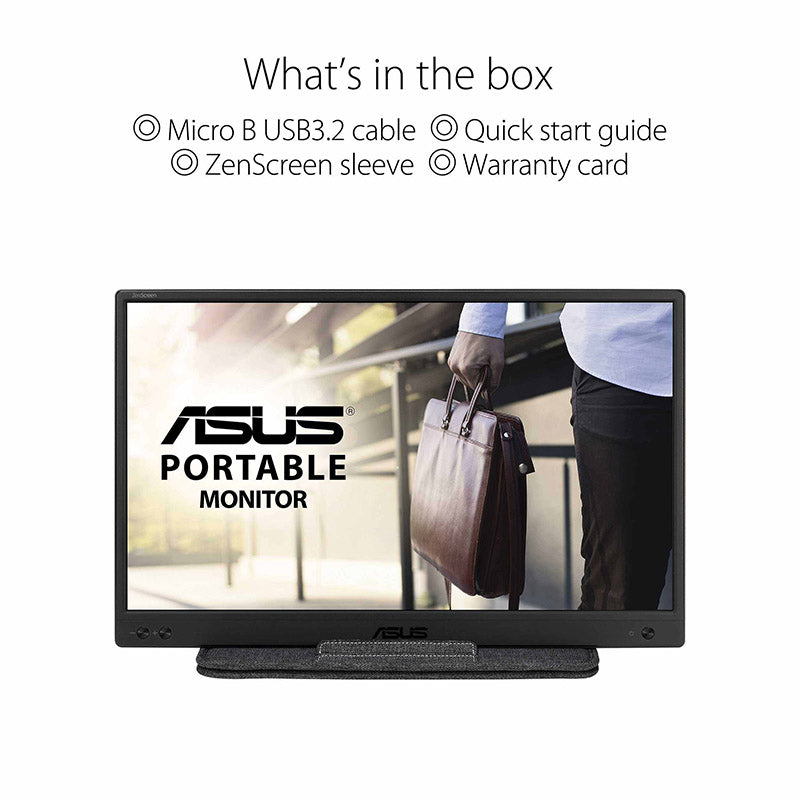

Accessories (vary by regions)

• Quick start guide
• USB 3.2 cable
• Warranty Card
• ZenScreen sleeve
