ASUS TUF GAMING Z790-PRO WIFI 6E Motherboard + Intel i7-14700K / i7-14700KF (14th GEN) Processor BUNDLE

$1,022.00 SGD

Sale Sold out

TUF Z790 BUNDLE TUF Z790-PRO +14700K TUF Z790-PRO+14700KF

Quantity

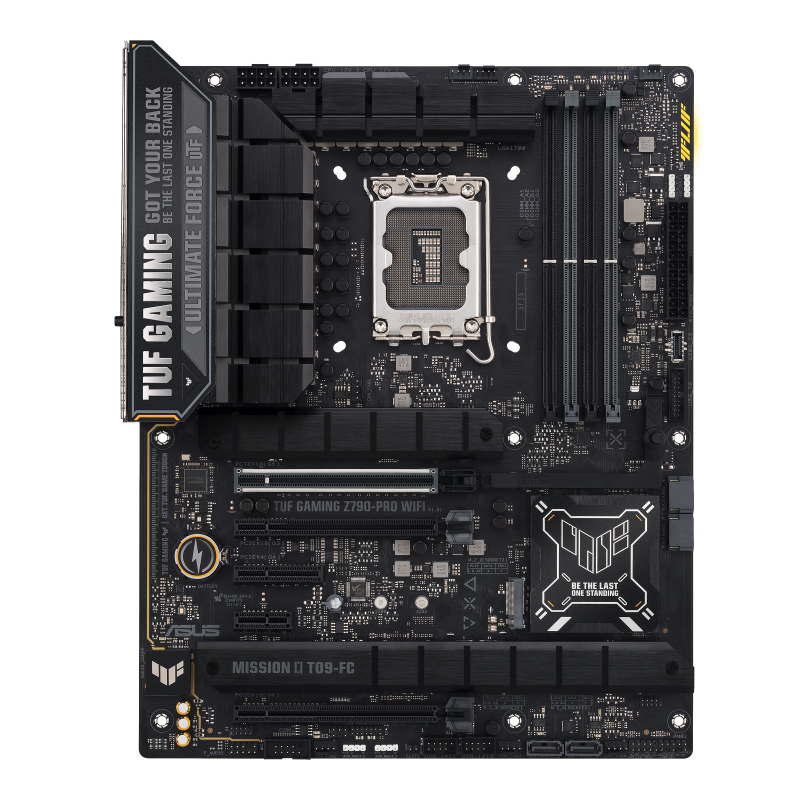

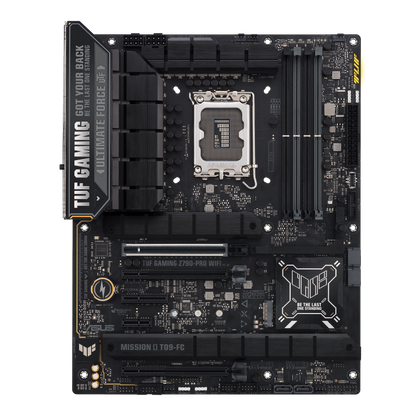

TUF GAMING Z790-PRO WIFI 6E

Intel® Z790 Chipset

TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.

16(60A)+1(60A)+1 power stages with enlarged VRM heatsinks
PCIe^® 5.0 for graphics cards
DDR5 - 7800+ MT/s, AEMP II
Front USB 20Gbps (USB Type-C^®) connector for PD 3.0 at 30W
WiFi 6E with ASUS WiFi Q-Antenna
PCIe Q-Release
AI OVERCLOCKING - Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
Two-Way AI Noise Cancelation

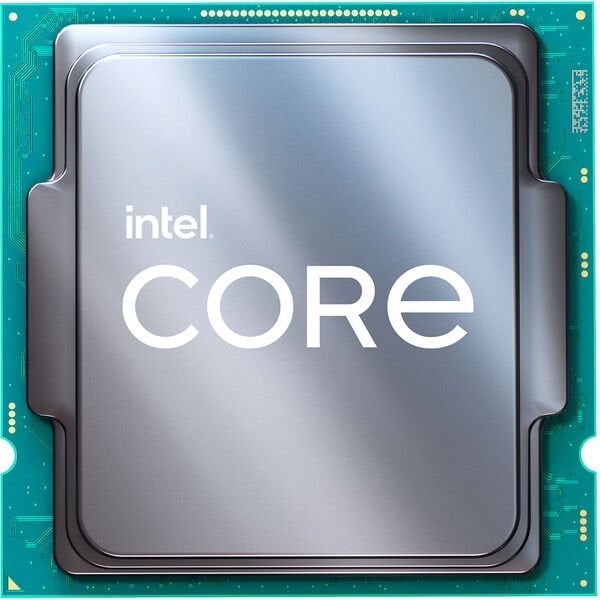

Intel® Core™ i7-14700K / i7-14700KF
(33M Cache, up to 5.60 GHz)

CPU Specifications

Total Cores - 20
# of Performance-cores - 8
# of Efficient-cores - 12
Total Threads - 28
Max Turbo Frequency - 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency ‡ - 5.6 GHz
Performance-core Max Turbo Frequency - 5.5 GHz
Efficient-core Max Turbo Frequency - 4.3 GHz
Performance-core Base Frequency - 3.4 GHz
Efficient-core Base Frequency - 2.5 GHz
Cache - 33 MB Intel® Smart Cache
Total L2 Cache - 28 MB
Processor Base Power - 125 W
Maximum Turbo Power - 253 W

Memory Specifications

Max Memory Size (dependent on memory type) - 192 GB
Memory Types - Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels - 2
Max Memory Bandwidth - 89.6 GB/s
ECC Memory Supported ‡ - Yes (i7-14000K) / No (i7-14700KF)

GPU Specifications (i7-14700K)

GPU Name‡ - Intel® UHD Graphics 770
Graphics Base Frequency - 300 MHz
Graphics Max Dynamic Frequency - 1.6 GHz
Graphics Output - eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units - 32
Max Resolution (HDMI)‡ - 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ - 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ - 5120 x 3200 @ 120Hz
DirectX* Support - 12
OpenGL* Support - 4.5
OpenCL* Support - 3.0
Multi-Format Codec Engines - 2
Intel® Quick Sync Video - Yes
Intel® Clear Video HD Technology - Yes
# of Displays Supported ‡ - 4
Device - ID0xA780

Expansion Options

Direct Media Interface (DMI) Revision - 4.0
Max # of DMI Lanes - 8
Scalability - 1S Only
PCI Express Revision - 5.0 and 4.0
PCI Express Configurations ‡ - Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes - 20

Package Specifications

Sockets Supported - FCLGA1700
Max CPU Configuration - 1
Thermal Solution Specification - CG 2020A
T_JUNCTION - 100 °C
Package Size - 5.0 mm x 37.5 mm
Max Operating Temperature - 100 °C

Advanced Technologies

Intel® Volume Management Device (VMD) - Yes
Intel® Gaussian & Neural Accelerator - 3.0
Intel® Thread Director - Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU - Yes
Intel® Speed Shift Technology - Yes
Intel® Turbo Boost Max Technology 3.0 ‡ - Yes
Intel® Turbo Boost Technology ‡ - 2.0
Intel® Hyper-Threading Technology ‡ - Yes
Intel® 64 ‡ - Yes
Instruction Set - 64-bit
Instruction Set Extensions - Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States - Yes
Enhanced Intel SpeedStep® Technology - Yes
Thermal Monitoring Technologies - Yes

Security Reliability (i7-14700K)

Intel vPro® Eligibility ‡ - Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
Intel® Threat Detection Technology (TDT) - - Yes
Intel® Active Management Technology (AMT) ‡ - Yes
Intel® Standard Manageability (ISM) ‡ - Yes
Intel® Remote Platform Erase (RPE) ‡ - Yes
Intel® One-Click Recovery ‡Yes Intel® Hardware Shield Eligibility ‡ - Yes
Intel® Control-Flow Enforcement Technology - Yes
Intel® Total Memory Encryption - Multi Key - Yes
Intel® AES New Instructions - Yes
Secure Key - Yes
Intel® OS Guard - Yes
Intel® Trusted Execution Technology ‡ - Yes
Execute Disable Bit ‡ - es
Intel® Boot Guard - Yes
Mode-based Execute Control (MBEC) - Yes
Intel® Stable IT Platform Program (SIPP) - Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ - Yes
Intel® Virtualization Technology (VT-x) ‡ - Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ - Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ -Yes
