ASUS TUF GAMING Z790-PRO WIFI 6E Motherboard + Intel i5-14600K / i5-14600KF (14th GEN) Processor BUNDLE

ASUS TUF GAMING Z790-PRO WIFI 6E Motherboard + Intel i5-14600K / i5-14600KF (14th GEN) Processor BUNDLE

Regular price $1,075.00 SGD
Regular price Sale price $1,075.00 SGD
Sale Sold out
TUF Z790 BUNDLE

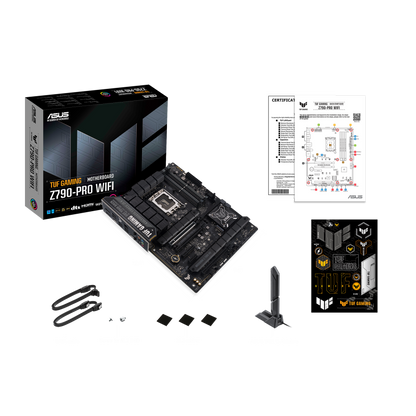

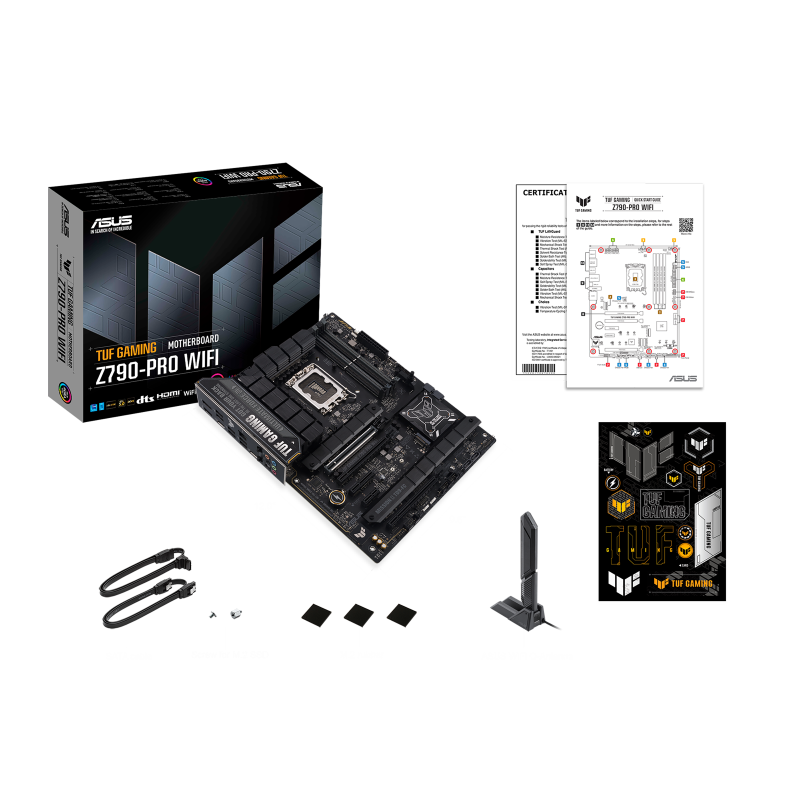

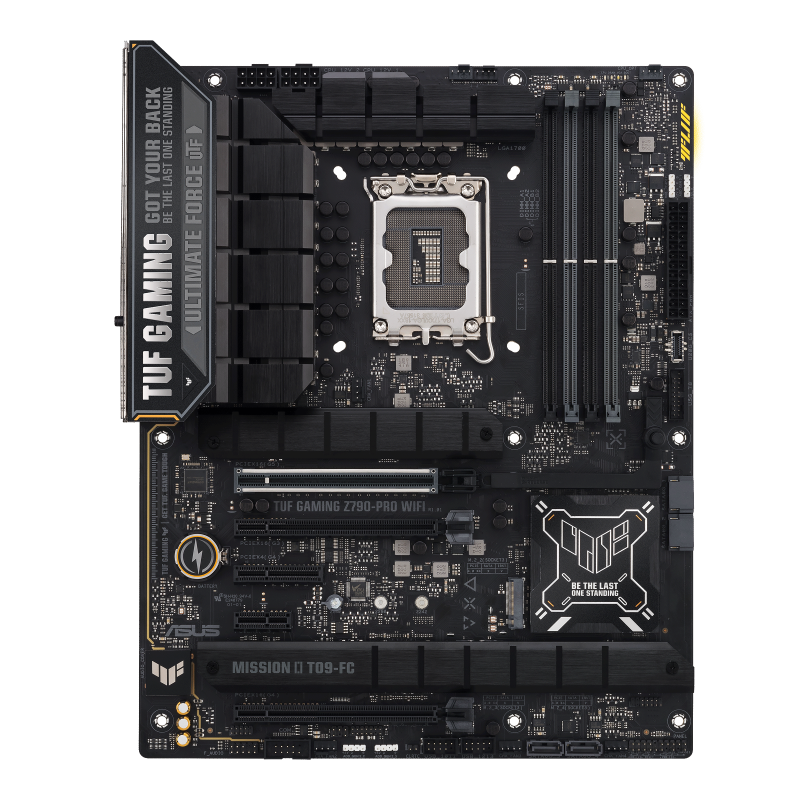

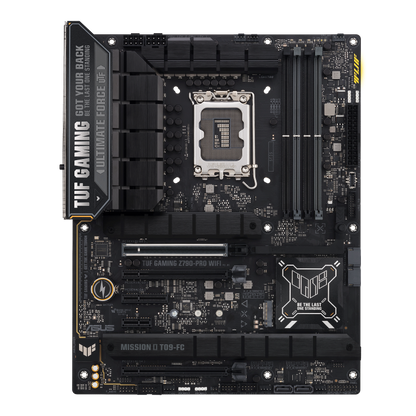

TUF GAMING Z790-PRO WIFI 6E

Intel® Z790 Chipset

TUF GAMING Z790-PRO WIFI combines the latest Intel® processors with game-ready features and military-grade durability. With its premium power solution and comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming. And it undergoes rigorous endurance testing to ensure reliability in challenging conditions. Meanwhile, a distinctive gray rubberized emblem adorns the VRM heatsink, celebrating the core essence of TUF GAMING vigor.

  • 16(60A)+1(60A)+1 power stages with enlarged VRM heatsinks
  • PCIe® 5.0 for graphics cards
  • DDR5 - 7800+ MT/s, AEMP II
  • Front USB 20Gbps (USB Type-C®) connector for PD 3.0 at 30W
  • WiFi 6E with ASUS WiFi Q-Antenna
  • PCIe Q-Release
  • AI OVERCLOCKING - Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
  • Two-Way AI Noise Cancelation

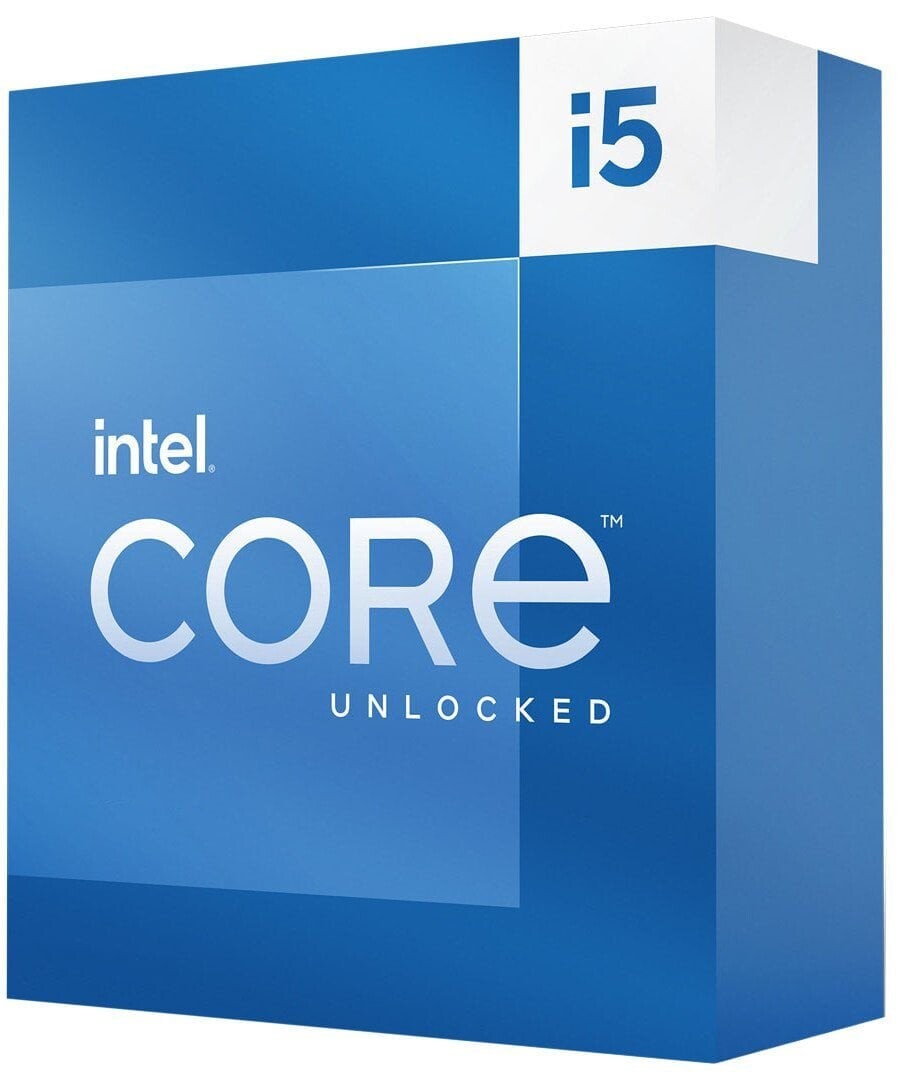

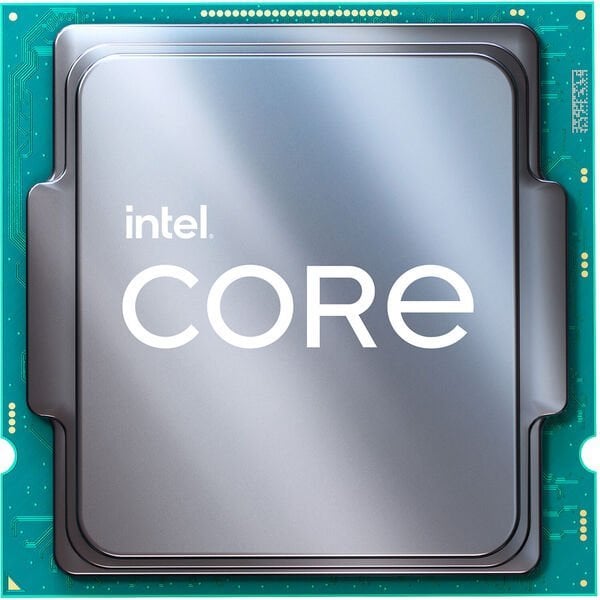

Intel® Core™ i5-14600K / i5-14600KF
(24M Cache, up to 5.30 GHz)

CPU Specifications

  • Total Cores - 14
  • # of Performance-cores - 6
  • # of Efficient-cores - 8
  • Total Threads - 20
  • Max Turbo Frequency - 5.3 GHz
  • Performance-core Max Turbo Frequency - 5.3 GHz
  • Efficient-core Max Turbo Frequency - 4 GHz
  • Performance-core Base Frequency - 3.5 GHz
  • Efficient-core Base Frequency - 2.6 GHz
  • Cache - 24 MB Intel® Smart Cache
  • Total L2 Cache - 20 MB
  • Processor Base Power - 125 W
  • Maximum Turbo Power - 181 W

Memory Specifications

  • Max Memory Size (dependent on memory type) - 192 GB
  • Memory Types - Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
  • Max # of Memory Channels - 2
  • Max Memory Bandwidth - 89.6 GB/s
  • ECC Memory Supported ‡ - Yes (i5-14600K) / No (i5-14600KF)

GPU Specifications (i5-14600K)

  • GPU Name‡ - Intel® UHD Graphics 770
  • Graphics Base Frequency - 300 MHz
  • Graphics Max Dynamic Frequency - 1.55 GHz
  • Graphics Output - eDP 1.4b, DP 1.4a, HDMI 2.1
  • Execution Units 32
  • Max Resolution (HDMI)‡ - 4096 x 2160 @ 60Hz
  • Max Resolution (DP)‡ - 7680 x 4320 @ 60Hz
  • Max Resolution (eDP - Integrated Flat Panel)‡ - 5120 x 3200 @ 120Hz
  • DirectX* Support - 12
  • OpenGL* Support - 4.5
  • OpenCL* Support - 3.0
  • Multi-Format Codec Engines - 2
  • Intel® Quick Sync Video - Yes
  • Intel® Clear Video HD Technology - Yes
  • # of Displays Supported ‡ - 4
  • Device - ID0xA780

Expansion Options

  • Direct Media Interface (DMI) Revision - 4.0
  • Max # of DMI Lanes - 8
  • Scalability - 1S Only
  • PCI Express Revision - 5.0 and 4.0
  • PCI Express Configurations ‡ - Up to 1x16+4, 2x8+4
  • Max # of PCI Express Lanes - 20

Package Specifications

  • Sockets Supported - FCLGA1700
  • Max CPU Configuration - 1
  • Thermal Solution Specification - PCG 2020A
  • TJUNCTION - 100 °C
  • Package Size - 45.0 mm x 37.5 mm
  • Max Operating Temperature - 100 °C

Advanced Technologies

  • Intel® Volume Management Device (VMD) - Yes
  • Intel® Gaussian & Neural Accelerator - 3.0
  • Intel® Thread Director - Yes
  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU - Yes
  • Intel® Speed Shift Technology - Yes
  • Intel® Turbo Boost Technology ‡ - 2.0
  • Intel® Hyper-Threading Technology ‡ - Yes
  • Intel® 64 ‡ - Yes
  • Instruction Set - 64-bit
  • Instruction Set Extensions - Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States - Yes
  • Enhanced Intel SpeedStep® Technology - Yes
  • Thermal Monitoring Technologies - Yes

Security Reliability (i5-14600K)

  • Intel vPro® Eligibility ‡ - Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
  • Intel® Threat Detection Technology (TDT) - Yes
  • Intel® Active Management Technology (AMT) ‡ - Yes
  • Intel® Standard Manageability (ISM) ‡ - Yes
  • Intel® Remote Platform Erase (RPE) ‡ - Yes
  • Intel® One-Click Recovery ‡ -Yes
  • Intel® Hardware Shield Eligibility ‡ - Yes
  • Intel® Control-Flow Enforcement Technology - Yes
  • Intel® Total Memory Encryption - Multi Key - Yes
  • Intel® AES New Instructions - Yes
  • Secure Key - Yes
  • Intel® OS Guard - Yes
  • Intel® Trusted Execution Technology ‡ - Yes
  • Execute Disable Bit ‡ - Yes
  • Intel® Boot Guard - Yes
  • Mode-based Execute Control (MBEC) - Yes
  • Intel® Stable IT Platform Program (SIPP) - Yes
  • Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ -Yes
  • Intel® Virtualization Technology (VT-x) ‡ - Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d) ‡ - Yes
  • Intel® VT-x with Extended Page Tables (EPT) ‡ - Yes

Security Reliability (i5-14600KF)

  • Intel® Standard Manageability (ISM) ‡ - Yes
  • Intel® Control-Flow Enforcement Technology - Yes
  • Intel® AES New Instructions - Yes
  • Secure Key - Yes
  • Intel® OS Guard - Yes
  • Execute Disable Bit ‡ - Yes
  • Intel® Boot Guard - Yes
  • Mode-based Execute Control (MBEC) - Yes
  • Intel® Virtualization Technology (VT-x) ‡ - Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d) ‡ - Yes
  • Intel® VT-x with Extended Page Tables (EPT) ‡ - Yes
