ASUS

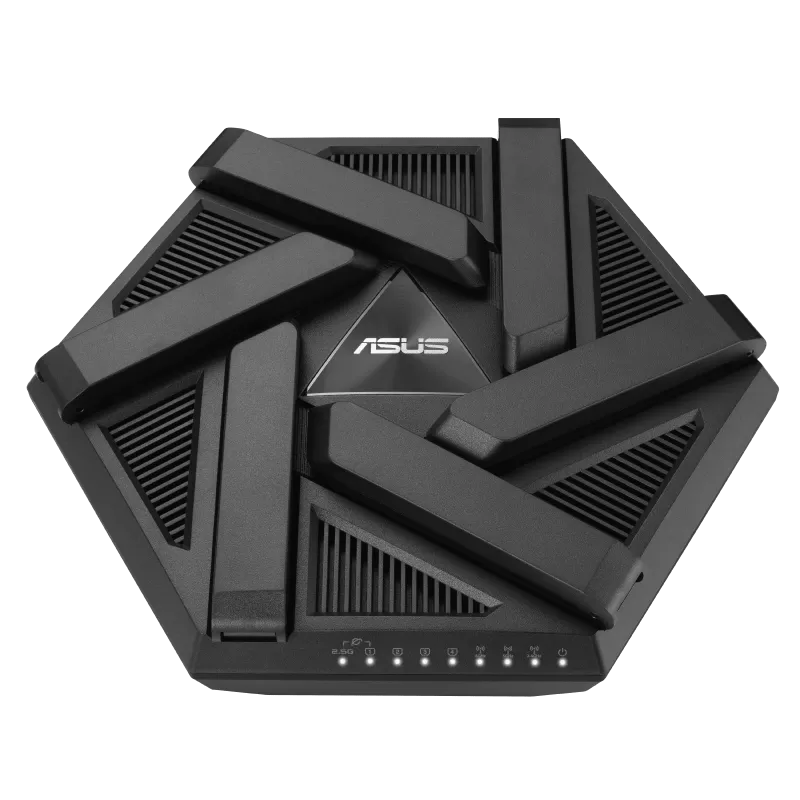

ASUS RT-AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation

ASUS RT-AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation

Regular price $419.00 SGD
Regular price Sale price $419.00 SGD
Sale Sold out

ASUS RT-AXE7800 Tri-Band WiFi 6E (802.11ax) Extendable Router

New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation

  • Ultra-fast WiFi 6E Technology - The whole-new 6 GHz band dramatically increases network capacity, delivering higher WiFi performance and more stable connectivity with speeds up to 7800 Mbps.
  • One-Tap Safe Browsing - Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.
  • Enhanced Security Anywhere - Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.
  • Free Parental Controls - More flexible customizations to protect your kids online.
  • AiMesh Supported - Expand your wireless network with ASUS AiMesh-compatible routers and enjoy powerful, flexible and seamless whole-home WiFi.

TECH SPECIFICATIONS

Model : RT-AXE7800

Network Standard :

  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • WiFi 4 (802.11n)
  • WiFi 5 (802.11ac)
  • WiFi 6 (802.11ax)
  • WiFi 6E (802.11ax)
  • IPv4
  • IPv6

Product Segment : AXE7800 ultimate AX performance : 574+4804+2402 Mbps

WiFi Data Rate :

  • 802.11a : up to 54 Mbps
  • 802.11b : up to 11 Mbps
  • 802.11g : up to 54 Mbps
  • WiFi 4 (802.11n) : up to 300 Mbps
  • WiFi 5 (802.11ac) : up to 500 Mbps
  • WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
  • WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
  • WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
  • WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps

Antenna External : antenna x 6 (non-detachable)

Transmit / Receive :

  • 2.4GHz 2x2
  • 5GHz 4x4
  • 6GHz 2x2

Processor : 1.7GHz quad-core processor

Memory : 256 MB Flash and 512 MB DDR4 RAM

Boosts Speed :

  • OFDMA (Orthogonal Frequency Division Multiple Access)
  • Beamforming: standard-based and universal
  • 1024-QAM high data rate
  • 20/40/80/160 MHz bandwidth

Operating Frequency :

Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz

Operating Mode :

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

I/O Ports :

  • RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
  • RJ45 for Gigabits BaseT for WAN/LAN x 1,
  • RJ45 for Gigabits BaseT for LAN x 3,
  • USB 3.2 Gen 1 Port x 1,

Buttons :

  • Power on/off switch
  • Reset Button
  • WPS Button

LED Indicator :

  • Power x 1
  • 2.4GHz x 1
  • 5GHz x 1
  • 6HGz x 1
  • 2.5G WAN/LAN1 x 1
  • 1G WAN/LAN1 x 1
  • 1G LAN x 3

Power Supply :

  • AC Input : 110V~240V(50~60Hz)
  • DC Output: 12 V with max. 3.0 A current

Package Content :

  • RT-AXE7800 WiFi Router
  • RJ-45 Cable
  • Power Adapter
  • Quick Start Guide
  • Warranty Card

Product Weight (g) : 1033g

Product Dimensions : 243*223*155 mm

AiMesh :

  • AiMesh
    • Primary AiMesh Router
    • AiMesh Node

Parental Control :

  • "Allow you to block access to unwanted websites and apps."
  • Safe Browsing
  • Customized Internet Schedule
    • Maximum Parental Control Profile : 64
    • Maximum Parental Control Content Cilter Rule : 64

Guest Network :

  • "The Guest Network provides Internet connection for guests but restricts access to your local network."
    • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
  • Guest Network Connection Time Limit
  • Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

Security :

  • AiProtection
  • WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
  • WPS
  • Let's Encrypt
  • DNS-over-TLS
  • SSH
  • Security Scan
  • Firewall
    • Maximum Firewall Keyword Filter : 64
    • Maximum Firewall Network Service Filter : 32
    • Maximum Firewall URL Filter : 64

AiProtection :

  • Router Security Assessment
  • Malicious Site Blocking
  • Two-Way IPS
  • Infected Device Prevention and Blocking

VPN :

  • Instant Guard
  • VPN Client L2TP
  • VPN Client Open VPN
  • VPN Client PPTP
  • VPN Client WireGuard
  • VPN Server IPSec
  • VPN Server Open VPN
  • VPN Server PPTP
  • VPN Server WireGuard
  • VPN Fusion

Traffic Control :

    • Adaptive QoS
      • Bandwidth Monitor
      • Bandwidth Limiter
        -- Maximum Bandwidth Limiter Rule : 32

    • Traditional QoS
      -- Maximum Traditional QoS Rule : 32

    • Traffic Monitor
      • Real-time Traffic Monitor
      • Wired Traffic Monitor
      • Wireless Traffic Monitor

    • Traffic Analyzer
      • Traffic Analysis Period : Daily, Weekly, Monthly
      • Website History

    WAN :

      • Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
      • Dual WAN
      • WAN Aggregation
      • 3G / 4G LTE dongle

      • Port forwarding
        • Maximum Port Forwarding Rule : 64

      • Port triggering
        • Maximum Port Triggering Rule : 32

      • DMZ
      • DDNS
      • NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay

      LAN :

      • DHCP Server
      • IGMP Snooping
      • IPTV
      • LAN Link Aggregation

      • Manually Assign IP Address
        • Maximum Manually Assign IP Address Rule : 64

      • Wake on LAN (WOL)

      Wireless :

      • MU-MIMO
      • UTF-8 SSID

      • WiFi MAC Address Filter
        • Maximum MAC Filters : 64

      • Wireless Scheduler
      • Airtime Fairness
      • RADIUS Client
      • Universal Beamforming
      • Explicit Beamforming

      USB application :

      • File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
      • Safely Remove Disk
      • AiCloud
      • Download Master
      • AiDisk
      • Media Server
      • Time Machine
      • Samba Server
      • FTP Server
      • Shared Folder Privileges

      Administration :

      • Configuration Backup and Restore
      • Diagnosis tools
      • Feedback System
      • System Log
      • New Device Connect Notification
      • Login Captcha
      • Connection Diagnosis
      • Auto Firmware Update
