ASUS ROG STRIX Z790-F GAMING WIFI II Motherboard + Intel i5-14600K / i5-14600KF (14th GEN) Processor BUNDLE

$1,285.00 SGD

Sale Sold out

Z790-F BUNDLE Z790-F +14600K Z790-F +14600KF

Quantity

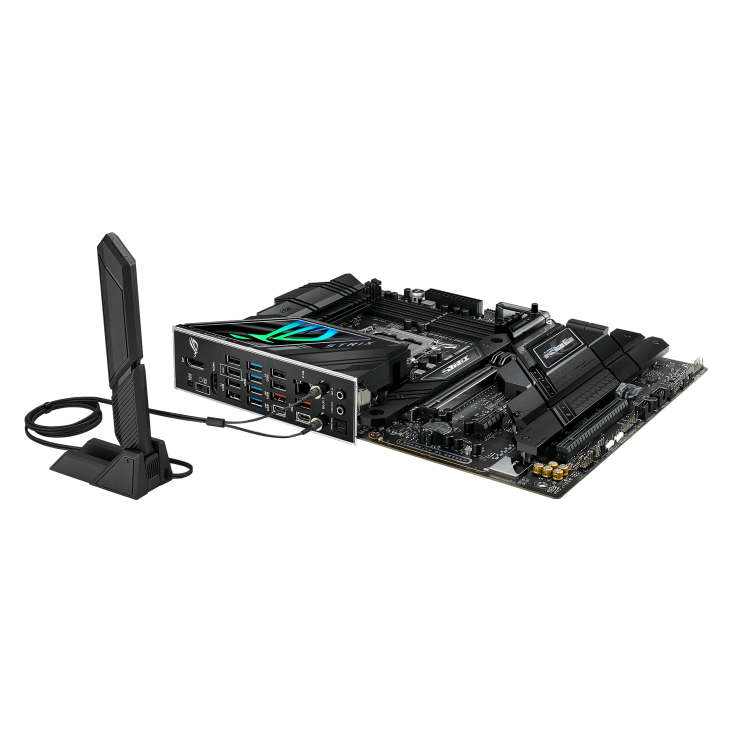

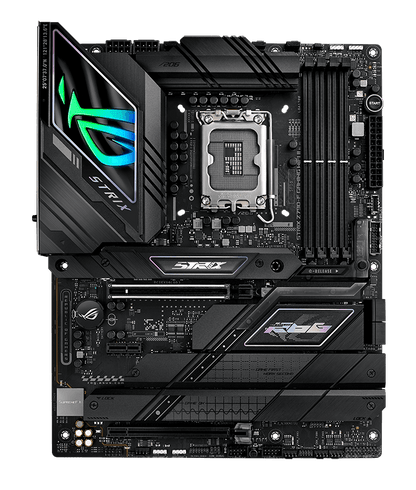

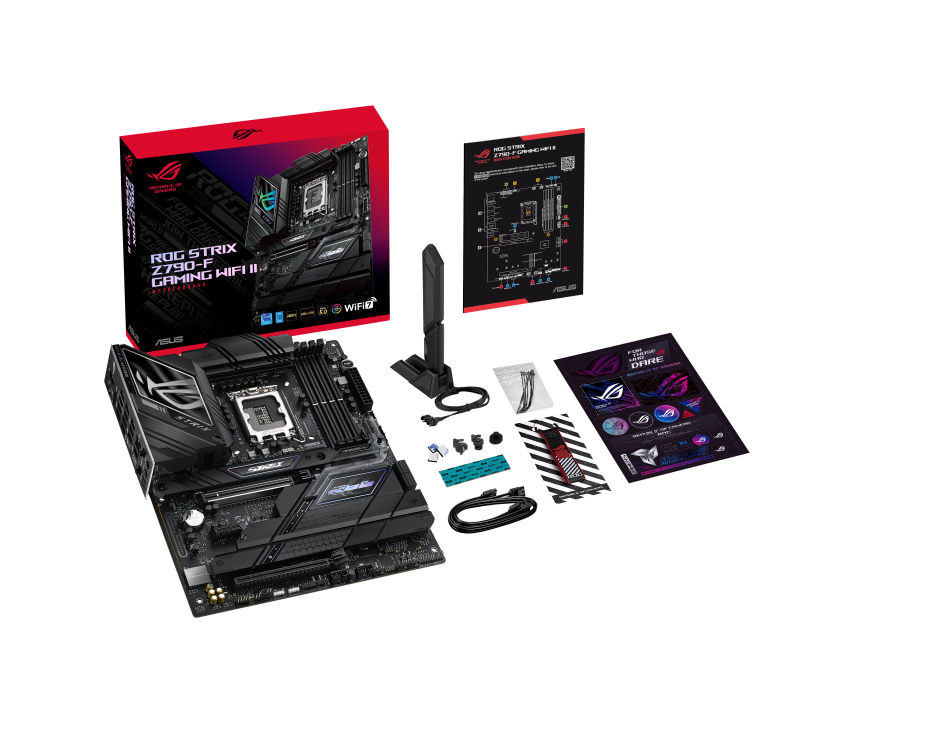

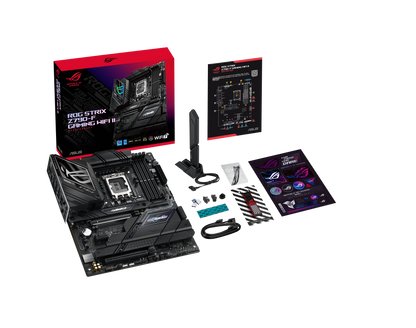

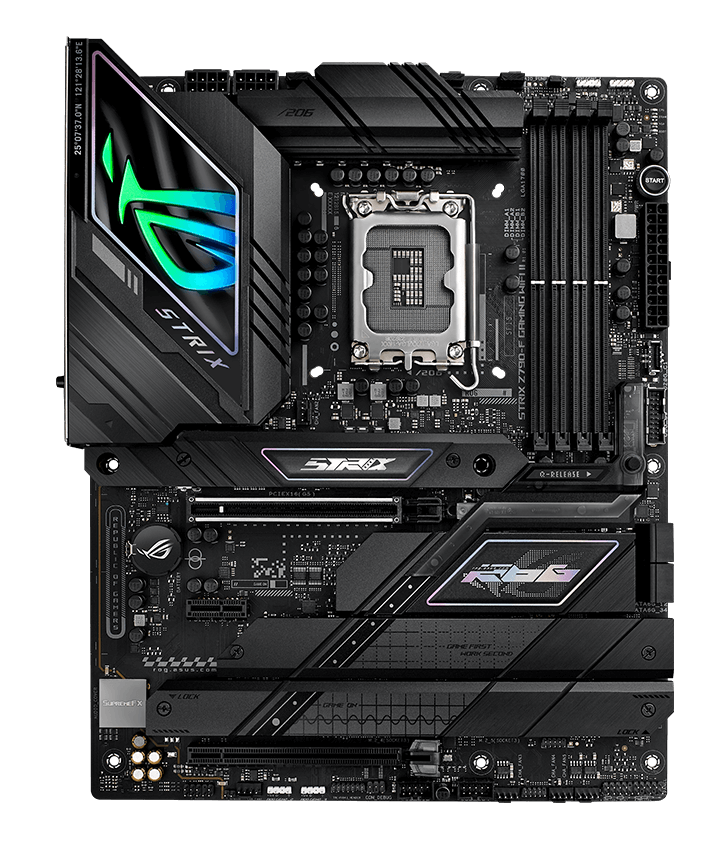

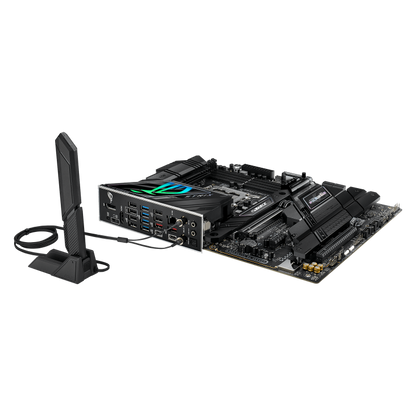

ROG Strix Z790-F Gaming WiFi II

Intel® Z790 Chipset

The ROG Strix Z790-F II strikes from the shadows with a flurry of advanced power and features to elevate the latest Intel^® processors, graphics cards, storage and wireless networking to the next level. Armed with enhanced DDR5 support, ample cooling, PCIe 5.0 and WiFi 7, this high-performance ninja is ready for the toughest of missions. This platform delivers the power and connectivity that advanced AI PC applications demand.

Supports Intel^® Socket LGA1700 for Intel^® Core™ 14^th & 13^th Gen Processors, Intel^® Core™ 12^th Gen, Pentium^® Gold and Celeron^® Processors
WIFI 7 - With Multi-Link Operation (MLO)*, WiFi 7** can outperform WiFi 6E to deliver faster speeds, higher reliability and increased data transfer efficiency.
Intel 2.5Gb Ethernet - Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel^® 2.5 Gbps Ethernet.
Robust Power Solution 16+1+2
GEN 5 Support - x1 PCIe 5.0 x16 slot
AI COOLING II - One-click fan tuning
USB 20Gbps - x1 I/O port, and x1 connector for PD 3.0 at 30W
DDR5 - 8000+ MT/s, AEMP II, XMP
DIY - Friendly Design
AI OVERCLOCKING - Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

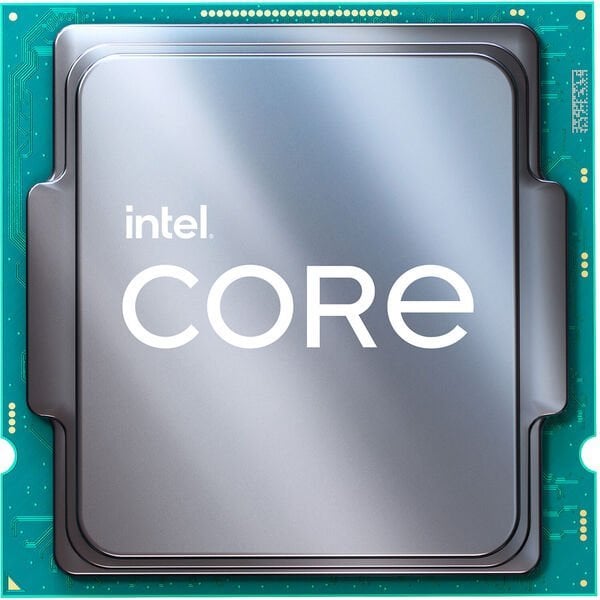

Intel® Core™ i5-14600K / i5-14600KF
(24M Cache, up to 5.30 GHz)

CPU Specifications

Total Cores - 14
# of Performance-cores - 6
# of Efficient-cores - 8
Total Threads - 20
Max Turbo Frequency - 5.3 GHz
Performance-core Max Turbo Frequency - 5.3 GHz
Efficient-core Max Turbo Frequency - 4 GHz
Performance-core Base Frequency - 3.5 GHz
Efficient-core Base Frequency - 2.6 GHz
Cache - 24 MB Intel® Smart Cache
Total L2 Cache - 20 MB
Processor Base Power - 125 W
Maximum Turbo Power - 181 W

Memory Specifications

Max Memory Size (dependent on memory type) - 192 GB
Memory Types - Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels - 2
Max Memory Bandwidth - 89.6 GB/s
ECC Memory Supported ‡ - Yes (i5-14600K) / No (i5-14600KF)

GPU Specifications (i5-14600K)

GPU Name‡ - Intel® UHD Graphics 770
Graphics Base Frequency - 300 MHz
Graphics Max Dynamic Frequency - 1.55 GHz
Graphics Output - eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units 32
Max Resolution (HDMI)‡ - 4096 x 2160 @ 60Hz
Max Resolution (DP)‡ - 7680 x 4320 @ 60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ - 5120 x 3200 @ 120Hz
DirectX* Support - 12
OpenGL* Support - 4.5
OpenCL* Support - 3.0
Multi-Format Codec Engines - 2
Intel® Quick Sync Video - Yes
Intel® Clear Video HD Technology - Yes
# of Displays Supported ‡ - 4
Device - ID0xA780

Expansion Options

Direct Media Interface (DMI) Revision - 4.0
Max # of DMI Lanes - 8
Scalability - 1S Only
PCI Express Revision - 5.0 and 4.0
PCI Express Configurations ‡ - Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes - 20

Package Specifications

Sockets Supported - FCLGA1700
Max CPU Configuration - 1
Thermal Solution Specification - PCG 2020A
T_JUNCTION - 100 °C
Package Size - 45.0 mm x 37.5 mm
Max Operating Temperature - 100 °C

Advanced Technologies

Intel® Volume Management Device (VMD) - Yes
Intel® Gaussian & Neural Accelerator - 3.0
Intel® Thread Director - Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU - Yes
Intel® Speed Shift Technology - Yes
Intel® Turbo Boost Technology ‡ - 2.0
Intel® Hyper-Threading Technology ‡ - Yes
Intel® 64 ‡ - Yes
Instruction Set - 64-bit
Instruction Set Extensions - Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States - Yes
Enhanced Intel SpeedStep® Technology - Yes
Thermal Monitoring Technologies - Yes

Security Reliability (i5-14600K)

Intel vPro® Eligibility ‡ - Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
Intel® Threat Detection Technology (TDT) - Yes
Intel® Active Management Technology (AMT) ‡ - Yes
Intel® Standard Manageability (ISM) ‡ - Yes
Intel® Remote Platform Erase (RPE) ‡ - Yes
Intel® One-Click Recovery ‡ -Yes
Intel® Hardware Shield Eligibility ‡ - Yes
Intel® Control-Flow Enforcement Technology - Yes
Intel® Total Memory Encryption - Multi Key - Yes
Intel® AES New Instructions - Yes
Secure Key - Yes
Intel® OS Guard - Yes
Intel® Trusted Execution Technology ‡ - Yes
Execute Disable Bit ‡ - Yes
Intel® Boot Guard - Yes
Mode-based Execute Control (MBEC) - Yes
Intel® Stable IT Platform Program (SIPP) - Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡ -Yes
Intel® Virtualization Technology (VT-x) ‡ - Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ - Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ - Yes
