ASUS ROG STRIX Z790-A Z790A Z790 A GAMING WIFI ATX Motherboard
Wi-Fi 6E LGA1700(PCIe5.0, DDR5 , 4x M.2) (intel 13th gen)
-
Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™ processors & 12th Gen Intel Core™, Pentium® Gold and Celeron® Processors
-
Robust Power Solution: 16 + 1 power solution rated for 70A per stage with dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors
-

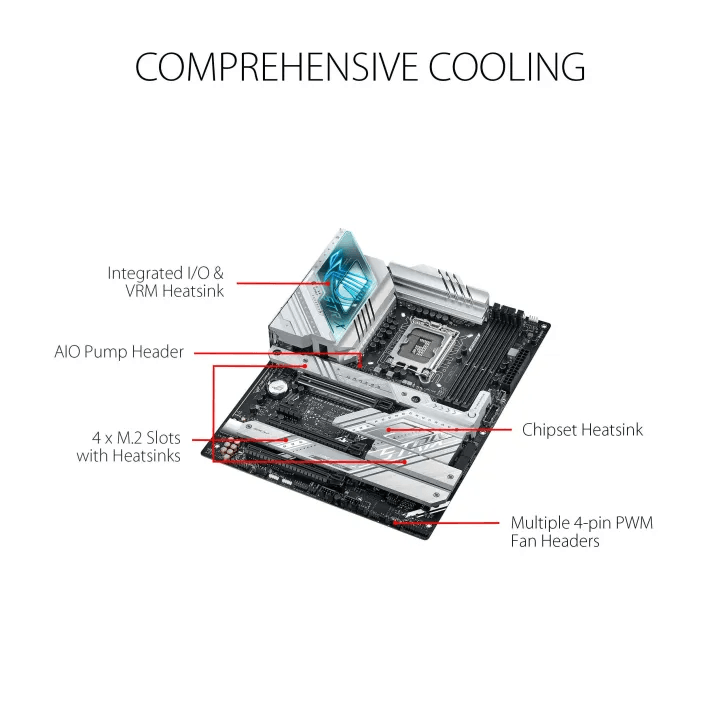

Optimized VRM Thermals: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads.
-
Ample M.2 Support: One PCIe 4.0 M.2 slot with a heatsink and backplate, and three PCIe 4.0 M.2 slots with heatsinks
-
Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port and additional front-panel connector with PD 3.0 up to 30W, USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4
-
High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
-
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking, and Two-Way AI Noise Cancelation simplifies setup and improves performance
-
Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
-
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and addressable Gen 2 headers
-
DIY-friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, Q-LED, BIOS FlashBack™ button, BIOS FlashBack LED, and Clear CMOS button

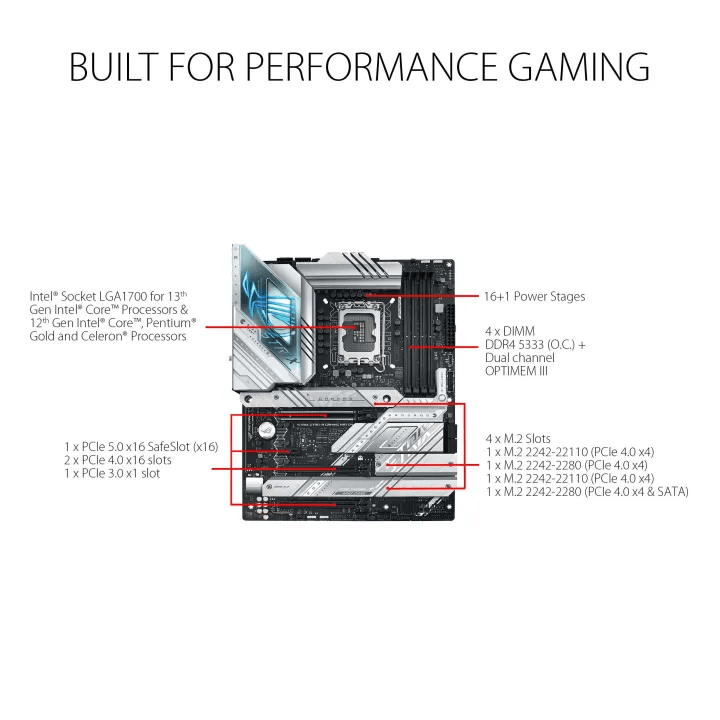

SPECIFICATIONS
CPU
• Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
CHIPSET: Intel® Z790 Chipset
MEMORY
• 4 x DIMM, Max. 192GB, DDR5
• 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
GRAPHICS
• 1 x DisplayPort**
• 1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
EXPANSION SLOTS
• Intel® Core™ Processors (14th & 13th & 12th Gen)*: 1 x PCIe 5.0 x16 slot
• Intel® Z790 Chipset
- 2 x PCIe 4.0 x16 slots (support x4 mode)
- 1 x PCIe 3.0 x1 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
STORAGE
• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
‣ Intel® Core™ Processors (14th & 13th & 12th Gen): M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
‣ Intel® Z790 Chipset
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports*
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
ETHERNET
• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
WIRELESS & BLUETOOTH
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth® v5.3
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
• Rear USB (Total 10 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
- 4 x USB 3.2 Gen 1 ports (4 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 7 ports)
- 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
- 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers supports 4 additional USB 2.0 ports

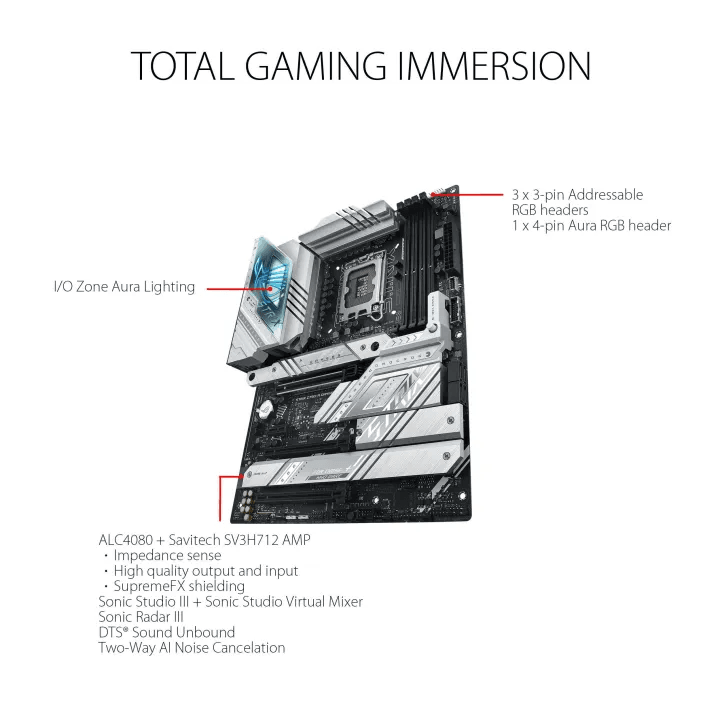

AUDIO
• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
• Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
*The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

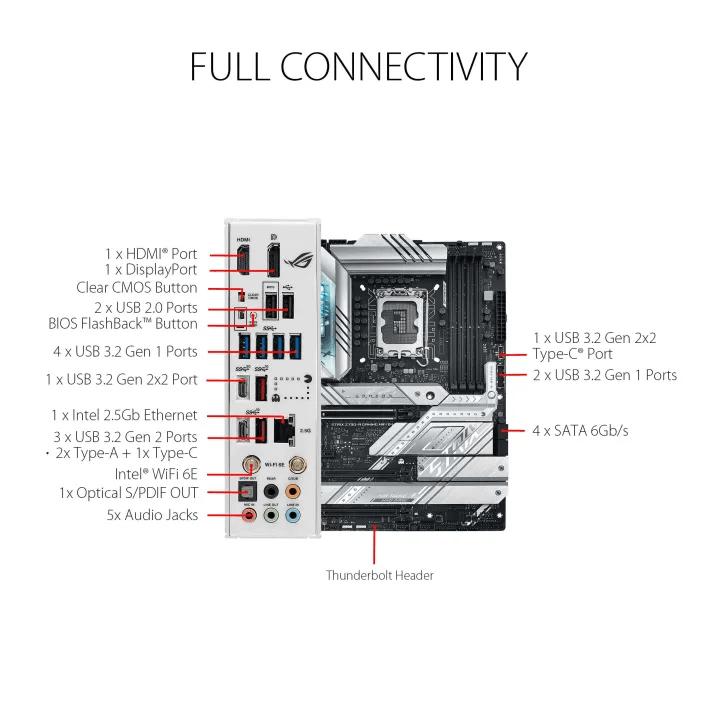

BACK PANEL I/O PORTS
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
MANAGEABILITY: WOL by PME, PXE

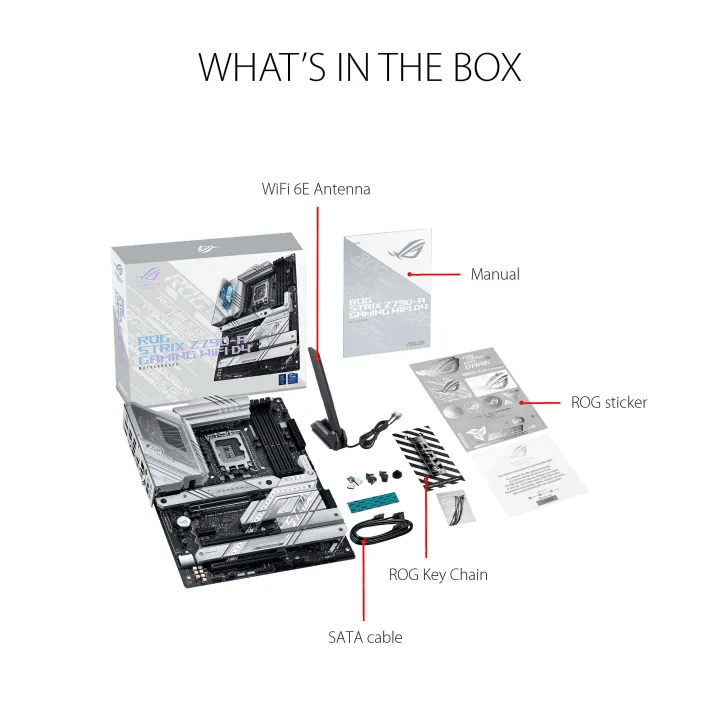

ACCESSORIES
• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties package
• 1 x M.2 backplate Q-Latch package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 2 x M.2 Rubber Packages
• 1 x M.2 backplate Rubber
• 1 x User guide
Operating System: Windows® 11, Windows® 10 64-bit
Form Factor
• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm)
