(Fully Modular Power Supply, 80 Plus® Gold Certified, ATX 3.0, Cybenetics Lambda A+ Certification ,PCIe Gen 5.0 Ready, Axial-tech Fan, Aura Sync, 10 Year Warranty)
Exude Power
The ROG Strix 1200W Gold Aura Edition combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it’s a pumped-and-primed PSU powerhouse for your next gaming rig.
FEATURES

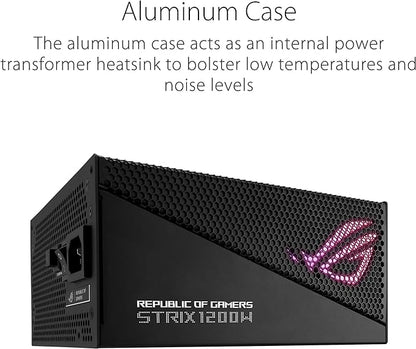

Features an Aluminum Case that is coupled to the internal power transformer, helping to reduce temperatures and noise levels. heatsink to reduce temperatures and noise levels.
Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.

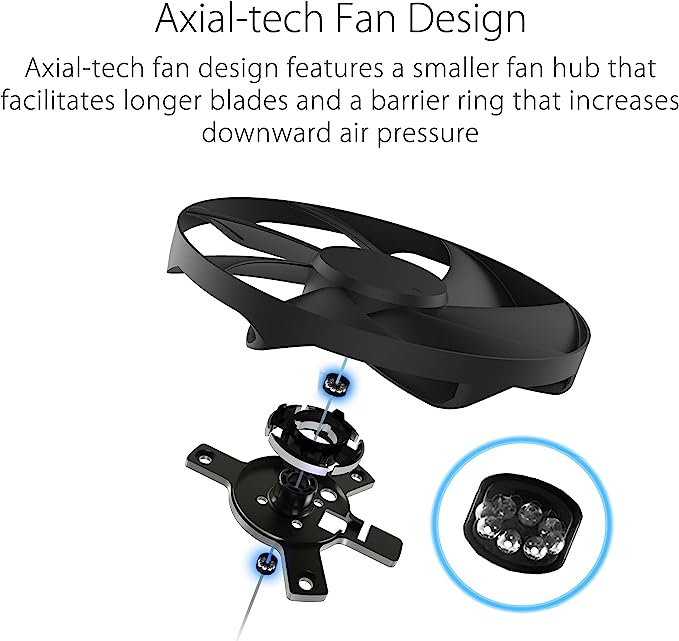

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
0dB Technology lets you enjoy light gaming in relative silence.

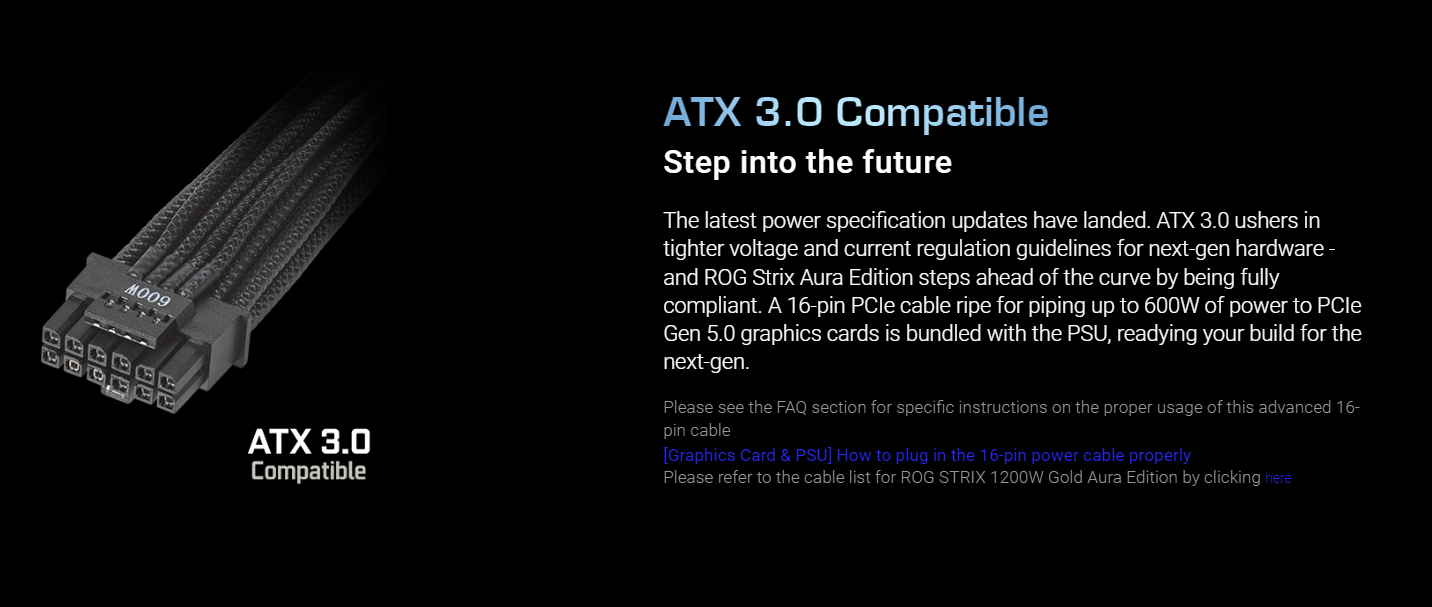

ATX 3.0 Compatible: ROG Strix Aura Edition is compliant with ATX 3.0 guidelines and comes with a 16-pin PCIe cable that can pipe up to 600W of power to PCIe Gen 5.0 graphics cards.

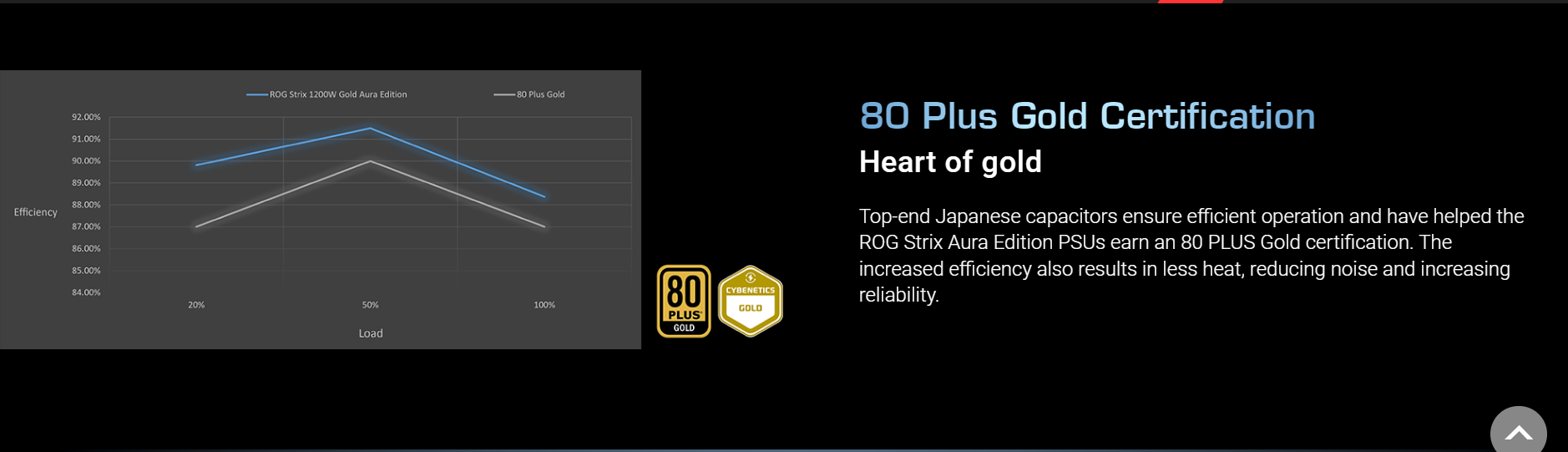

An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

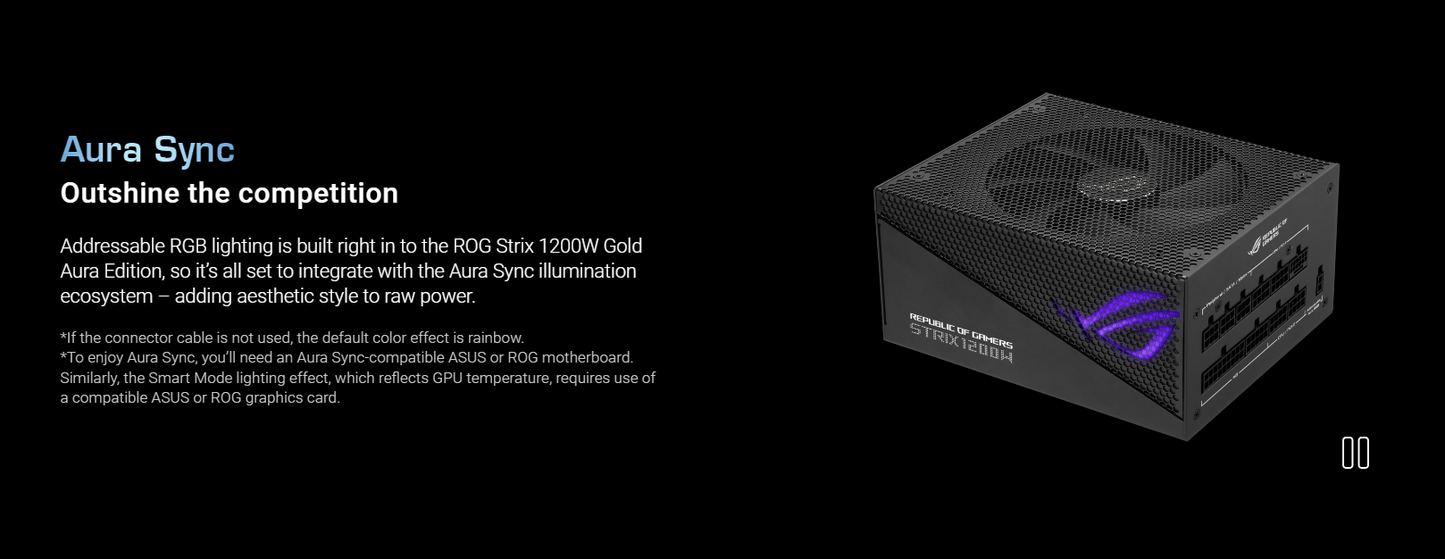

Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware.
10-year warranty included.
SPECIFICATIONS
MODEL: ROG STRIX 1200W Gold Aura Edition INTEL FORM FACTOR: ATX12V PFC TYPE: Active PFC ATX 3.0: Yes DIMENSIONS: 180 x 150 x 86 mm EFFICIENCY: 80Plus Gold PROTECTION FEATURES: OPP/OVP/UVP/SCP/OCP/OTP HAZARDOUC MATERIALS: ROHS AC INPUT RANGE: 100 - 240Vac DC OUTPUT VOLTAGE: +3.3V +5V +12V -12V +5Vsb MAXIMUM LOAD: 22A 22A 100A 0.3A 3A COMBINED LOAD: 120W 120W 1200W 3.6W 15W TOTAL OUTPUT: 1200W
CABLE CONNECTORS • MB 24/20-PIN X 1 • CPU 4+4PIN X 2 • PCI-E 16-pin x 1 (both PSU & component side) • PCI-E 8-pin x 4 • SATA x 5 • PERIPHERAL x 4
PACKAGE CONTENTS • Power Cord x 1 • Motherboard Power Cable x 1 (600mm) • CPU Cable x 2 (650mm) • PCI-E Gen 5 16-pin Cable x 1 (675mm) • PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) • PCI-E 1-to-1 Cable x 2 (675mm) • SATA 1-to-2 Cable x 1 (400+120mm) • SATA 1-to-3 Cable x 1 (400+120+120mm) • Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) • Addressable RGB Cable x 1 (800mm) • User Manual x 1
WEIGHT: 3.23 kg (single PSU) AURA SYNC: ARGB CYBENETICS NOISE LEVEL CERTIFICATION: A+ 0dB TECHNOLOGY: Supported. The fan shuts off entirely when the PSU is under certain load

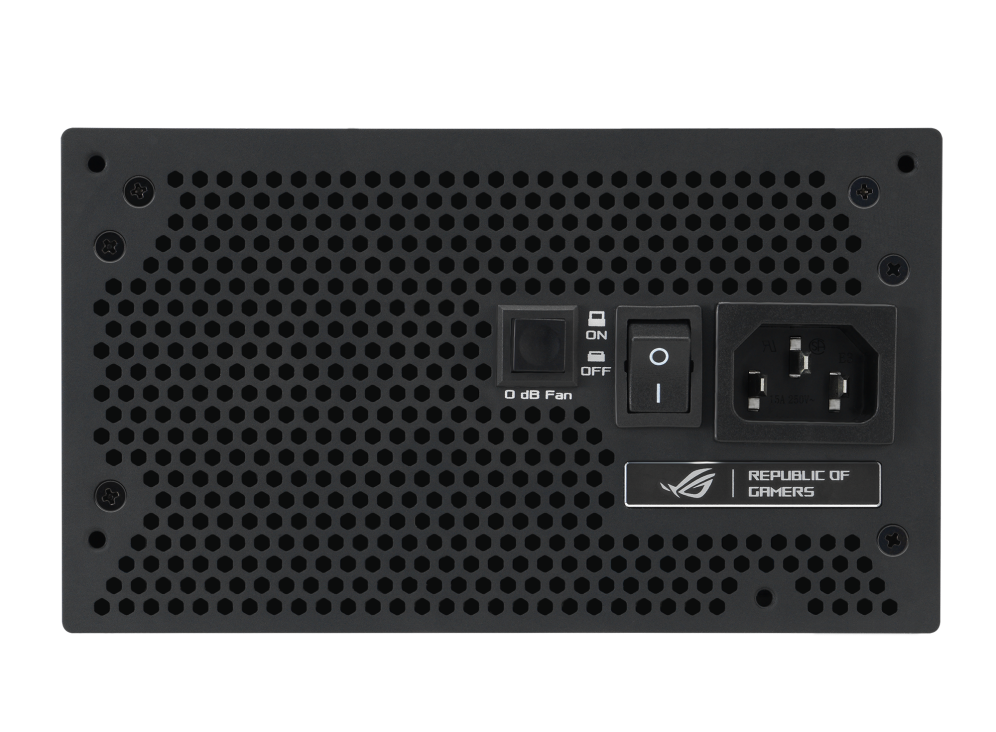

0dB Fan Button: Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
